Semi-Automatic Low Viscosity 2K Adhesive Filling & Capping Machine – Vacuum Pressure Tank Feed for 50ml and 490ml 10:1 Dual-Component Cartridges

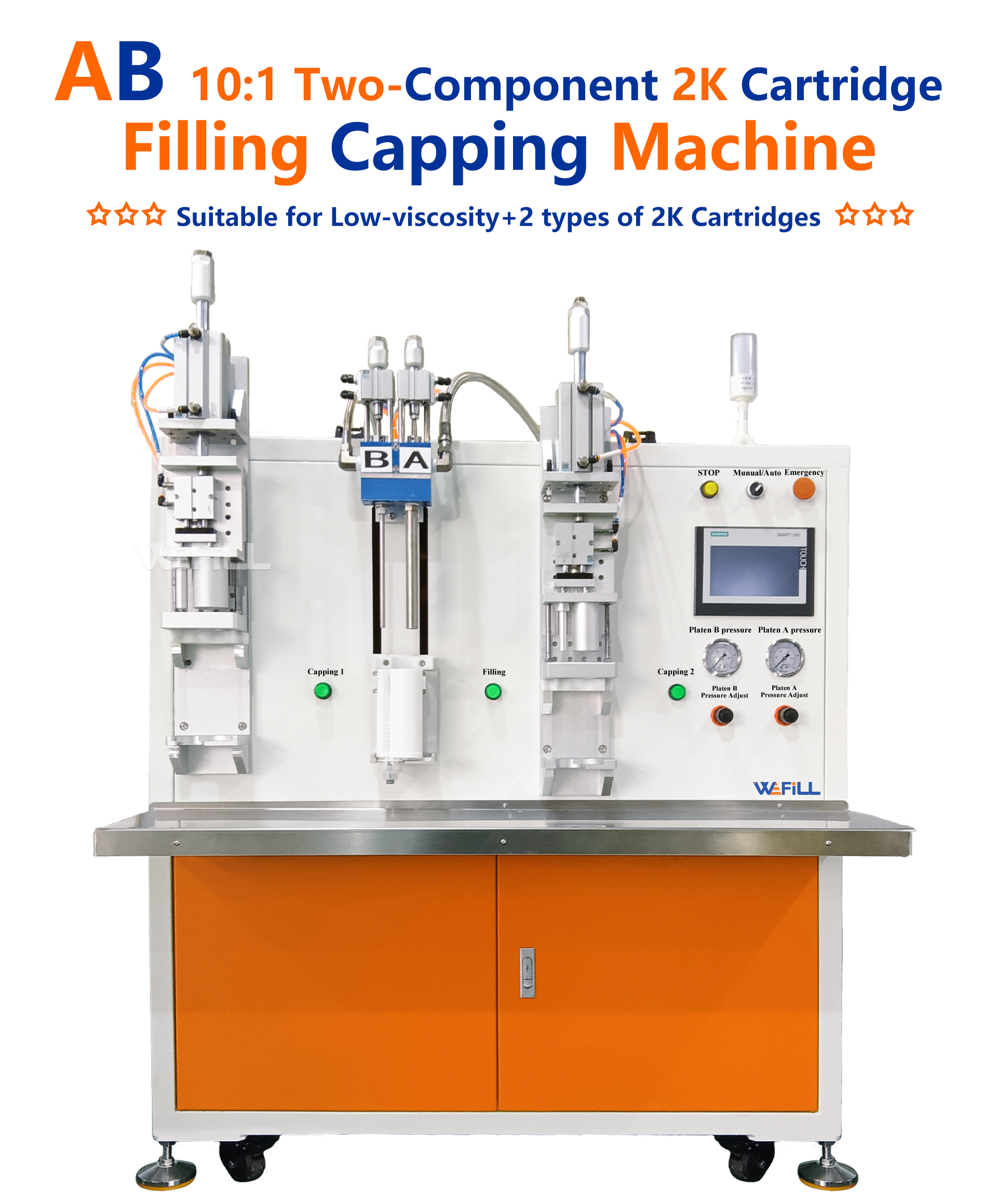

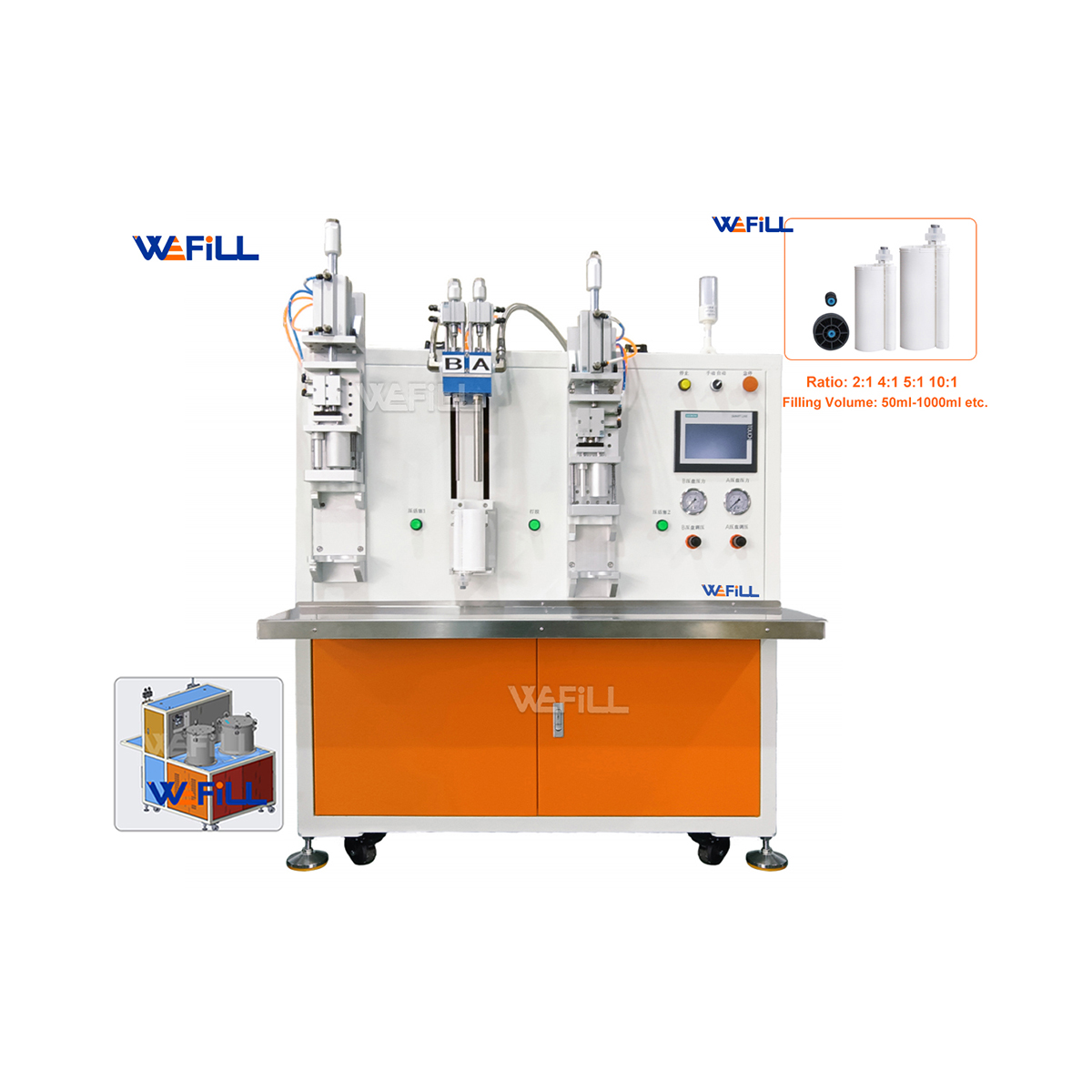

AB Two-Component Filling and Capping Machine
- Machine Model:WEFILL-CAR-AB-F001-490-50
- Applicable Liquid Volume Ratios:10:1,also can customized 1:1,2:1,3:1,4:1,5:1 to 20:1,etc.
- Applicable Filling Volume:Applicable Filling Volume::50ml&490ml,also can customized:10ml-1500ml.
- Filling Speed:720-900pcs/hour(50ml,10:1),240-360pcs/hour(490ml,10:1)
- Machine Voltage:220V/1Phase/50HZ or Customized Your Country Voltage
- Machine Working Air Pressure:0.4–0.7 MPa
- Vacuum Pressure Tank:30L;Stainless steel 304
- Applicable Viscosity:1 to 5,000 cps,Low Viscosity Liquid-State
- Dispensing Accuracy:±1%
WEFILL-CAR-AB-F001-400-50 Semi-Automatic 2K Cartridge AB Adhesive Filling & Capping Machine
for Low Viscosity 1:1 Two-Component Adhesives
Machine Introduction
The WEFILL-CAR-AB-F001-400-50 is a semi-automatic two-component (2K) adhesive cartridge filling machine specially designed for precise dispensing and packaging of low-viscosity liquid AB adhesives. It is engineered for accurate 1:1 ratio filling of 50ml and 400ml dual-component cartridges, providing a reliable solution for manufacturers requiring clean, efficient, and consistent adhesive packaging.
This machine is suitable for a wide range of two-component materials, including epoxy resins, polyurethane (PU) adhesives, acrylic adhesives, MMA adhesives, 3M structural adhesives, AB adhesives, and stone panel adhesives.
With an integrated vacuum pressure tank and press plate feeding system, precision metering pump, servo-driven control system, and automatic cartridge clamping mechanism, the machine ensures stable material flow, accurate ratio control, and bubble-free filling performance.
Working Principle
The operator first places the Component A and Component B into the machine’s separate storage tank(Stainless Steel Pressure Tank). imultaneously, pneumatic pressure delivers Component A and B from the storage tank to the precision metering pump system. The servo-motor-driven metering pumps precisely control the flow rate during the filling process and maintain a stable 1:1 mixing ratio.
The machine automatically positions and clamps the two-component (2K) adhesive cartridges, then injects the adhesive into the cartridges through a large-diameter rear feed port. This reverse filling method (filling first, capping later) ensures smooth material flow, reduces air bubbles, minimizes adhesive waste, and improves filling consistency.
The rear-mounted automatic lifting and loading mechanism supports the independent loading and unloading of 50ml 1:1 and 400ml 1:1 AB adhesive cartridges, thereby reducing the operator’s workload and improving production efficiency
Filling Compatibility
Designed for automatic filling of: ①50ml 1:1 AB 2K cartridges; ②400ml 1:1 AB 2K cartridges,Optional configurations can support additional cartridge sizes and filling requirements.
Key Features:①Filling Solution for Low-Viscosity Two-Component (2K) Adhesives;②Precision Servo Metering System;③Automatic Cartridge Capping and Filling;④Rear-Loading Cartridge Design;⑤HMI Touchscreen Control
WEFILL TECH also provides fully automatic AB adhesive filling machines for dual cartridges, dual syringes, and high-viscosity adhesive applications, with customized solutions available according to production capacity and budget requirements

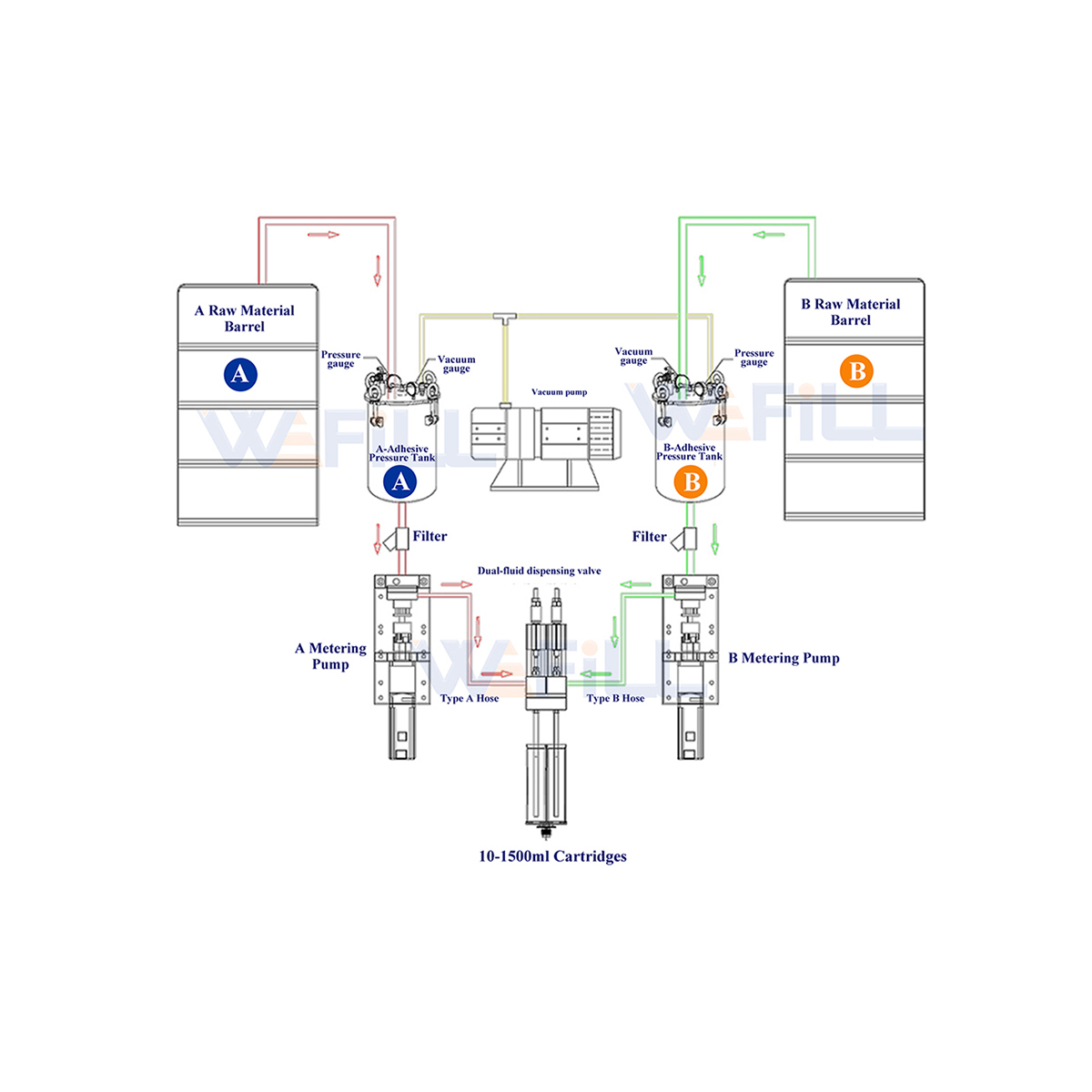

Filling Process Flowchart
Need a custom configuration? We offer variable ratios (1:1 to 20:1), custom volumes (10ml to 1500ml), and ATEX explosion-proof options. Contact us with your requirements.
| Type: | WEFILL-CAR-AB-F001-490-50 |
| Voltage: | 220V/1Phase/50Hz; |
| Power: | 2-3.5kw; |
| Working Air Pressure: | 0.4-0.7 Mpa; |
| Feeding Method: | Vacuum pressure tanks feeding materials, Tank Capacities:30L,also can customized:5L/10L/20L/30L/50L/60L, Tank Material:SUS304(can customized:SUS316);Suitable for supplying Low-viscosity liquid materials; |
| Control Method: | Siemens PLC + HMI; |
| Applicable Ratio: | 10:1,2:1-20:1 Customizable,Commonly used ratios are: 1:1; 2:1; 3:1; 4:1; 10:1; |
| Suitable Cartridges: | 50ml&490ml;can customized:10-1500ml, Like:12ml,24ml,75ml, 200ml, 250ml,400ml, 490ml,600ml, 1000ml,etc; |
| Viscosity Range: | 500-5000cps,Low-viscosity Liquid adhesives |
| Filling accuracy: | ±1%; |
| Filling speed: | 720-900pcs/hour(50ml,10:1);200-320/hour(490ml,10:1) |
| Machine Size: | L1500mm*W1300mm*H1700mm,For reference only; |
| Machine Weight: | 450KG |
| Machine Frame | Equipped with steel surface coated frame and swivel casters for easy mobility or secure positioning. |

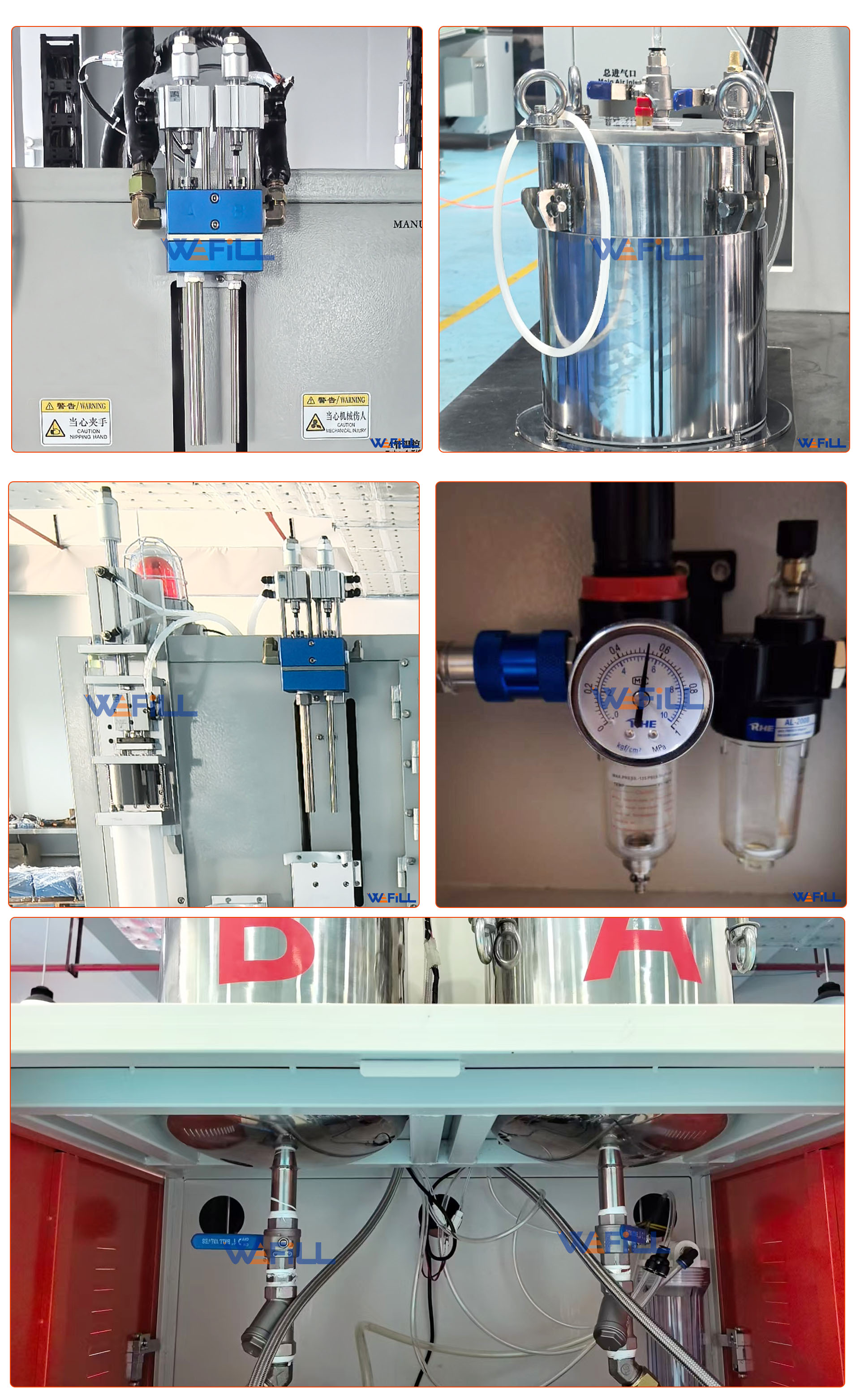

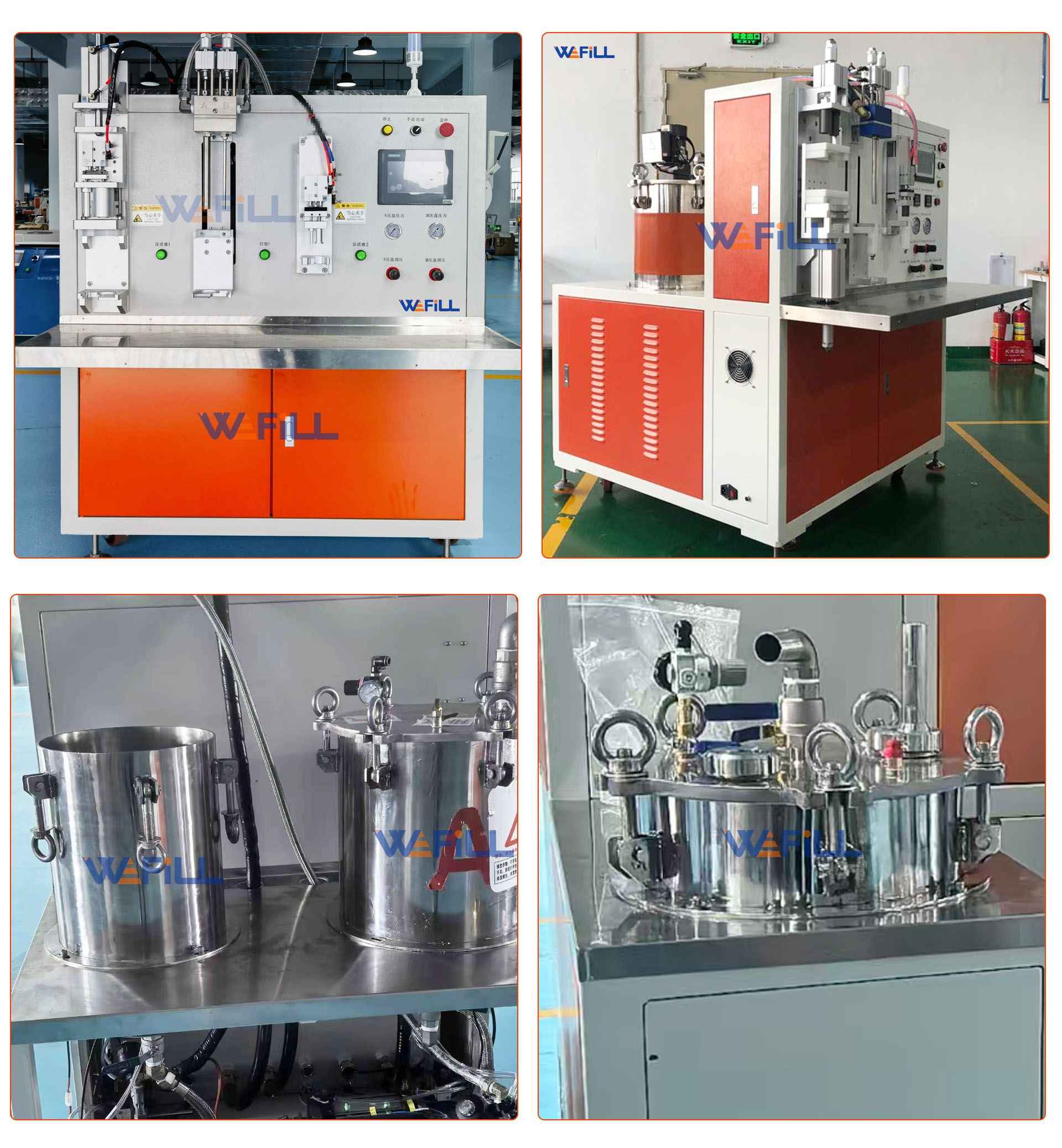

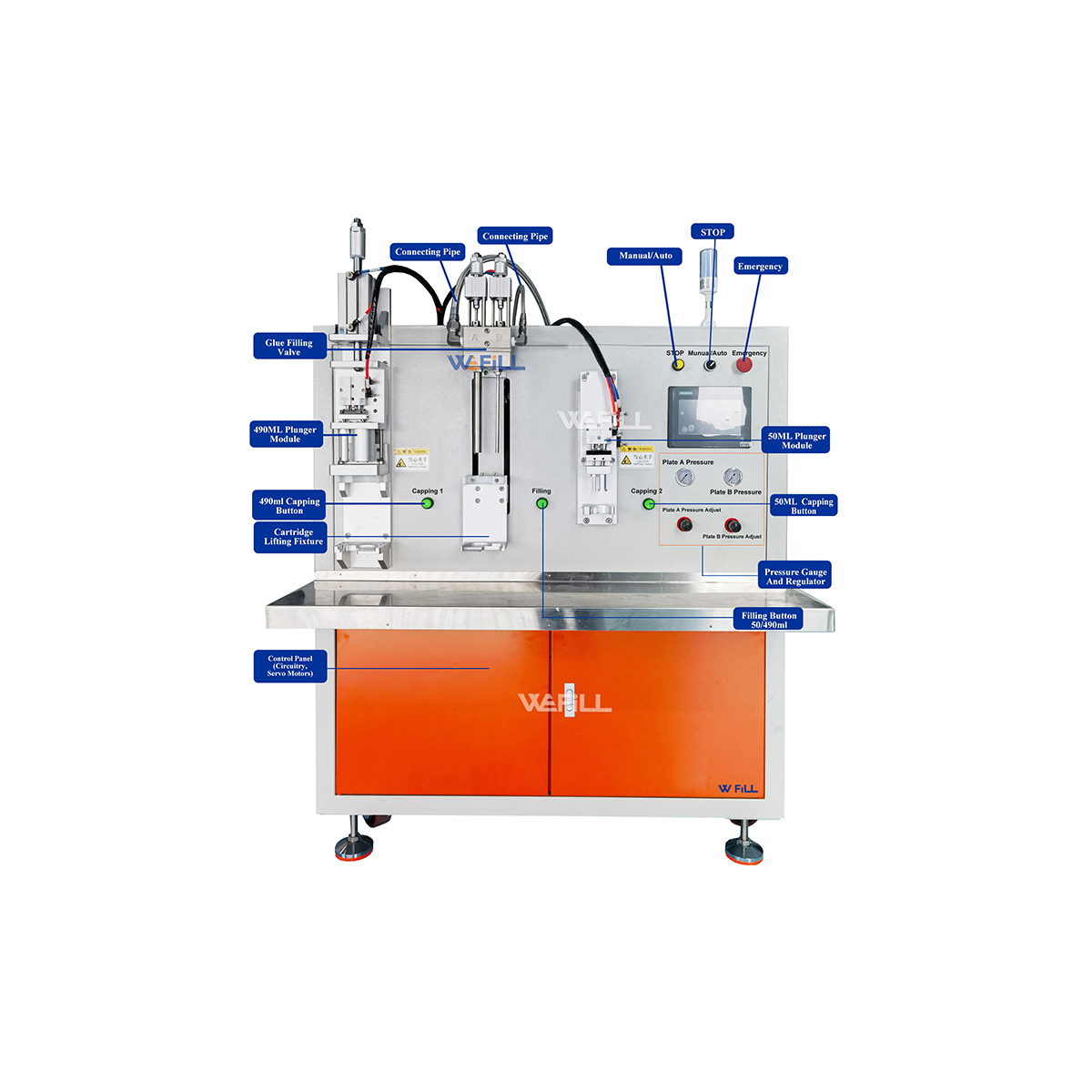

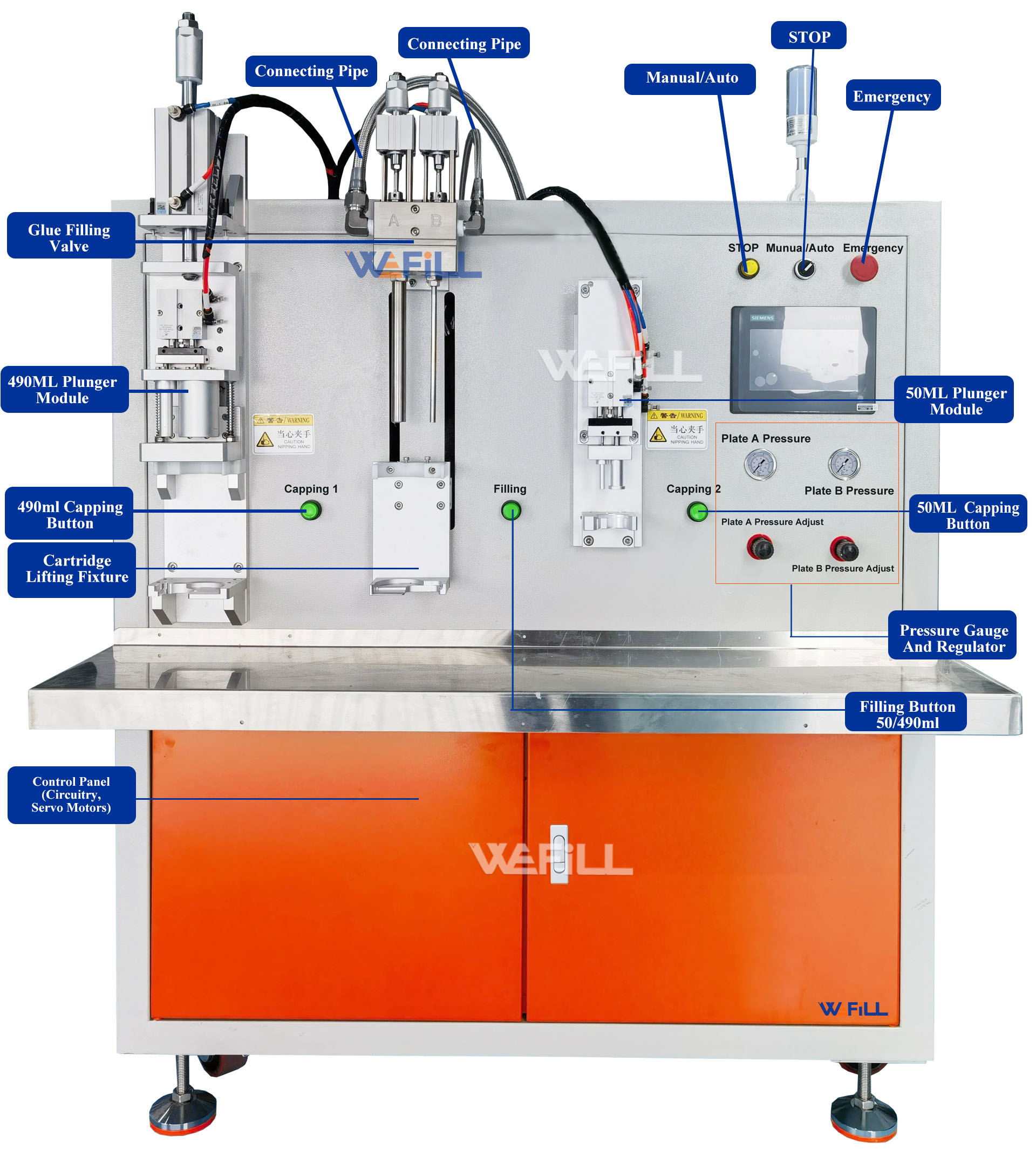

Front Side Configuration – Intelligent Control & Precision Filling System
1. Siemens PLC Control System & 7-Inch Touchscreen HMI
The machine is equipped with a Siemens PLC programmable controller and expansion modules, providing stable and reliable operation.A Siemens 7-inch capacitive touchscreen interface allows operators to easily set and adjust:
①AB adhesive mixing ratio ②Filling volume ③Dispensing speed ④Filling parameters ⑤Machine operation status monitoring
2. Precision Dispensing Head & Fast Response Control System
The machine is equipped with high-speed precision solenoid valves to control
3. Servo Motor Driven Metering Pump System
Equipped with two sets of precision corrosion-resistant gear metering pumps for accurate transportation and measurement of liquid adhesives.
4. Cartridge Positioning & Filling Fixture
①50ml 10:1 cartridge positioning fixture ②50ml 10:1 piston pressing fixture
①490ml 10:1 cartridge positioning fixture ②490ml 10:1 piston pressing fixture
5. Dispensing Head Configuration – Double-Acting Anti-Drip Dispensing System
The machine is equipped with one set of double-acting dispensing head, specially designed for precise two-component adhesive dispensing control.
Send Your Inquiry Now

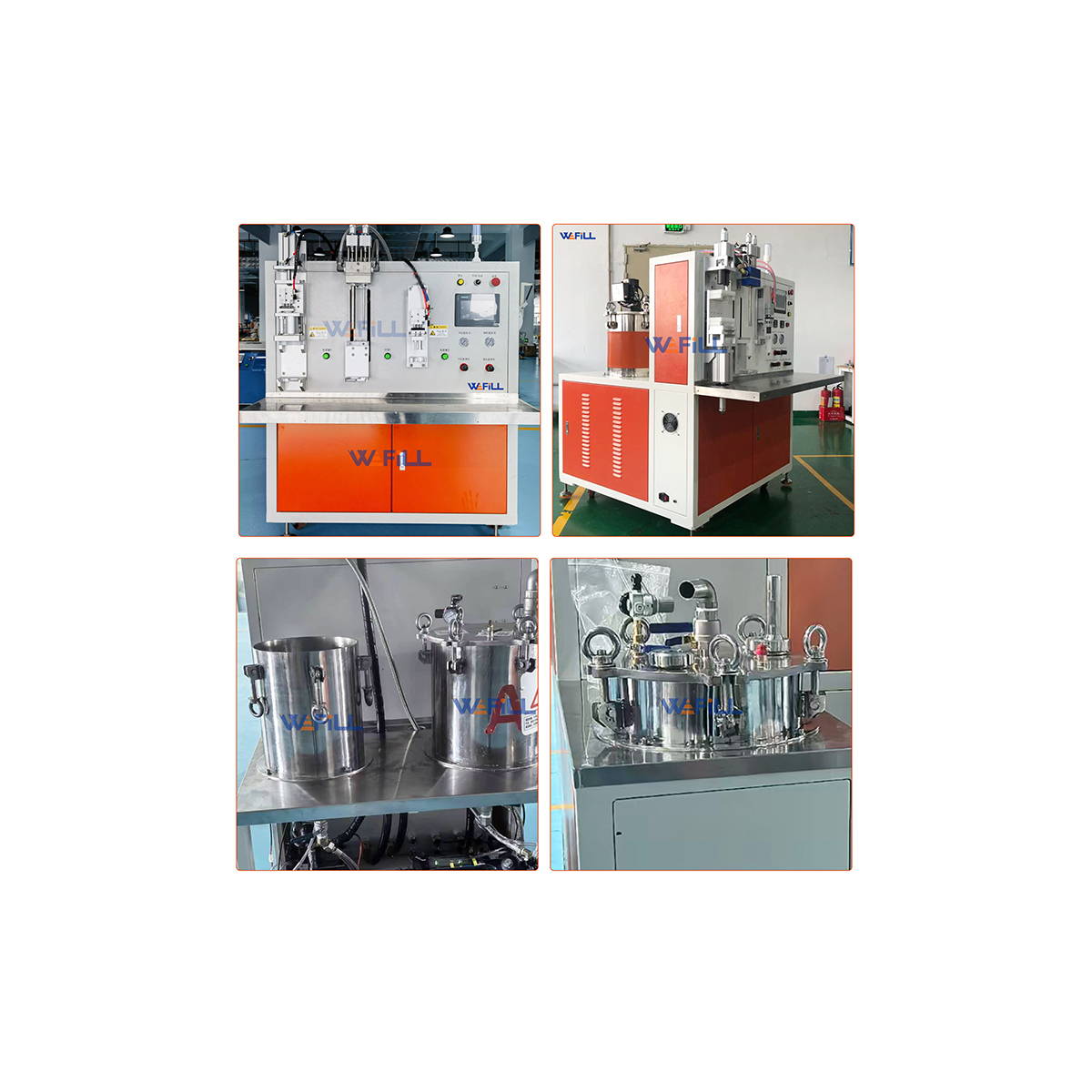

Rear Side Configuration
–------------Material Supply & Auxiliary System

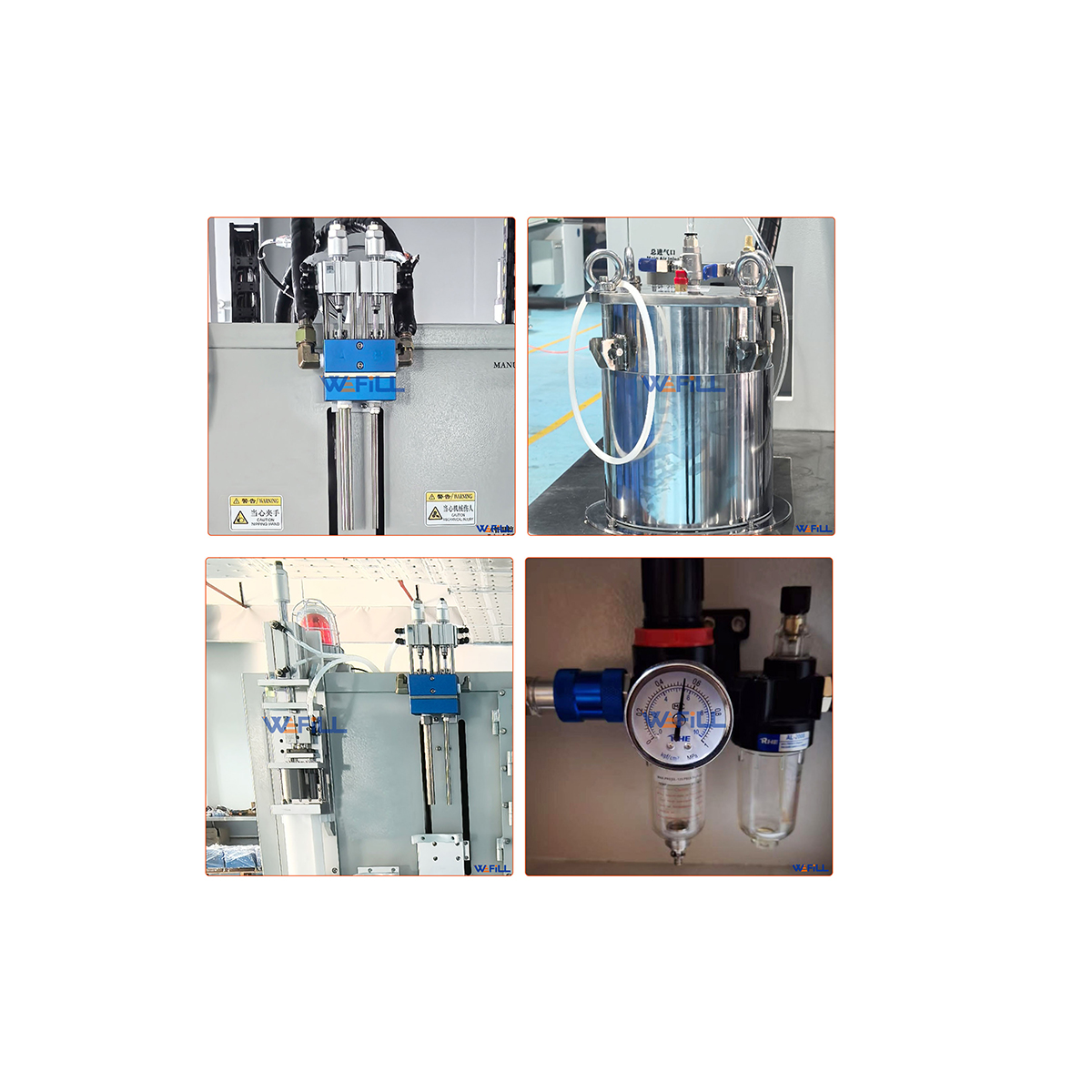

1. A/B Material Storage Tank System
The machine is equipped with two sets of 30L SUS304 stainless steel material tanks for storing A and B component adhesives separately.Independent storage of A/B components to maintain material stability,Suitable for various liquid adhesives and chemical materials.
2. Corrosion-Resistant Material Transfer Pipeline
The upgraded pipeline design ensures safe and stable transportation of different adhesive materials, including epoxy resin, polyurethane, acrylic adhesive, and other two-component materials.
3. A/B Material Level Alarm System
The machine is equipped with two sets of high and low material level detection alarm systems.This ensures continuous and stable filling performance.
4. Independent Pressure Regulation System

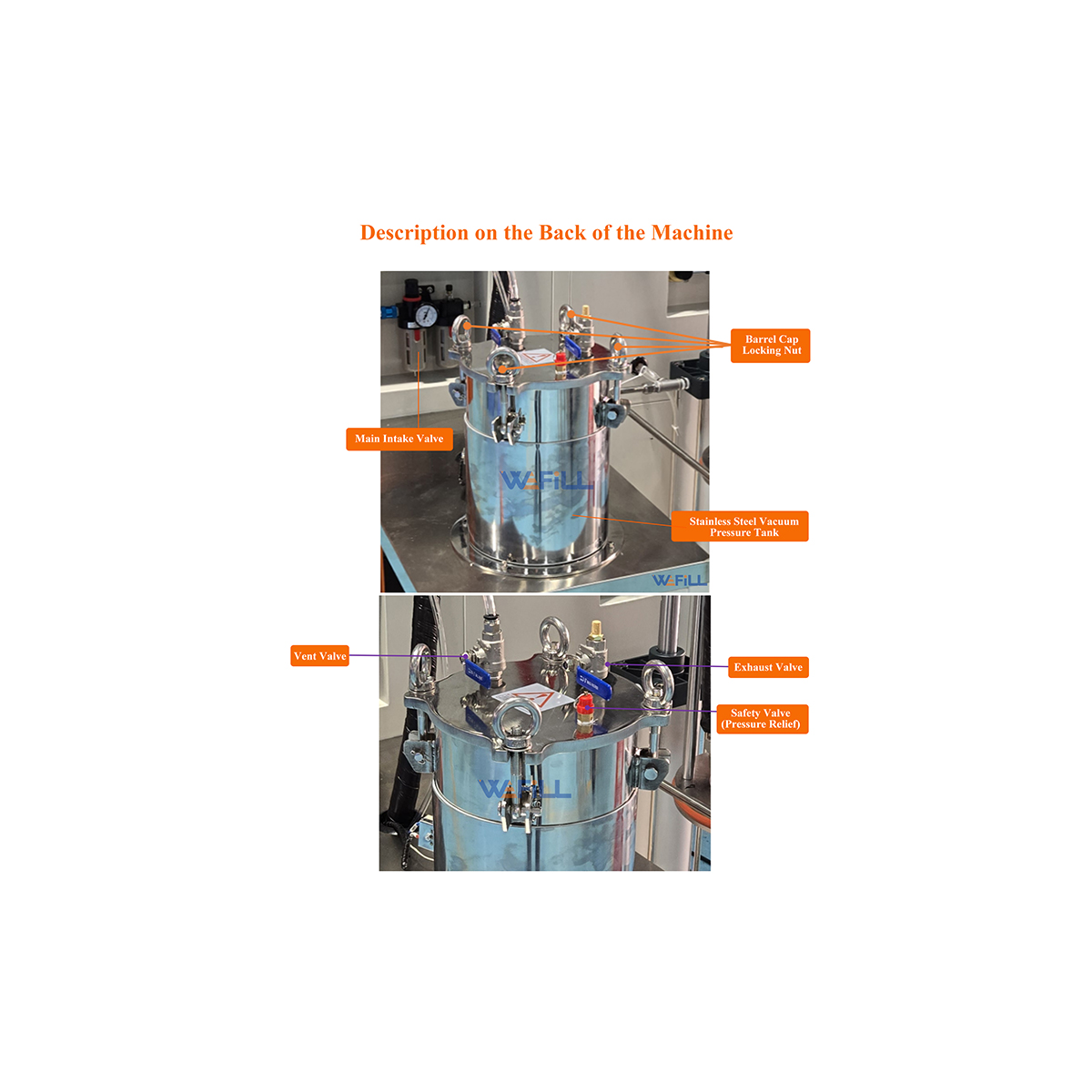

Each material tank is equipped with an independent pressure control system, including:Pressure regulating valve;Vacuum pressure gauge;Exhaust valve;Safety valve;Vent valve.The independent adjustment design allows precise control of A and B component feeding pressure, ensuring stable material flow and consistent mixing ratio accuracy.
5. Vacuum Degassing System
The machine is equipped with a vacuum degassing system for A/B material tanks.The vacuum system removes trapped air bubbles from adhesive materials before filling.
6. Compressed Air Filtration & Lubrication Unit
The rear pneumatic system includes an integrated air preparation unit with:Compressed air filtration;Moisture separation;Pneumatic component lubrication.It ensures clean and stable air supply while protecting internal pneumatic components and extending machine service life.
Send Your Inquiry NowOptional Configurations & Customized Solutions

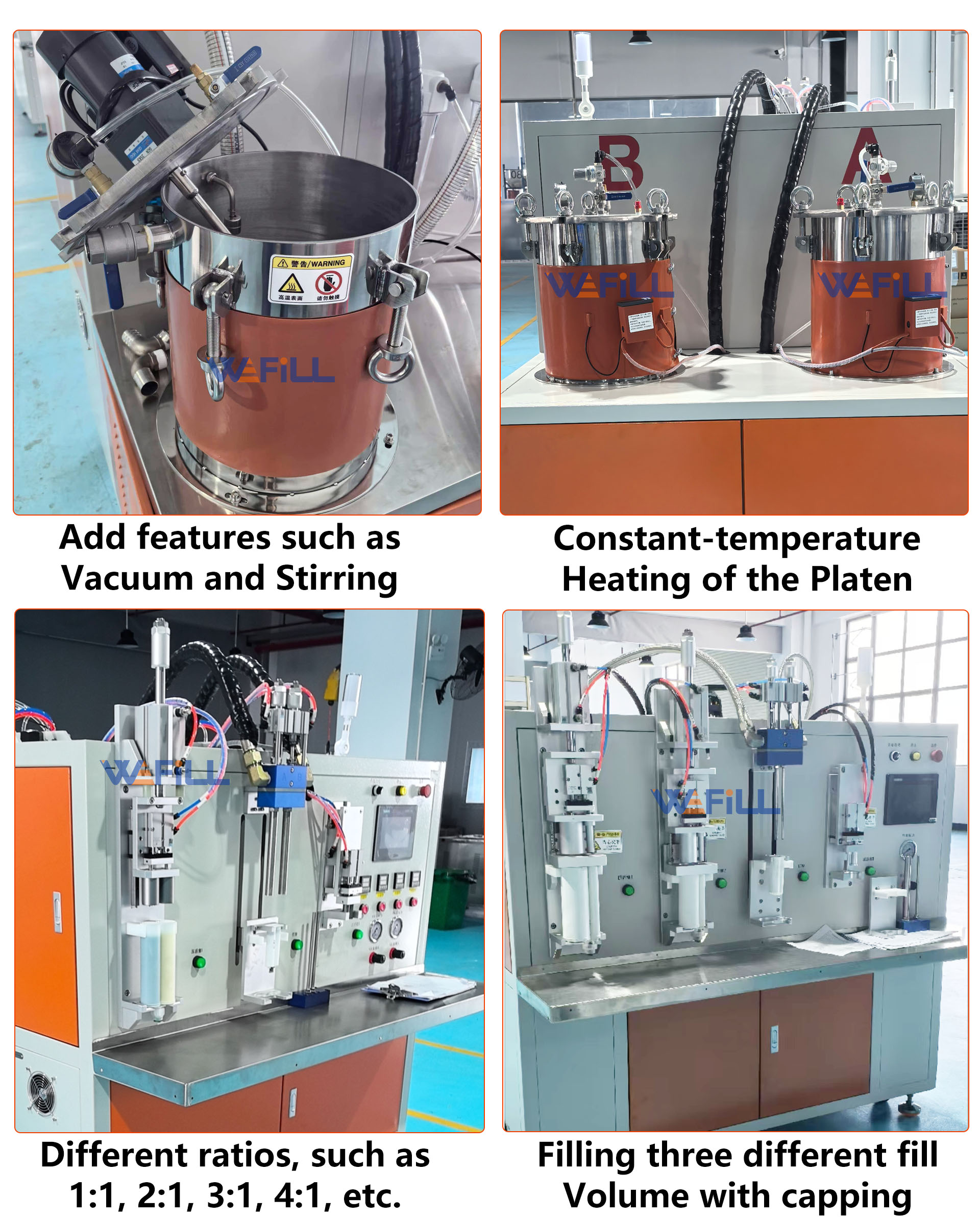

To meet different adhesive characteristics and production requirements, the machine can be customized with various optional functions and configurations.

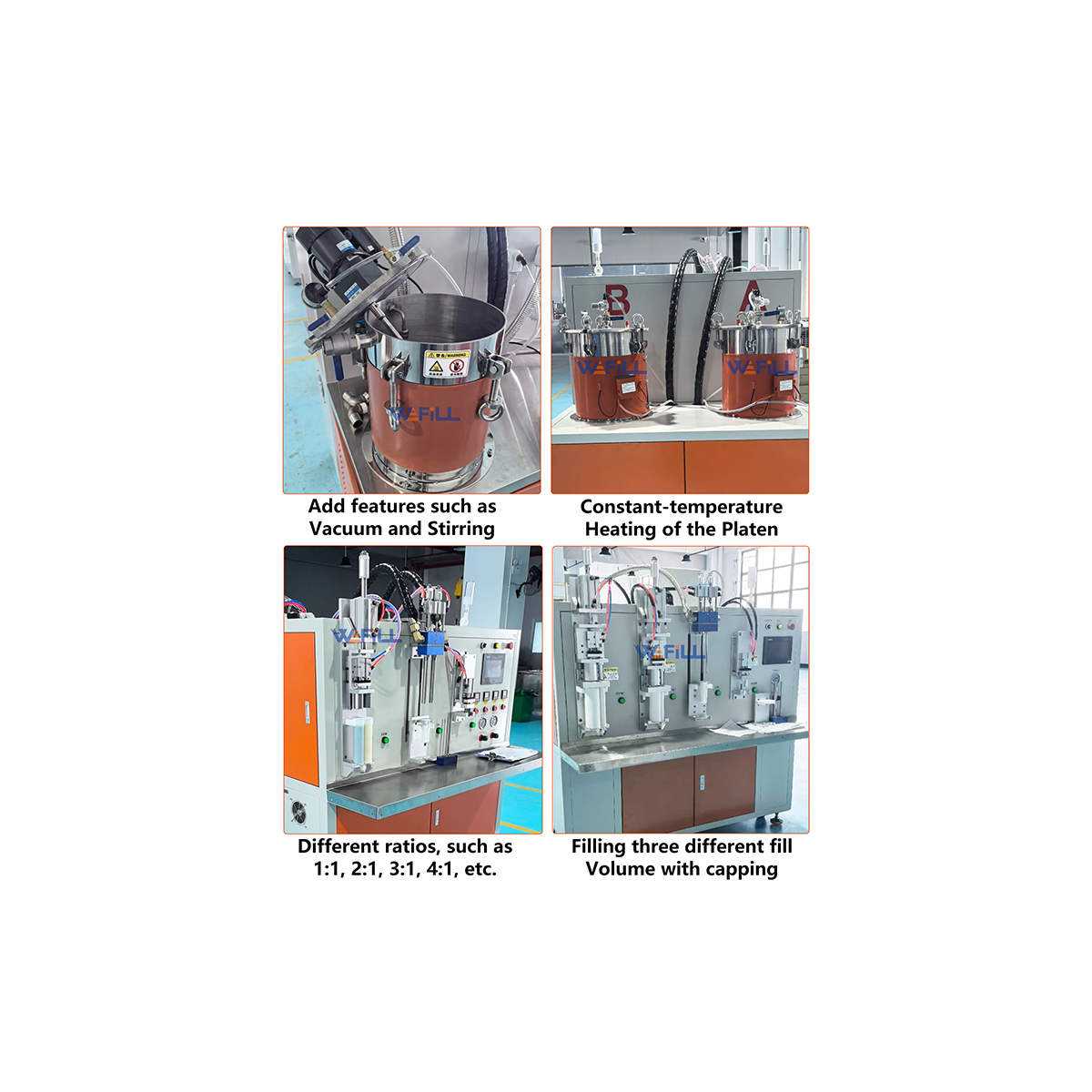

1. Vacuum Stainless Steel Pressure Tank Options
The machine can be equipped with customized vacuum pressure tanks in different capacities, including:5L / 10L / 15L / 20L / 25L/ 30L / 60L;For corrosive adhesives or chemical materials, the stainless steel pressure tank can be upgraded from SUS304 to SUS316 stainless steel for improved corrosion resistance and longer service life.
2. Automatic Material Feeding System
An optional automatic feeding pump system can be integrated to transfer adhesive materials directly from original containers into the stainless steel storage tanks.
3. Vacuum Degassing System
An optional vacuum system can be installed to remove air bubbles from A/B adhesive materials inside the storage tanks.
Benefits:①Reduces bubbles;②Improves filling consistency;③Enhances final product quality.
4. Mixing Pressure Tank System
For adhesives requiring continuous stirring or uniform dispersion during filling, the machine can be equipped with pressure tanks with mixing functions.
Benefits:①Maintains adhesive uniformity;②Prevents material separation;③Ensures stable adhesive performance.
5. Constant Temperature Heating System
For temperature-sensitive adhesives, Heating system can maintain stable material temperature.
Benefits:①Keeps adhesive viscosity consistent;②Improves material flow performance;③Ensures smooth dispensing and reliable filling accuracy.
6. Flexible Mixing Ratio & Filling Volume Adjustment
The machine supports customized ratios and capacities through adjustable metering parameters and interchangeable filling fixtures.
Features:①Supports different A/B ratios;②Compatible with various cartridge;③Filling volume adjustment;④Suitable for different adhesive formulations requirements
7. Pressure Tank / Platen Feeding System Options
Different material supply methods can be selected according to adhesive viscosity and flow characteristics.
Available options:①Pressure tank feeding system;②Platen feeding system.
These customized feeding solutions are suitable for:①Low-viscosity liquid adhesives;②Medium-viscosity materials;③High-viscosity paste adhesives.
Customized Solutions for Various Adhesive Applications
With flexible configuration options, the machine can be customized for different two-component materials,The modular design allows customers to select suitable functions based on material properties, cartridge specifications, and production requirements.
WEFILL TECH provides customized AB adhesive filling solutions based on material properties, packaging formats, and production requirements. Please contact us for a tailor-made equipment solution.
