WEFILL-F001-400-50 Semi-Automatic Low-Viscosity Liquid AB Adhesive Filling & Capping Machine

Machine Introduction

The WEFILL-F001-400-50 is specifically designed for the precise dispensing and filling of low-viscosity liquid adhesives（Available in 2 fill volumes）. It is suitable for a wide range of materials, including epoxy resins, polyurethanes, acrylics, 3M adhesives, PU adhesives, AB adhesives, and stone slab adhesives.

WEFILL-F001-400-50 – Automatic 2K Adhesive Cartridge Filling & Capping Machine for 50ml & 400ml 1:1 Dual-Component Cartridges

Working Principle:

The WEFILL-F001-400-50 is a high-precision filling and capping solution designed for dual-component (2K) adhesives. Operators simply pour the original adhesive materials into the machine’s A/B tanks. From there, pneumatic pressure transfers the materials to the metering pump inlet. A synchronized drive motor and metering pump work together to precisely control the material ratio and flow rate, ensuring accurate 1:1 dispensing.

The system automatically coordinates with an integrated cartridge clamping mechanism to inject the adhesive into cartridges. A key feature of this model is its rear-mounted automatic lifting device, which allows independent loading and unloading of 2K cartridges in both 50ml 1:1 and 400ml 1:1 formats. This design streamlines batch changes, reduces manual handling, and improves overall production efficiency—ideal for manufacturers looking to automate dual-component adhesive filling and capping in one compact system.

Filling Compatibility:

The machine is designed to automatically fill adhesive from the rear end into: 50ml 1:1 AB mix 2k cartridges;400ml 1:1 AB mix 2k cartridges

Key Features:

1.Designed for Low-viscosity liquid materials

2.Servo-driven pump for consistent pressure and flow

3.Automatic cartridge clamping and filling

4.Supports standalone operation for rear-end cartridge loading

Product Parameter

Machine Description

WEFILL-F001-400-50 Semi-Automatic 1:1 Two Component AB Adhesive Filling Machine |Low Viscosity Filler for 50ml/200ml/400ml Cartridge with Vacuum Pressure Tank Supply

Product Overview

The WEFILL-F001-400-50 is purpose-built for high-precision dispensing of two-component (2K) adhesives. It supports a wide range of volumetric fills (400ml, 200ml, and 50ml) with adjustable mix ratios including 1:1, 2:1, 4:1, and 10:1. Designed for simplicity, reliability, and efficiency, this machine offers both manual and automatic operation modes, allowing operators to easily select target volume and mix ratio. The result is clean, fast, and accurate cartridge filling.

Key Features

1.Wide Material Compatibility – Suitable for AB adhesives, epoxy resin, polyurethane (PU), acrylic, stone adhesive, grout, anchoring adhesive, cast iron repair adhesive, silicone, and more.

2.Versatile Cartridge Support – Compatible with 50ml, 75ml, 200ml/250ml, and 400ml/490ml series AB cartridges.

3.Large-Inlet Filling Process – Designed for "fill first, cap later" workflow, improving efficiency and reducing material waste.

4.HMI-Controlled Volume & Speed – Intuitive touchscreen interface allows automatic adjustment of fill volume and speed for different cartridge sizes.

5.Fast, Accurate & Bubble-Free Filling – Delivers quick dispensing, precise metering, balanced filling, minimal material loss, and no air bubbles.

Basic Configuration

1.A/B Stainless Steel Tanks (304#) – Highly corrosion-resistant, easy to clean, and designed for direct material loading.

2.Servo Motor + Precision Gear Metering Pump – Ensures strict, stable, and adjustable ratio accuracy.

3.Intelligent PLC & Touchscreen Control – Supports both manual and automatic modes, adaptable to different cartridge volumes and mix ratios.

4.Screw & Guide Rail Sliding Platform – Allows the cartridge to descend synchronously during dispensing to prevent bubble formation.

WEFILL-F001-400-50 – Automatic 2K Adhesive Filling & Capping Machine for 50ml–400ml Dual-Component Cartridges (1:1 / 2:1 / 4:1 / 10:1)

The machine is equipped with an HMI touchscreen, allowing automatic adjustment of volume and speed. Key benefits include rapid portioning, precise metering, balanced filling, bubble-free operation, and minimal material waste. This dual-function machine requires only one operator, significantly boosting productivity.

In addition, WEFILL TECH also offers fully automatic dual-component filling machines compatible with dual-cartridge or dual-syringe configurations, suitable for both low- and high-viscosity materials. Various options are available to meet different budget requirements.

Video Display

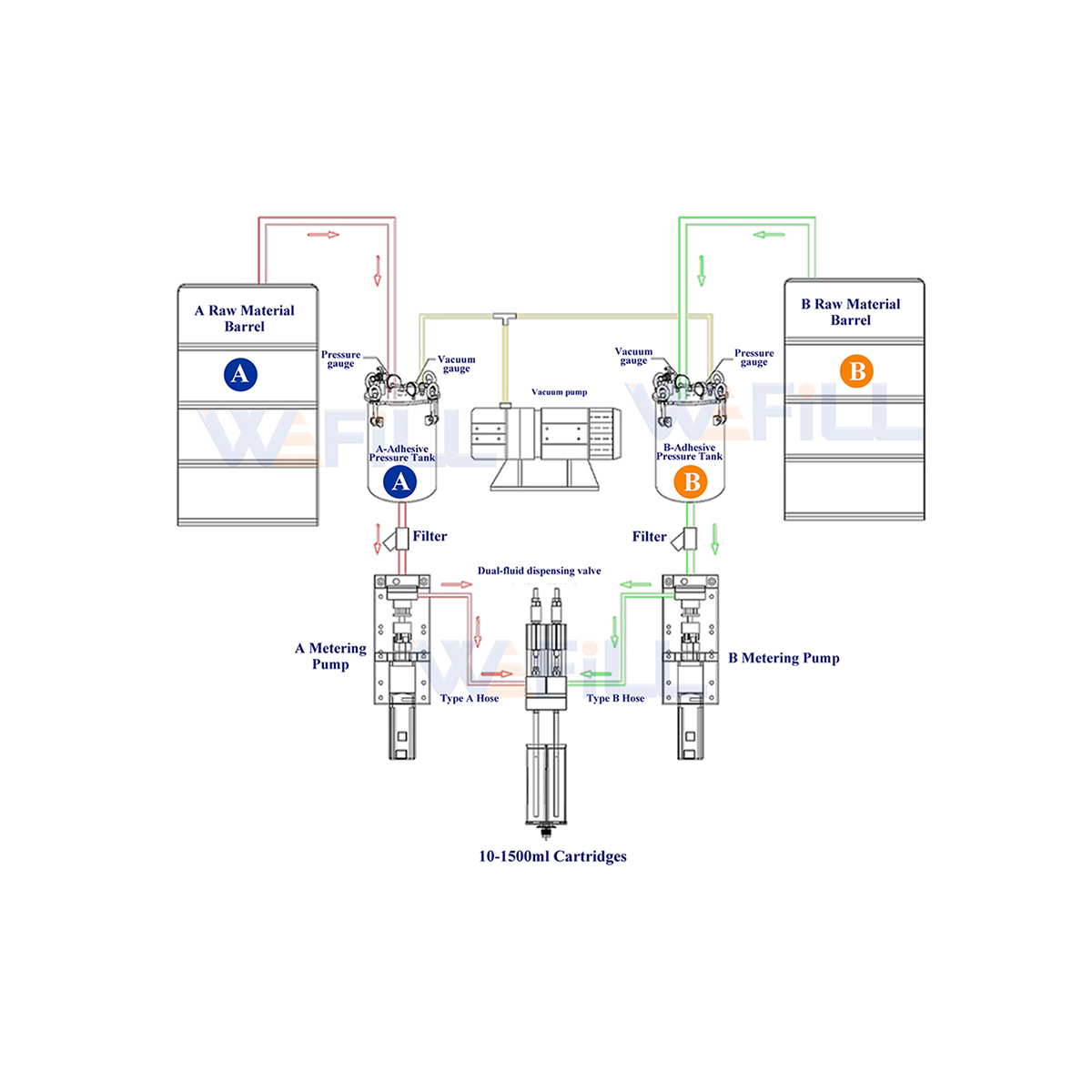

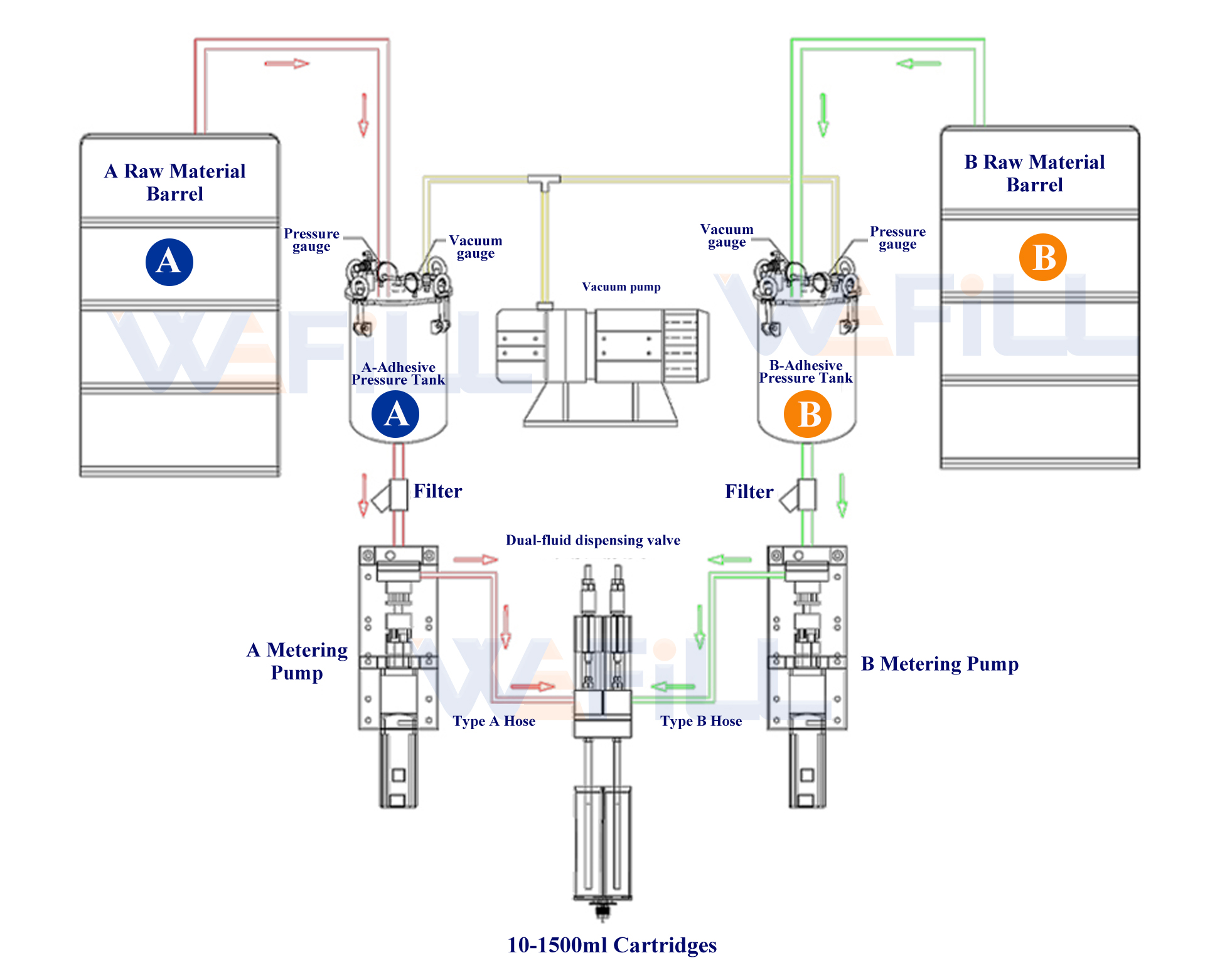

Filling Process Flowchart

Machine Configuration

WEFILL-F001-400-50 Semi-Automatic Low-Viscosity AB Adhesive Filling & Capping Machine

Basic Configuration：

I. Material Supply & Pressure Tank System

1.Equipped with 2 sets of 20L standard pressure plates, compatible with 20L straight-sided packaging drums

2.Equipped with 4 precision lifting cylinders to ensure balanced and smooth material compression

II. Metering & Conveying System

3.Equipped with 2 sets of wear-resistant metering feed pumps for conveying high-viscosity paste adhesives or materials

4.Equipped with 2 sets of servo motors and matching gearboxes as the power system to ensure filling speed

5.Utilizes a pneumatic cylinder to drive the feed pump, ensuring stable material flow rate and high dispensing accuracy

III. Control & Electrical System

6.Equipped with a Siemens 7-inch touchscreen, Siemens PLC system, and Mingwei power supply

IV. Valves & Actuators

7.Equipped with high-speed precision solenoid valves to control the opening and closing of the dispensing nozzle and ensure normal operation of other pneumatic components

8.Equipped with a pneumatic actuator and dispensing valve for rapid and precise dispensing stoppage

V. Detection & Limit Switches

9.Equipped with precision limit switches to ensure accurate dosing for each adhesive

VI. Filling & Assembly Jigs (for AB Adhesive Cartridges)

10.Includes 1 set of 50mL 1:1 AB adhesive cartridge filling fixture + 1 set of stopper pressing jig

11.Includes 1 set of 400mL 1:1 AB adhesive cartridge filling and metering fixture + 1 set of plunger jig

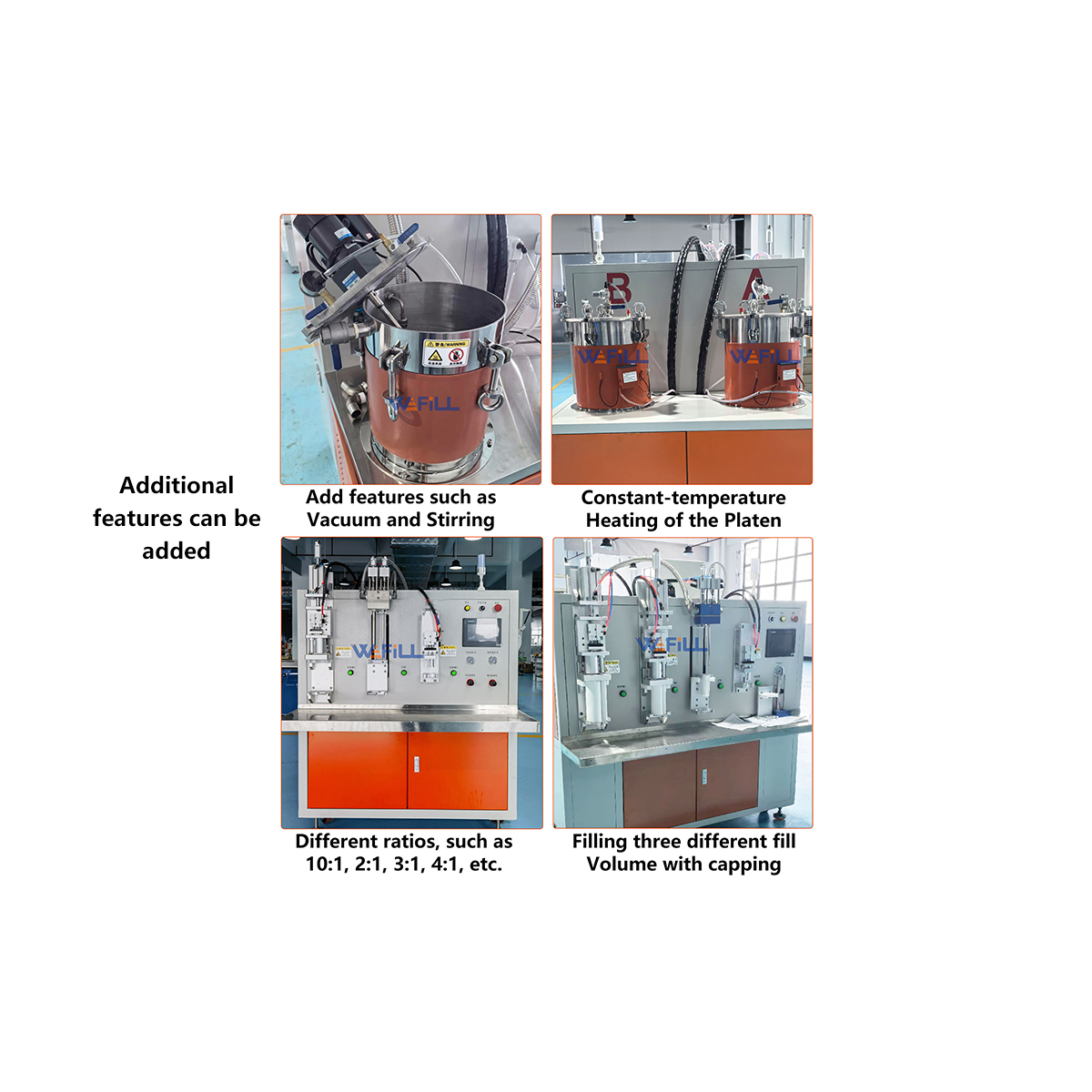

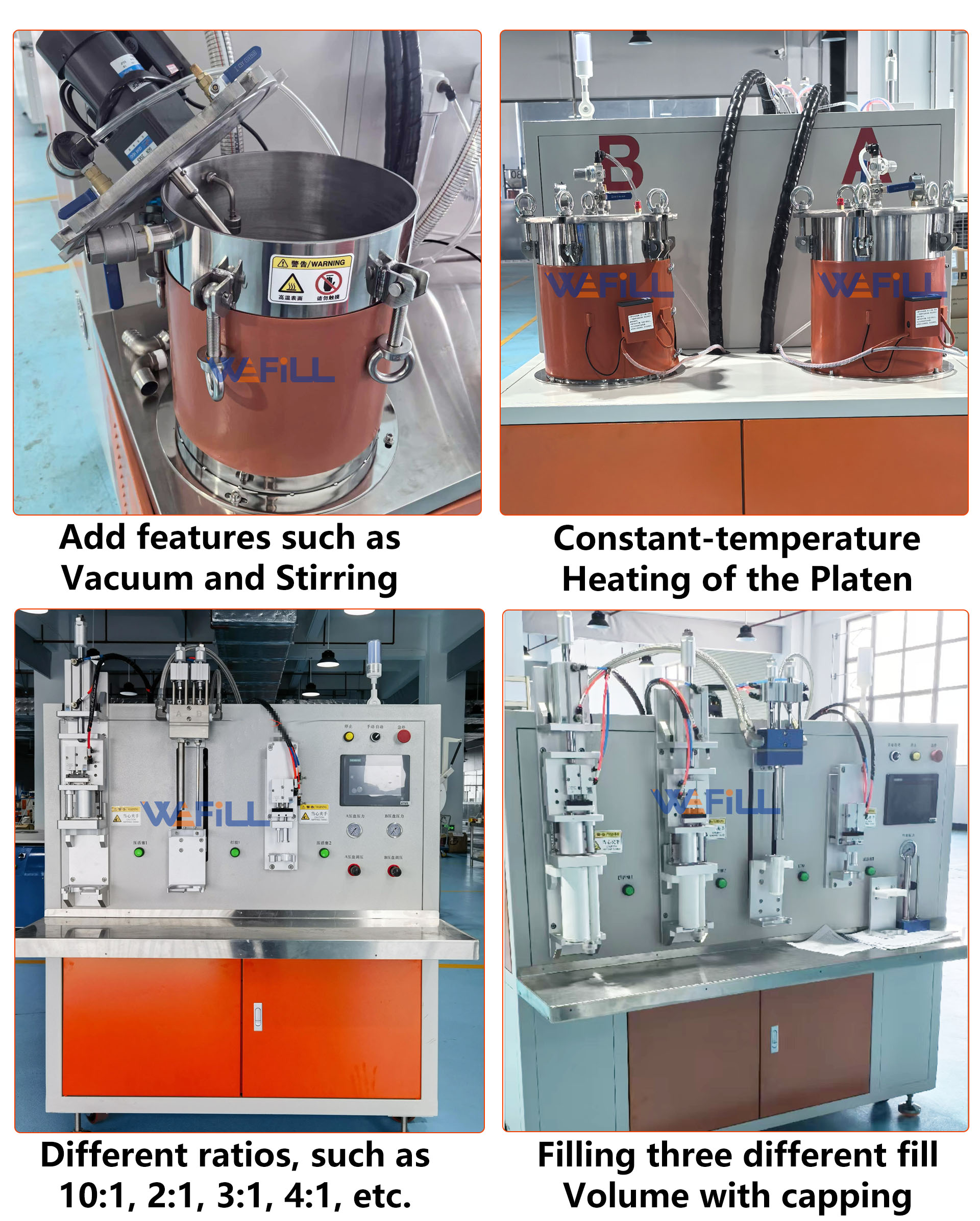

Additional Configuration Options (Add configurations based on your material requirements)

1.Constant-temperature heating – required when material filling demands stable temperature control.

2.The machine supports different two-component filling ratios and filling capacities.

3.The feed section can be equipped with a platen designed to accommodate 200-liter (55-gallon) drums.

4.Contact parts can be upgraded to SUS316 material

5.The entire unit can be upgraded to an explosion-proof model

Machine Advantages

1.This machine is specifically designed for filling 2k Cartridges AB two-component adhesives. It is suitable for dispensing various types of two-component adhesives in 490ml, 400ml, 250ml, 200ml, and 50ml capacities, with selectable mixing ratios of 1:1, 2:1, 4:1, and 10:1. It features a simple structure, convenient operation, comprehensive functionality, and precise metering, ensuring a fast and clean dispensing process. The equipment offers both manual and automatic modes, allowing users to select the desired capacity and mixing ratio based on their specific needs.

2.This equipment is highly intelligent, characterized by fast dispensing speed, precise metering, uniform filling, bubble-free dispensing, and minimal waste.

3.This equipment has a wide range of applications and is widely used for AB adhesives, epoxy resins, polyurethane adhesives, PU adhesives, acrylic adhesives, stone panel adhesives, joint sealants, rebar anchoring adhesives, casting adhesives, and more.

4.With high-precision metering pumps, the error can be controlled within ±1%.

5.Mixing nozzles of different specifications can be easily replaced.

6.An optional heating function is available to handle specialty adhesives with increased viscosity in low-temperature environments.

7.The mobile model can be wheeled directly to the side of large workpieces for on-site operation.

Application

This filling machine is designed for use with a wide range of two-component adhesives and materials, including epoxy resins, polyurethane adhesives, PU adhesives, acrylics, stone panel adhesives, grout sealants, rebar anchoring adhesives, casting adhesives, silicone adhesives, cyanoacrylates, greases, sealants, and more.

These materials are primarily used across diverse industries, such as:

Electronics manufacturing;Electrical appliance manufacturing;Medical and food processing;Civil engineering and construction;Automotive manufacturing;Gift and decorative items;Packaging and advertising;Stone and panel processing;Aerospace;Ammunition and defense;Animal health;Fluid packaging;Food and beverage;In vitro diagnostics;Machine building;Medical devices;Mobile devices and wearables;Photovoltaic (solar energy)

Common compatible brands include 3M, LOCTITE, ADERIS, Henkel, Huntsman, H.B. Fuller, Permabond, ITW Performance Polymers, Masterbond, MG Chemicals, DELO, Epoxies, Etc., and more.
