Explosion-proof Semi Automatic High Viscosity Material Liquid 1:1 2:1 3:1 4:1 10:1 AB Adhesive Filling Capping Machine Glue Dispensing Machine

Product Introduction

The WEFILL WEFILL-F001 Semi-Automatic High-Viscosity or Paste AB Adhesive Filling Capping Machine is specifically designed for precise dispensing of low-viscosity adhesives such as Epoxy Resin, Polyurethane, Acrylic, 3M Adhesive, PU Adhesive, AB Adhesive,and Stone Panel Adhesive. Its adjustable filling range spans 10ml to 1500ml, ensuring ±1% metering accuracy. A 10ml cartridge achieves an output of 1200pcs/hour while delivering smooth, bubble-free adhesive dispensing. Integrated A/B material tanks, injection valves, and piston syringes guarantee precise ratio control and reliable sealing. The touchscreen interface combined with modular design enables simple operation and efficient maintenance, making it an ideal choice for fast and reliable adhesive filling in industrial applications.

Simple structure, easy operation, comprehensive functionality, precise metering, dry and quick!

Features manual and automatic modes,Selectable volume and ratio

Applicable liquid volume ratios: 1:1 to 20:1

Applicable viscosity: 1 to 5,000 cps

Dispensing accuracy: 1%;

This dual-component adhesive dispenser features A/B 304 stainless steel material tanks, resistant to high-intensity corrosion. Adhesive can be poured directly into the tank for operation and easy cleaning. Optional high/low liquid level alarms for storage tanks provide real-time alerts on material levels and refill needs. Equipped with a vacuum pump, it conveys adhesive material to the metering pump inlet via pneumatic pressure.

The drive motor and metering pump work in tandem to control adhesive ratio and flow, coordinating with the automatic cartridge holder to inject adhesive into cartridges. Features large-mouth filling with pre-filling followed by capping; HMI input for automatic volume/speed adjustment. Offers rapid portioning, precise metering, balanced filling, bubble-free operation, and minimal waste. This dual-function machine requires only one operator, significantly boosting productivity.

WEFILL also offers fully automatic dual-component filling machines compatible with dual-cartridge or dual-syringe configurations, suitable for both low- and high-viscosity materials. Options can be selected based on budget.

Product Parameter

Basic Configuration:

1. Equipped with A/B 304 stainless steel material tanks, resistant to high-intensity corrosion, allowing direct pouring of adhesive into the tank for operation and easy cleaning;

2. Equipped with servo motors and precision gear metering pumps to ensure strict, stable, and adjustable adhesive ratio accuracy;

3. Utilizes intelligent PLC and touchscreen control with manual/automatic modes, accommodating different adhesive cylinder volumes and ratios;

4. Features a ball screw and guide rail sliding platform where cylinders descend synchronously during adhesive dispensing to prevent air bubbles;

5. Features a stainless steel integrated frame with an elegant appearance and robust durability. The net weight is approximately 350kg, equipped with both fixed and casters for effortless mobility and time-saving relocation.

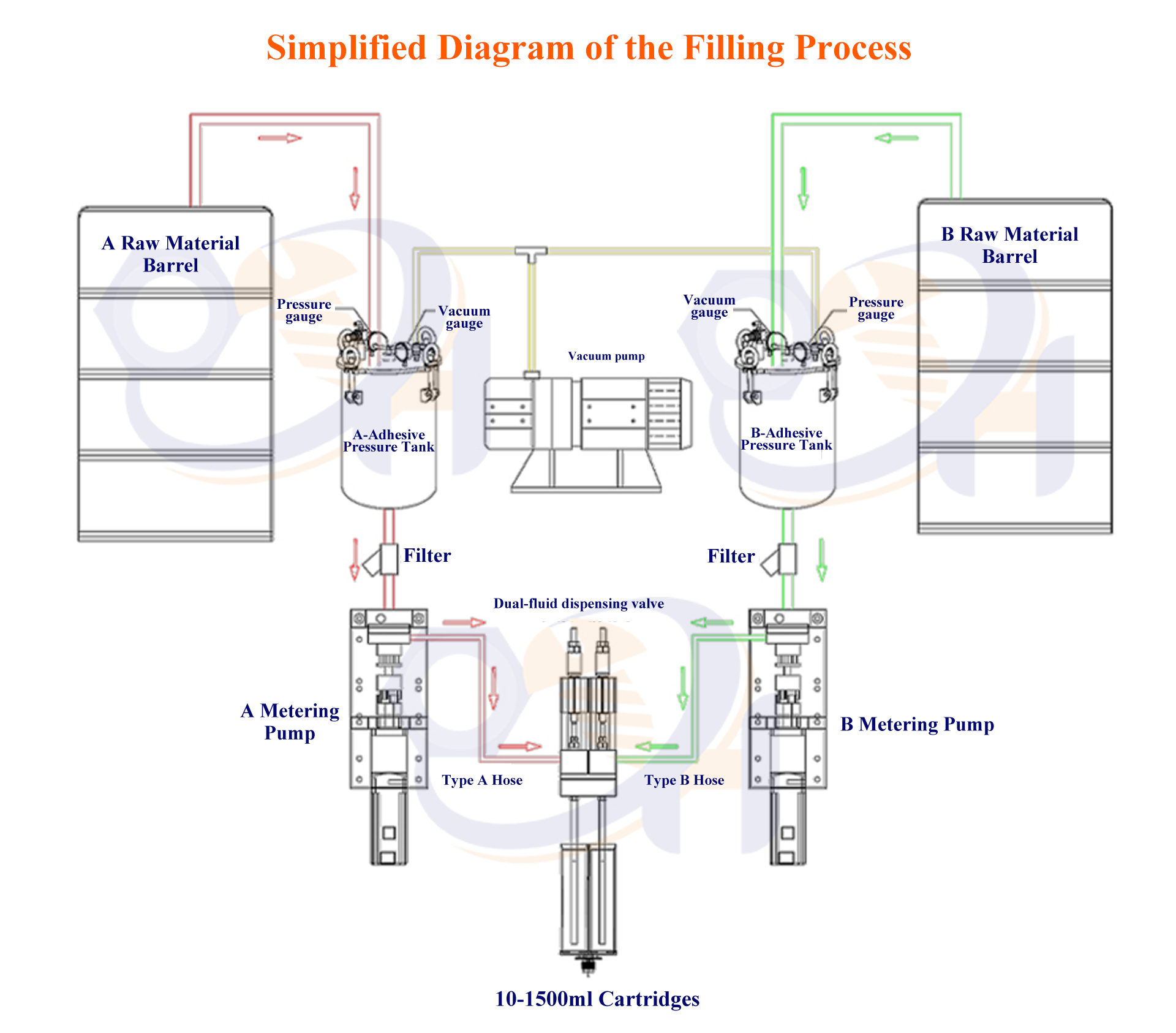

Filling Process Flowchart

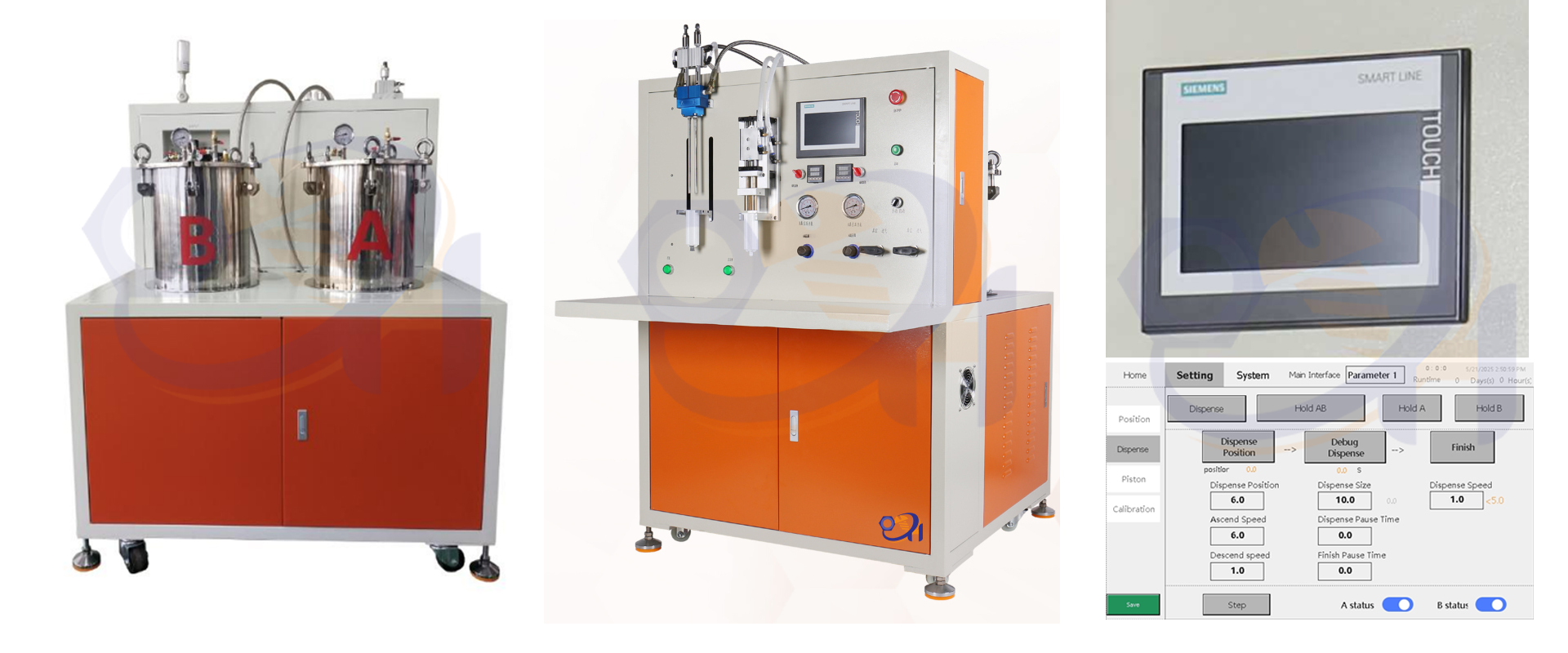

Machine Structure

Machine Advantages

Application
