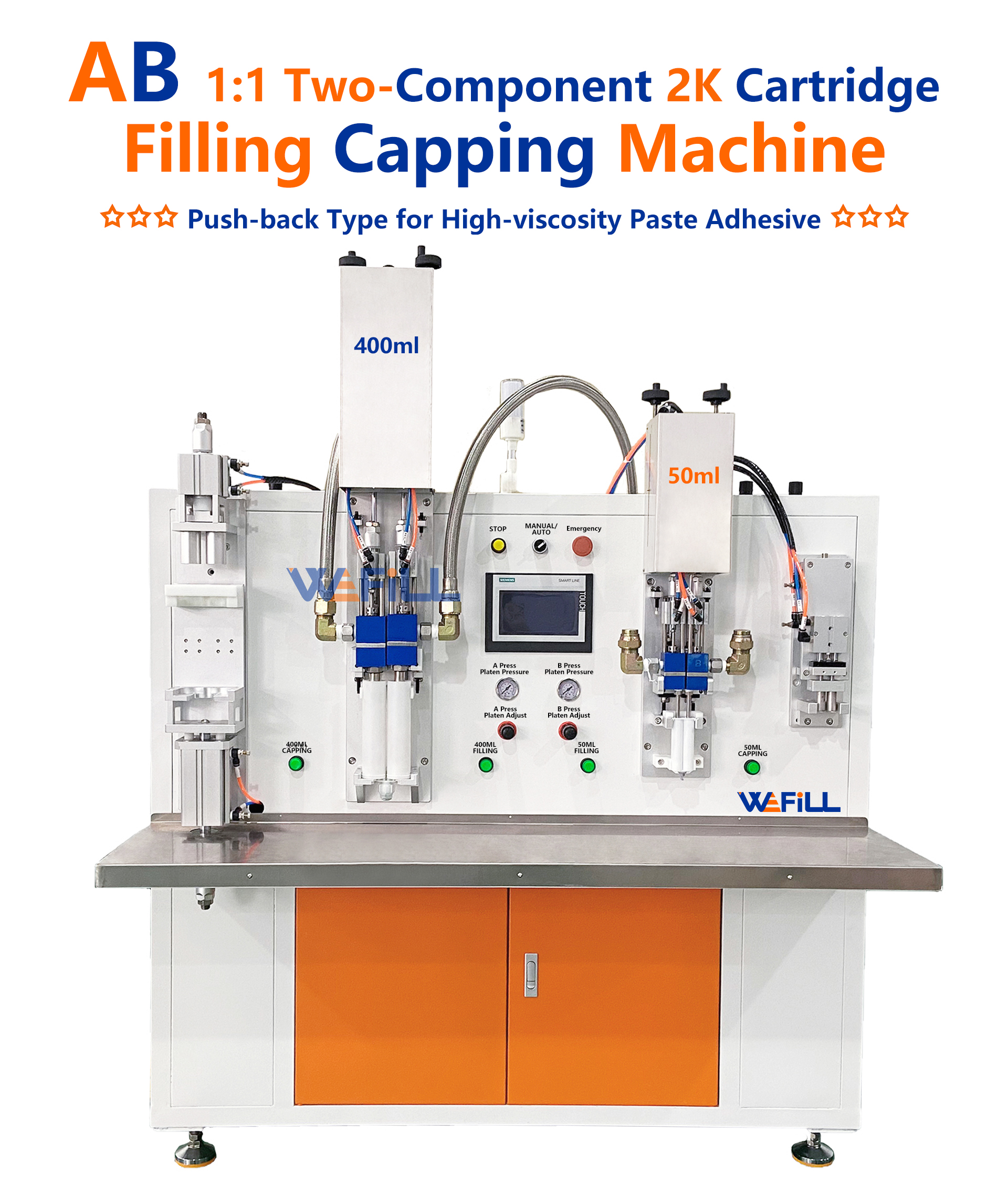

Semi-Automatic High-viscosity Adhesive filling machine 1:1 Two Component AB Adhesive Filling, Capping & Dispensing Machine for 50ml 400ml 2K Cartridge

WEFILL-F006 Semi-Automatic High-Viscosity Paste AB Adhesive Filling & Capping Machine

Machine Introduction

The WEFILL-F011 is specifically designed for the precise dispensing and filling of high-viscosity paste adhesives. It is suitable for a wide range of materials, including epoxy resins, polyurethanes, acrylics, 3M adhesives, PU adhesives, AB adhesives, and stone slab adhesives.

Working Principle:

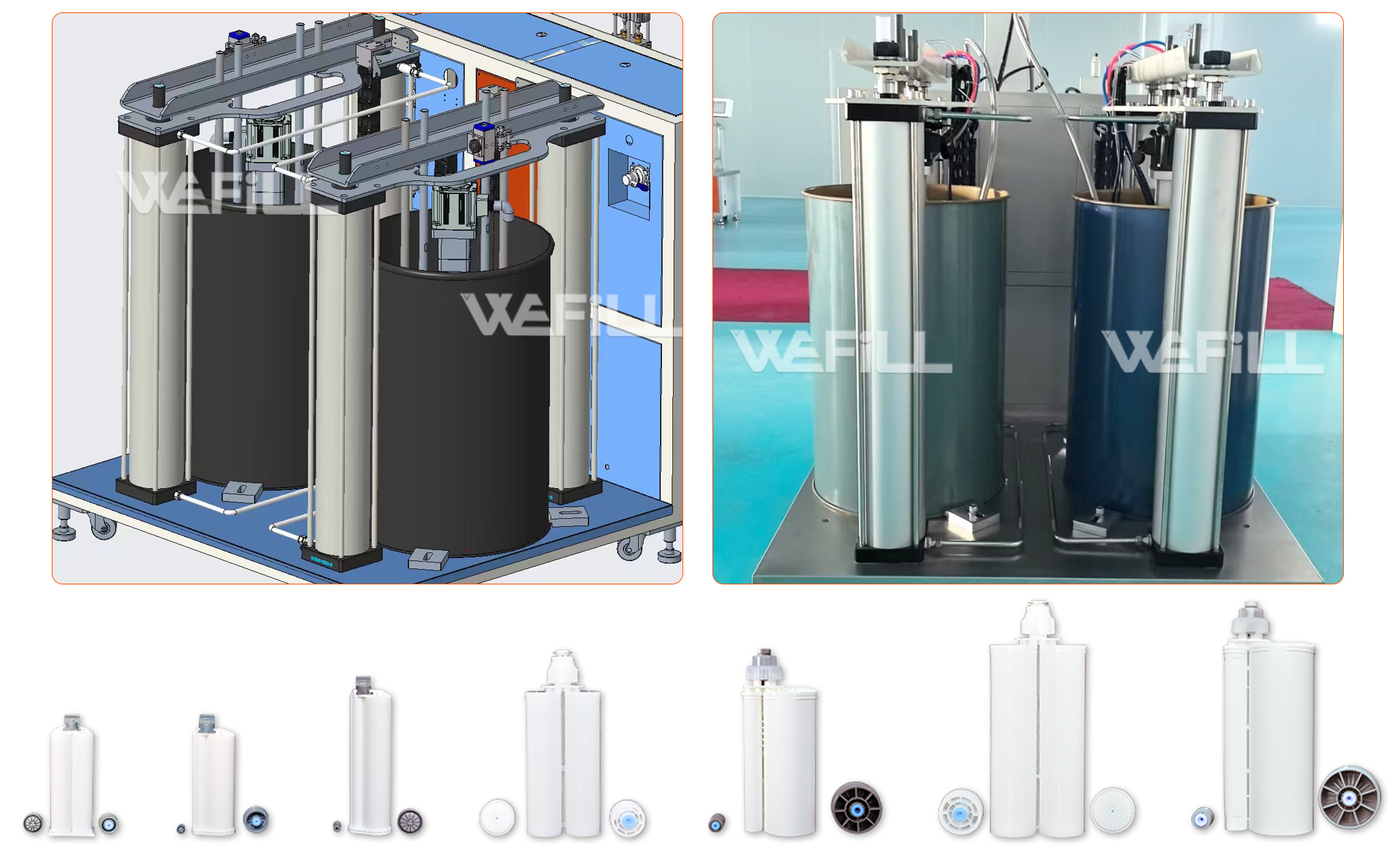

The machine operates by first placing the original adhesive container onto the unit, aligning the drum opening directly with the pressure plate. The pressure plate then pushes the material into the feeding pump. A servo motor drives the feeding pump to continuously pressurize the material. Through coordinated motor drive and metering pump control, the machine accurately manages the material ratio and delivery of the AB adhesives. In conjunction with an automatic cartridge clamping system, the adhesive is injected directly into the cartridges.

Filling Compatibility:

The machine is designed to automatically fill adhesive from the rear end into: 50ml 1:1 AB mix 2k cartridges;400ml 1:1 AB mix 2k cartridges

Key Features:

1.Designed for high-viscosity paste materials

 2.Servo-driven pump for consistent pressure and flow

 3.Automatic cartridge clamping and filling

 4.Supports standalone operation for rear-end cartridge loading

Machine Parameters

Machine Description

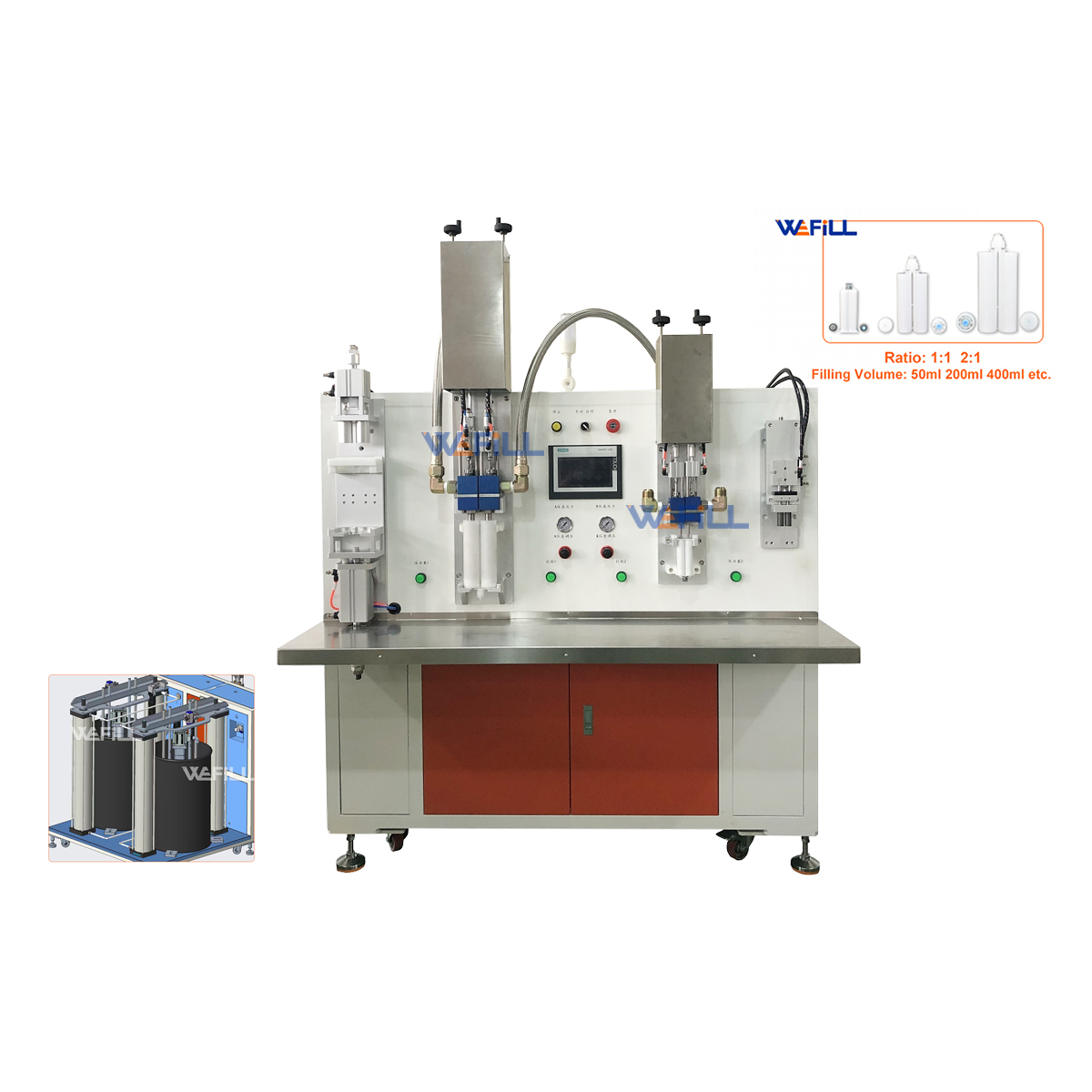

WEFILL-F011 Pressure-Disc Reverse-Push Metered Filling Machine

The WEFILL WEFILL-F011 pressure-disc（200L/55gallon） reverse-push metered filling machine is specifically designed for high-viscosity paste adhesives. It utilizes the natural high viscosity of the material to generate a reverse-push force. Working in conjunction with a pressure disc, this force effectively transfers the adhesive from the raw material drum into the feed pump.

A servo motor drives the feed pump to continuously build up pressure, forcing the material through the wide-mouth end into the packaging cartridges. The motor-driven system operates in precise coordination with a metering pump, ensuring accurate control over the adhesive ratio and material delivery. In combination with an automatic cartridge clamping fixture, the machine seamlessly injects the adhesive into the cartridges.

The machine is equipped with an HMI touchscreen, allowing automatic adjustment of volume and speed. Key benefits include rapid portioning, precise metering, balanced filling, bubble-free operation, and minimal material waste. This dual-function machine requires only one operator, significantly boosting productivity.

In addition, WEFILL TECH also offers fully automatic dual-component filling machines compatible with dual-cartridge or dual-syringe configurations, suitable for both low- and high-viscosity materials. Various options are available to meet different budget requirements.

Video Display

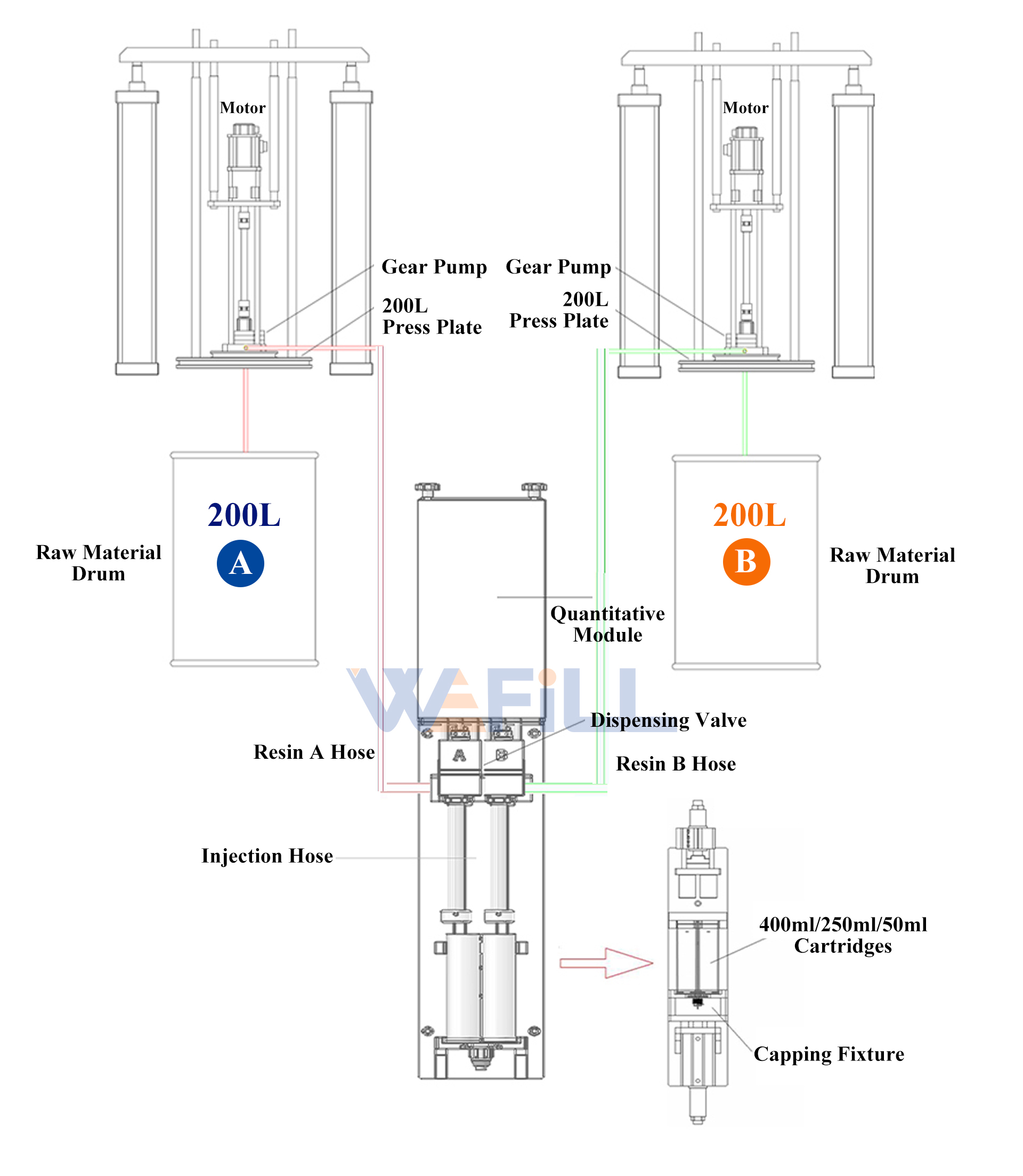

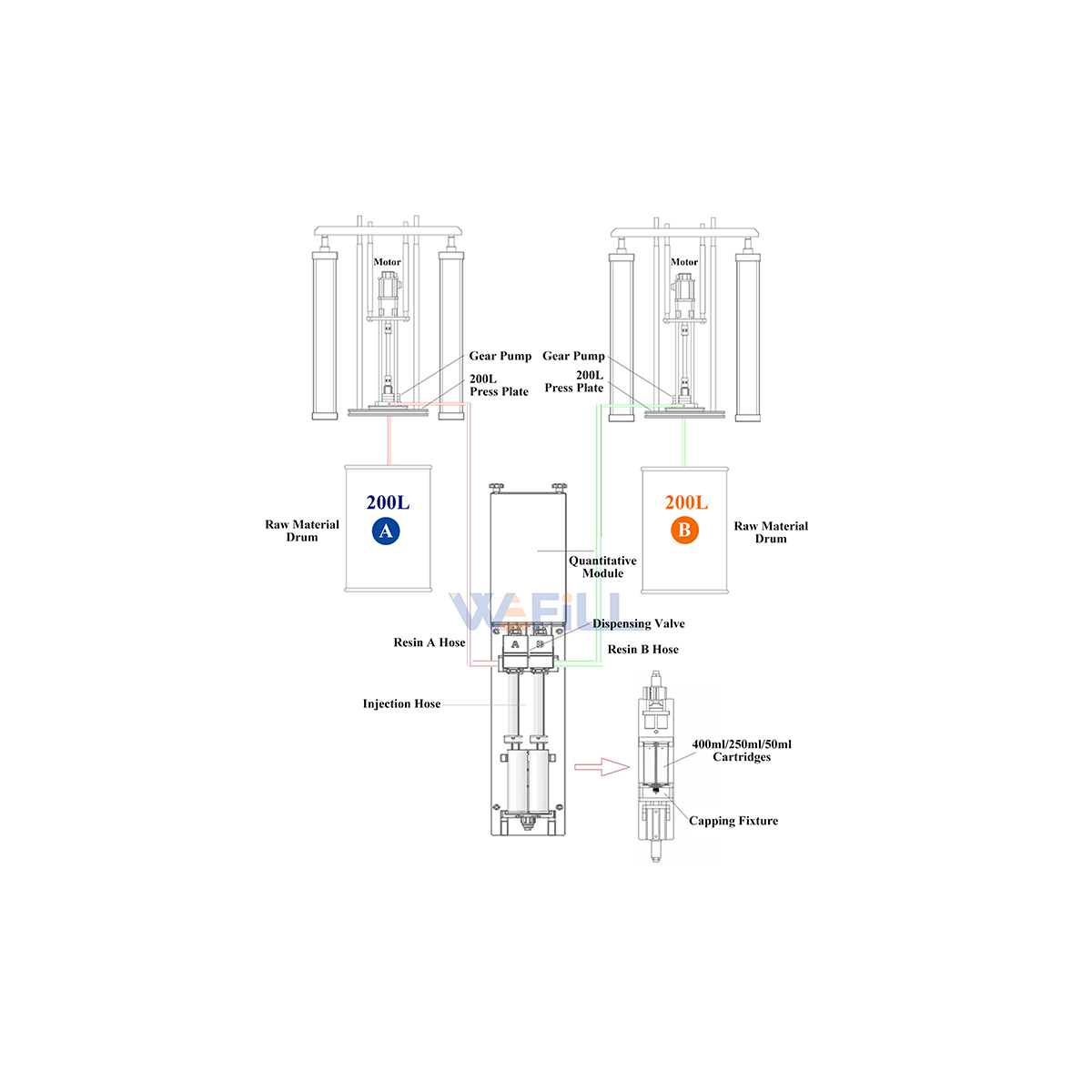

Filling Process Flowchart

Machine Configuration

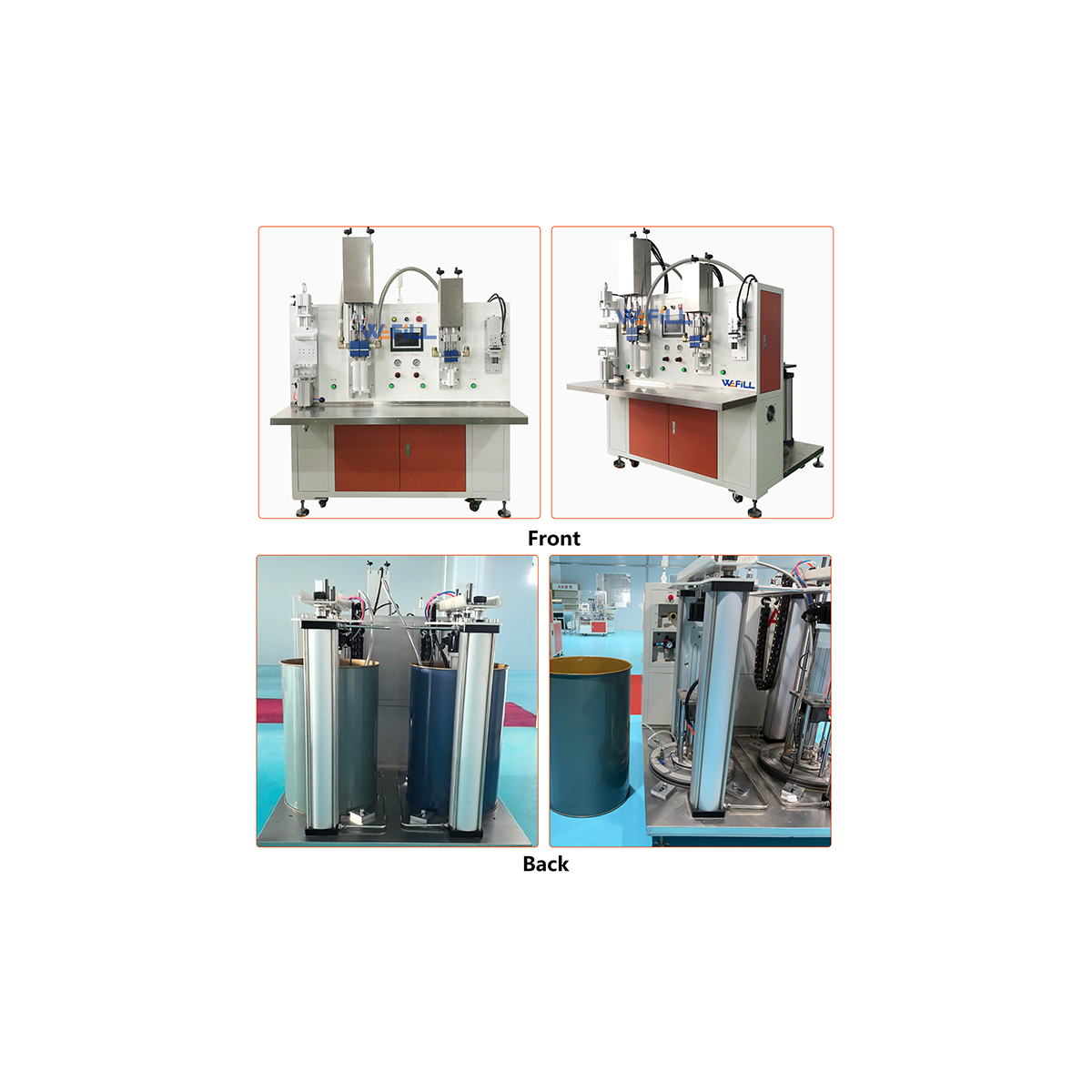

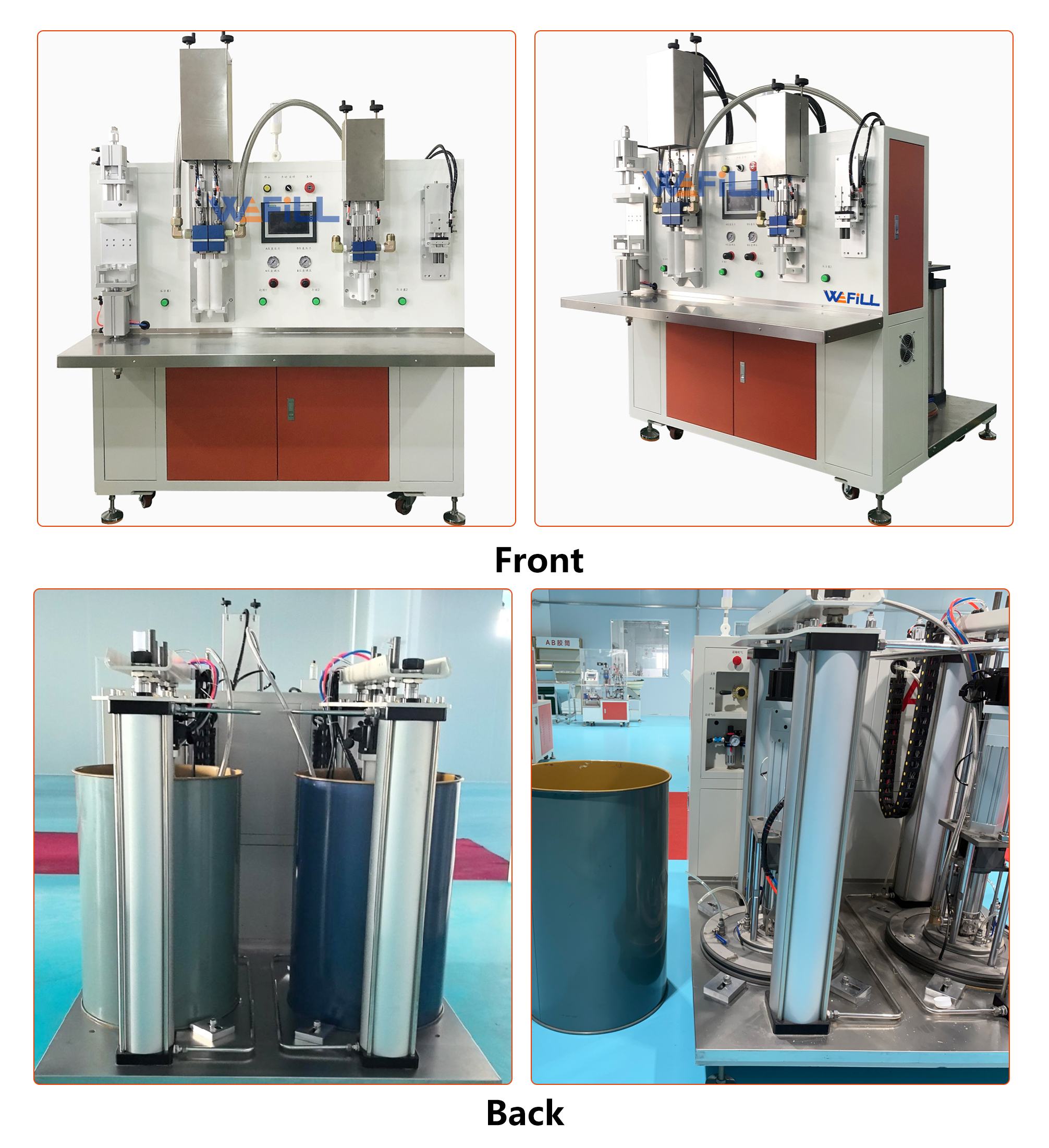

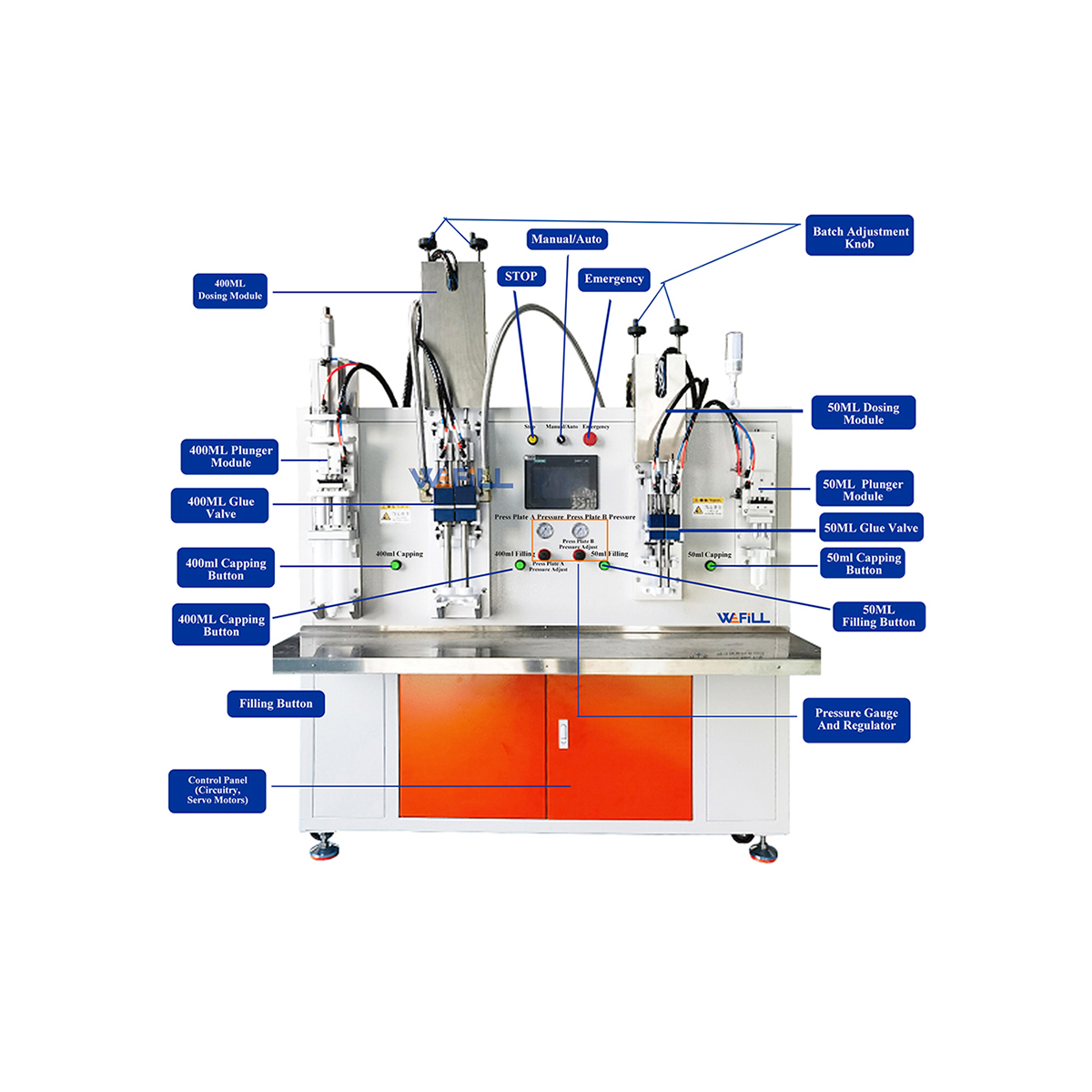

WEFILL-F011 Semi-Automatic High-Viscosity Paste AB Adhesive Filling & Capping Machine

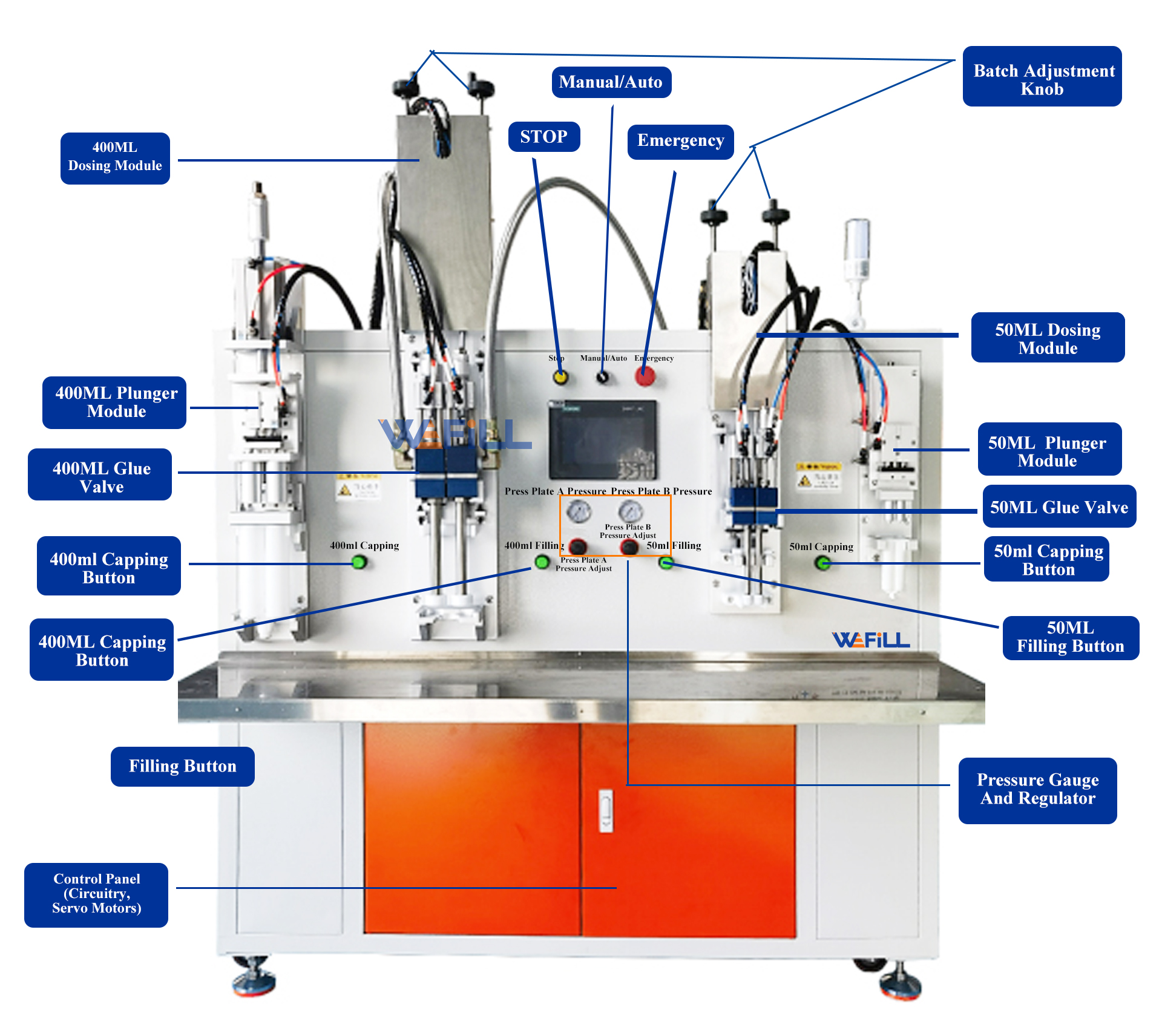

Basic Configuration：

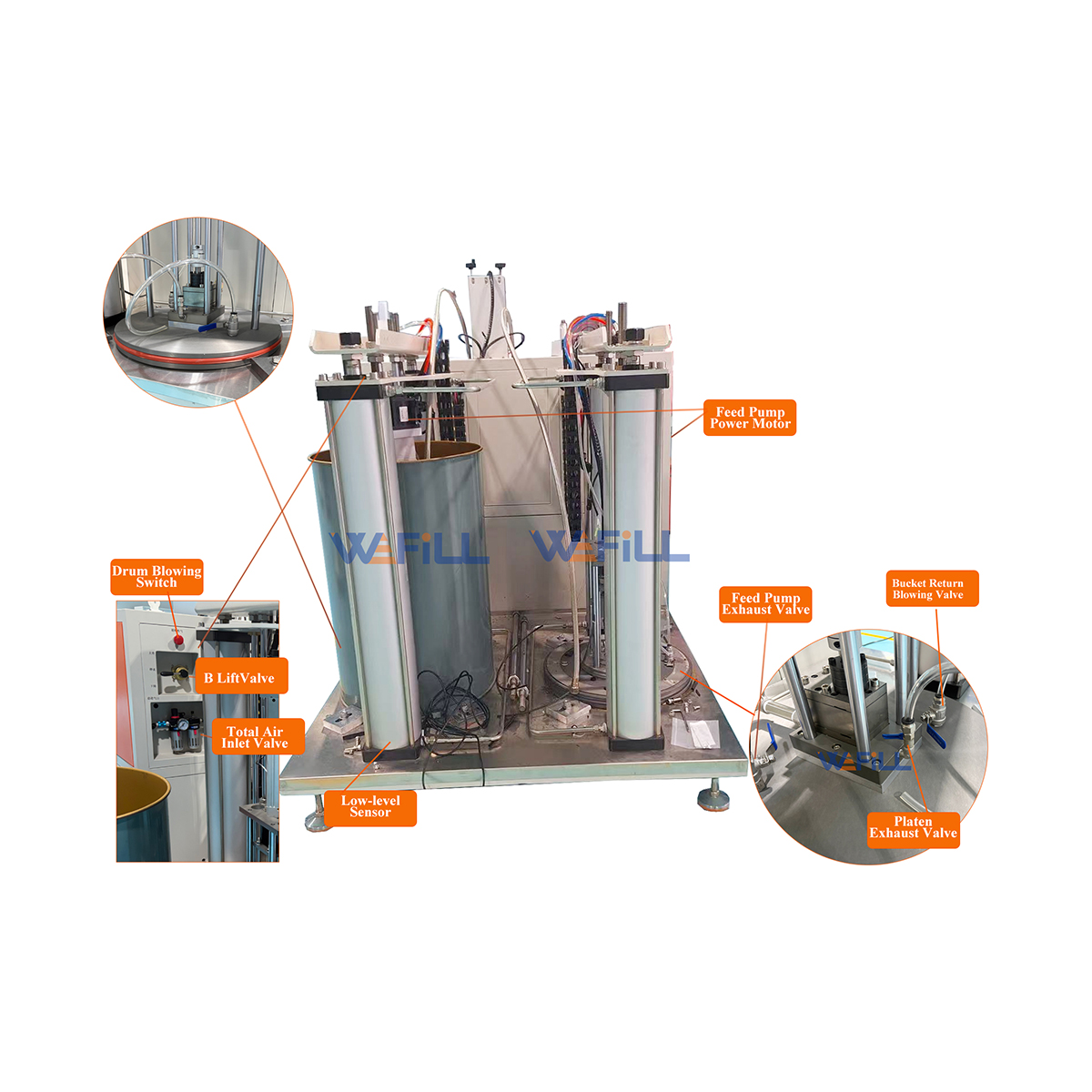

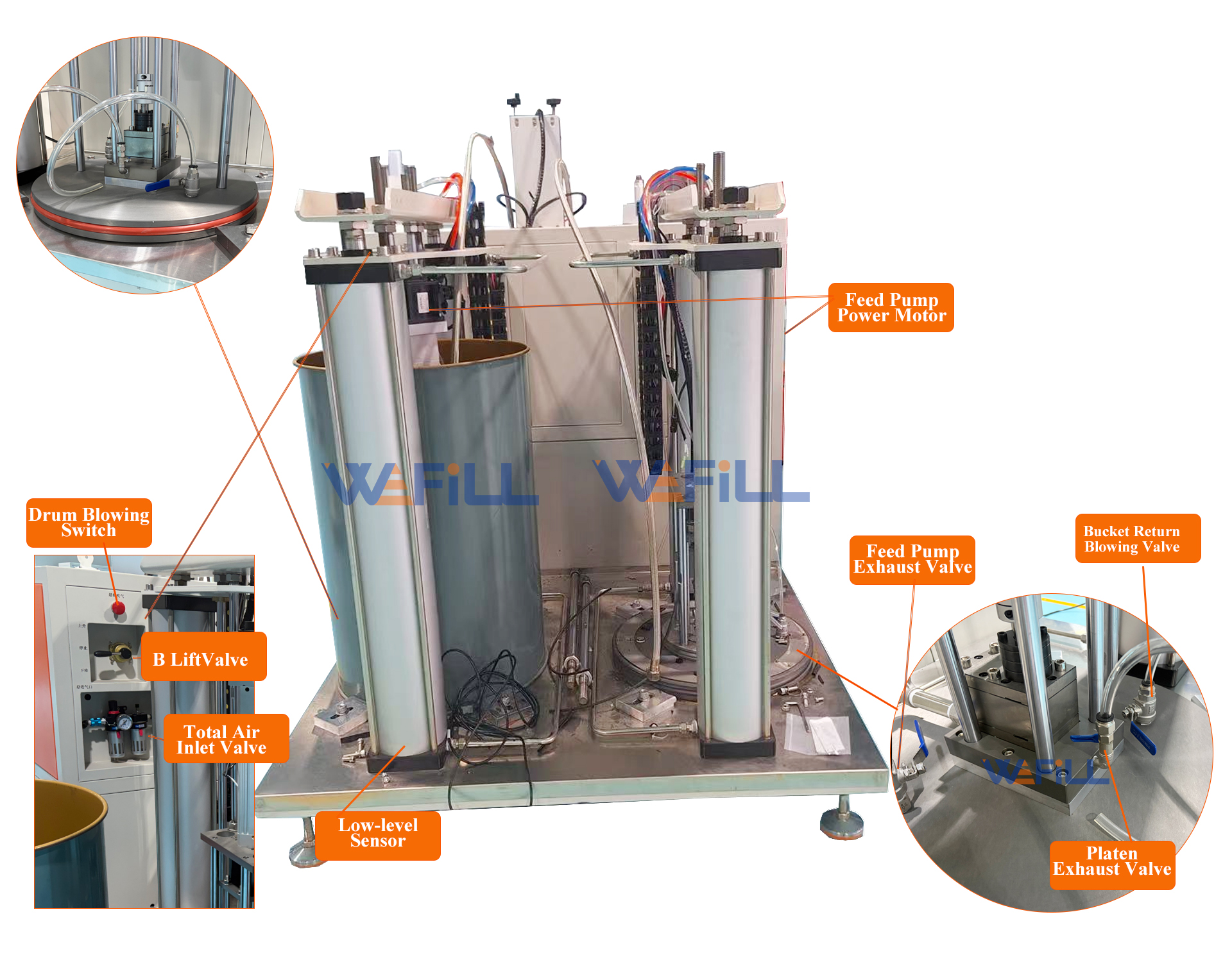

I. Material Supply & Pressure Disc System

1.Equipped with 2 sets of 200L standard pressure plates, compatible with 200L straight-sided steel packaging drums

2.Equipped with 4 precision lifting cylinders to ensure balanced and smooth material compression

II. Metering & Conveying System

3.Equipped with 2 sets of wear-resistant metering feed pumps for conveying high-viscosity paste adhesives or materials

4.Equipped with 2 sets of servo motors and matching gearboxes as the power system to ensure filling speed

5.Utilizes a pneumatic cylinder to drive the feed pump, ensuring stable material flow rate and high dispensing accuracy

III. Control & Electrical System

6.Equipped with a Siemens 7-inch touchscreen, Siemens PLC system, and Mingwei power supply

IV. Valves & Actuators

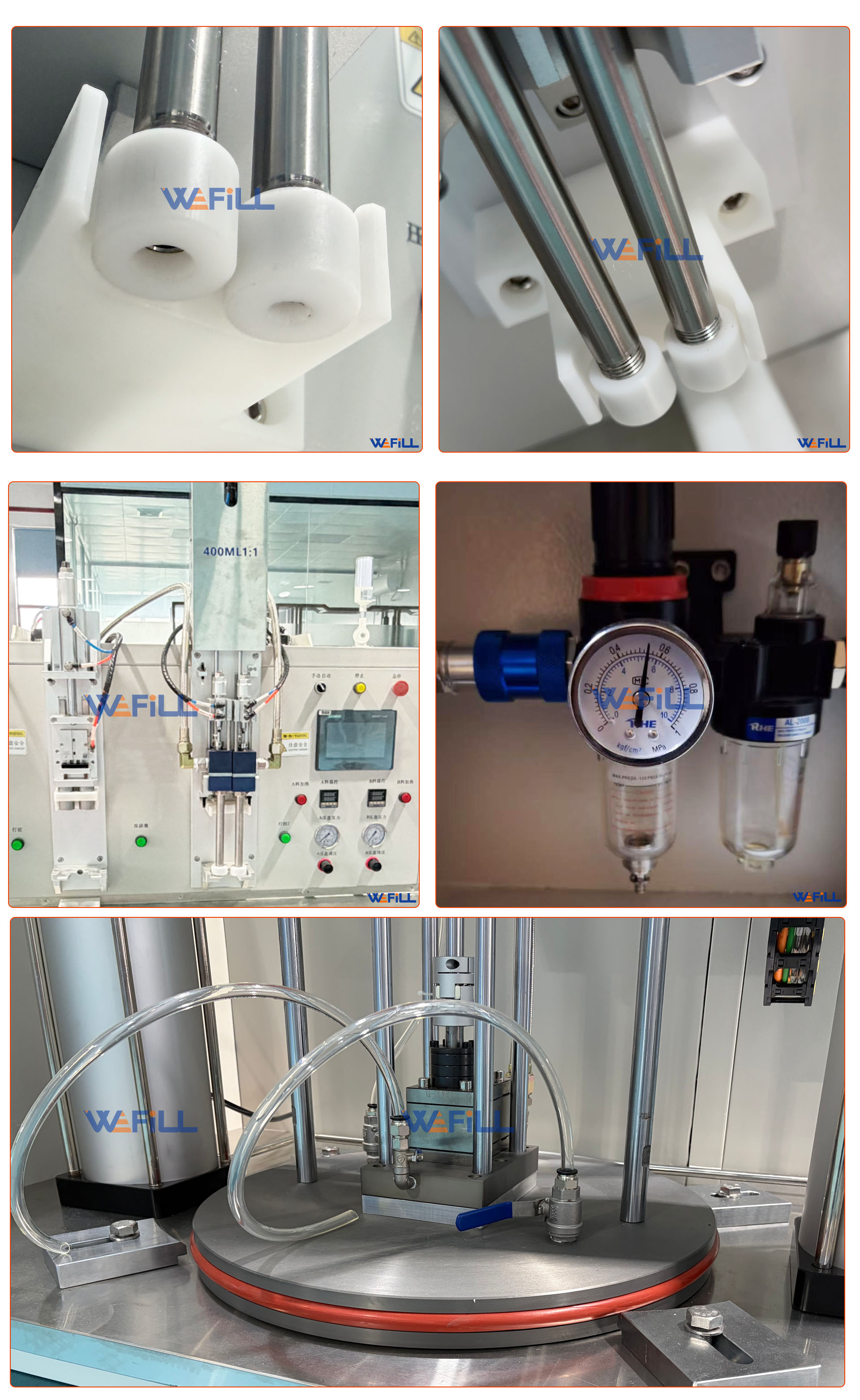

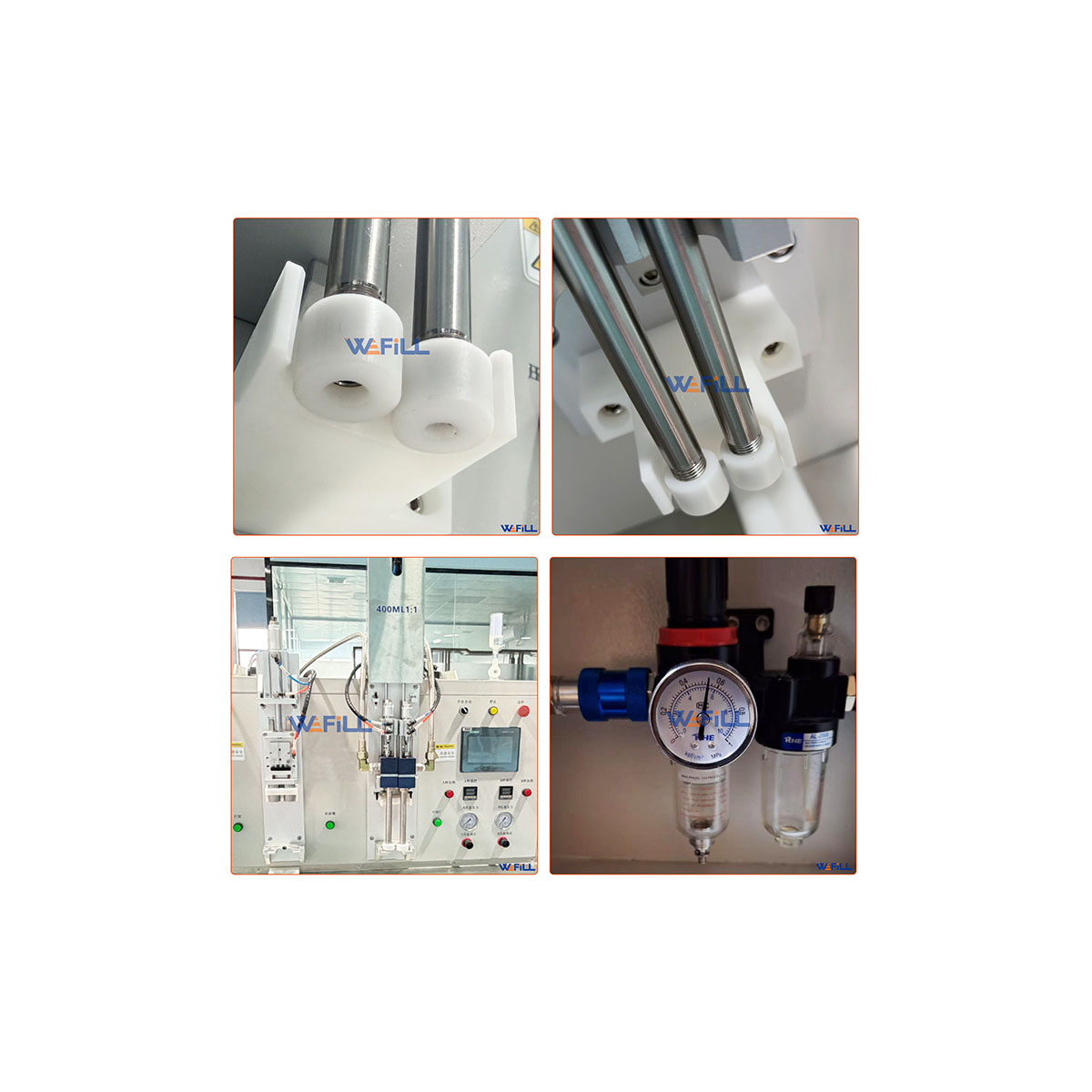

7.Equipped with high-speed precision solenoid valves to control the opening and closing of the dispensing nozzle and ensure normal operation of other pneumatic components

8.Equipped with a pneumatic actuator and dispensing valve for rapid and precise dispensing stoppage

V. Detection & Limit Switches

9.Equipped with precision limit switches to ensure accurate dosing for each adhesive

VI. Filling & Assembly Jigs (for AB Adhesive Cartridges)

10.Includes 1 set of 50mL 1:1 AB adhesive cartridge filling fixture + 1 set of stopper pressing jig

11.Includes 1 set of 400mL 1:1 AB adhesive cartridge filling and metering fixture + 1 set of plunger jig

Additional Configuration Options (Add configurations based on your material requirements)

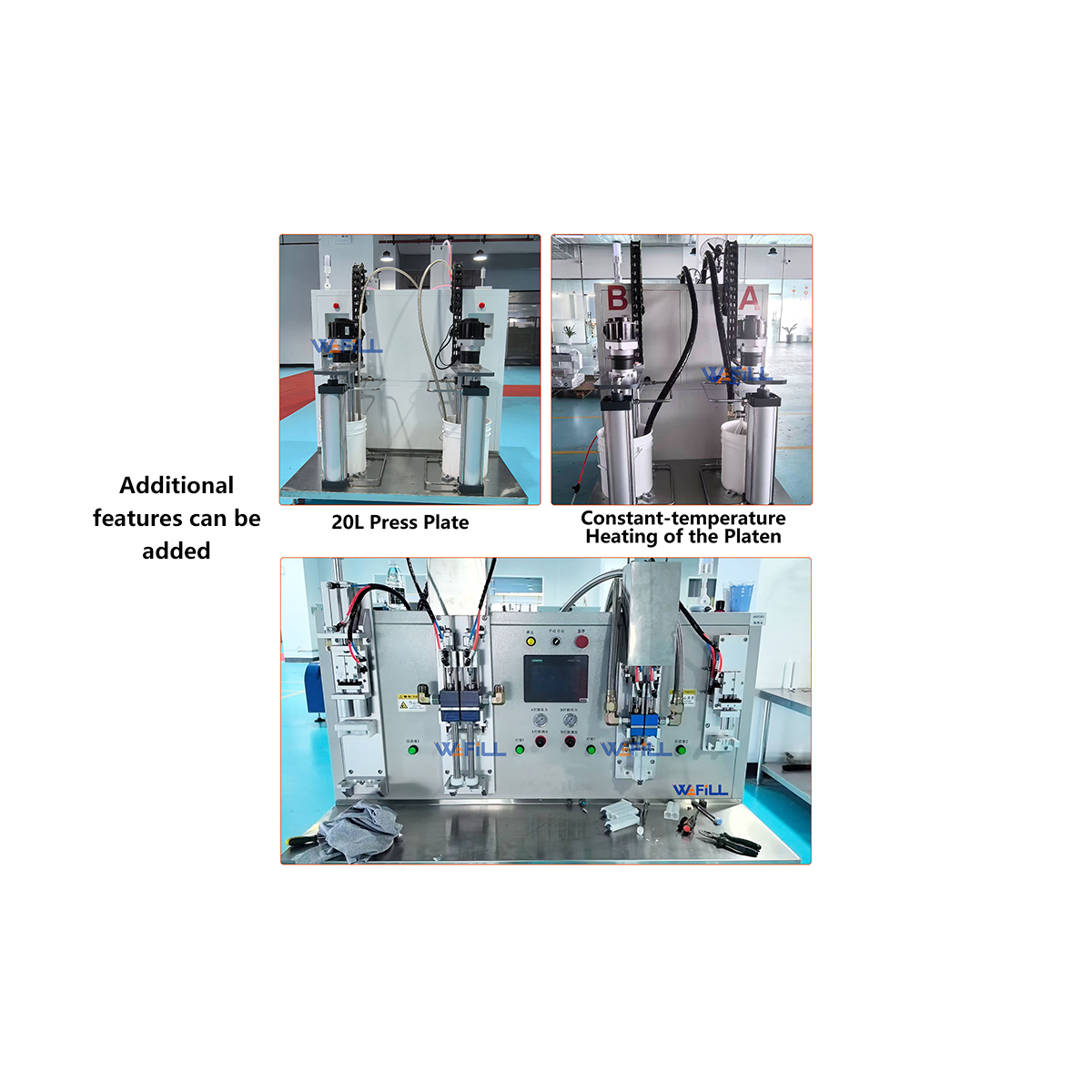

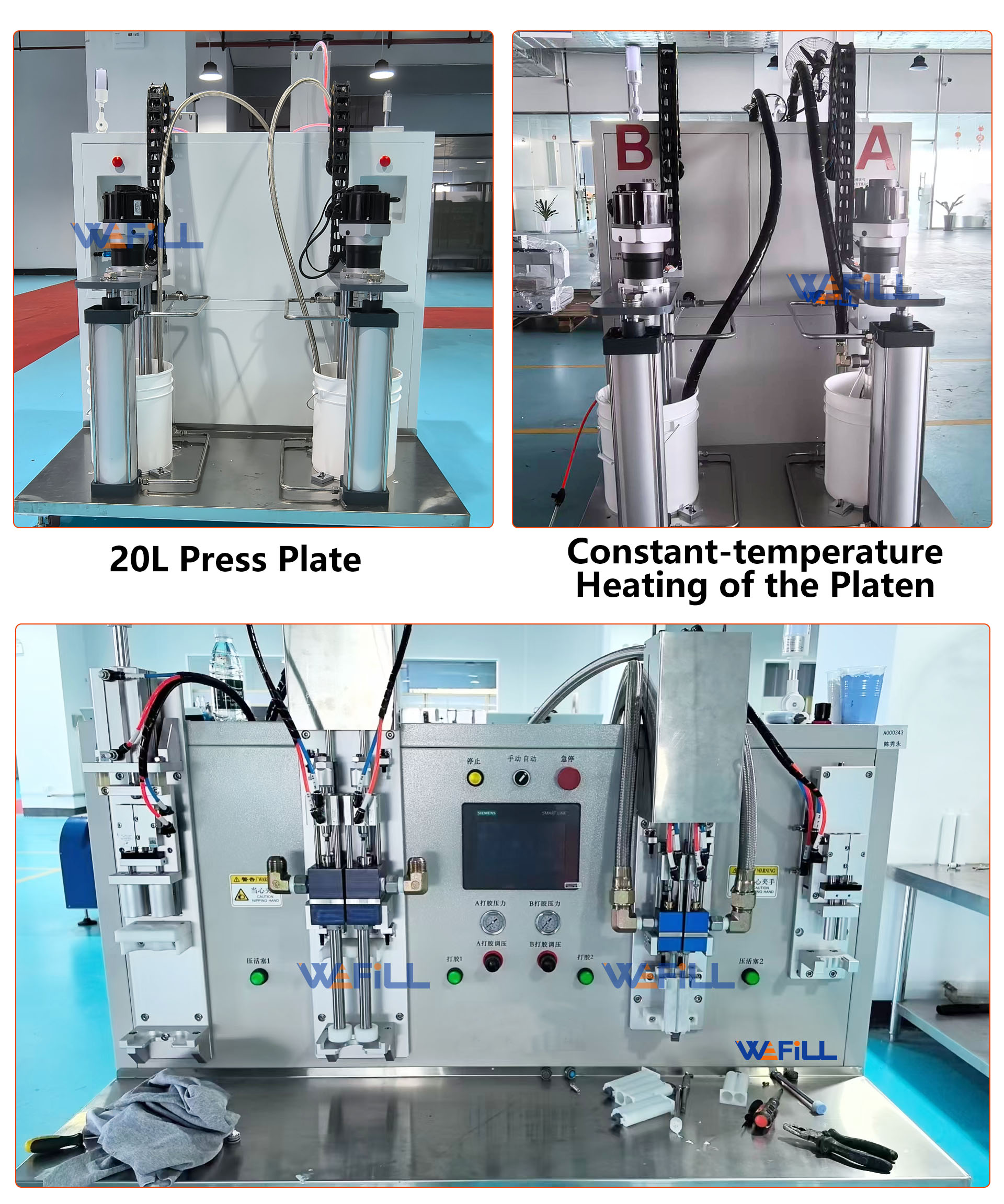

1.Constant-temperature heating – required when material filling demands stable temperature control.

2.The machine supports different two-component filling ratios and filling capacities.

3.The feed section can be equipped with a platen designed to accommodate 20-liter (5-gallon) drums.

4.Contact parts can be upgraded to SUS316 material

5.The entire unit can be upgraded to an explosion-proof model

Machine Advantages

1.This machine is specifically designed for filling 2k Cartridges AB two-component adhesives. It is suitable for dispensing various types of two-component adhesives in 490ml, 400ml, 250ml, 200ml, and 50ml capacities, with selectable mixing ratios of 1:1, 2:1, 4:1, and 10:1. It features a simple structure, convenient operation, comprehensive functionality, and precise metering, ensuring a fast and clean dispensing process. The equipment offers both manual and automatic modes, allowing users to select the desired capacity and mixing ratio based on their specific needs.

2.This equipment is highly intelligent, characterized by fast dispensing speed, precise metering, uniform filling, bubble-free dispensing, and minimal waste.

3.This equipment has a wide range of applications and is widely used for AB adhesives, epoxy resins, polyurethane adhesives, PU adhesives, acrylic adhesives, stone panel adhesives, joint sealants, rebar anchoring adhesives, casting adhesives, and more.

4.With high-precision metering pumps, the error can be controlled within ±1%.

5.Mixing nozzles of different specifications can be easily replaced.

6.An optional heating function is available to handle specialty adhesives with increased viscosity in low-temperature environments.

7.The mobile model can be wheeled directly to the side of large workpieces for on-site operation.

Application

This filling machine is designed for use with a wide range of two-component adhesives and materials, including epoxy resins, polyurethane adhesives, PU adhesives, acrylics, stone panel adhesives, grout sealants, rebar anchoring adhesives, casting adhesives, silicone adhesives, cyanoacrylates, greases, sealants, and more.

These materials are primarily used across diverse industries, such as:

Electronics manufacturing;Electrical appliance manufacturing;Medical and food processing;Civil engineering and construction;Automotive manufacturing;Gift and decorative items;Packaging and advertising;Stone and panel processing;Aerospace;Ammunition and defense;Animal health;Fluid packaging;Food and beverage;In vitro diagnostics;Machine building;Medical devices;Mobile devices and wearables;Photovoltaic (solar energy)
