Semi-Auto 2K Cartridge AB Adhesive Filling Capping Machine | 1:1-10:1 Ratio, 50-600ml, Low Viscosity Glue Dispensing Machine

Product Introduction

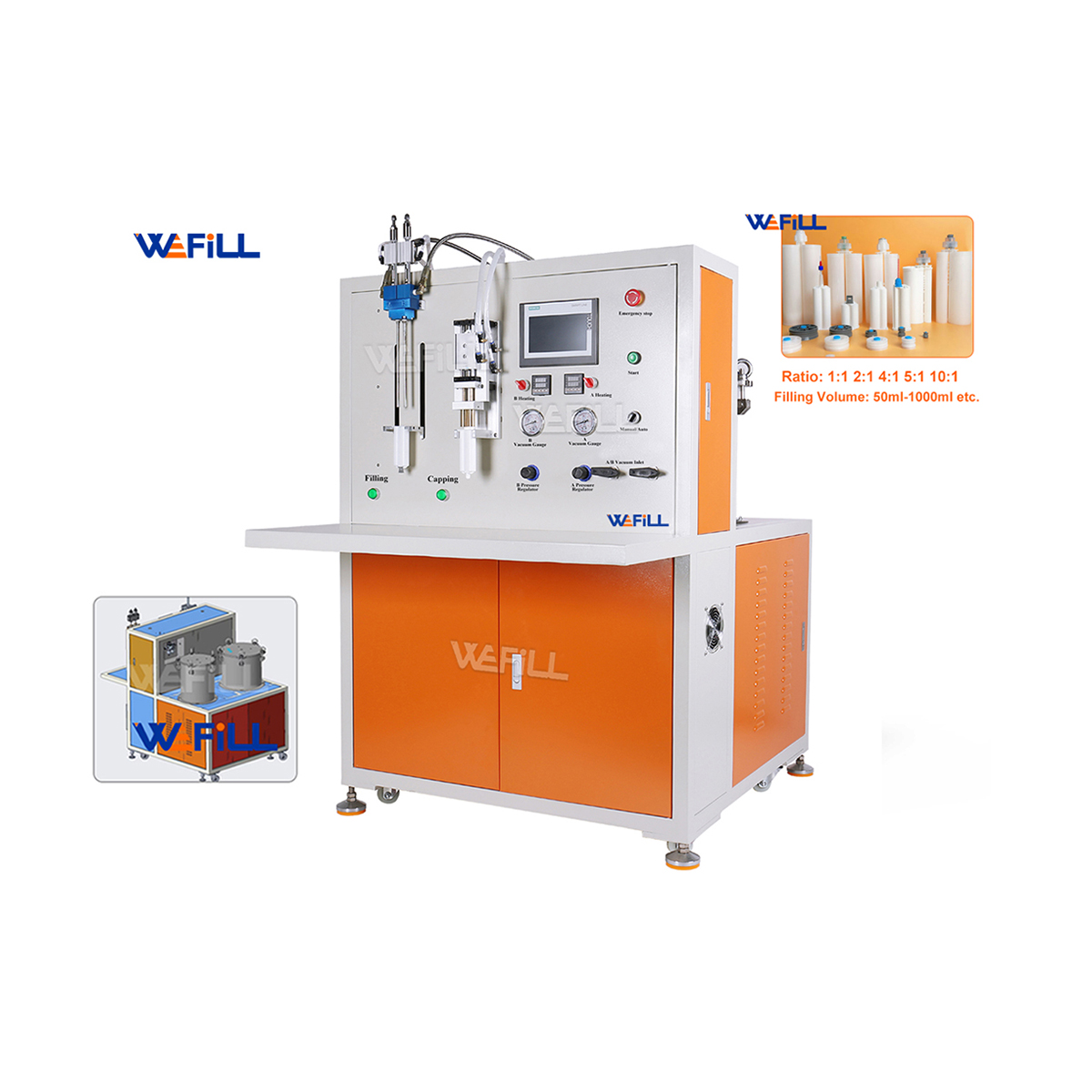

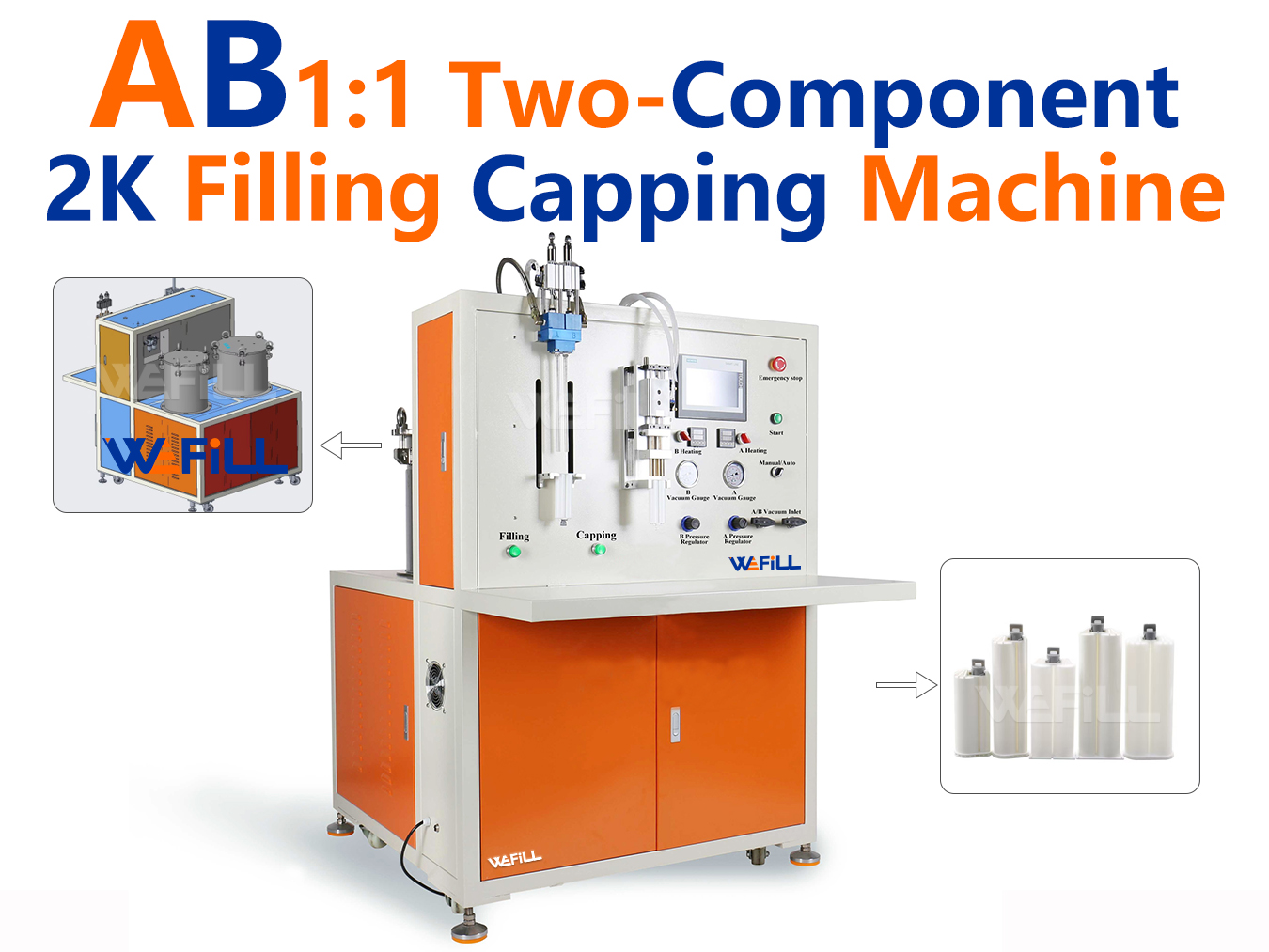

The WEFILL WEFILL-F001 Semi-Automatic Low-Viscosity AB Adhesive Filling & Capping Machine is specifically designed for precise dispensing of low-viscosity adhesives, including epoxy resin, polyurethane, acrylic, 3M adhesives, PU adhesives, AB adhesives, and stone panel adhesives. With an adjustable filling range of 10ml to 1500ml, it delivers ±1% metering accuracy. When using a 10ml cartridge, the machine achieves an output of 1,200 pieces per hour while ensuring smooth, bubble-free adhesive dispensing. Integrated A/B material tanks, injection valves, and piston syringes provide precise ratio control and reliable sealing. The touchscreen interface, combined with a modular design, enables simple operation and efficient maintenance, making it an ideal choice for fast, reliable adhesive filling in industrial applications.

Product Parameter

Video Display

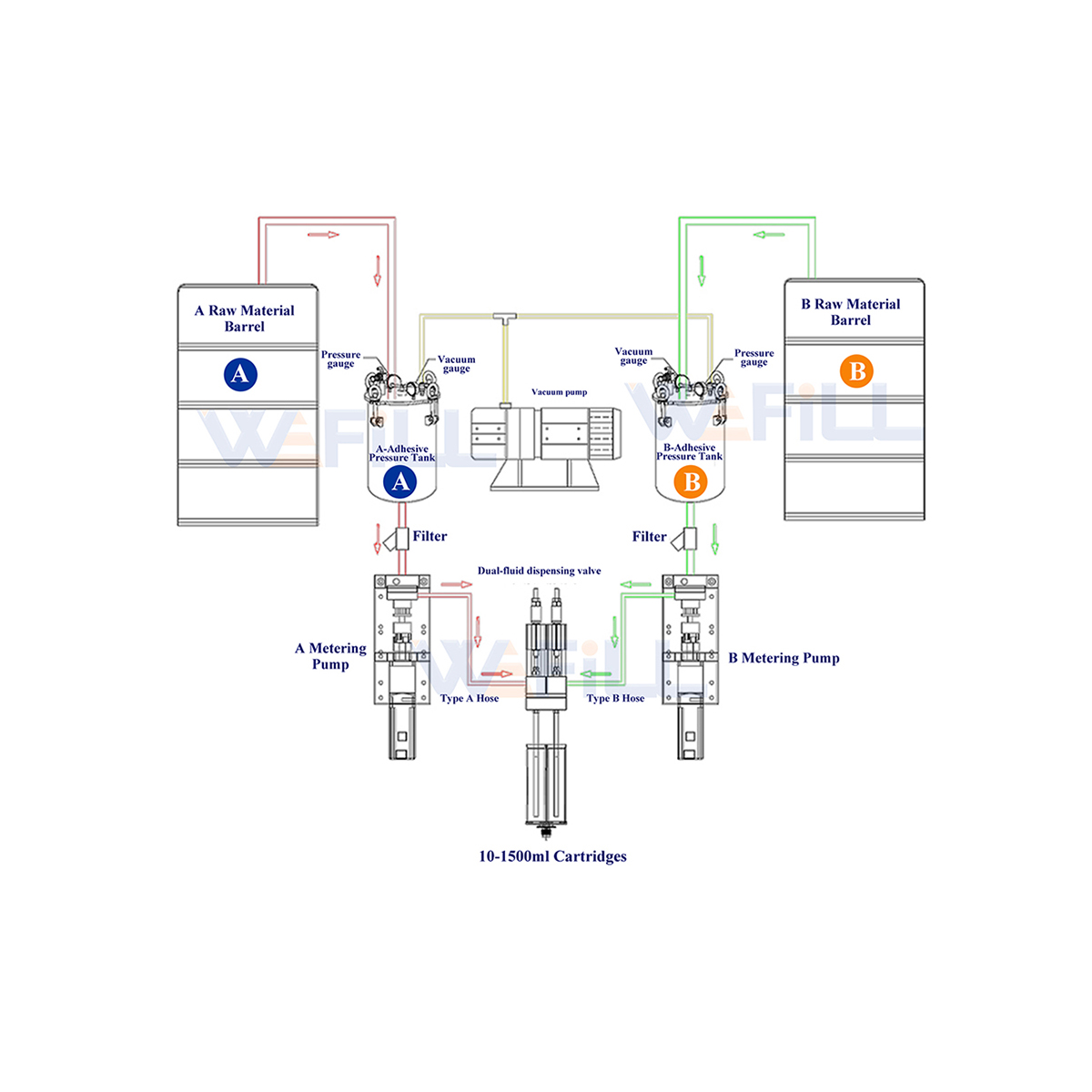

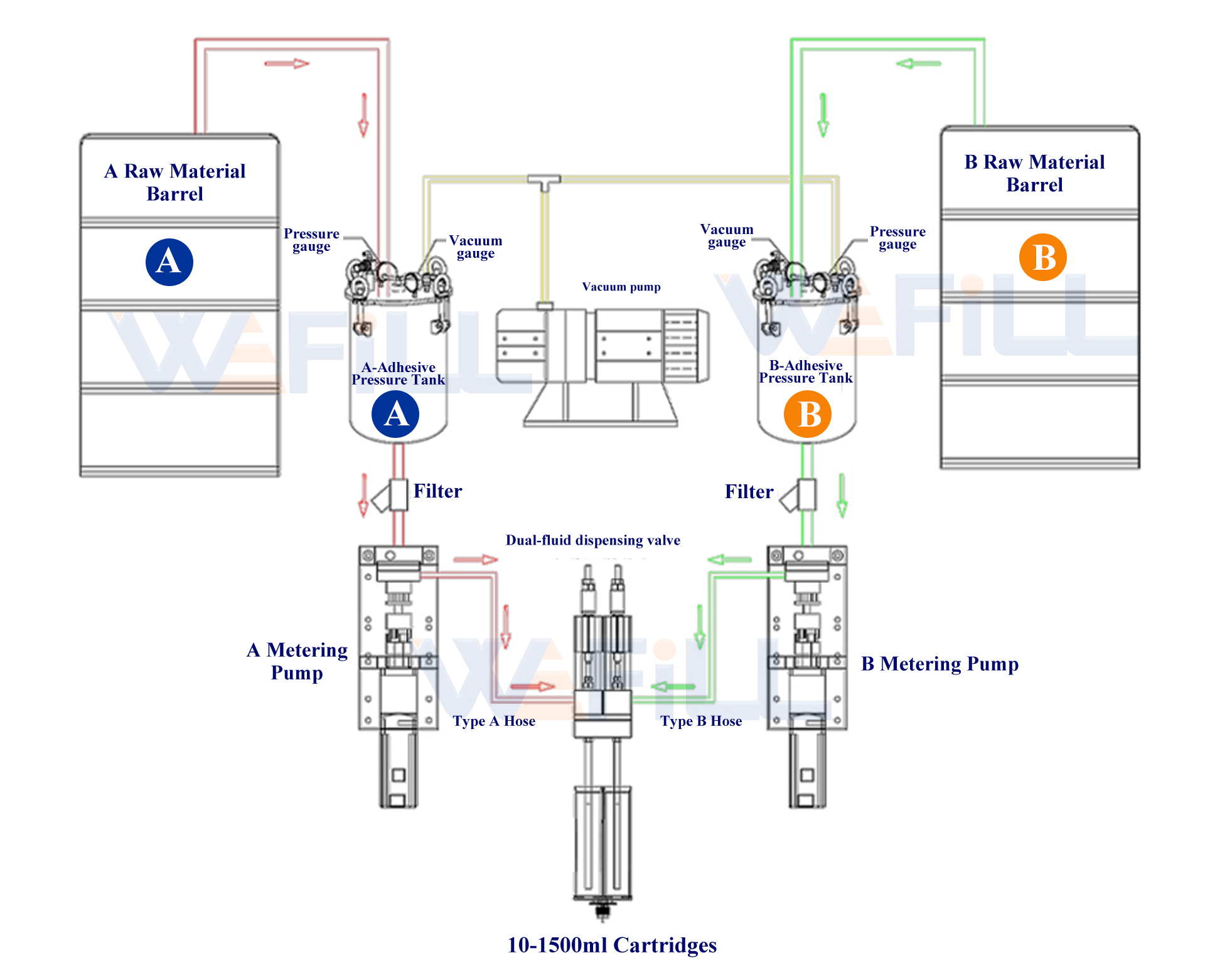

Filling Process Flowchart

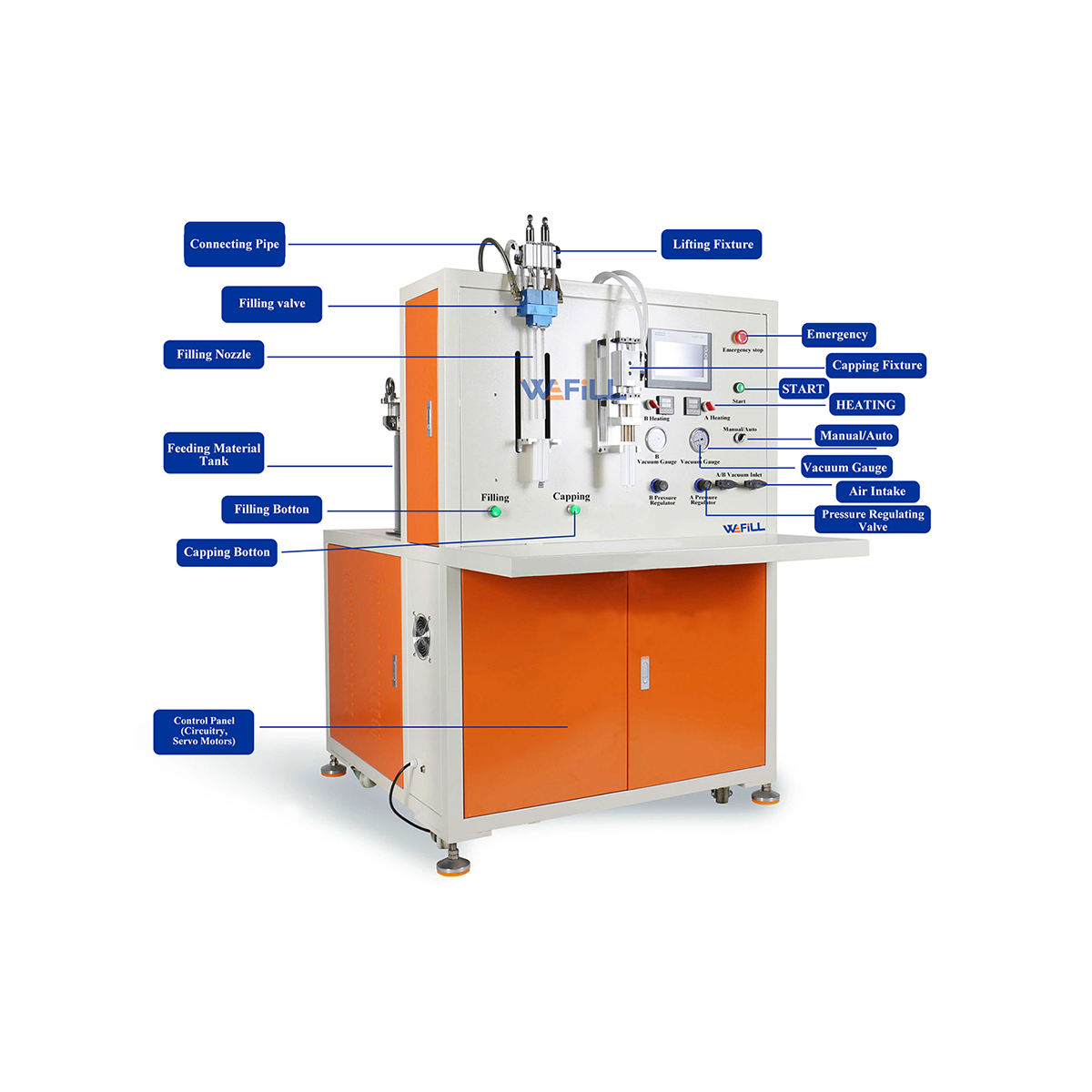

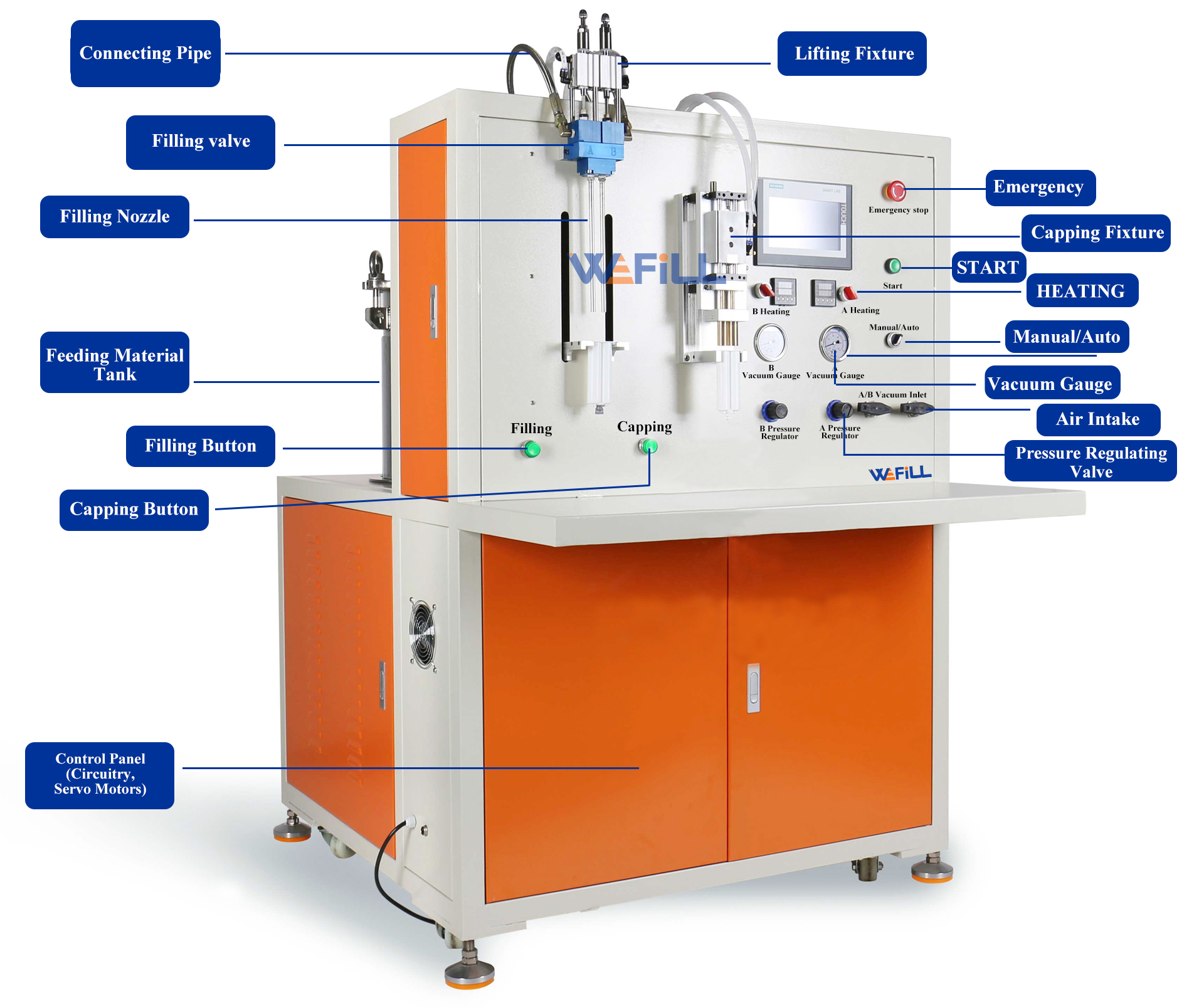

   Machine Description

   This dual-component adhesive dispenser features A/B 304 stainless steel material tanks (upgradable to 316 stainless steel for special applications requiring high corrosion resistance). Adhesive can be poured directly into the tanks for operation and easy cleaning. Optional high/low liquid level alarms for the storage tanks provide real-time alerts on material levels and refill needs. Equipped with a vacuum pump, the system conveys adhesive material to the metering pump inlet via pneumatic pressure.

   The drive motor and metering pump work in tandem to control the adhesive ratio and flow rate, coordinating with the automatic cartridge holder to inject adhesive into cartridges. The machine features large-mouth filling with pre-filling followed by capping. The HMI touchscreen allows automatic volume and speed adjustment. Benefits include rapid portioning, precise metering, balanced filling, bubble-free operation, and minimal waste. This dual-function machine requires only one operator, significantly boosting productivity.

   WEFILL TECH also offers fully automatic dual-component filling machines compatible with dual-cartridge or dual-syringe configurations, suitable for both low- and high-viscosity materials. Options can be selected based on budget requirements.

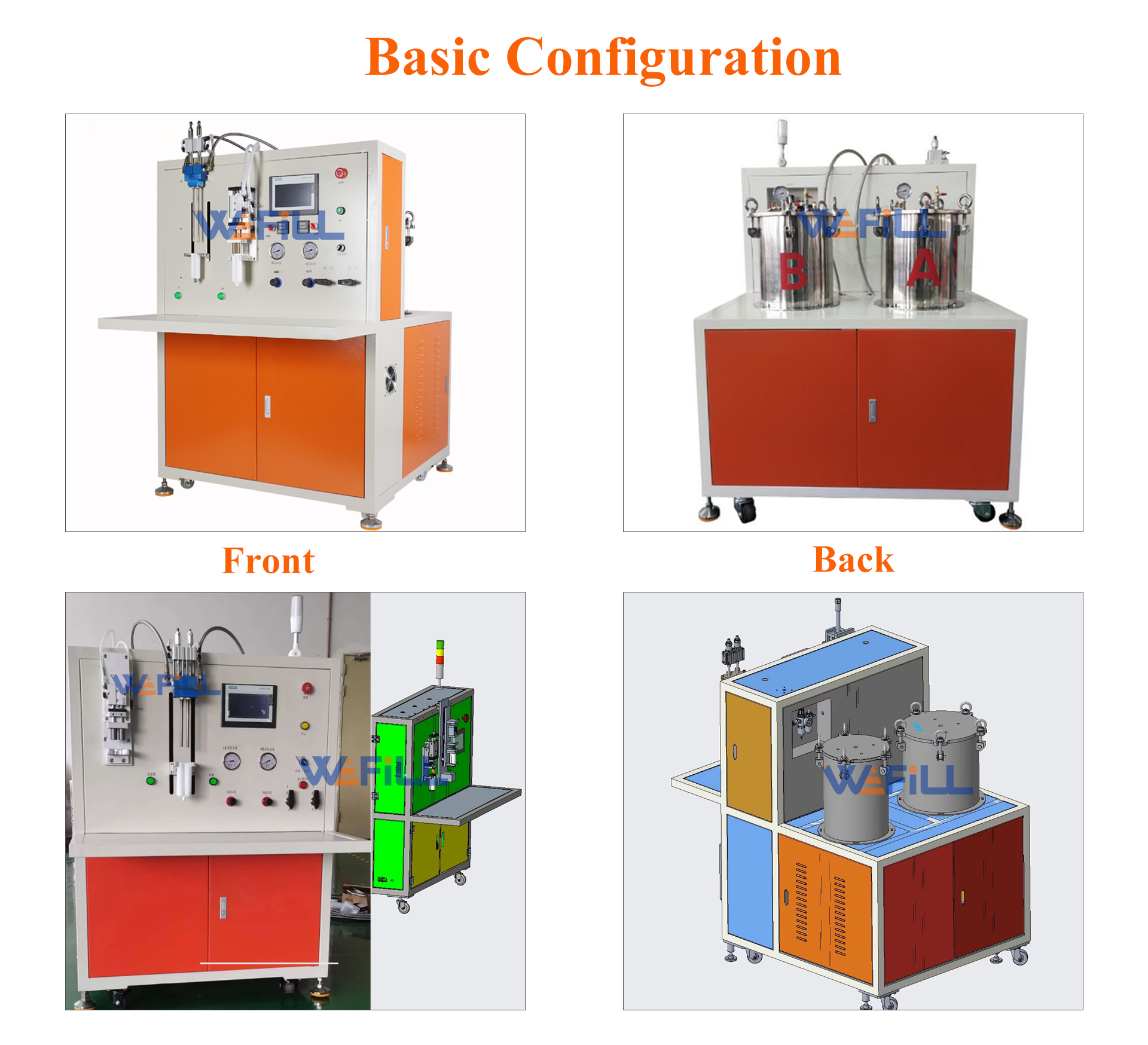

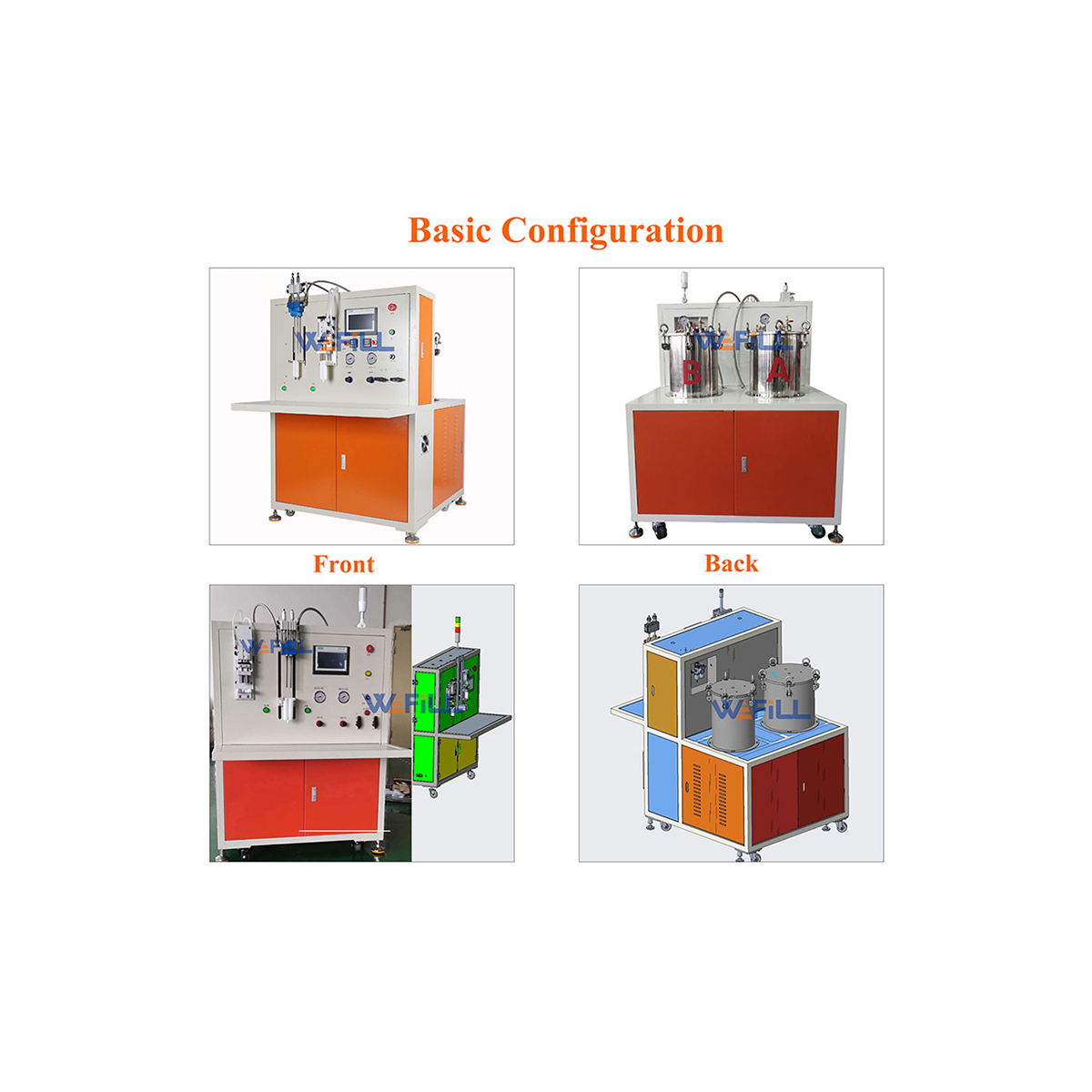

Basic Configuration:

1.Equipped with A/B 304 stainless steel material tanks that resist high-intensity corrosion, allowing adhesive to be poured directly into the tank for operation and easy cleaning.

2.Equipped with servo motors and precision gear metering pumps to ensure strict, stable, and adjustable adhesive ratio accuracy.

3.Features intelligent PLC and touchscreen control with manual/automatic modes, accommodating different adhesive cylinder volumes and ratios.

4.Includes a ball screw and guide rail sliding platform, where cylinders descend synchronously during adhesive dispensing to prevent air bubbles.

5.Features a steel integrated frame with an elegant appearance and robust durability. Equipped with both fixed leveling feet and casters for effortless mobility and time-saving relocation.

Additional Configuration Options (Add configurations based on your material requirements)

1.Automatic feeding pump – transfers material from the raw material drum to the stainless steel pressure tank.

2.Constant-temperature heating – required when material filling demands stable temperature control.

3.Pressure tank or pressure plate – select according to the flow characteristics of materials A and B.

4.Single machine supports different two-component filling ratios and filling capacities.

5.Pressure tanks equipped with mixing functions, etc.

For further inquiries, please contact us. Our experienced technical team is ready to design a solution for you.

Machine Advantages

1.This machine is specifically designed for dispensing two-component adhesives. It is suitable for dispensing various types of two-component adhesives in 490ml, 400ml, 250ml, 200ml, and 50ml capacities, with selectable mixing ratios of 1:1, 2:1, 4:1, and 10:1. It features a simple structure, convenient operation, comprehensive functionality, and precise metering, ensuring a fast and clean dispensing process. The equipment offers both manual and automatic modes, allowing users to select the desired capacity and mixing ratio based on their specific needs.

2.This equipment is highly intelligent, characterized by fast dispensing speed, precise metering, uniform filling, bubble-free dispensing, and minimal waste.

3.This equipment has a wide range of applications and is widely used for AB adhesives, epoxy resins, polyurethane adhesives, PU adhesives, acrylic adhesives, stone panel adhesives, joint sealants, rebar anchoring adhesives, casting adhesives, and more.

4.With high-precision metering pumps, the error can be controlled within ±1%.

5.Mixing nozzles of different specifications can be easily replaced.

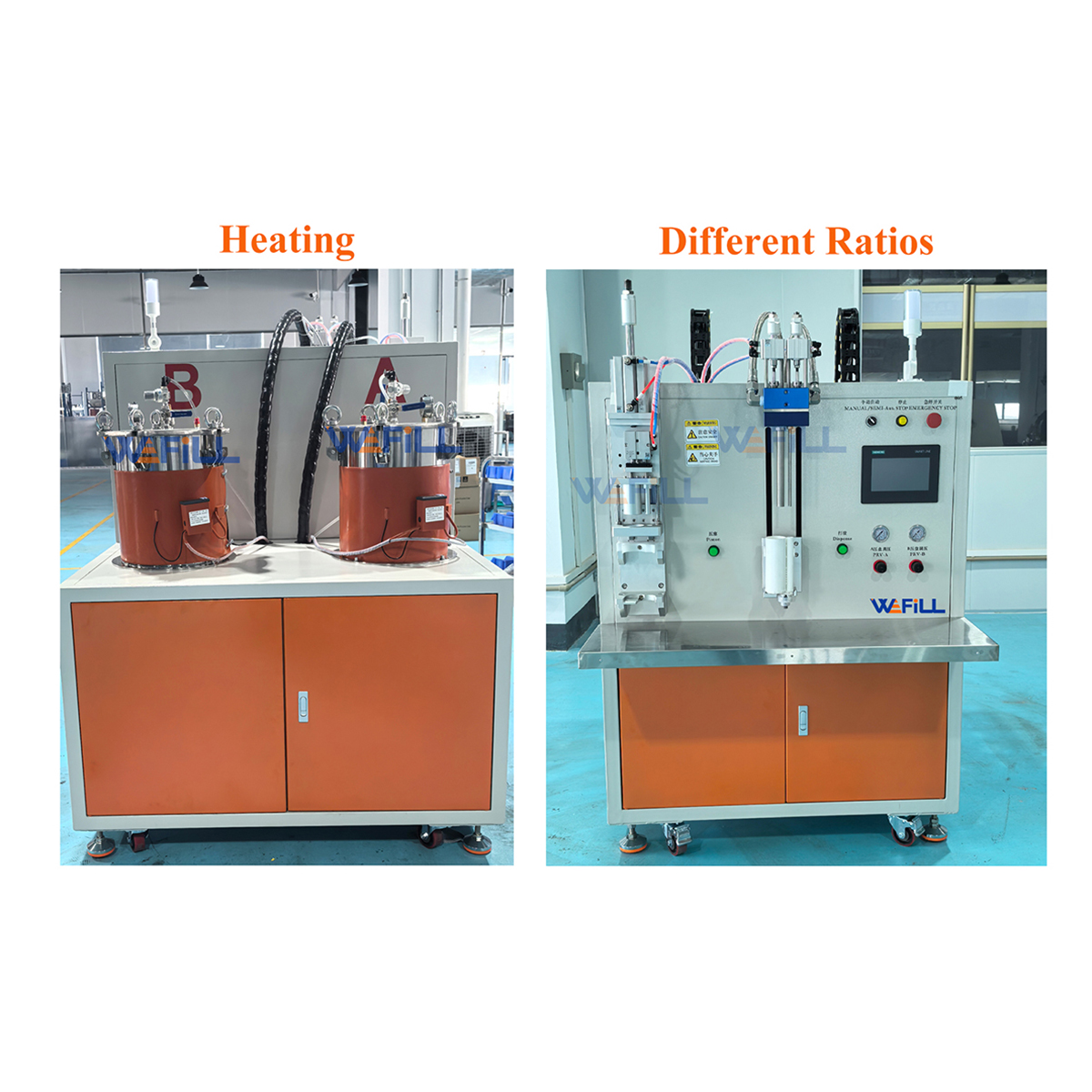

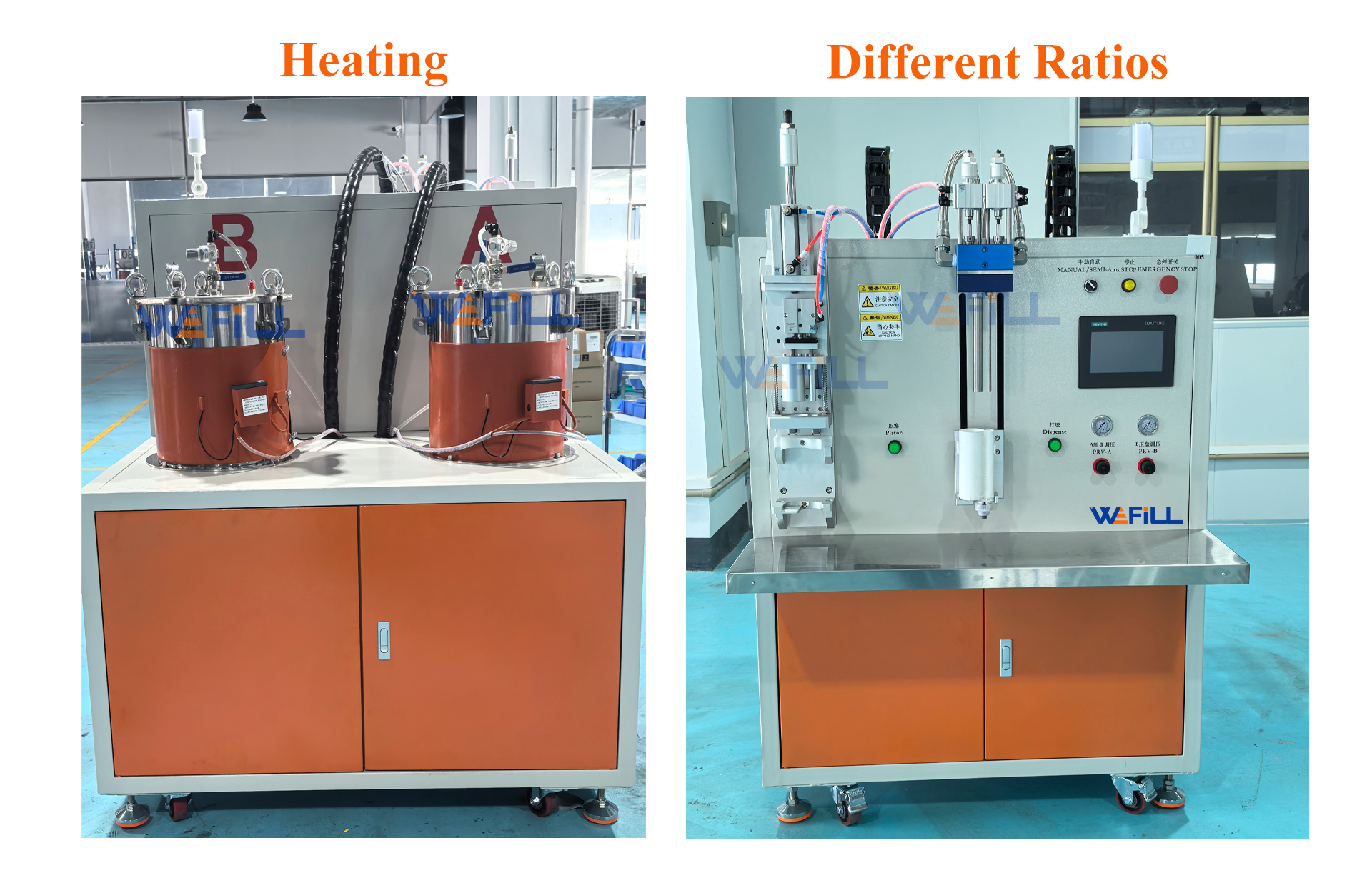

6.An optional heating function is available to handle specialty adhesives with increased viscosity in low-temperature environments.

7.The mobile model can be wheeled directly to the side of large workpieces for on-site operation.

Application

   This filling machine is designed for use with a wide range of two-component adhesives and materials, including epoxy resins, polyurethane adhesives, PU adhesives, acrylics, stone panel adhesives, grout sealants, rebar anchoring adhesives, casting adhesives, silicone adhesives, cyanoacrylates, greases, sealants, and more.

These materials are primarily used across diverse industries, such as:

Electronics manufacturing;Electrical appliance manufacturing;Medical and food processing;Civil engineering and construction;Automotive manufacturing;Gift and decorative items;Packaging and advertising;Stone and panel processing;Aerospace;Ammunition and defense;Animal health;Fluid packaging;Food and beverage;In vitro diagnostics;Machine building;Medical devices;Mobile devices and wearables;Photovoltaic (solar energy)

Common compatible brands include 3M, LOCTITE, ADERIS, Henkel, Huntsman, H.B. Fuller, Permabond, ITW Performance Polymers, Masterbond, MG Chemicals, DELO, Epoxies, Etc., and more.
