Semi-Auto 2K AB Adhesive 50ml Cartridge Filling & Capping Machine | 1:1 Ratio | Pressure Tank Feed
AB Two-Component Filling and Capping Machine
- Machine Model:WEFILL-CAR-AB-F001
- Applicable Liquid Volume Ratios:1:1
- Applicable Filling Volume:50ml
- Filling Speed:480-900pcs/hour(50ml,1:1)
- Machine Voltage:220V/1Phase/50HZ or Customized Your Country Voltage
- Machine Working Air Pressure:0.4–0.7 MPa
- Vacuum Pressure Tank:30L（stainless steel 304）
- Applicable Viscosity:1 to 5,000 cps,Low Viscosity Liquid-State
- Dispensing Accuracy:±1%

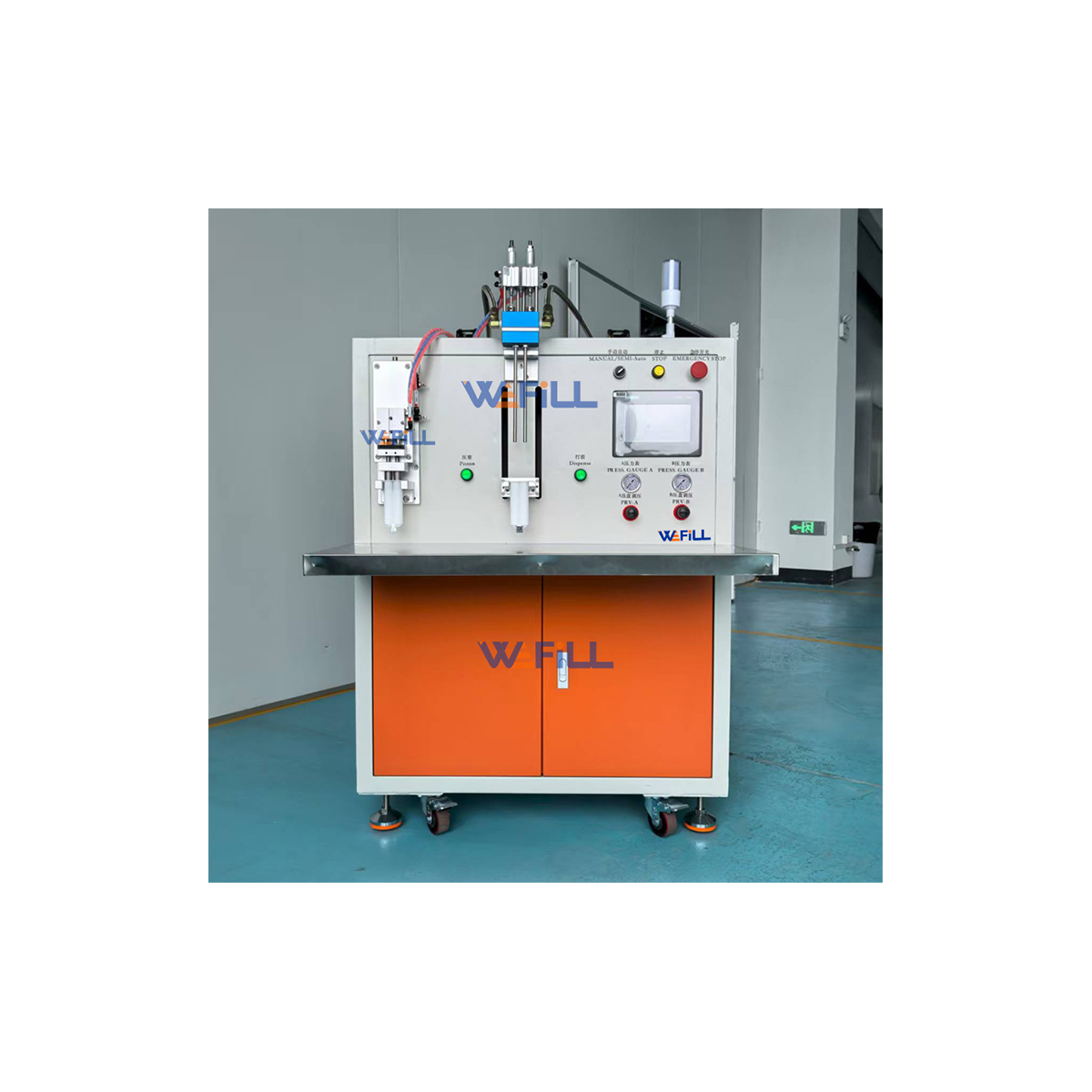

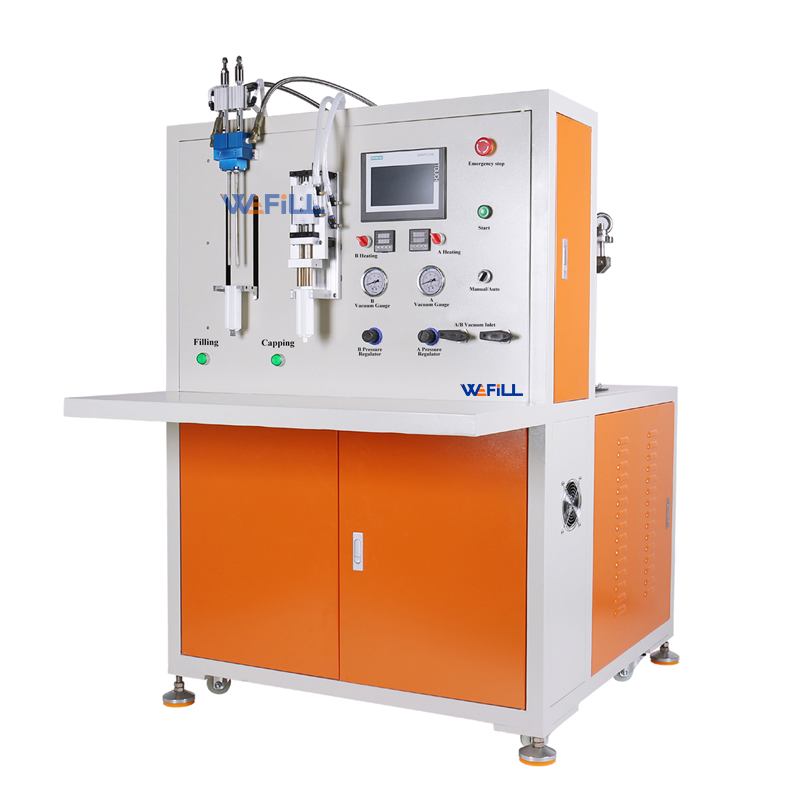

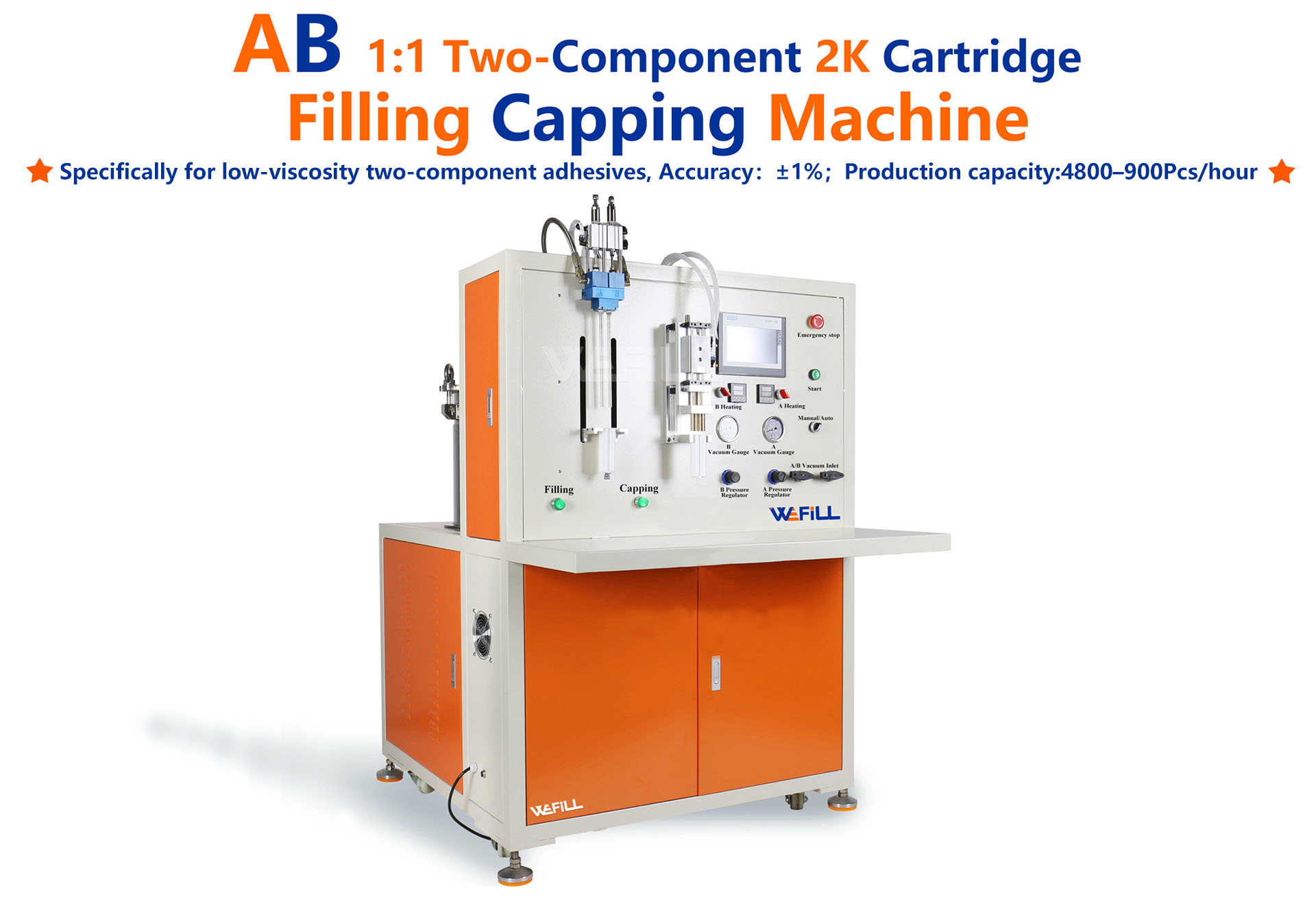

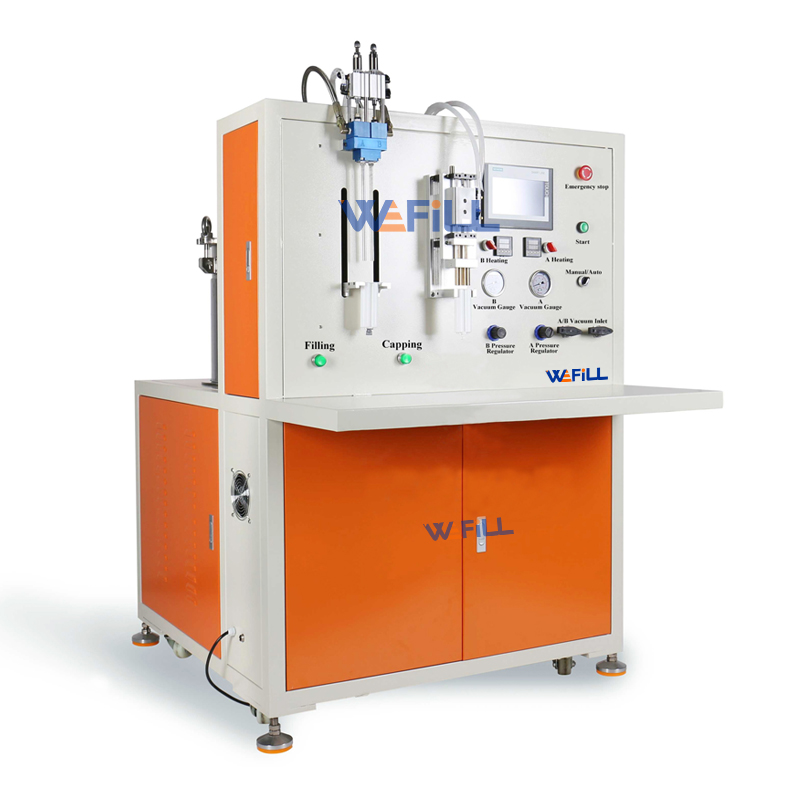

WEFILL-CAR-AB-F001 Semi-Automatic 50ML 1:1 2K Cartridge AB Adhesive Filling & Capping Machine
for Low Viscosity Two-Component Adhesives
AB adhesive filling machine Description
The WEFILL-CAR-AB-F001 Semi-Automatic AB Adhesive Filling & Capping Machine is specially developed for precise filling and packaging of low-viscosity two-component adhesives, including epoxy resin, polyurethane (PU), acrylic adhesives, 3M adhesives, AB glue, and stone panel adhesives. Designed for industrial adhesive cartridge production, this machine provides accurate A/B ratio control, stable dispensing performance, and reliable capping results.
Equipped with independent A/B 304 stainless steel material tanks, precision metering pumps, pneumatic material conveying system, injection valves, and automatic cartridge positioning devices, the machine ensures smooth, balanced, and bubble-free adhesive filling. The material tanks can be upgraded to 316 stainless steel for applications requiring enhanced corrosion resistance. Optional high/low liquid level alarms allow real-time monitoring of adhesive levels for continuous and stable production.
With an adjustable filling range of 10ml to 50ml and ±1% metering accuracy, Filling volumes can also be customized to 200 ml, 250 ml, 400 ml, 490 ml, 600 ml, 800 ml–1,500 ml, and so on.the WEFILL-CAR-AB-F001 delivers consistent adhesive ratios while minimizing material waste. The machine adopts a large-mouth pre-filling process followed by automatic capping, ensuring efficient filling, reliable sealing, and improved production quality.
The integrated HMI touchscreen control system enables easy adjustment of filling volume, dispensing speed, and operating parameters. When filling 10ml cartridges, the machine can achieve an output of up to 1,200 cartridges per hour, requiring only one operator for efficient production.
Featuring a compact structure, modular design, simple operation, and easy maintenance, the WEFILL-CAR-AB-F001 Semi-Automatic Dual Component Adhesive Filling Machine is an ideal solution for manufacturers requiring a reliable AB glue filling machine, epoxy adhesive cartridge filling machine, two-component adhesive dispensing machine, and cartridge filling & capping system.
WEFILL TECH also provides fully automatic AB adhesive filling machines for dual cartridges, dual syringes, and high-viscosity adhesive applications, with customized solutions available according to production capacity and budget requirements
Machine Parameter
Need a custom configuration? We offer variable ratios (1:1 to 20:1), custom volumes (10ml to 1500ml), and ATEX explosion-proof options. Contact us with your requirements.
| Parameter Category | Standard Configuration | Optional Customization |
| Type: | WEFILL-CAR-AB-F001 | |
| Voltage: | 220V/1Phase/50Hz; | Customizable for voltages in various countries |
| Power: | 2-3.5kw; | - |
| Working Air Pressure: | 0.4-0.7 Mpa; | - |
| Feeding Method: | Vacuum pressure tanks feeding materials, Tank Capacities:30L, Tank Material can customized:SUS304； Suitable for supplying Low-viscosity liquid materials; | Also can customized:5L/10L/20L/30L/50L/60L, Tank Material can customized:SUS316 |
| Control Method: | Siemens PLC + HMI; | - |
| Applicable Ratio: | 1:1 | 2:1-20:1 Customizable,Commonly used ratios are: 1:1; 2:1; 3:1; 4:1; 10:1; |

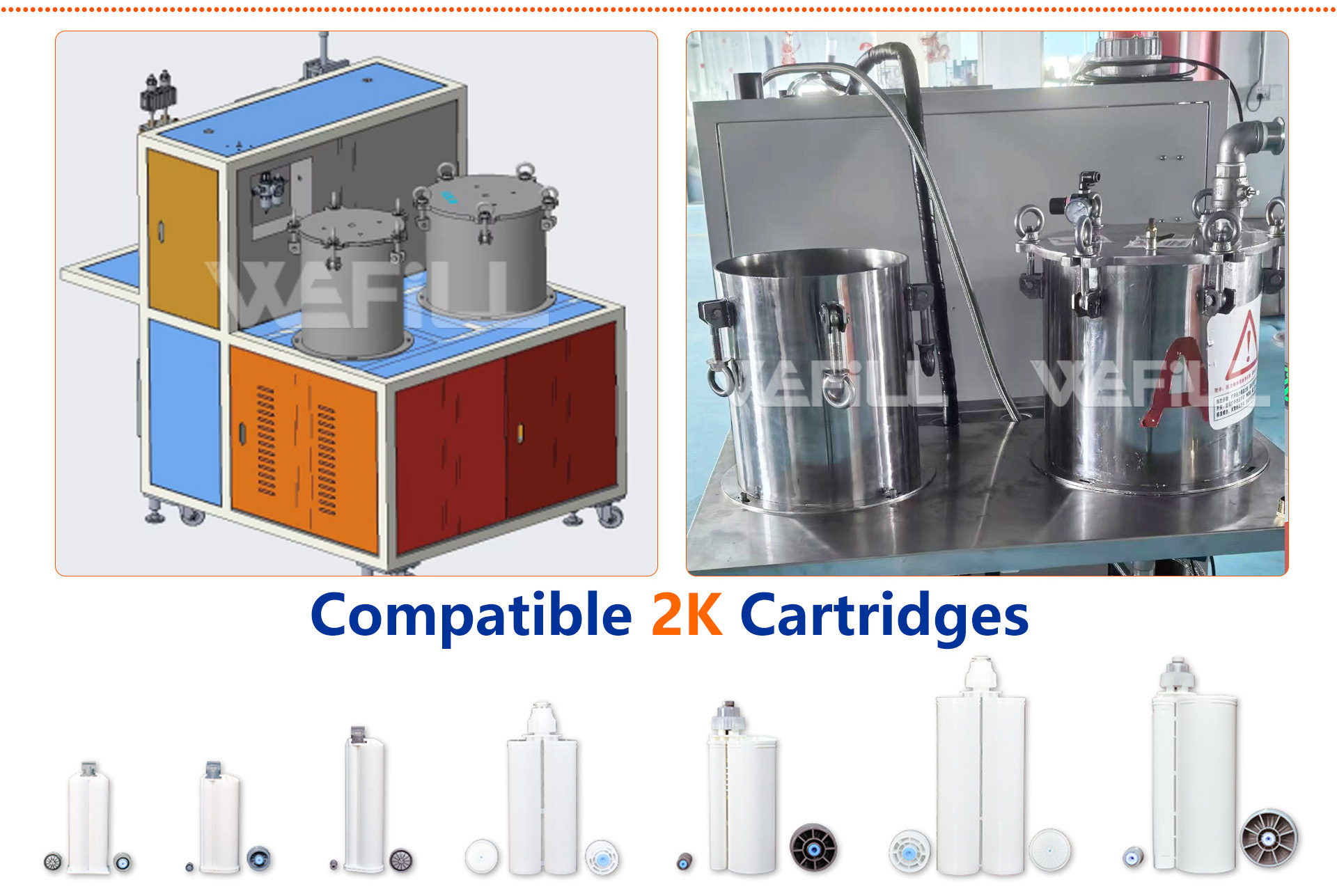

| Suitable Cartridges: | 50ml | Can customized:10-1500ml, Like:12ml,24ml,75ml, 200ml, 250ml,400ml, 490ml,600ml, 1000ml,etc; |
| Viscosity Range: | 5-5000cps,Low-viscosity Liquid adhesives | Expandable to higher viscosities (with optional pressure plate feeding) |
| Filling accuracy: | ±1%; | - |
| Filling speed: | 480-900pcs/hour(50ml,1:1) | - |
| Machine Size: | L1100mm*W1200mm*H1600mm,For reference only; | - |
| Machine Weight: | 350KG | - |
| Machine Frame | Equipped with steel surface coated frame and swivel casters for easy mobility or secure positioning. | - |
Filling Process Flowchart
Working Principle
| Step 1 — Material Loading: The operator loads Component A and Component B into separate stainless steel pressure tanks. |
| Step 2 — Pressure Feeding: Pneumatic pressure delivers both components from the storage tanks to the precision metering pump system. |
| Step 3 — Precision Metering: Servo-motor-driven metering pumps precisely control the flow rate during filling, maintaining a stable 1:1 mixing ratio throughout the process. |
| Step 4 — Cartridge Positioning & Clamping: The machine automatically positions and clamps the two-component (2K) adhesive cartridges. |
| Step 5 — Rear Filling: Adhesive is injected into the cartridges through a large-diameter rear feed port. This reverse filling method (fill first, cap later) ensures smooth material flow, reduces air bubbles, minimizes adhesive waste, and improves filling consistency. |
| Step 6 — Automatic Unloading: The rear-mounted automatic lifting and loading mechanism supports independent loading and unloading of 50ml 1:1 AB adhesive cartridges, reducing operator workload and improving production efficiency. |

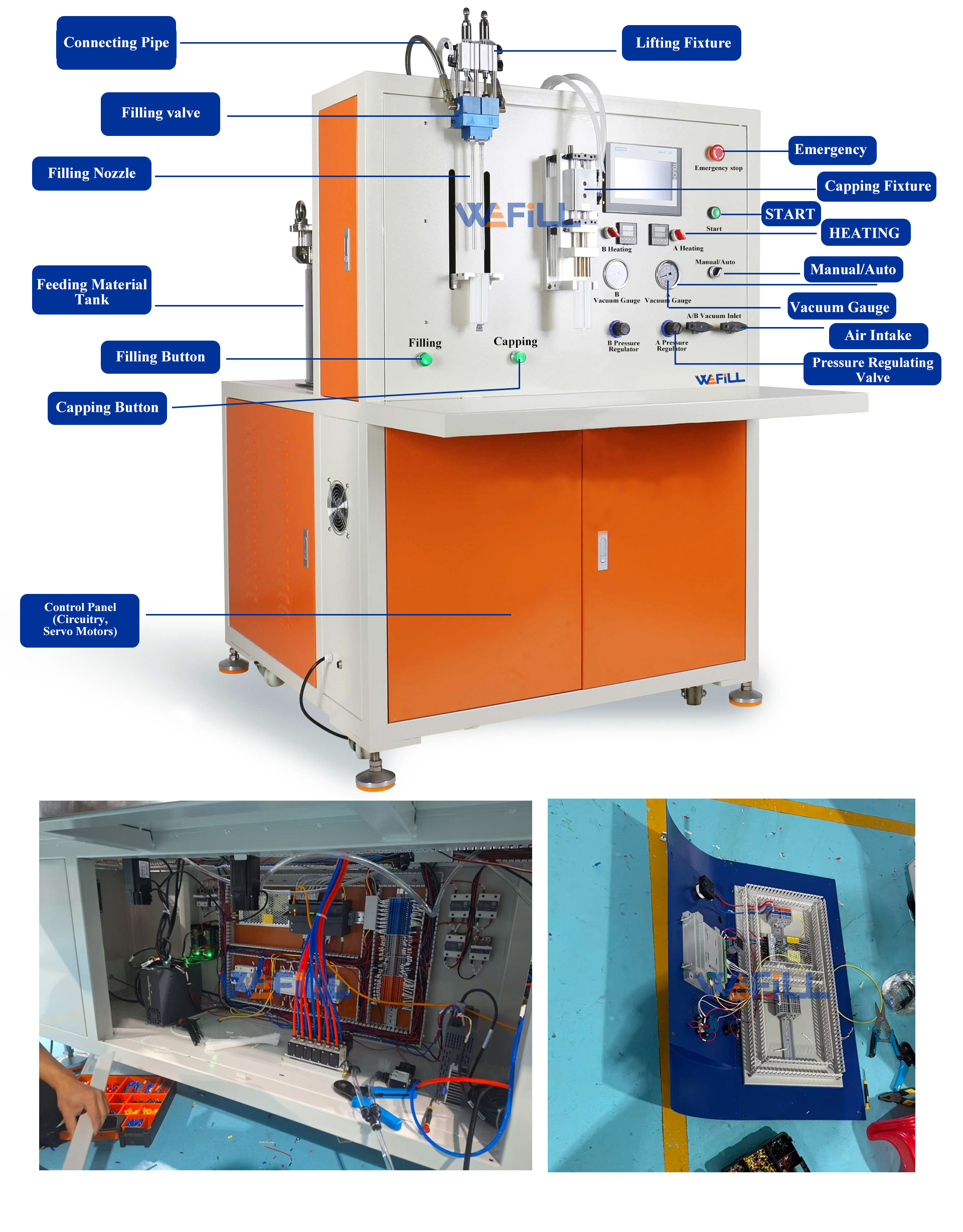

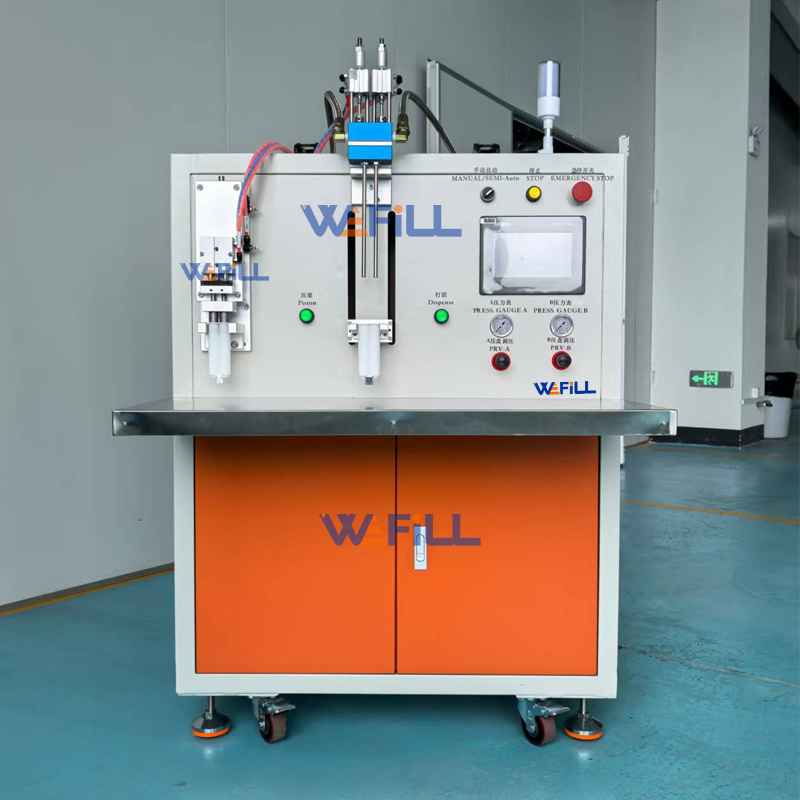

Front Side Configuration – Intelligent Control & Precision Filling System

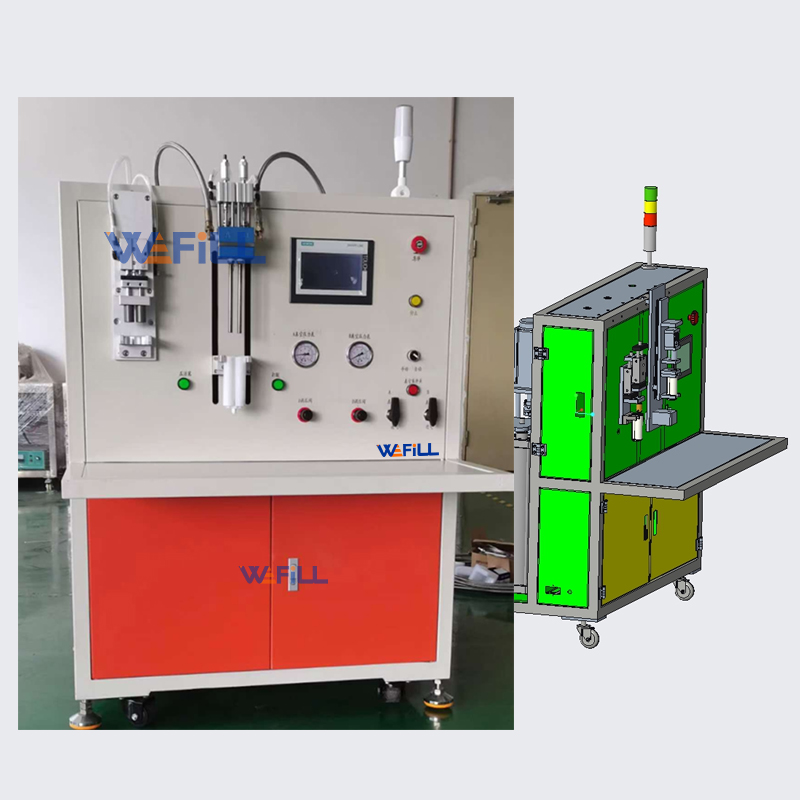

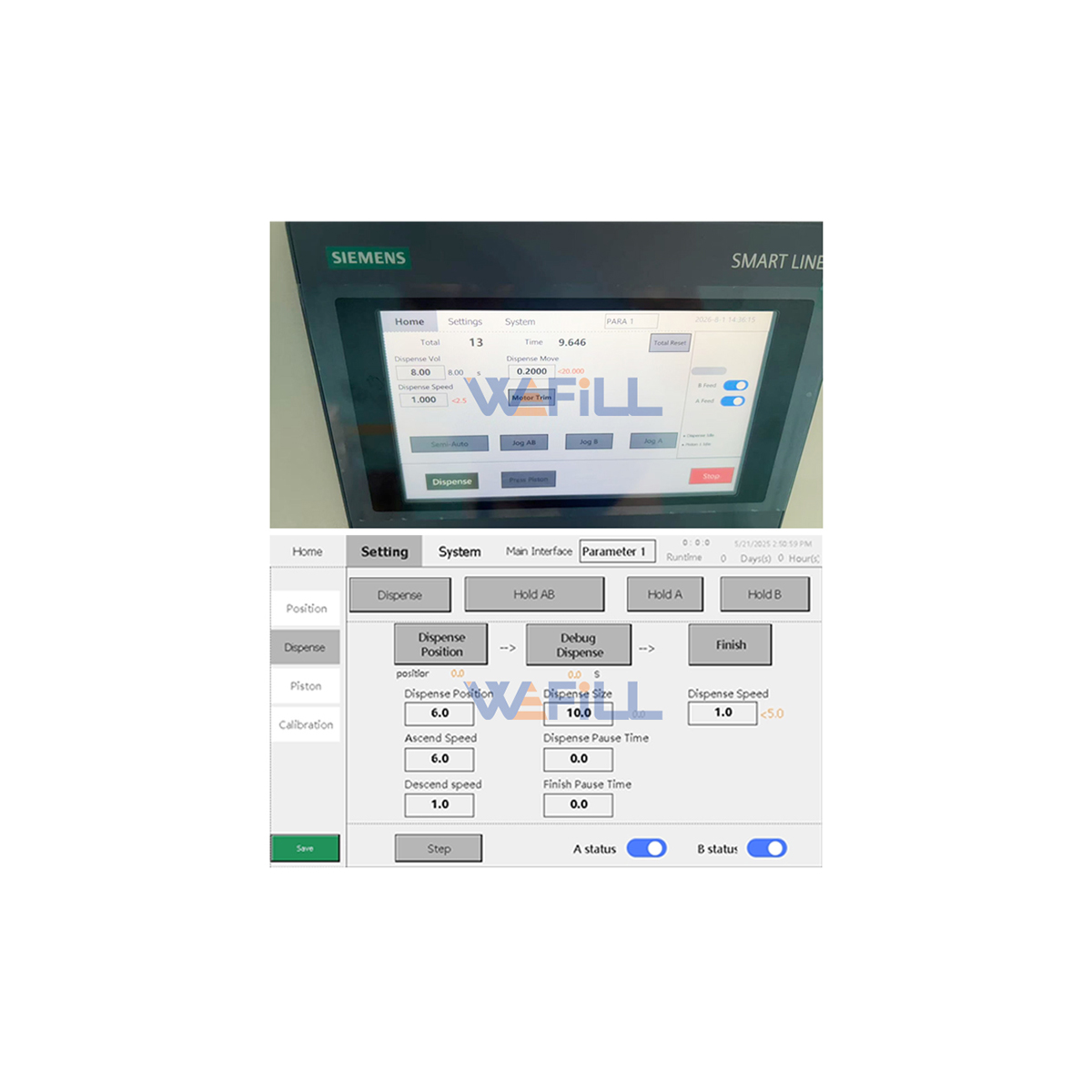

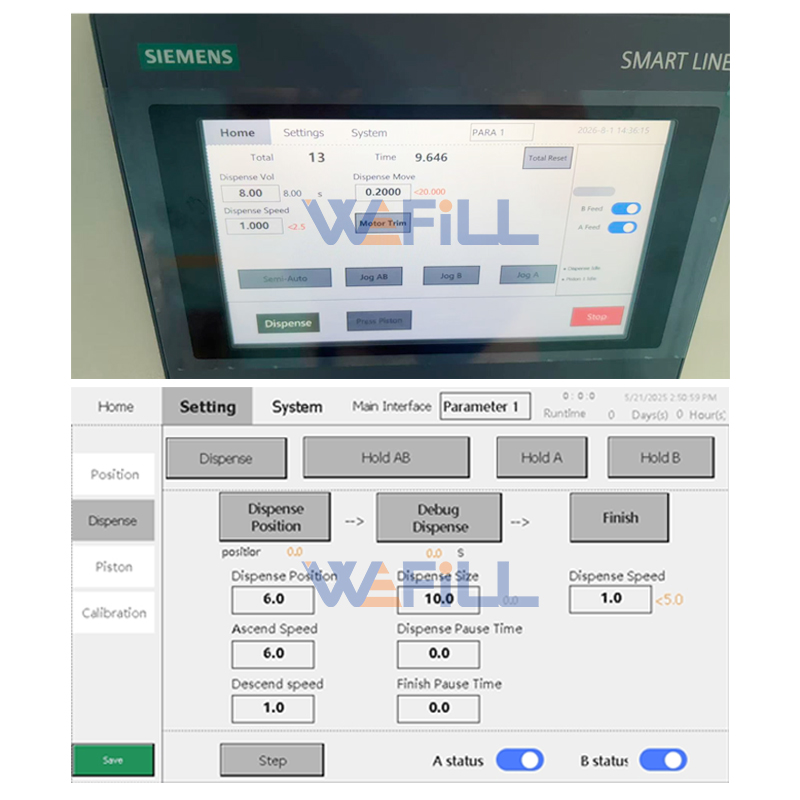

1. Siemens PLC Control System & 7-Inch Touchscreen HMI
The machine is equipped with a Siemens PLC programmable controller and expansion modules, providing stable and reliable operation.A Siemens 7-inch capacitive touchscreen interface allows operators to easily set and adjust:
①AB adhesive mixing ratio ②Filling volume ③Dispensing speed ④Filling parameters ⑤Machine operation status monitoring

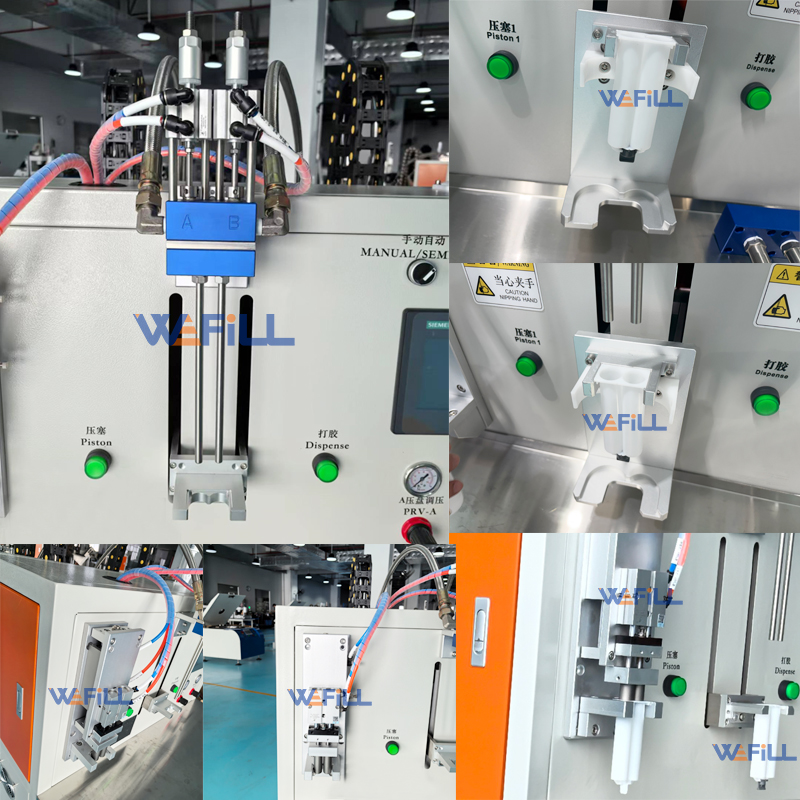

2. Precision Dispensing Head & Fast Response Control System
The machine is equipped with high-speed precision solenoid valves to control
3. Servo Motor Driven Metering Pump System
Equipped with two sets of precision corrosion-resistant gear metering pumps for accurate transportation and measurement of liquid adhesives.

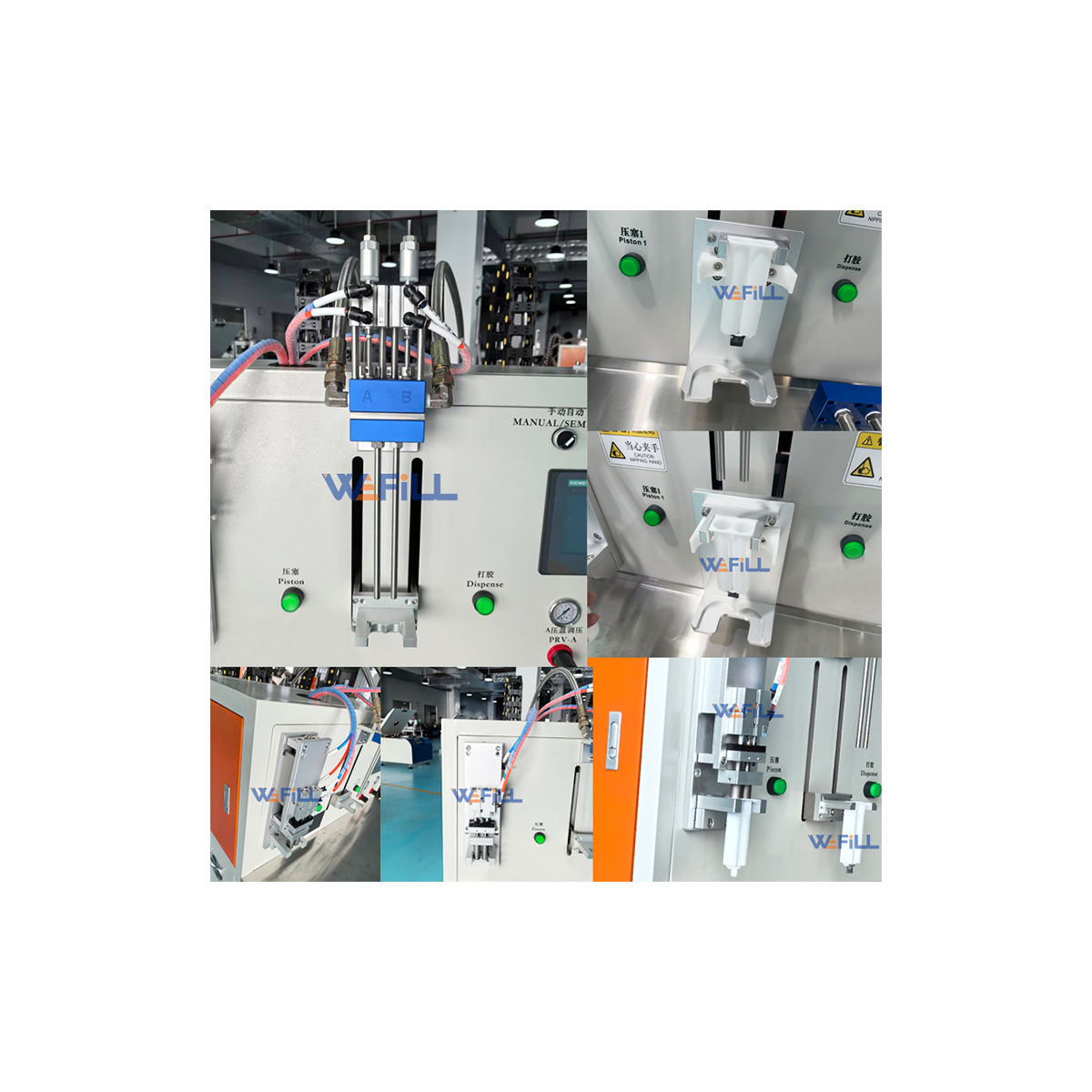

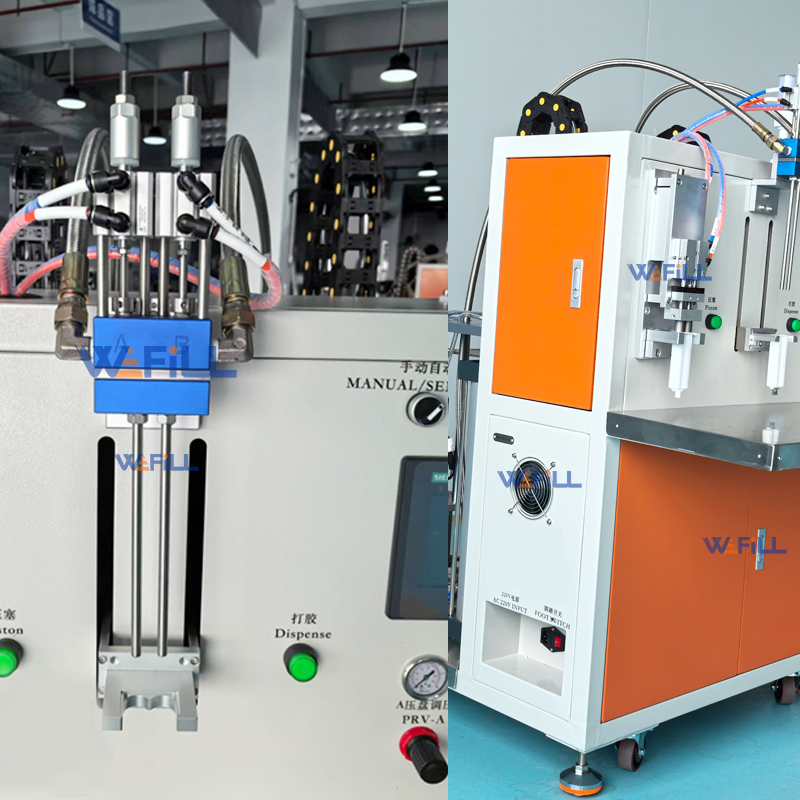

4. Cartridge Positioning & Filling Fixture
①50ml 1:1 cartridge positioning fixture ②50ml 1:1 piston pressing fixture
5. Dispensing Head Configuration – Double-Acting Anti-Drip Dispensing System
The machine is equipped with one set of double-acting dispensing head, specially designed for precise two-component adhesive dispensing control.
Send Your Inquiry Now
Rear Side Configuration
–------------Material Supply & Auxiliary System

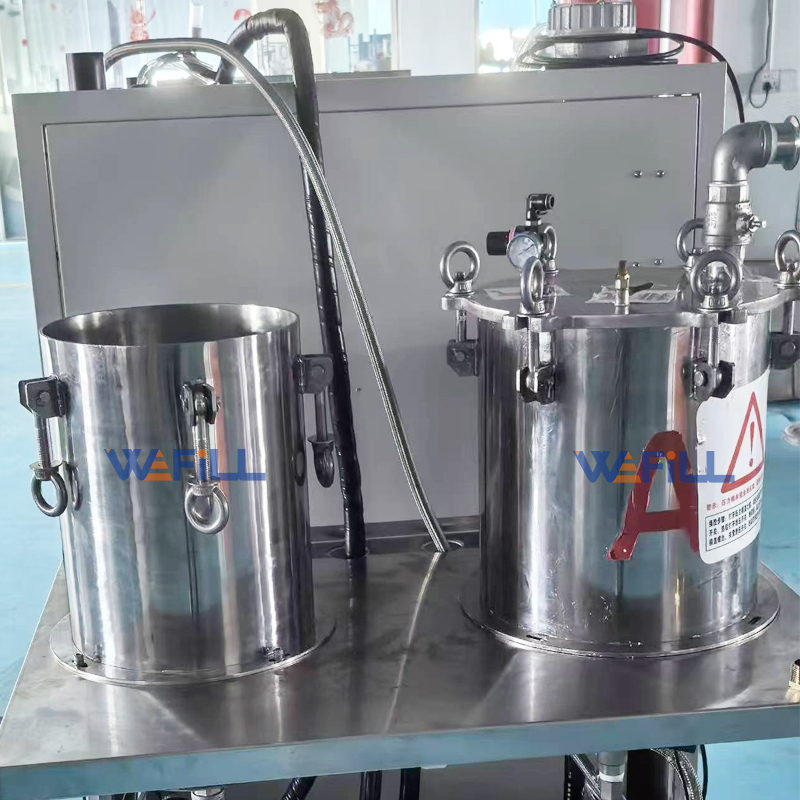

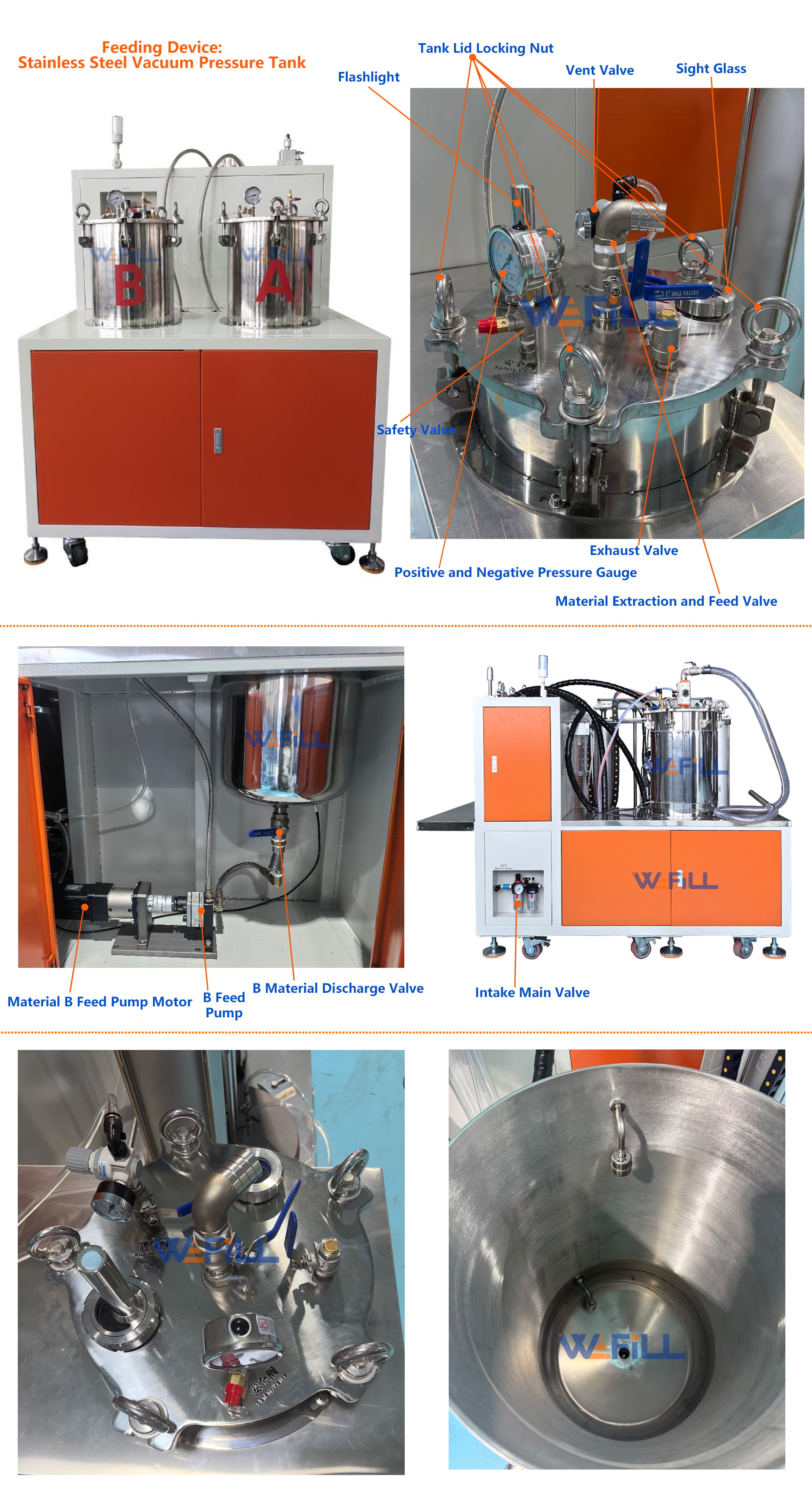

1. A/B Material Storage Tank System
The machine is equipped with two sets of 5L SUS304 stainless steel material tanks for storing A and B component adhesives separately.Independent storage of A/B components to maintain material stability,Suitable for various liquid adhesives and chemical materials.
2. Corrosion-Resistant Material Transfer Pipeline
The upgraded pipeline design ensures safe and stable transportation of different adhesive materials, including epoxy resin, polyurethane, acrylic adhesive, and other two-component materials.
3. A/B Material Level Alarm System
The machine is equipped with two sets of high and low material level detection alarm systems.This ensures continuous and stable filling performance.
4. Independent Pressure Regulation System
Each material tank is equipped with an independent pressure control system, including:Pressure regulating valve;Vacuum pressure gauge;Exhaust valve;Safety valve;Vent valve.The independent adjustment design allows precise control of A and B component feeding pressure, ensuring stable material flow and consistent mixing ratio accuracy.
5. Vacuum Degassing System
The machine is equipped with a vacuum degassing system for A/B material tanks.The vacuum system removes trapped air bubbles from adhesive materials before filling.
6. Compressed Air Filtration & Lubrication Unit
The rear pneumatic system includes an integrated air preparation unit with:Compressed air filtration;Moisture separation;Pneumatic component lubrication.It ensures clean and stable air supply while protecting internal pneumatic components and extending machine service life.

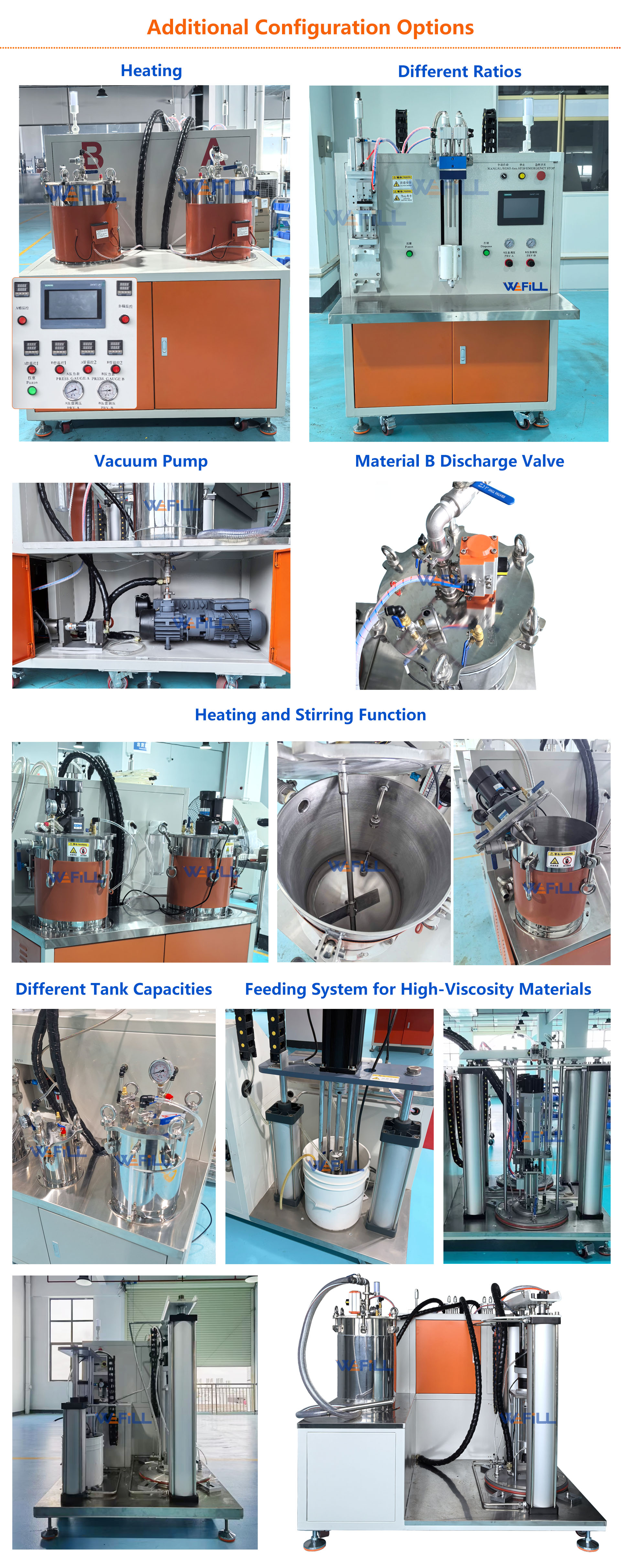

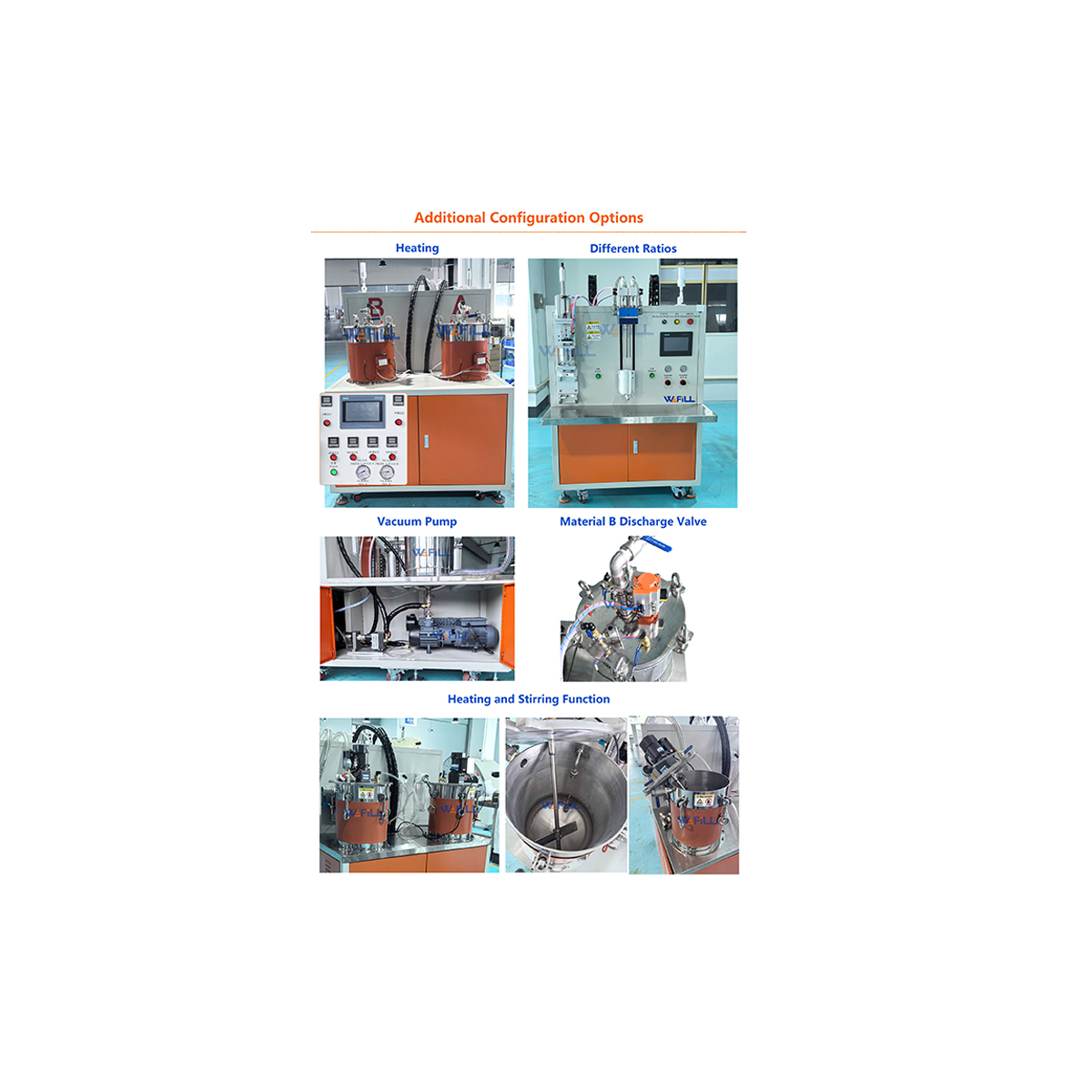

Send Your Inquiry NowOptional Configurations & Customized Solutions
To meet different adhesive characteristics and production requirements, the machine can be customized with various optional functions and configurations.

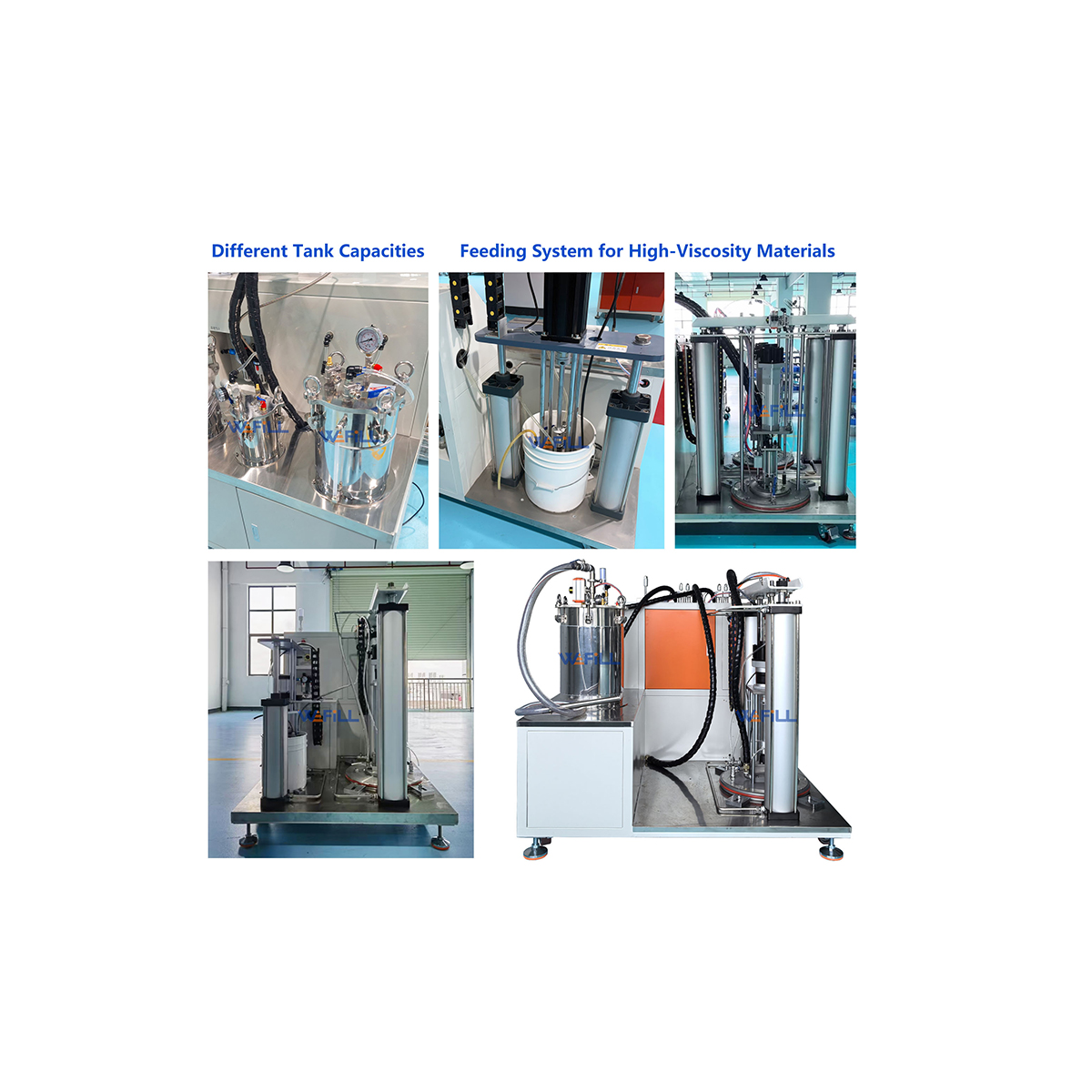

1. Vacuum Stainless Steel Pressure Tank Options
The machine can be equipped with customized vacuum pressure tanks in different capacities, including:5L / 10L / 15L / 20L / 25L/ 30L / 60L;For corrosive adhesives or chemical materials, the stainless steel pressure tank can be upgraded from SUS304 to SUS316 stainless steel for improved corrosion resistance and longer service life.
2. Automatic Material Feeding System
An optional automatic feeding pump system can be integrated to transfer adhesive materials directly from original containers into the stainless steel storage tanks.
3. Vacuum Degassing System
An optional vacuum system can be installed to remove air bubbles from A/B adhesive materials inside the storage tanks.
Benefits:①Reduces bubbles;②Improves filling consistency;③Enhances final product quality.
4. Mixing Pressure Tank System
For adhesives requiring continuous stirring or uniform dispersion during filling, the machine can be equipped with pressure tanks with mixing functions.
Benefits:①Maintains adhesive uniformity;②Prevents material separation;③Ensures stable adhesive performance.
5. Constant Temperature Heating System
For temperature-sensitive adhesives, Heating system can maintain stable material temperature.
Benefits:①Keeps adhesive viscosity consistent;②Improves material flow performance;③Ensures smooth dispensing and reliable filling accuracy.
6. Flexible Mixing Ratio & Filling Volume Adjustment
The machine supports customized ratios and capacities through adjustable metering parameters and interchangeable filling fixtures.
Features:①Supports different A/B ratios;②Compatible with various cartridge;③Filling volume adjustment;④Suitable for different adhesive formulations requirements
7. Pressure Tank / Platen Feeding System Options
Different material supply methods can be selected according to adhesive viscosity and flow characteristics.
Available options:①Pressure tank feeding system;②Platen feeding system.
These customized feeding solutions are suitable for:①Low-viscosity liquid adhesives;②Medium-viscosity materials;③High-viscosity paste adhesives.
Customized Solutions for Various Adhesive Applications
With flexible configuration options, the machine can be customized for different two-component materials,The modular design allows customers to select suitable functions based on material properties, cartridge specifications, and production requirements.
WEFILL TECH provides customized AB adhesive filling solutions based on material properties, packaging formats, and production requirements. Please contact us for a tailor-made equipment solution.
Compatible Materials & Applications
Wide Range of Two-Component Adhesive Materials
The WEFILL-CAR-AB-F001 Semi-Automatic Low-Viscosity Liquid AB Adhesive Filling & Capping Machine is designed for precise filling of a wide range of two-component adhesives, epoxy resins, and Low-viscosity materials.
Compatible materials include:
● Epoxy resins; ● Two-component polyurethane (PU) adhesives; ● Acrylic adhesives (MMA); ● Silicone adhesives and sealants; ● Structural adhesives; ● Stone panel adhesives; ● Grout sealants; ● Rebar anchoring adhesives; ● Casting compounds; ● Cyanoacrylates; ● Greases and lubricating pastes; ● High-viscosity sealants; ● Other customized two-component chemical materials; ● Cow Adhesive etc.
Applicable Industries
The machine is widely used in industries requiring accurate ratio-controlled filling, clean packaging, and reliable dispensing performance, including:
● Electronics manufacturing; ● Electrical appliance manufacturing; ● Medical device and healthcare industries; ● Food processing and packaging applications; ● Construction and civil engineering; ● Automotive manufacturing; ● Aerospace applications; ● Photovoltaic (solar energy) industry; ● Machine building and industrial equipment; ● Mobile devices and wearable electronics; ● In-vitro diagnostics; ● Animal healthcare products; ● Gift, decoration, and craft industries; ● Stone and panel processing; ● Fluid packaging and industrial chemical packaging; ● Defense-related applications
Compatible Adhesive Brands
The WEFILL-CAR-AB-F001 filling system is compatible with many internationally recognized adhesive brands, including:
● 3M; ●Henkel (LOCTITE); ●Huntsman Corporation; ●H.B. Fuller Company; ●Permabond Engineering Adhesives; ●ITW Performance Polymers; ●Master Bond Inc.; ●MG Chemicals; ●DELO Industrial Adhesives; ●Other industrial adhesive and sealant manufacturers.
Typical Applications:
AB cartridge filling • Two-component adhesive repackaging • Low-viscosity material dispensing • Industrial adhesive filling • Precision chemical packaging.
