Two Component Dual Cartridge Adhesive F Series Static Mixer
Dual-component Static Mixer
- Model:Wefill-FH, Wefill-FQ, Wefill-FHX, Wefill-FQX
- Material :PP
- Temperature range:-10°C to 60°C (depending on adhesive)
- Disposable:Single use only; not recommended for reuse
- Inlet:Dual Socket/ Round Bayonet
- Outlet:Angled Tapred, Straight Luer , Luer Spin, Stepped Tip
- Elements:Spiral/Helical, Square/Quadro
- Suitable Viscosity:1,000 – 100,000 cps
Two Component Dual Cartridge Adhesive F Series Static Mixer
Key Features

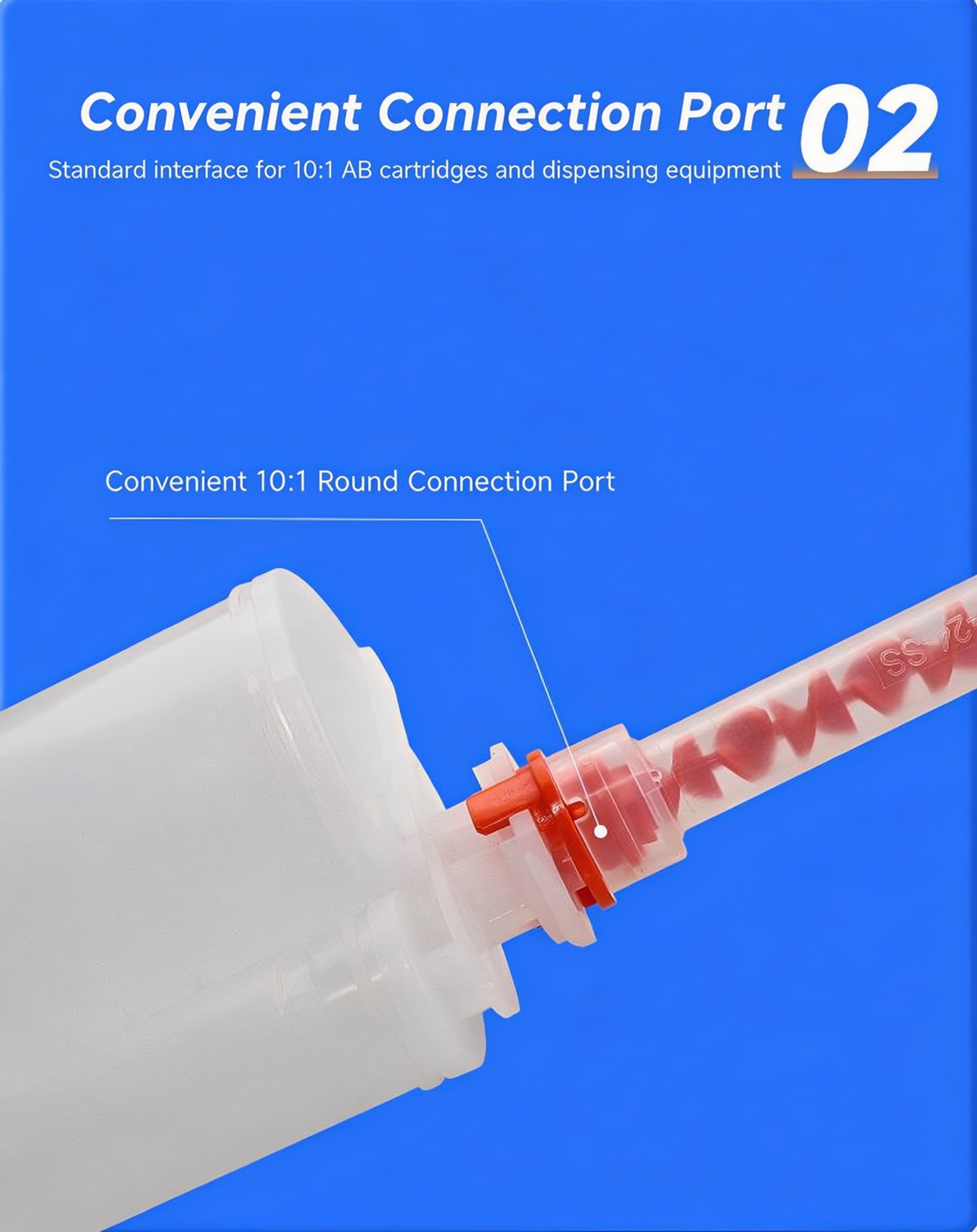

Bayonet Snap-Fit Interface: Tool-free push-and-lock bayonet design for quick, secure installation on F-series AB cartridges and dispensing valves.
Dual Mixing Ratio Options: Available in 1:1 / 2:1 and 10:1 volume ratios, matching most structural adhesive and potting compound systems.
Two Mixing Core Technologies:

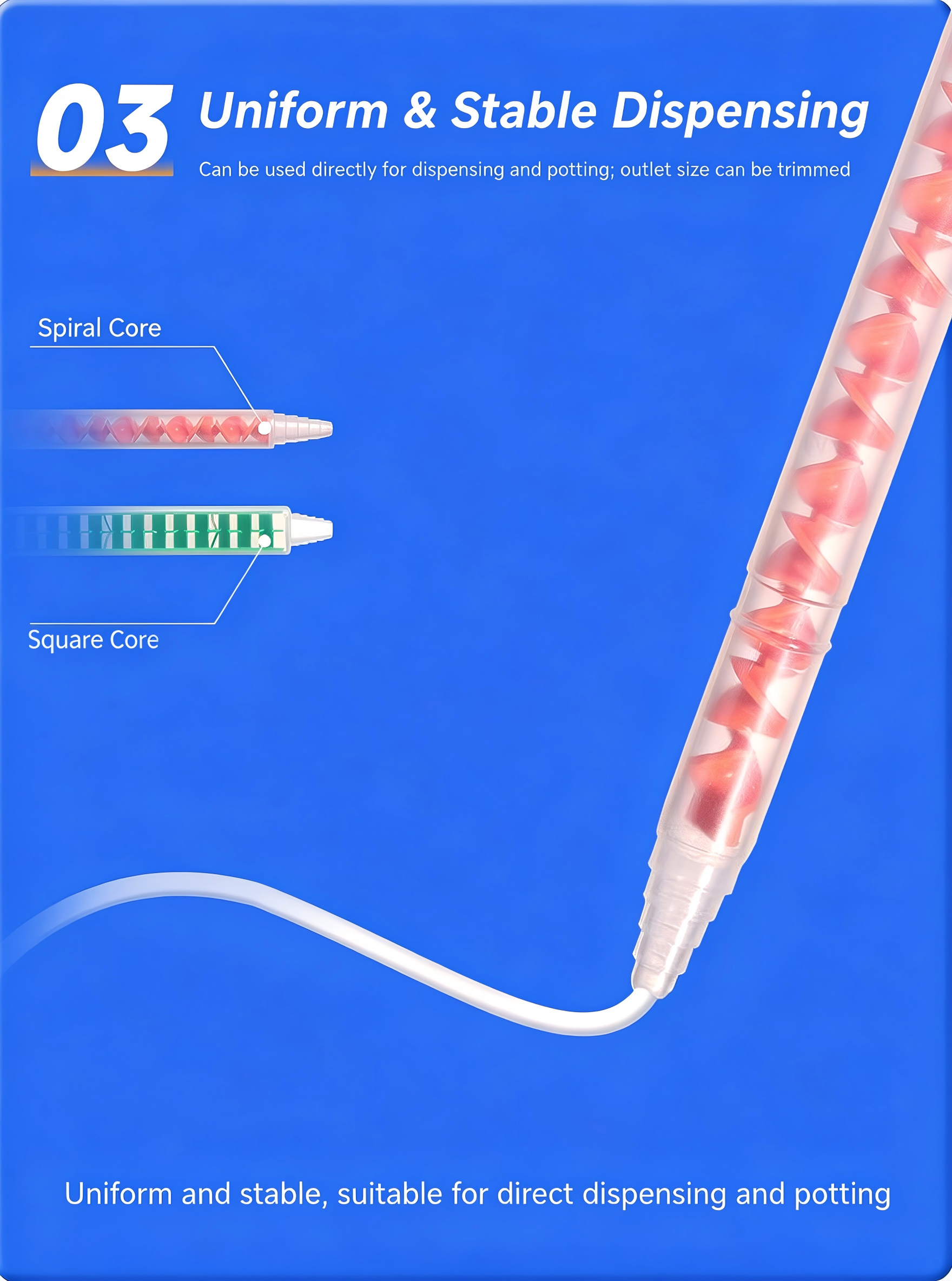

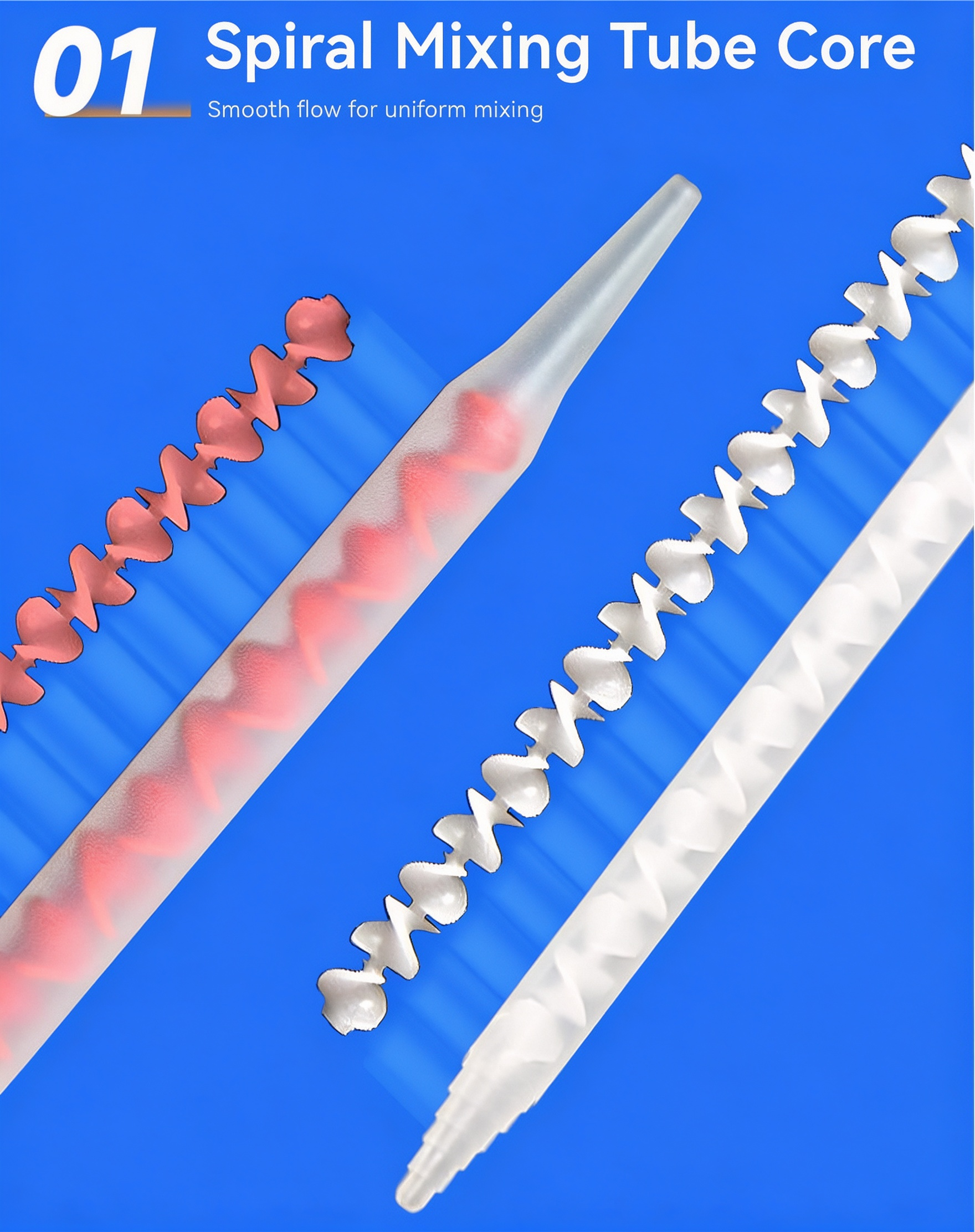

Spiral core: Classic helical design for general-purpose bonding and medium-viscosity adhesives.
Square core: High-efficiency lattice structure for faster mixing, high-viscosity materials and automated dispensing.

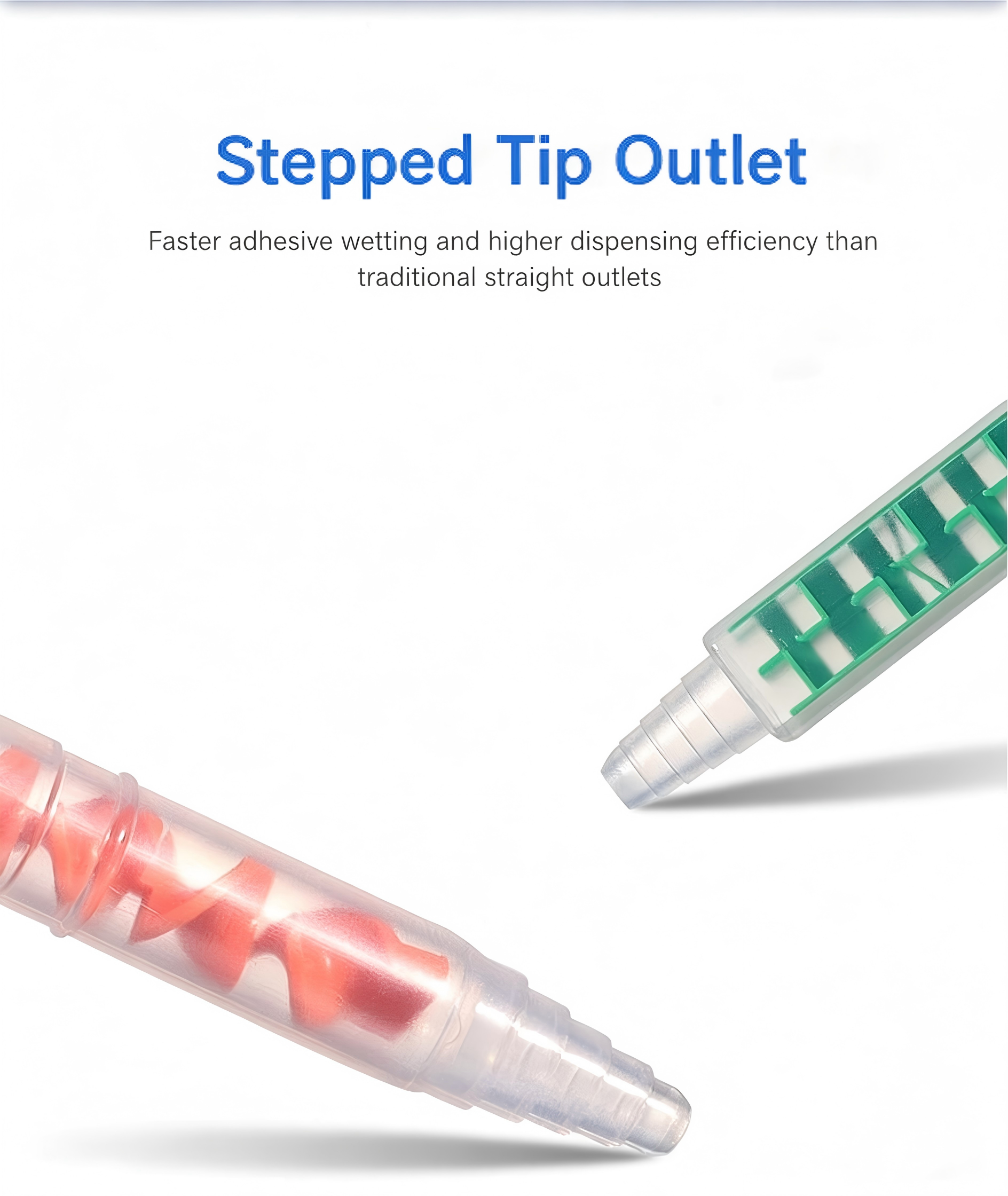

Stepped Tapered Outlet: Progressive stepped tip design improves mixing efficiency at the outlet and supports trimming for custom bead sizes.
Round & Square Bayonet Options: Round bayonet (FH/FHX) for standard F-series cartridges; square bayonet (FQ/FQX) for square-cartridge systems.
Large-Diameter High-Flow Design: Inner diameters from 5.3mm to 12.4mm, supporting high-volume dispensing of structural adhesives and potting compounds.
Color-Coded Identification: White, red, green and gray cores / caps for quick ratio and material identification on the production line.
Industrial-Grade PP Material: High-quality polypropylene with excellent chemical and pressure resistance, suitable for most two-component adhesives and sealants.
Disposable & Cost-Effective: Single-use design eliminates cleaning, avoids cross-contamination and reduces labor and material waste.
OEM / ODM Supported: Custom element counts, outlet styles, core colors, packaging and private labeling available for bulk orders.
Product Overview
F-Series static mixing tubes are industrial-grade snap-fit bayonet mixers designed for 1:1 and 10:1 ratio two-component (AB) cartridges. Available with both helical spiral and grid-style mixing cores, and round (FH/FHX) or square (FQ/FQX) bayonet interfaces, they are fully compatible with 50ml, 200ml, 400ml and 600ml F-series AB cartridges, manual/pneumatic dispensing guns and automatic dispensing valves.

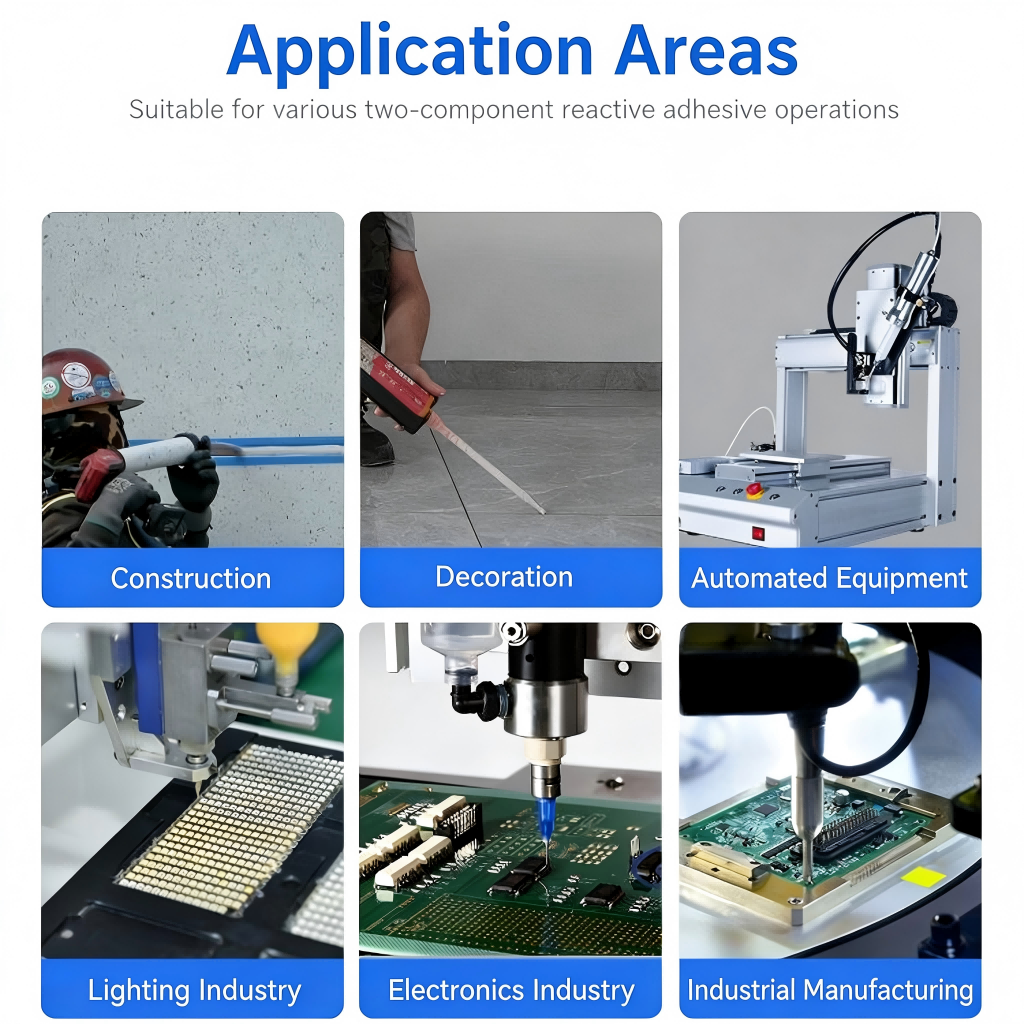

The precision bayonet locking interface ensures a tight, leak-free connection, while the stepped tapered outlet delivers smooth, consistent adhesive flow. F-Series mixers are widely used for structural bonding, electronic potting, curtain wall construction, automotive assembly, new energy battery manufacturing and composite material bonding, delivering uniform mixing even with high-viscosity materials.
Outlet Type Options
| Code | Outlet Style | Application |
|---|---|---|
| S | Angled Tapred | General dispensing, bead application, manual gluing |
| D | Straight Luer | Direct needle attachment, fine dispensing |
| L | Luer Spin | Secure needle connection, automated dispensing, higher pressure |
| T | Stepped Tip | High-flow bonding, potting, sealing |
| G | 1/8 Male Thread | Connection to dispensing valves, tubing and automated systems |
Custom colors, element counts and outlet styles available upon request
| Item Code | Model | Inner Diameter (mm) | Outer Diameter (mm) | Length (mm) | Outlet Diameter (mm) | Number of Mixing Elements | Outlet Type |
| 1050025 | CH-05-18-T-WH | 5 | 8 | 121 | 1.5 | 18 | T |
| 1050024 | CH-05-24-T-WH | 5 | 8 | 149 | 1.5 | 24 | T |
| 1050026 | CH-05-32-T-WH | 5 | 8 | 188 | 1.5 | 32 | T |
| 1050012 | CH-06-18-T-WH | 6.3 | 10 | 149 | 1.9 | 18 | T |
| 1050006 | CH-06-24-L-WH | 6.3 | 10 | 185 | 2 | 24 | L |
| 1050008 | CH-06-32-L-WH | 6.3 | 10 | 234 | 1.9 | 32 | L |
| 1050014 | CH-06-32-T-WH | 6.3 | 10 | 234 | 1.9 | 32 | T |
| 1050045 | CH-08-18-T-WH-02 | 8 | 12 | 177 | 2.4 | 18 | T |
| 1050017 | CH-08-24-T-WH | 8 | 12 | 223 | 2.4 | 24 | T |
| 1050016 | CH-08-32-T-WH-01 | 8 | 12 | 287 | 2.4 | 32 | T |
| 1050021 | CH-10-12-T-WH | 10 | 14 | 155 | 3 | 12 | T |
| 1050004 | CH-10-18-T-WH | 10 | 14 | 215 | 3 | 18 | T |
| 1050001 | CH-10-24-T-WH-01 | 10 | 14 | 276 | 3 | 24 | T |
| 1050007 | CH-10-32-T-WH-01 | 10 | 14 | 325 | 3 | 32 | T |
| 1050078 | CH-13-12-T-WH | 13 | 17 | 171 | 4 | 12 | T |
| 1050031 | CH-13-18-T-WH | 13 | 17 | 232 | 4 | 18 | T |
| 1050015 | CH-13-24-T-WH | 13 | 17 | 293 | 4 | 24 | T |
| 1050022 | CH-13-32-T-WH | 13 | 17 | 379 | 4 | 32 | T |
| 1050018 | CH-13-36-T-WH | 13 | 17 | 420 | 4 | 36 | T |
| 1050027 | CGH-10-18-S-RD | 10 | 13.63 | 241 | 1.77 | 18 | S |
| 1050043 | CGH-10-18-S-WH | 10 | 13.63 | 241 | 1.3 | 18 | S |
| 1050032 | CGH-10-18-T-WH | 10 | 13.63 | 241 | 2.88 | 18 | T |
| 1050039 | CGH-10-24-S-RD | 10 | 13.33 | 281 | 1.77 | 24 | S |
| 1050030 | CGH-10-24-S-WH | 10 | 13.26 | 298 | 2.55 | 24 | S |
| 1050034 | CGH-10-24-T-WH | 10 | 13.33 | 281 | 2.75 | 24 | T |
| 1050035 | CGH-10-24-L-WH | 10 | 13.38 | 282 | 2.1 | 24 | L |
| 1060017 | CQ-06-16-L-GN | 5.3 | 9.9 | 83 | 1.3 | 16 | L |
| 1060007 | CQ-06-24-L-GN | 5.3 | 9.9 | 127 | 1.9 | 24 | L |
| 1060018 | CQ-07-24-T-GN | 7.5 | 9.8 | 130 | 1.9 | 24 | T |
| 1060026 | CQ-07-24-T-GD | 7.5 | 9.8 | 130 | 1.9 | 24 | T |
| 1060019 | CQ-08-24-T-GN | 8.7 | 9.9 | 161 | 1.9 | 24 | T |
| 1060010 | CQ-08-32-T-GN | 8.7 | 9.9 | 186 | 1.9 | 32 | T |
| 1060015 | CGQ-06-24-L-GN | 6.3 | 9.9 | 138 | 1.7 | 24 | L |
| 1060031 | CGQ-08-18-L-GN | 7.8 | 11.3 | 240 | 1.4 | 18 | L |
| 1060032 | CGQ-08-20-L-GN | 7.8 | 16 | 293 | 4 | 20 | L |
| 1060020 | CGQ-08-24-T-GN | 8.7 | 11.58 | 161 | 1.7 | 24 | T |
| 1060024 | CGQ-08-24-T-RD | 8.7 | 11.58 | 161 | 1.7 | 24 | T |
| 1060013 | CGQ-08-24-S-GN | 8.7 | 11.58 | 147 | 1.2 | 24 | S |
| 1060029 | CGQ-10-19-S-BK | 10.89 | 13.1 | 138 | 1.7 | 19 | S |
| 1060030 | CGQ-10-24-L-GN | 11.01 | 14.12 | 150 | 1.3 | 24 | L |
How to Install & Use F-Series Static Mixer

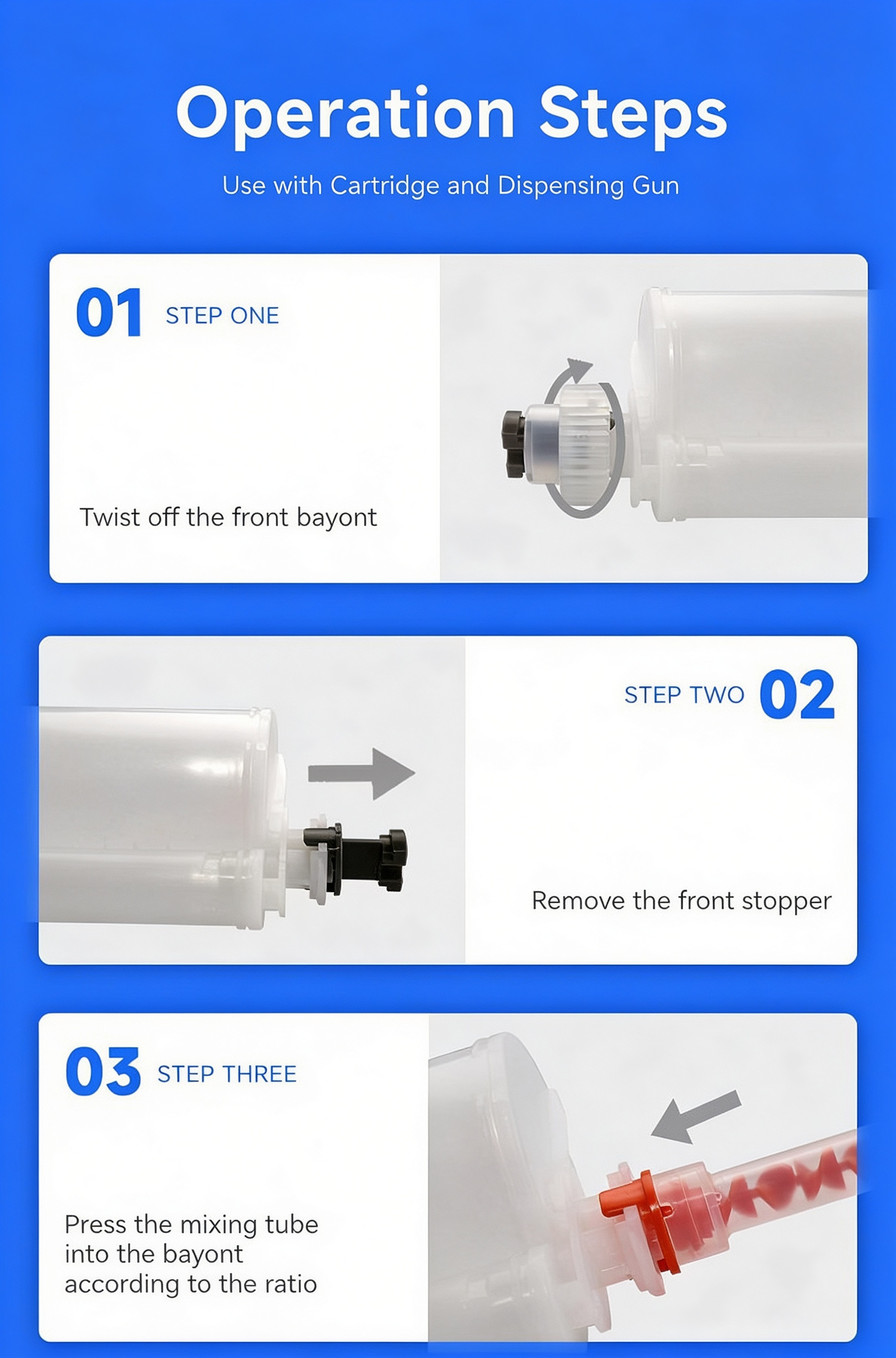

Prepare cartridge and gun: Load the F-series AB cartridge into the dispensing gun and fully retract the plunger.
Remove the front retaining cap: Unscrew and remove the front locking cap from the cartridge outlet.
Remove the dust stopper: Take out the dust-proof plug from the cartridge outlet.

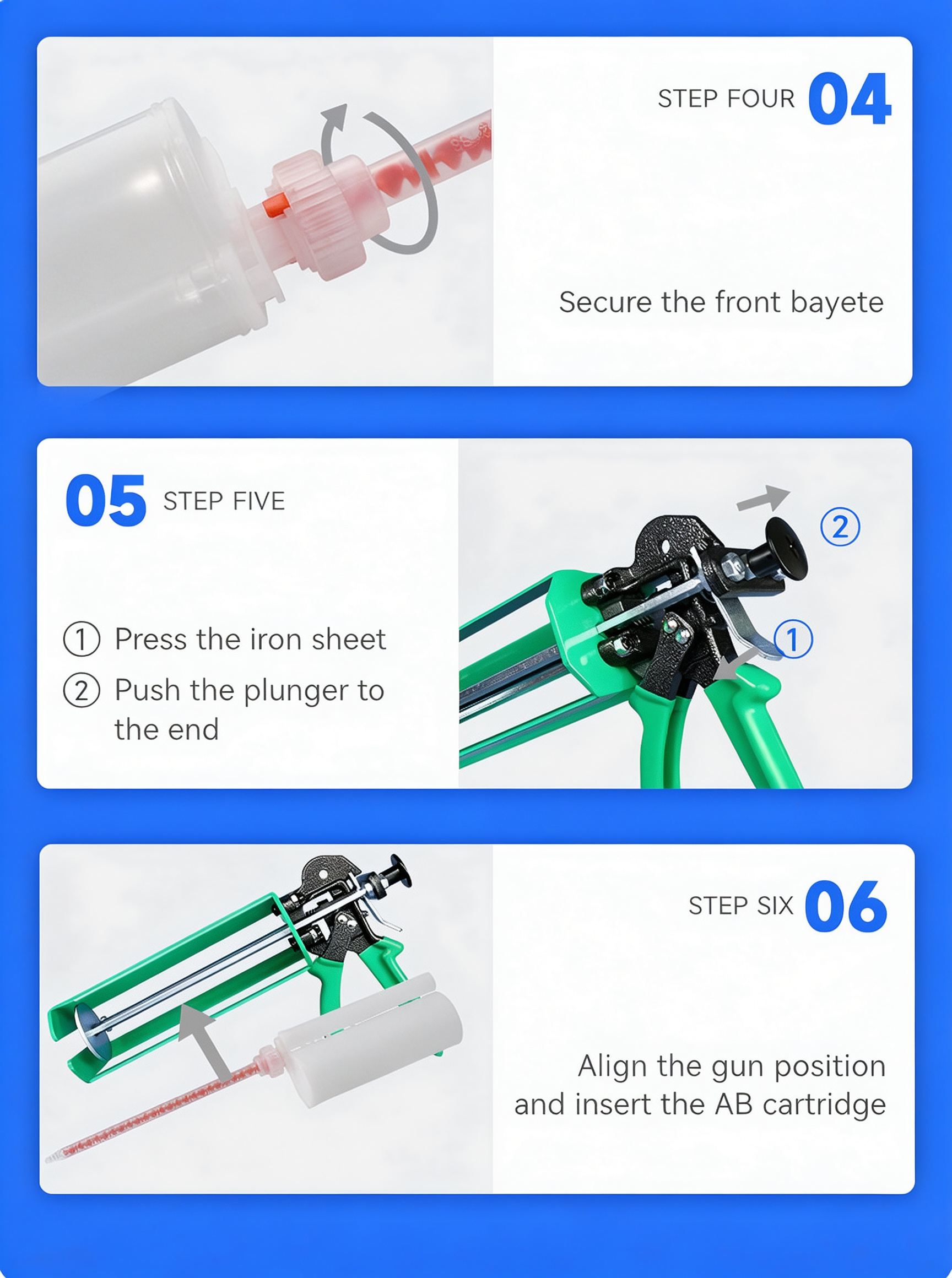

Align and insert the mixer: Align the bayonet lugs of the mixing tube with the slots on the cartridge, then push firmly into place.
Lock the front cap: Screw the front retaining cap back onto the cartridge and tighten by hand to secure the mixer and ensure a leak-free seal.
Load cartridge into gun: Insert the assembled cartridge into the dispensing gun and lock it in position.
Purge and dispense: Squeeze the gun trigger slowly to purge air and dispense a small amount until uniform adhesive flows out.
Trim tip (optional): If a larger bead size is required, trim the stepped outlet with a cutting tool. Always test dispensing after trimming.
After use: Remove the used mixing tube and replace with a new one for the next operation.
Important: Always test dispensing on a scrap surface first to confirm proper mixing ratio and flow. For 10:1 high-ratio adhesives, verify full purging before use.
FAQ
Q1: What is the difference between F-Series and A/B/C-Series mixer?
A: The main differences are interface type, mixing ratio and core design:
A-Series: Single round bayonet, small diameter, for standard 50ml 1:1/2:1 cartridges.
B-Series: Dual bayonet, small diameter, for 14–50ml B-series cartridges.
C-Series: Large-diameter bell-mouth / threaded interface, for 200–600ml large cartridges.
F-Series: Snap-fit bayonet (round / square), dedicated 1:1 and 10:1 ratio, spiral and square core options, for F-series 50–600ml cartridges and dispensing valves. They are not interchangeable. Please confirm your cartridge interface and ratio before ordering.
Q2: What is the difference between spiral core and grid core?
A:
Spiral core (FH / FHX): Classic helical design, splits and recombines adhesive streams continuously. Ideal for general bonding, medium-viscosity adhesives and manual dispensing.
Square core (FQ / FQX): Lattice-style structure with more mixing stages in a shorter length. Delivers faster, more thorough mixing for high-viscosity materials, potting compounds and automated dispensing. Choose based on your adhesive viscosity, mixing requirement and production speed.
Q3: What cartridge sizes and ratios do F-Series mixers fit?
A: F-Series mixers are compatible with 50ml, 200ml, 400ml and 600ml F-series bayonet AB cartridges in 1:1, 2:1 and 10:1 volume ratios. They also fit most standard F-series manual and pneumatic dispensing guns and dispensing valves.
Q4: How do I choose the right number of mixing elements?
A: More elements provide more thorough mixing but create higher back pressure.
16–18 elements: Low-medium viscosity, general bonding, manual dispensing.
24 elements: High-viscosity structural adhesives, potting compounds, automated dispensing.
32 elements: Ultra-high viscosity, critical ratio applications. For 10:1 high-ratio adhesives, we recommend 24 elements or more.
Q5: How do I identify 1:1 vs 10:1 mixers?
A: The easiest way is by color and model code:

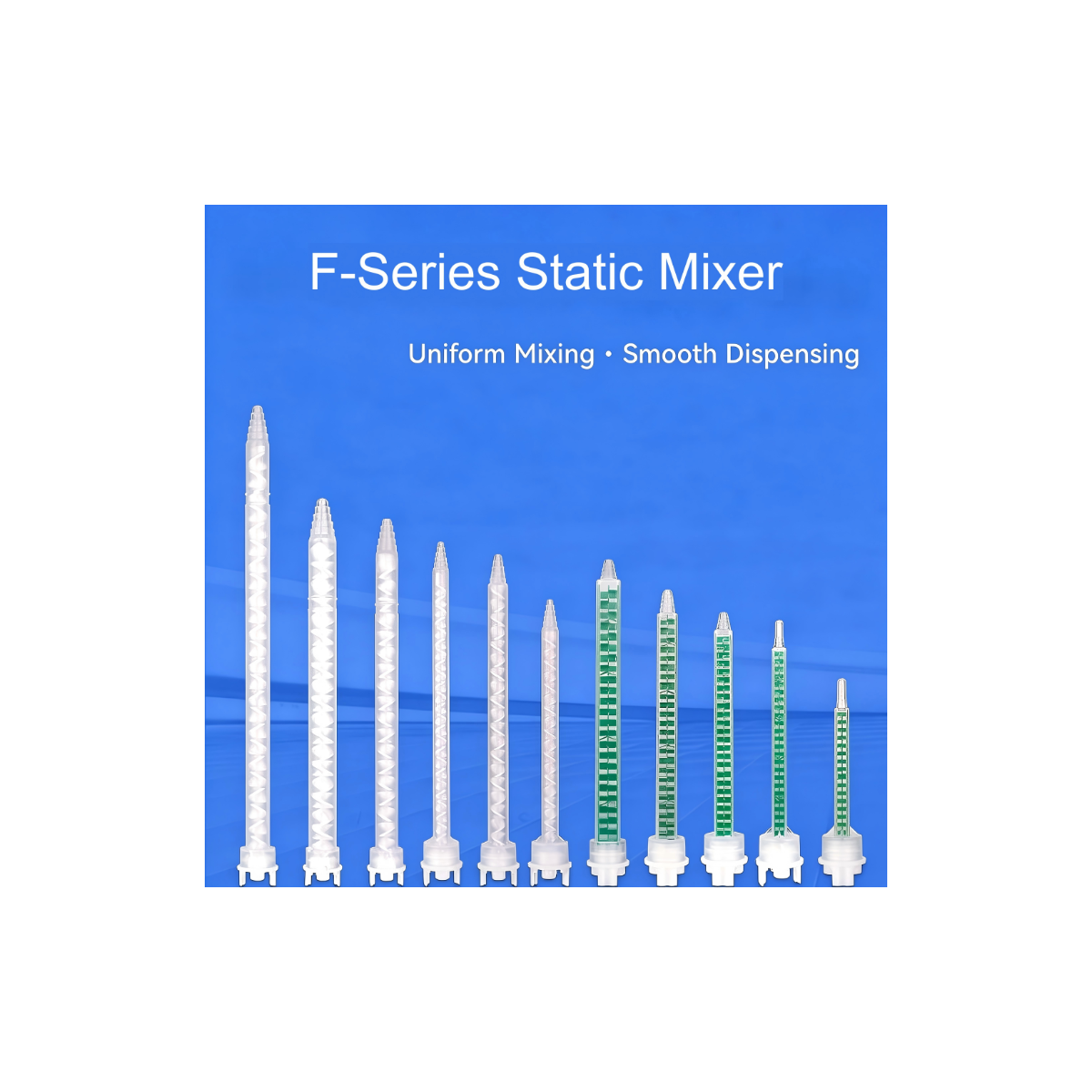

1:1 / 2:1 (FH / FQ): Typically white or green core, model code without "X".

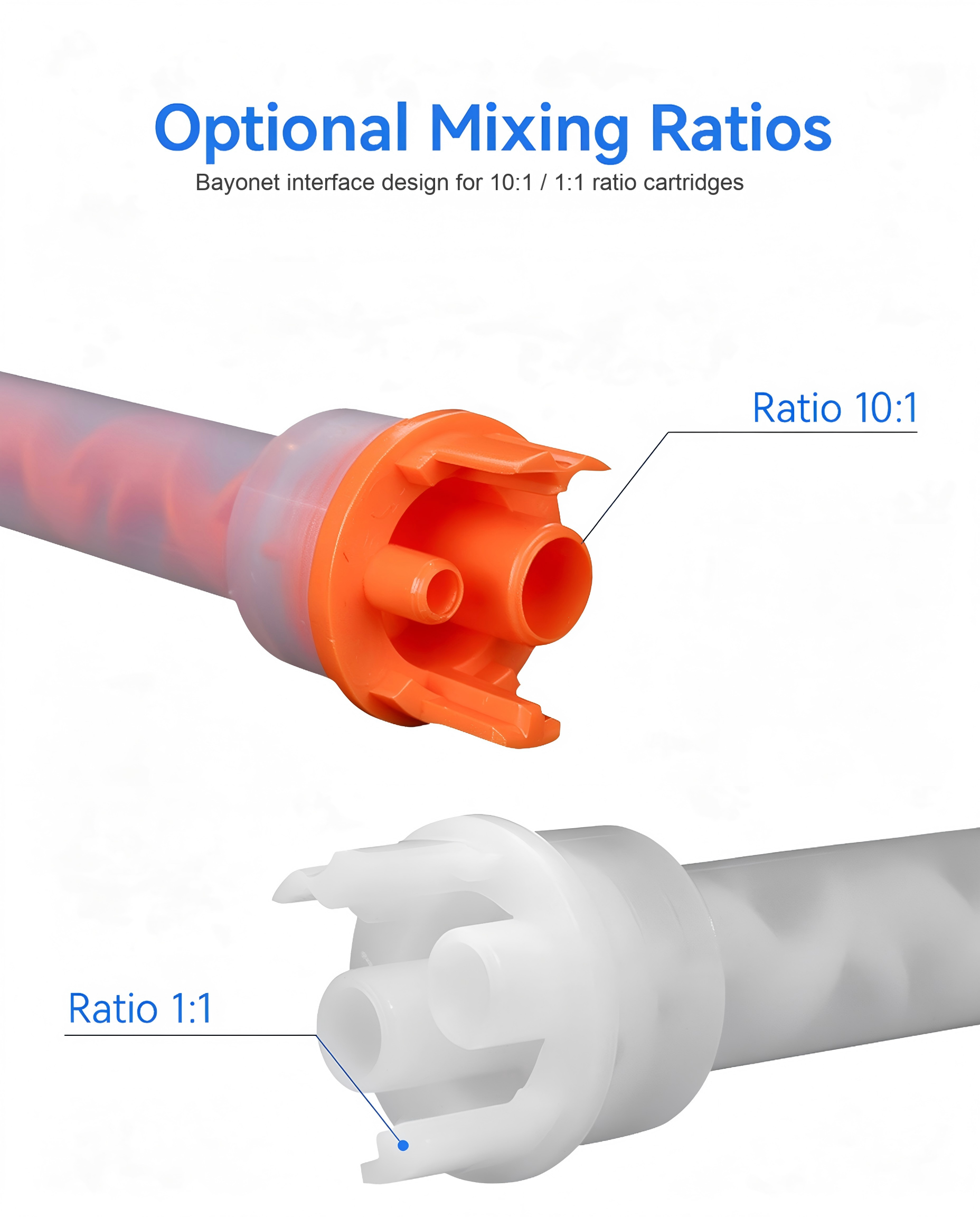

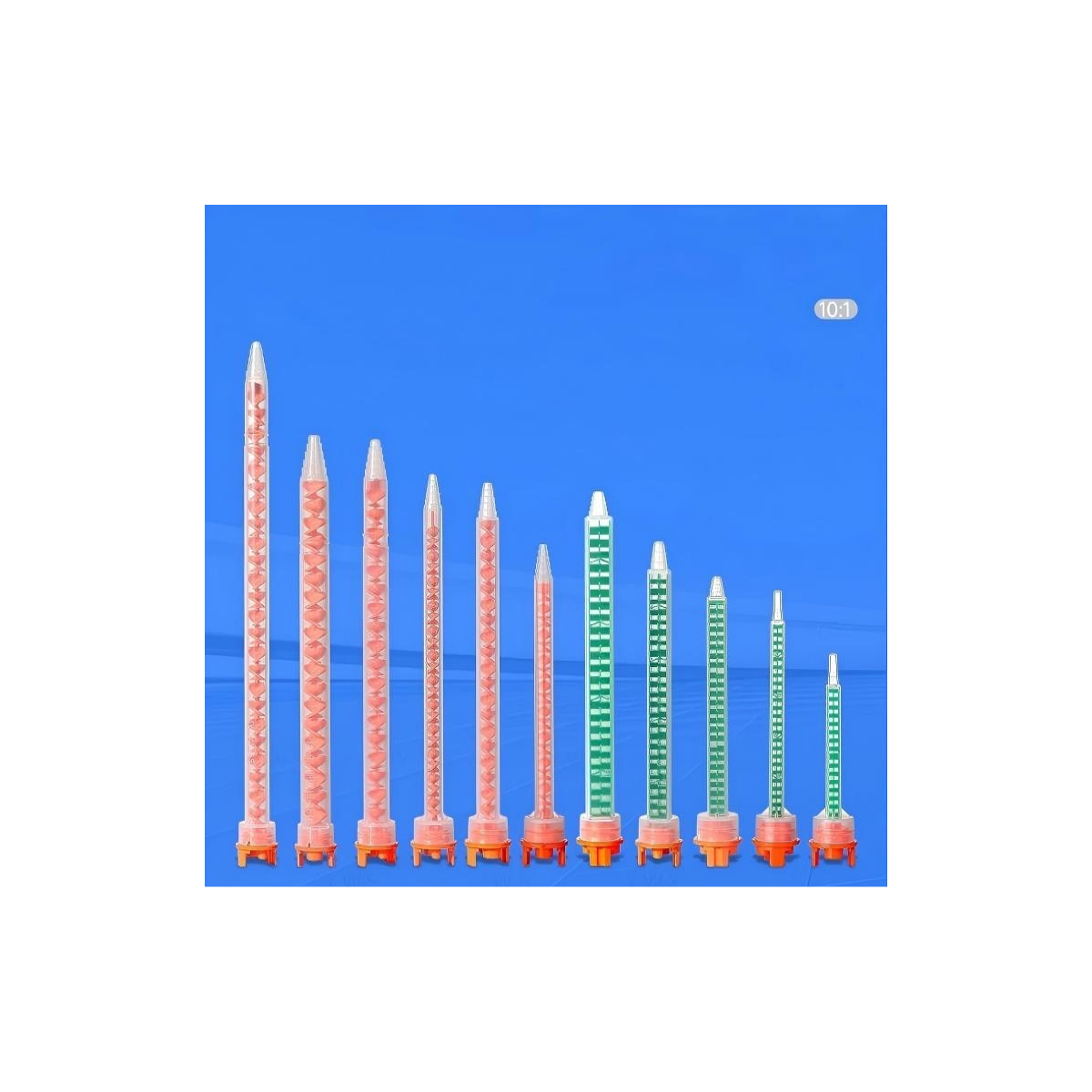

10:1 (FHX / FQX): Typically red core, model code includes "X". The bayonet inlet shape also differs between ratios to prevent misinstallation.
Q6: What adhesives are these mixers compatible with?
A: They work with most two-component materials including structural adhesive, epoxy resin, polyurethane, silicone sealant, acrylic adhesive, potting compound, gap filler and UV adhesive.
Q7: Do you offer custom sizes, colors or private labeling?
A: Yes. We support OEM / ODM including custom element counts, outlet styles, core colors, packaging and private branding. Contact us for MOQ and lead time.
