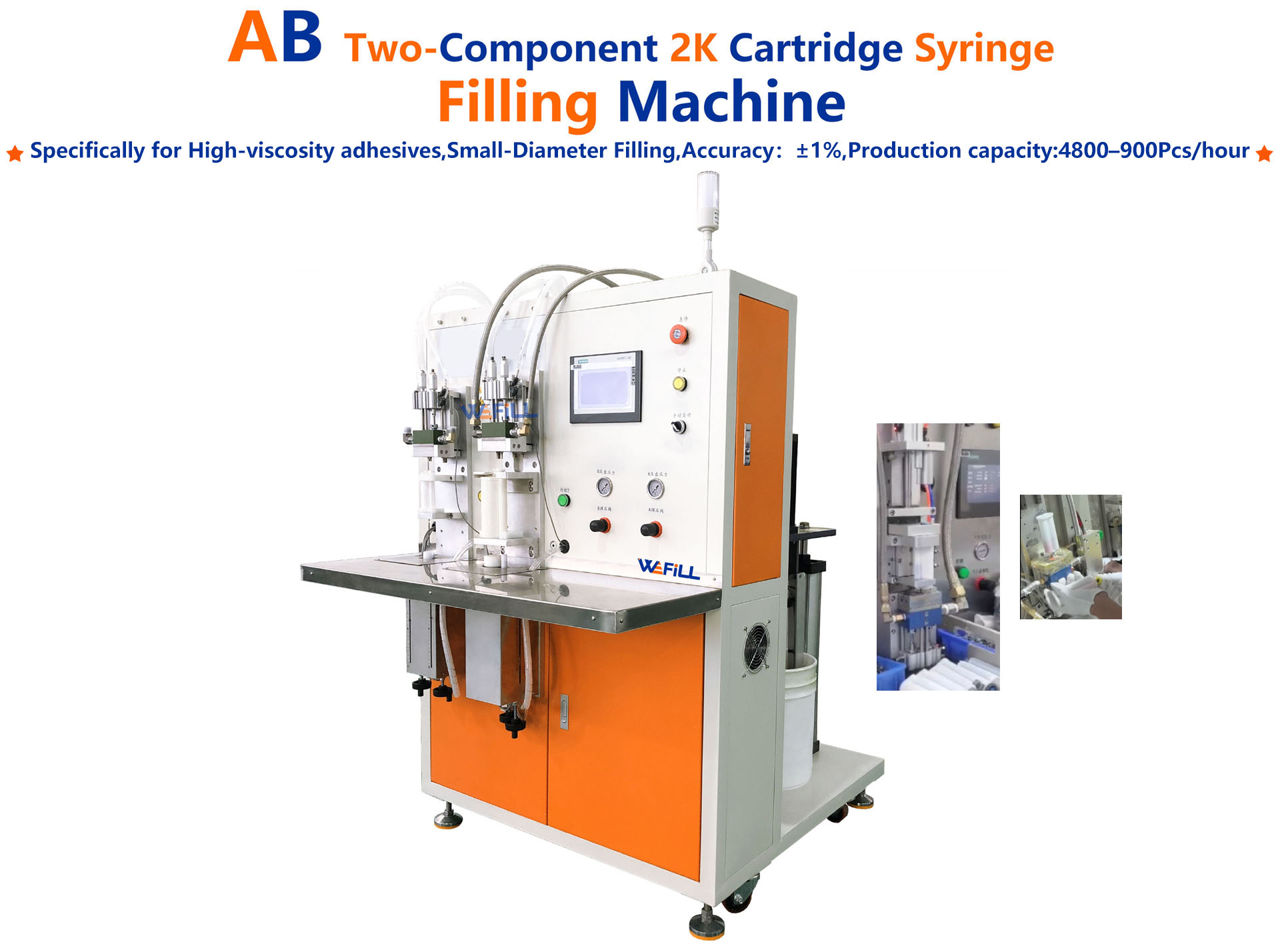

Semi-Auto Adhesive 10:1 2K Cartridge Front Outlet/Top Outlet Filling & Capping Machine | High Viscosity Liquids Adhesive
AB Two-Component Filling and Capping Machine
- Machine Model:WEFILL-CAR-AB-F003-490-50
- Applicable Liquid Volume Ratios:10:1
- Applicable Filling Volume:50ml,490ml
- Filling Speed:480-600pcs/hour(50ml,10:1);200-300pcs/hour(490ml,10:1)
- Machine Voltage:220V/1Phase/50HZ or Customized Your Country Voltage
- Machine Working Air Pressure:0.4–0.7 MPa
- Feeding Platen Size:20L(5gallon)Pressing Plate
- Applicable Viscosity:10,000 to 1000,000 cps,High Viscosity Paste Adhesive
- Dispensing Accuracy:±1%

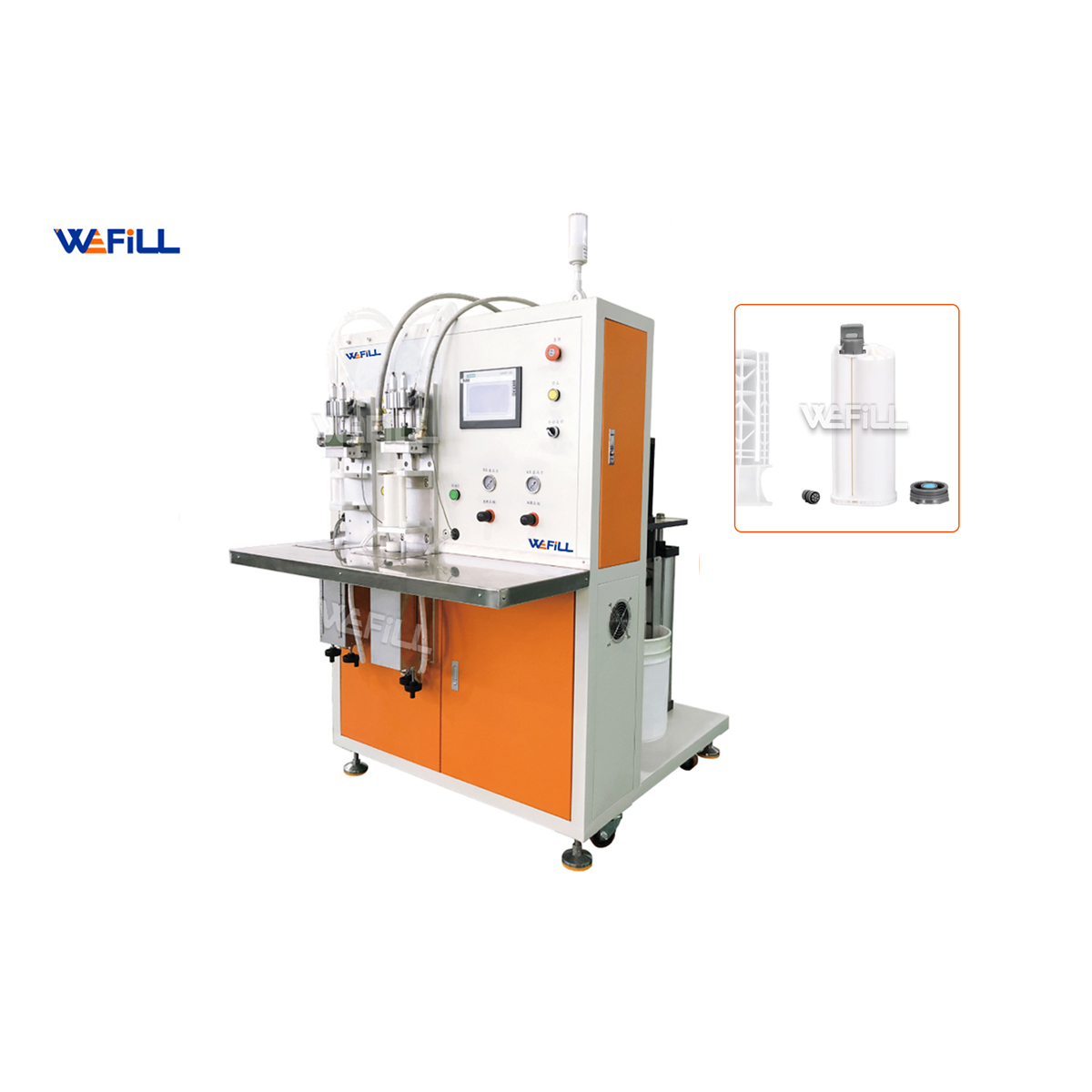

WEFILL-CAR-AB-F003 Semi-Automatic Cartridge Adhesive Filling & Capping Machine for High Viscosity Liquid Adhesive
Product Overview
The WEFILL-CAR-AB-F003-490-50 Semi-Automatic Cartridge Adhesive Filling & Capping Machine is specially developed for precise filling, especially top outlet/front oulet filling and packaging of high-viscosity Cartridge adhesives( is a high-precision filling solution engineered specifically for 490ml 50ml 10:1 (or 50ml 1:1, 75ml 10:1,250ml 10:1,200ml 1:1,400ml 1:1,600ml 1:1,etc.) dual-component (2K) cartridges (a cap without a vent)), including UV adhesives, epoxy resins, silicone, grease, ink, flux, cockroach bait, etc.. Designed for industrial adhesive cartridge production, this machine provides accurate control, stable dispensing performance, and reliable capping results.
【Working Principle & Core Performance】
Operators begin by placing a standard 5-gallon (20L) pail of adhesive material directly onto the platen base. The platen press then transfers the material to a precision gear pump (or Screw Pump/piston pump). Driven by a servo motor and working in conjunction with a metering pump, the system precisely controls the material ratio and flow rate, ensuring consistent 1:1 filling accuracy with every cycle. The adhesive is then injected into the cartridge through an integrated automatic clamping mechanism.
Upon reaching the pump outlet, the adhesive is transferred to the cartridge syringe filling station, where an integrated automatic clamping mechanism securely holds the empty syringe or cartridge in place. The machine then injects the adhesive through a specially upgraded small-bore reverse-filling system. Unlike conventional top-fill methods, this system pushes the material backward from the front end of the cartridge syringe, progressively filling the 25ml(or 50ml 1:1,10:1 50ml 75ml) packaging syringe cartridge from the bottom up. This reverse-filling approach effectively minimizes air entrapment and void formation, ensuring bubble-free, void-free finished cartridges syringes with consistent fill density and enhanced product reliability.
【Key Features】
1.Wide Material Compatibility – Handles AB adhesive, epoxy resin, polyurethane (PU), acrylic, stone adhesive, grout, anchoring adhesive, silicone,and more.
2.High-Precision Metering – Servo-driven pump system ensures consistent ratio accuracy, minimal material loss, and bubble-free filling.
3.HMI-Controlled Automation – Intuitive touchscreen interface allows quick, tool-free adjustment of fill volume and speed settings.
4.Efficient Batch Changeover – Rear-mounted lifting device supports independent cartridge loading and unloading, reducing downtime and manual handling.
5.Platen Feeding System – Directly accommodates standard 5-gallon (20L) pails, minimizing material transfer steps and reducing contamination risks.
In addition to semi-automatic filling solutions, WEFILL also provides fully automatic two-component adhesive filling machines for dual cartridges and dual syringes, supporting a wide range of material viscosities and production requirements.
Need a custom configuration? We offer variable ratios (1:1 to 20:1), custom volumes (10ml to 1500ml), and ATEX explosion-proof options. Contact us with your requirements.
| Type: | WEFILL-CAR-AB-F003-490-50 |
| Voltage: | 220V/1Phase/50Hz; |
| Power: | 2-3.5kw; |
| Working Air Pressure: | 0.4-0.7 Mpa; |
| Feeding Method: | 5 Gallon/20 liters Pressure Plate--Suitable for supplying high-viscosity paste materials; |
| Control Method: | Siemens PLC + HMI; |
| Applicable Ratio: | 10:1,2:1-20:1 Customizable,Commonly used ratios are: 1:1; 2:1; 3:1; 4:1; 10:1; |
| Suitable Cartridges: | 50ml,490ml;can customized:10-1500ml, Like:12ml,24ml,75ml, 200ml, 250ml,400ml, 490ml,600ml, 1000ml,etc; |
| Viscosity Range: | 10000-1000000cps,Low-viscosity Liquid adhesives |
| Filling accuracy: | ±1%; |
| Filling speed: | 480-600pcs/hour(50ml,10:1);200-300pcs/hour(490ml,10:1) |
| Machine Size: | L1600mm*W1300mm*H1600mm,For reference only; |
| Machine Weight: | 550KG |
| Machine Frame | Equipped with steel surface coated frame and swivel casters for easy mobility or secure positioning. |
Filling Process Flowchart
Machine Configuration – Front Side
The front side of the machine is equipped with the following core components for intuitive operation and precise control:
1. Siemens PLC Control System & 7-Inch Touchscreen HMI
The machine is equipped with a Siemens PLC programmable controller and expansion modules, providing stable and reliable operation.A Siemens 7-inch capacitive touchscreen interface allows operators to easily set and adjust:
①AB adhesive mixing ratio ②Filling volume ③Dispensing speed ④Filling parameters ⑤Machine operation status monitoring
2. Airtac Precision Solenoid Valves – Control the opening and closing of the dispensing head and manage the operation of all pneumatic components for reliable and responsive performance.
3. A/B Material Pressure Regulation System – Equipped with independent A and B material pressure regulating valves and pressure gauges, allowing precise adjustment of material feeding pressure and ensuring stable two-component dispensing.
4. Emergency Stop & Control Interface – Includes a master emergency stop switch, foot-operated electric switch for hands-free operation, and manual/semi-automatic mode selector for flexible workflow adaptation.
5. 2 Sets of Precision Wear-Resistant Gear Metering Pumps – Specifically designed for metering and transferring liquid adhesives or materials with high accuracy and durability.
6. 2 Sets of Xinje Motors & Drives – Allow stepless adjustment of dispensing ratio, precise control of dispensing speed, and programmable setting of fill volume per cycle.
7. Precision Cartridge Filling Fixture& Cartridge Piston Pressing Fixture
Customized filling fixtures ensure accurate positioning and quantitative filling:
490ml 10:1 AB cartridge filling fixture ×1 50ml 10:1 AB cartridge filling fixture ×1
8. Dispensing Head Configuration – Double-Acting Anti-Drip Dispensing System
The machine is equipped with one set of double-acting dispensing head, specially designed for precise two-component adhesive dispensing control.
Send Your Inquiry Now
Machine Configuration – Rear Side
Rear View – Material Feeding & Automatic Cartridge Loading System
The rear side of the machine is designed for stable adhesive supply and automatic cartridge handling, improving production efficiency and reducing manual operation.
1. Dual 20L Pressure Disc Feeding System
Equipped with two sets of 20L standard pressure plates, compatible with 20L straight-side drums, suitable for continuous feeding of two-component adhesive materials.
2. Precision Lifting Cylinder System
Equipped with four precision lifting cylinders to ensure balanced pressure plate movement, smooth material pressing, and stable feeding performance.
3. High Viscosity Adhesive Metering Pump System
Equipped with two sets of wear-resistant metering feed pumps, specially designed for conveying high-viscosity paste adhesives and industrial materials.
4. Servo Motor Drive System
Equipped with two sets of servo motors and matching gear reducers to provide stable power output and ensure high-speed, accurate material dispensing.
5. Stable Material Flow Control
The feed pumps are driven by pneumatic cylinders to maintain stable material flow rate and achieve high-precision metering performance.
6. Industrial-Grade Transfer Pipeline
Equipped with explosion-proof, corrosion-resistant, and high-temperature-resistant material pipelines, suitable for demanding adhesive applications
7. Main Pressure air inlet Valve
Equipped with a main air inlet filtration and lubrication unit (FRL system), which filters moisture and impurities from compressed air while providing lubrication for internal pneumatic components.
8. Stainless Steel Machine Cabinet
Integrated stainless steel electrical cabinet with universal leveling casters, providing durability, easy movement, and convenient installation.
Send Your Inquiry NowOptional Features for Customized AB Adhesive Filling Solutions
Additional configurations and customized solutions are available according to different adhesive characteristics, production Process, and application environments.
1. Vacuum Stainless Steel Pressure Tank Options
The machine can be equipped with customized vacuum pressure tanks in different capacities, including:5L-60L;For corrosive adhesives or chemical materials, the tank material can be upgraded from SUS304 to SUS316 stainless steel for improved corrosion resistance and longer service life.
2. Automatic Material Feeding System
An optional automatic feeding pump system can be integrated to transfer adhesive materials directly from original containers into the stainless steel storage tanks.
3. Vacuum Degassing System
An optional vacuum system can be installed to remove air bubbles from A/B adhesive materials inside the storage tanks.
Benefits:①Reduces bubbles;②Improves filling consistency;③Enhances final product quality.
4. Mixing Pressure Tank System
For adhesives requiring continuous stirring or uniform dispersion during filling, the machine can be equipped with pressure tanks with mixing functions.
Benefits:①Maintains adhesive uniformity;②Prevents material separation;③Ensures stable adhesive performance.
5. Constant Temperature Heating System
For temperature-sensitive adhesives, Heating system can maintain stable material temperature.
Benefits:①Keeps adhesive viscosity consistent;②Ensures smooth dispensing and reliable filling accuracy.
6. Flexible Mixing Ratio & Filling Volume Adjustment
The machine supports customized ratios and capacities through adjustable metering parameters and interchangeable filling fixtures.
Features:①Supports different A/B ratios;②Compatible with various cartridge;③Filling volume adjustment;④Suitable for different adhesive formulations requirements
7. Pressure Tank / Platen Feeding System Options
Different material supply methods can be selected according to adhesive viscosity and flow characteristics.
Customized Solutions for Various Adhesive Applications
With flexible configuration options, the machine can be customized for different two-component materials,The modular design allows customers to select suitable functions based on material properties, cartridge specifications, and production requirements.WEFILL TECH provides customized AB adhesive filling solutions based on material properties, packaging formats, and production requirements. Please contact us for a tailor-made equipment solution.
Compatible Materials & Applications
Wide Range of Two-Component Adhesive Materials
The WEFILL-CAR-AB-F003-490-50 Semi-Automatic High-Viscosity Liquid Paste AB Adhesive Filling & Capping Machine is designed for precise filling of a wide range of two-component adhesives, epoxy resins, and Low-viscosity materials.
Compatible materials include:
● Epoxy resins; ● Two-component polyurethane (PU) adhesives; ● Acrylic adhesives (MMA); ● Silicone adhesives and sealants; ● Structural adhesives; ● Stone panel adhesives; ● Grout sealants; ● Rebar anchoring adhesives; ● Casting compounds; ● Cyanoacrylates; ● Greases and lubricating pastes; ● High-viscosity sealants; ● Other customized two-component chemical materials; ● Cow Adhesive etc.
Applicable Industries:
The machine is widely used in industries requiring accurate ratio-controlled filling, clean packaging, and reliable dispensing performance, including:
● Electronics manufacturing; ● Electrical appliance manufacturing; ● Medical device and healthcare industries; ● Food processing and packaging applications; ● Construction and civil engineering; ● Automotive manufacturing; ● Aerospace applications; ● Photovoltaic (solar energy) industry; ● Machine building and industrial equipment; ● Mobile devices and wearable electronics; ● In-vitro diagnostics; ● Animal healthcare products; ● Gift, decoration, and craft industries; ● Stone and panel processing; ● Fluid packaging and industrial chemical packaging; ● Defense-related applications
Compatible Adhesive Brands:
The WEFILL-CAR-AB-F003-490-50 filling system is compatible with many internationally recognized adhesive brands, including:
● 3M; ●Henkel (LOCTITE); ●Huntsman Corporation; ●H.B. Fuller Company; ●Permabond Engineering Adhesives; ●ITW Performance Polymers; ●Master Bond Inc.; ●MG Chemicals; ●DELO Industrial Adhesives; ●Other industrial adhesive and sealant manufacturers.
Typical Applications:
AB cartridge filling • Two-component adhesive repackaging • High-Viscosity Liquid Paste material dispensing • Industrial adhesive filling • Precision chemical packaging
