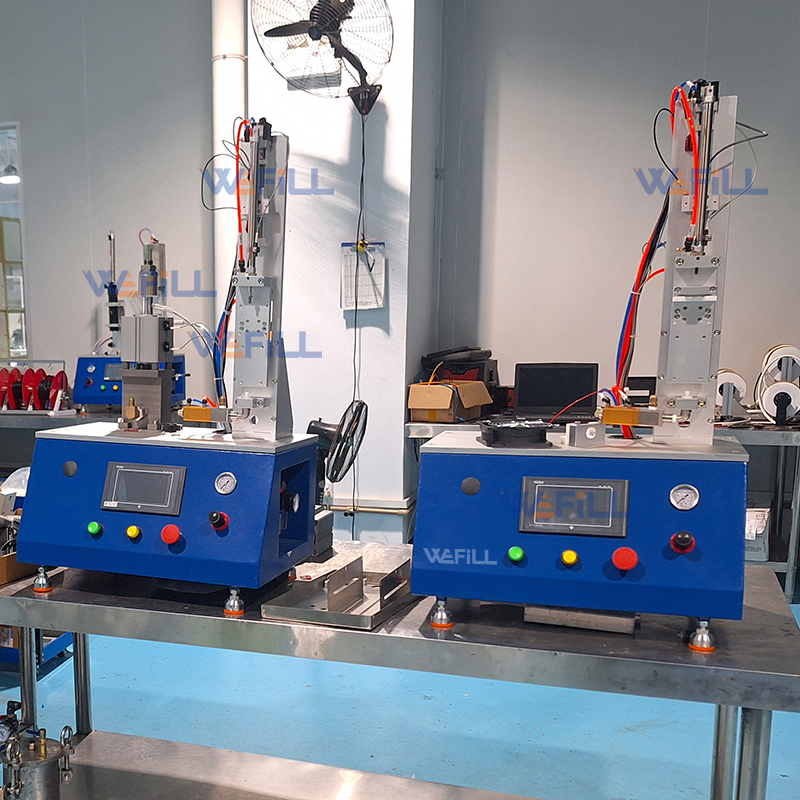

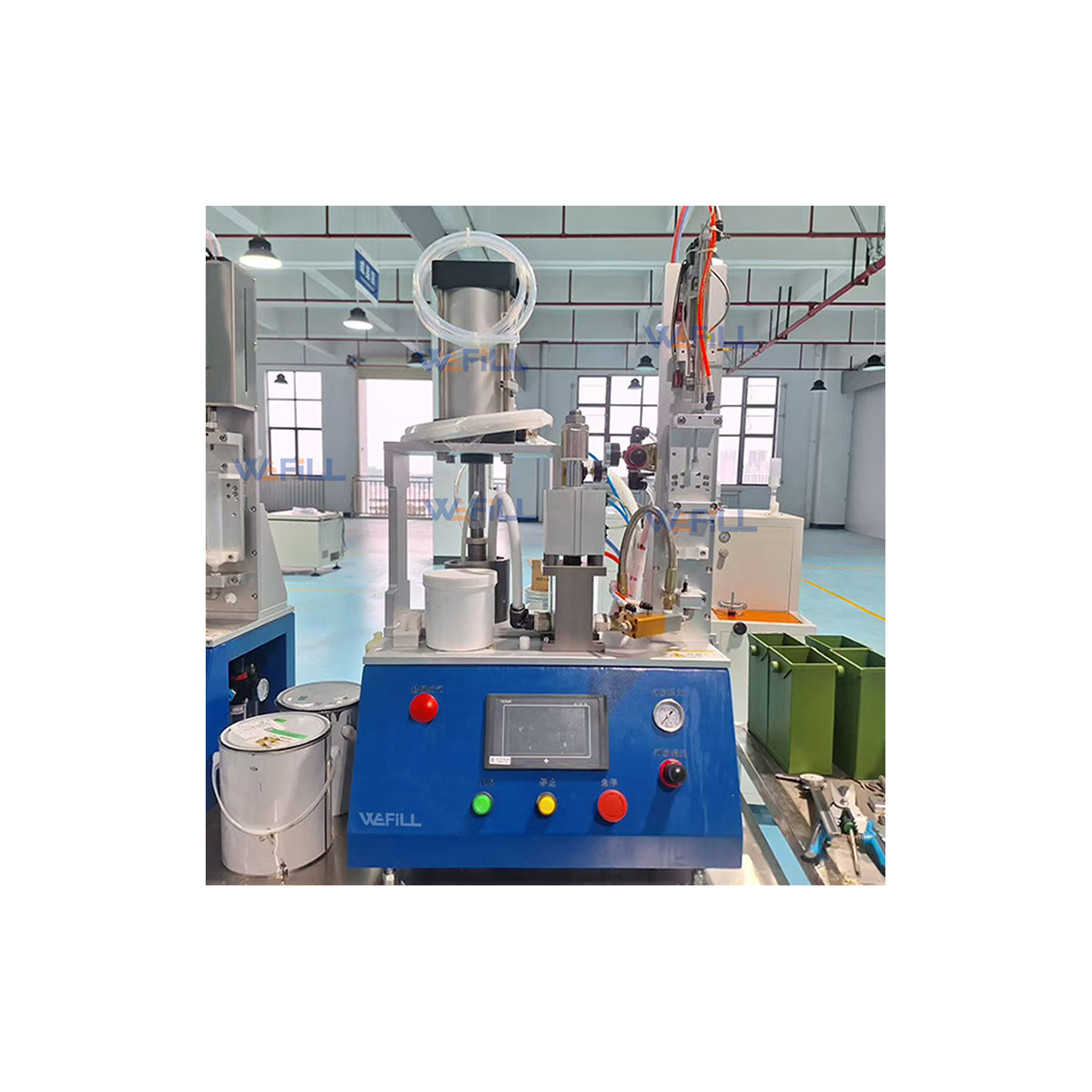

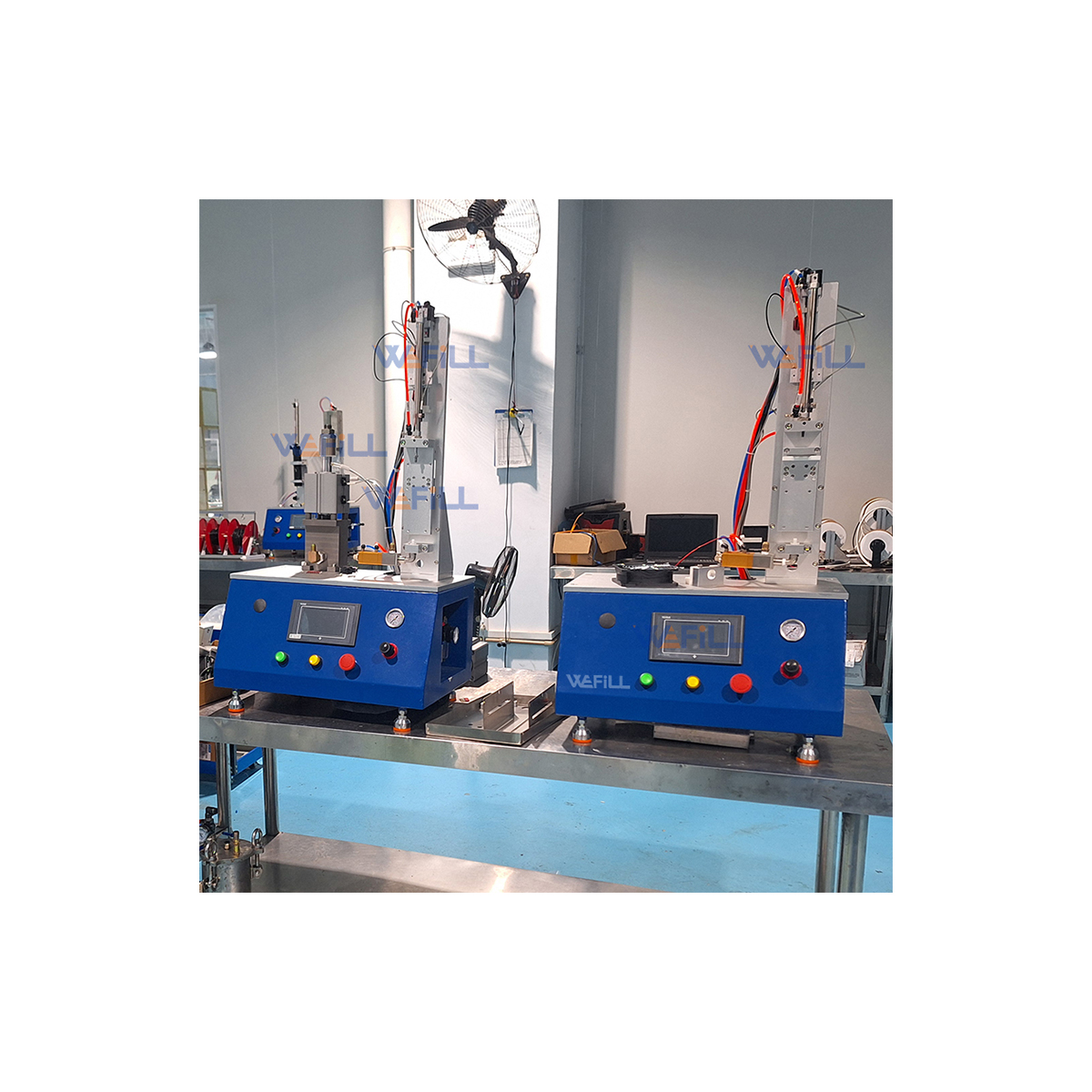

WEFILL-SYR-BSF001 Desktop Syringe Adhesive Quantitative Filling Machine with 5L Pressure Pot

Precise Dosing · Non-Contact Dispensing Valve · 2ML/6ML Syringe Filling · Clean Desktop Design

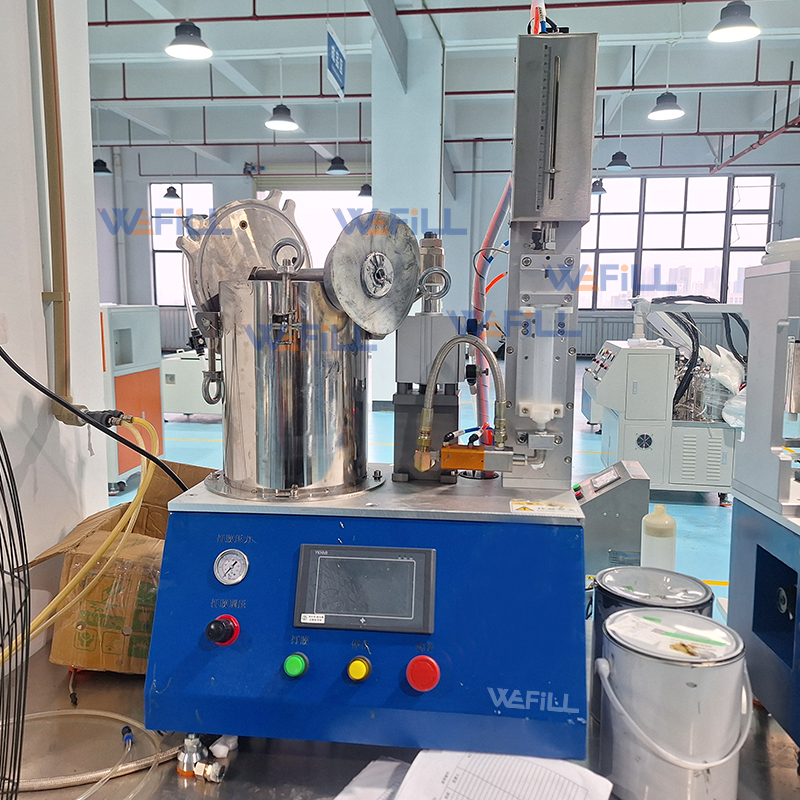

The WEFILL-SYR-BSF001 is a desktop quantitative filling machine designed for adhesives and liquid materials. The original adhesive packaging is first connected to the metering pump interface of the filling machine. Then, using a pressure pot or pressure barrel, the adhesive material is fed to the inlet of the plunger metering pump. The material is extruded from the top of the piston and fed into 2ML/6ML syringe barrels. Finally, the quantitative system completes precise filling for each syringe. With a complete configuration and simple operation, it is ideal for laboratories, small-batch production, and fine adhesive dispensing applications.

Product Features

●Precise Quantitative Filling: Equipped with 2ML/6ML syringe and an automatic intelligent quantitative system for consistent, highly uniform filling.

●Non-Contact Dispensing Valve: Features WEFILL's independently developed non-contact dispensing valve to control material open/close, reducing cleaning frequency and maintenance pressure.

●Intelligent Integrated Programmer: Touch-to-start operation for fast and convenient parameter setting.

●Flexible Control Modes: Manual button and foot pedal switch available for flexible operation.

●Time Relay Control: Adjustable delay based on actual functional requirements, adapting to different adhesives and filling rhythms.

●Clean Desktop Design: Compact structure, clean and elegant, corrosion-resistant, and easy to clean — suitable for clean working environments.

Standard Configuration

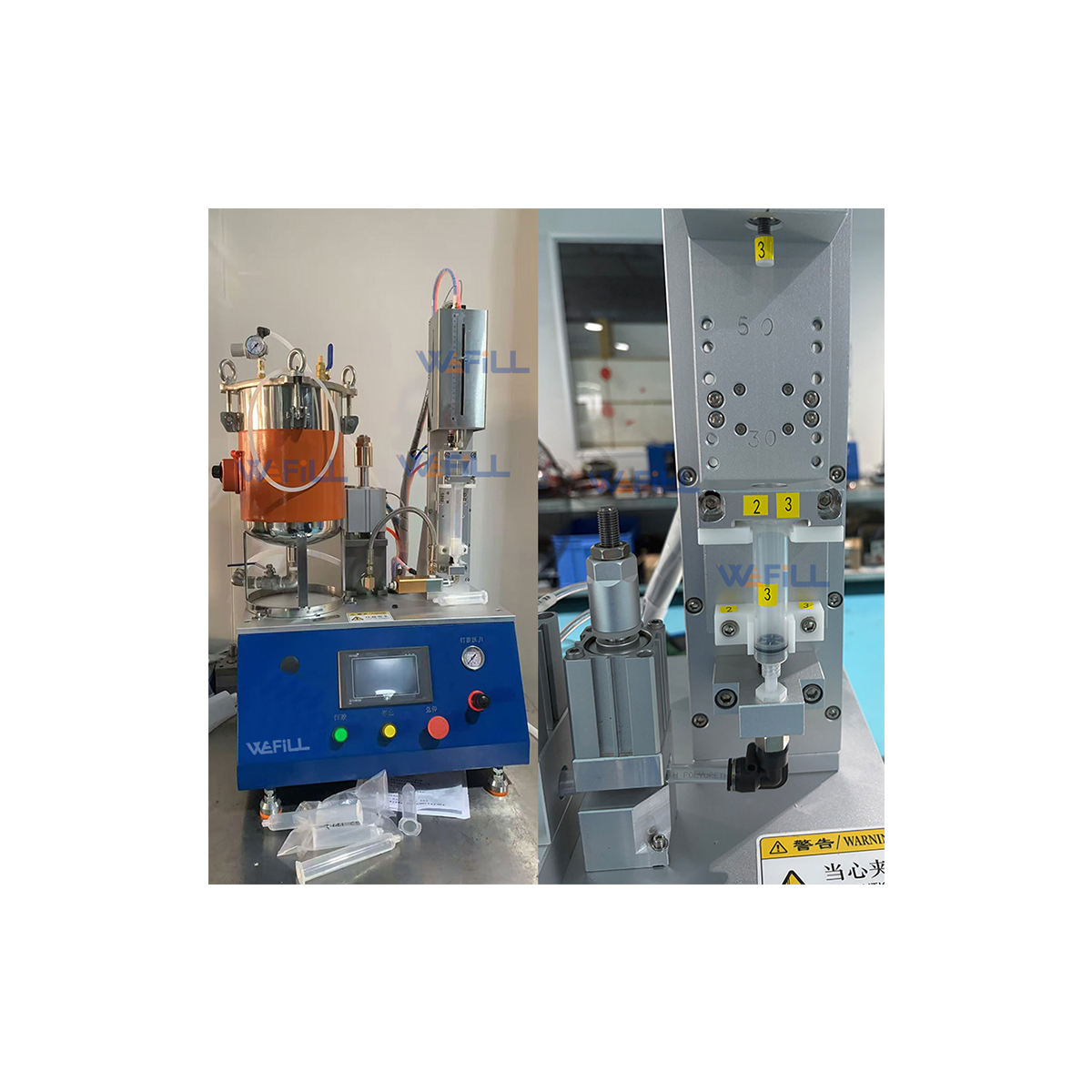

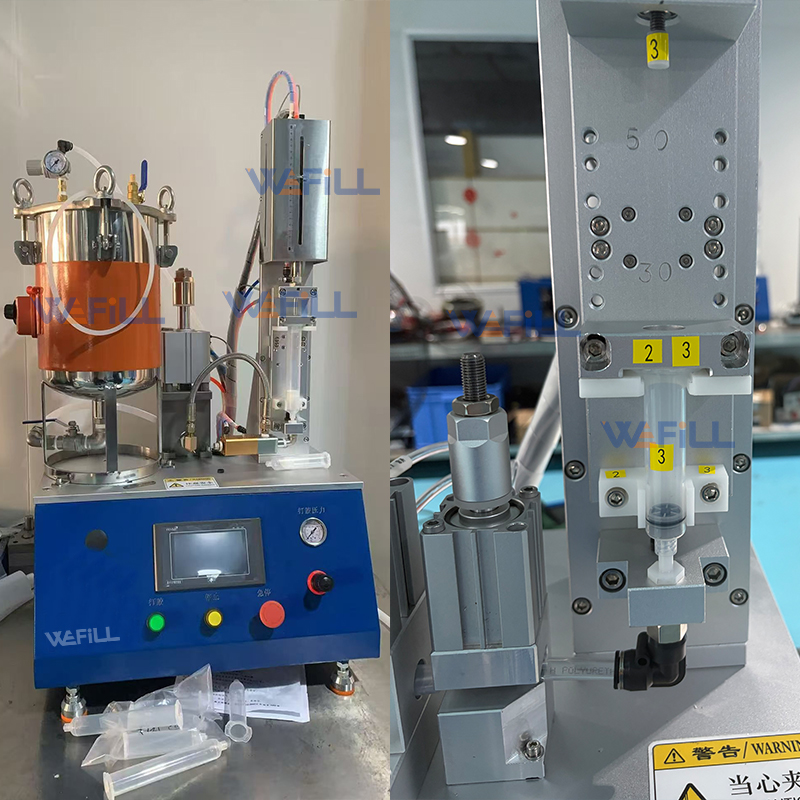

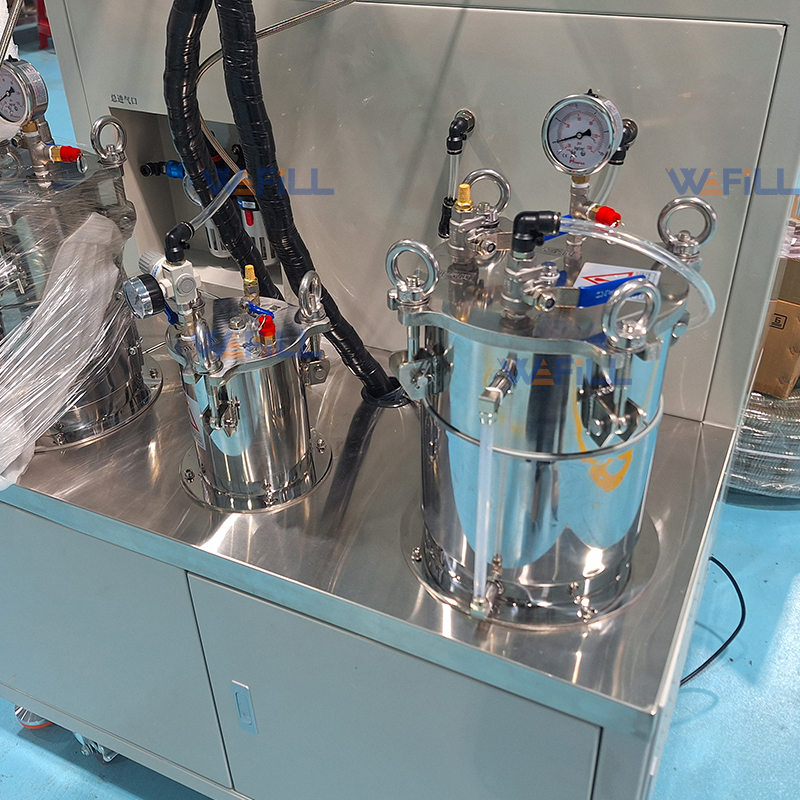

1.Equipped with a matching 5L pressure pot, with sealing ring and exhaust hole;

2.Equipped with quick intake/exhaust valve, pressure regulating valve, pressure gauge, and discharge hose connector;

3.Equipped with intelligent integrated programmer, touch-to-start, convenient and fast;

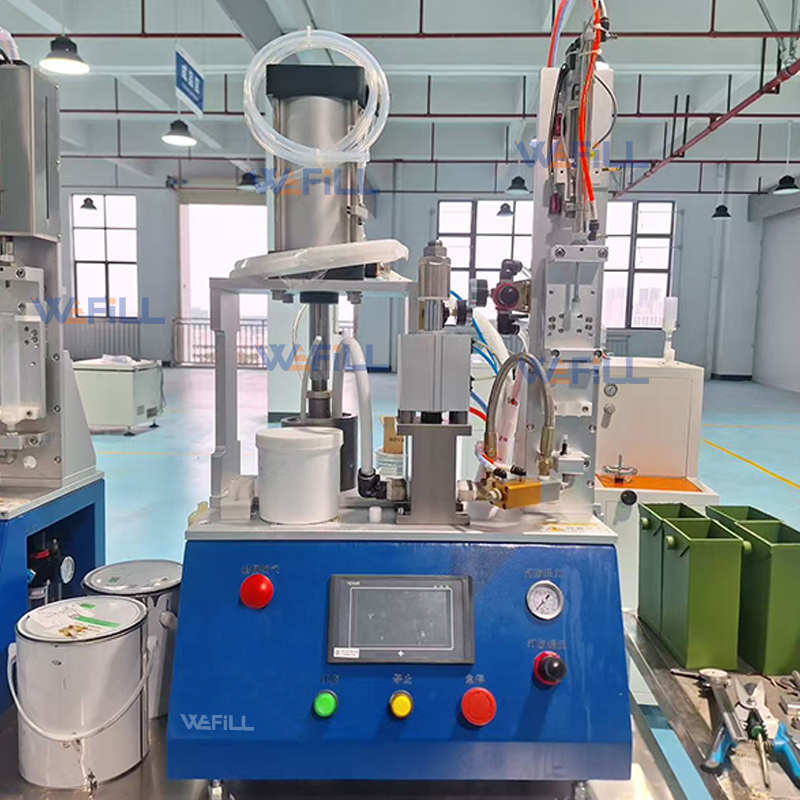

4.Equipped with 2ML/6ML syringe barrels and automatic intelligent quantitative system for precise, convenient, and highly uniform filling;

5.Equipped with time relay, adjustable delay according to actual functional requirements;

6.Equipped with feed hose to deliver adhesive material to the syringe;

7.Equipped with WEFILL's independently developed non-contact dispensing valve to control material open/close — no valve cleaning required, reducing cleaning pressure;

8.Equipped with manual button and foot pedal switch for flexible control mode selection;

9.Desktop design — clean, elegant, corrosion-resistant, and easy to clean.

Customized Solutions for Various Adhesive Applications

With flexible configuration options, the machine can be customized for different single-component materials,The modular design allows customers to select suitable functions based on material properties, cartridge specifications, and production requirements.

WEFILL TECH provides customized adhesive filling solutions based on material properties, packaging formats, and production requirements. Please contact us for a tailor-made equipment solution.
