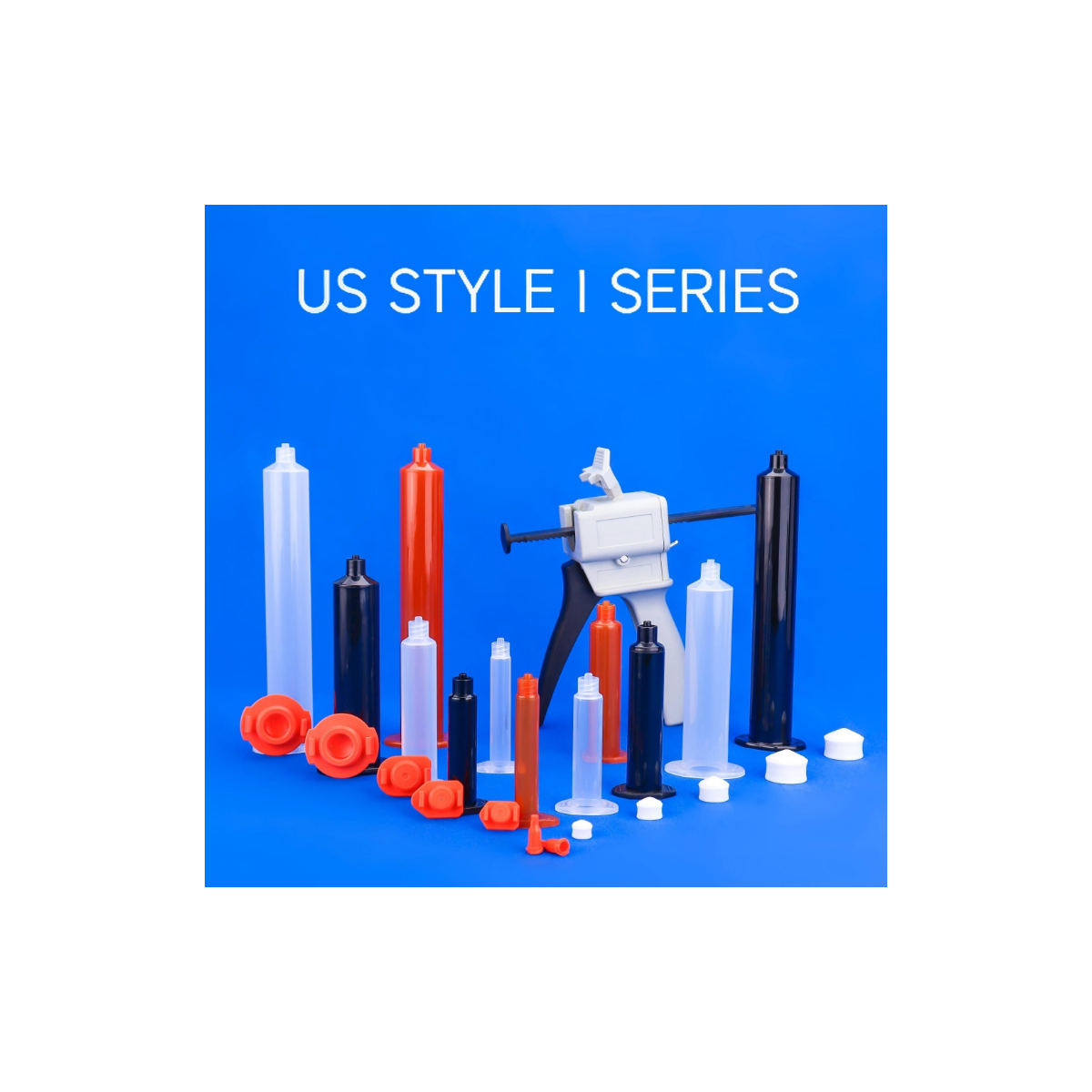

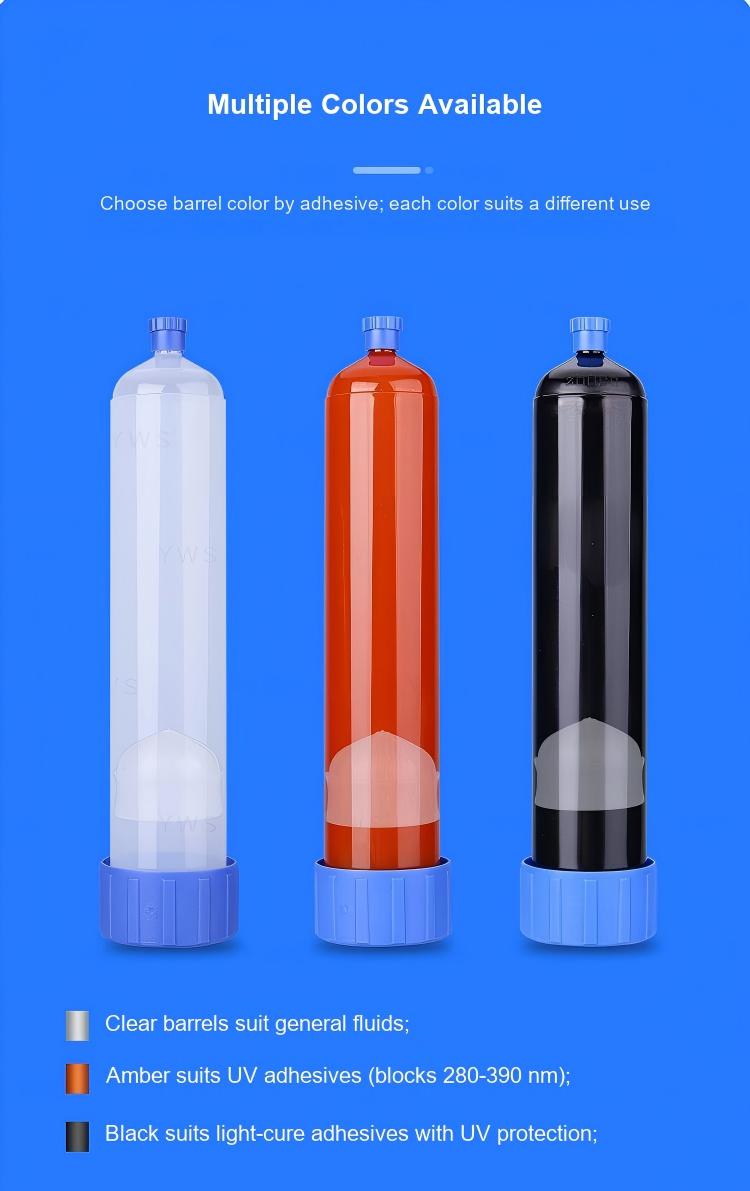

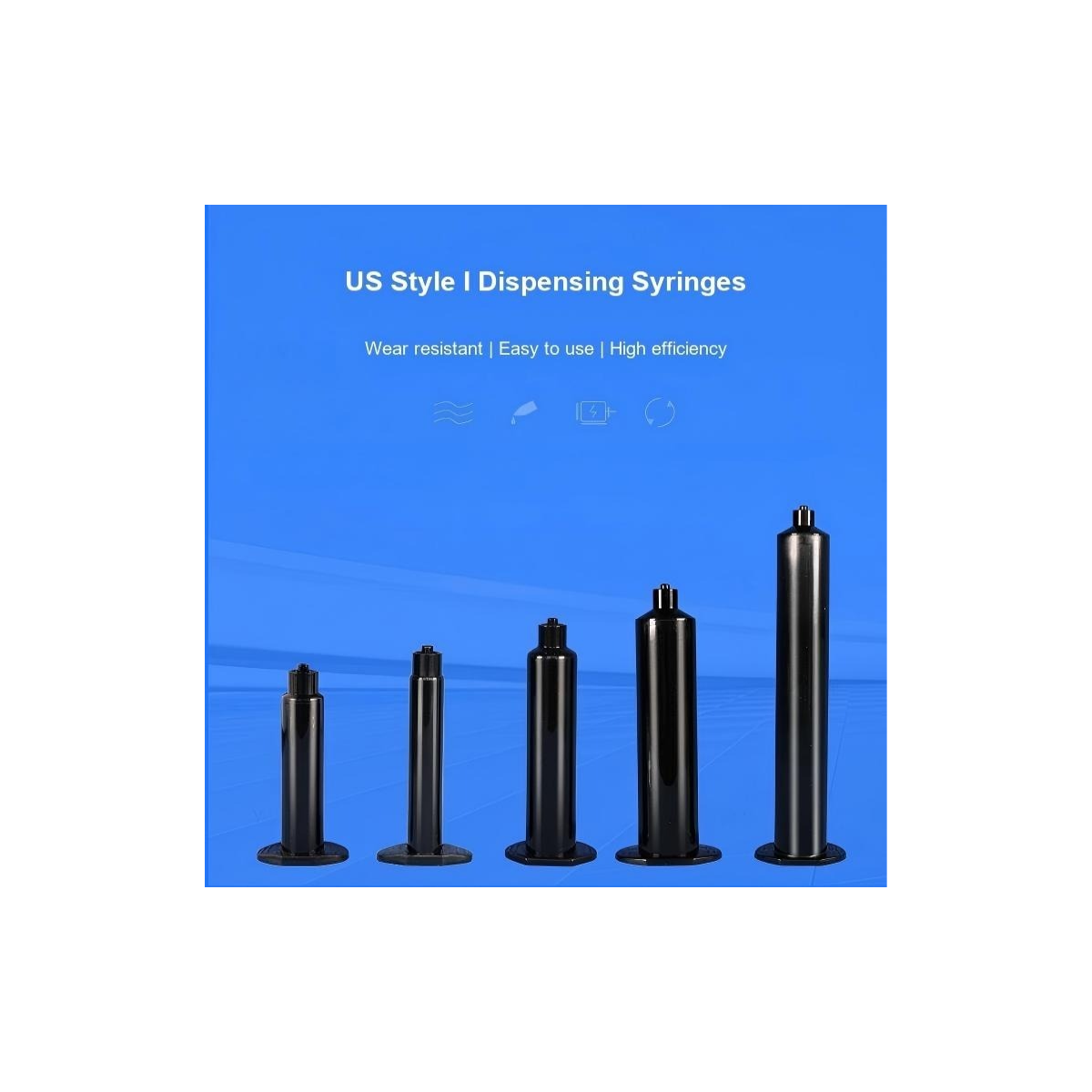

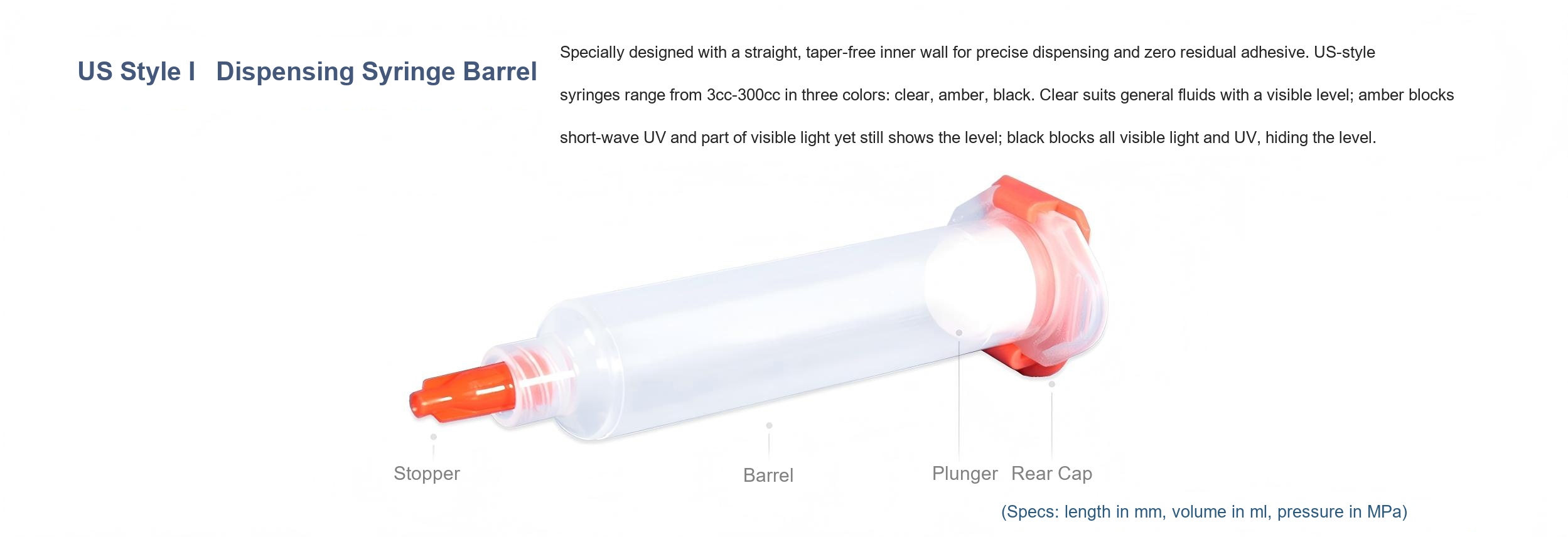

The US Style I dispensing syringe barrel is a single-component packaging and dispensing reservoir used with pneumatic dispensing machines, manual applicator guns or automated dispensing valves. It stores low- to medium-viscosity adhesives, sealants, solder paste, thermal gel and industrial fluids, then meters them through a selected needle or tapered nozzle under controlled air pressure. The series is engineered to solve three common line problems: inconsistent shot size, post-shot dripping/backflow, and barrel cracking under pressure. With a complete capacity and color matrix, it standardizes consumables across an entire assembly operation.

How It Works

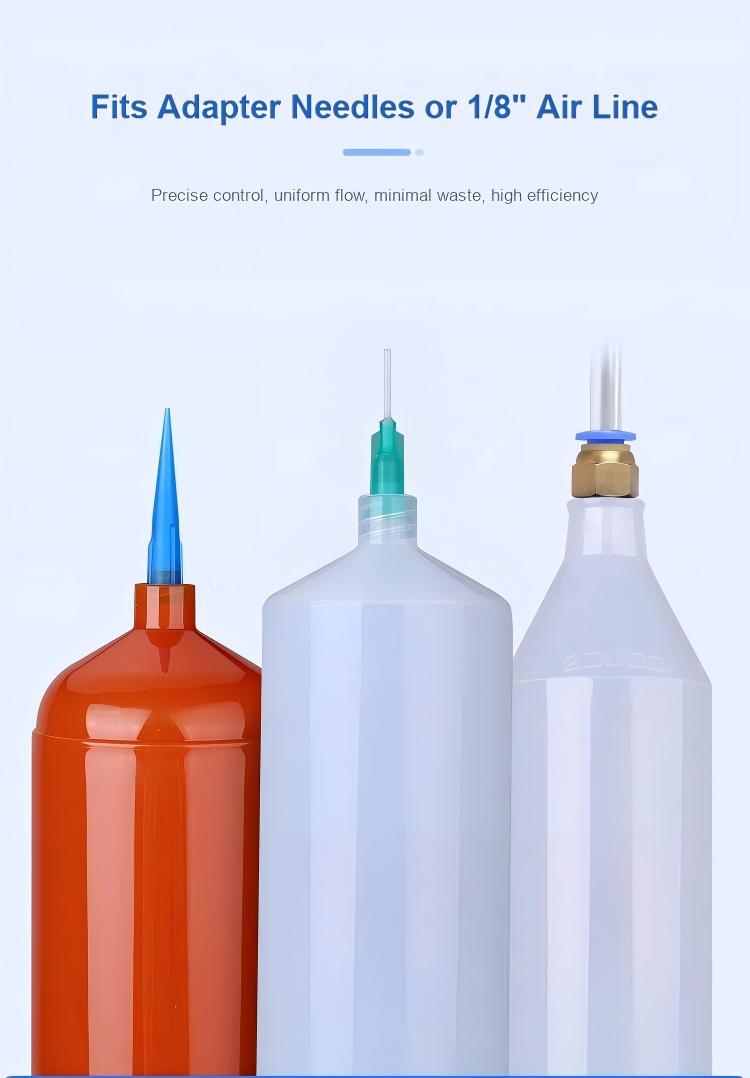

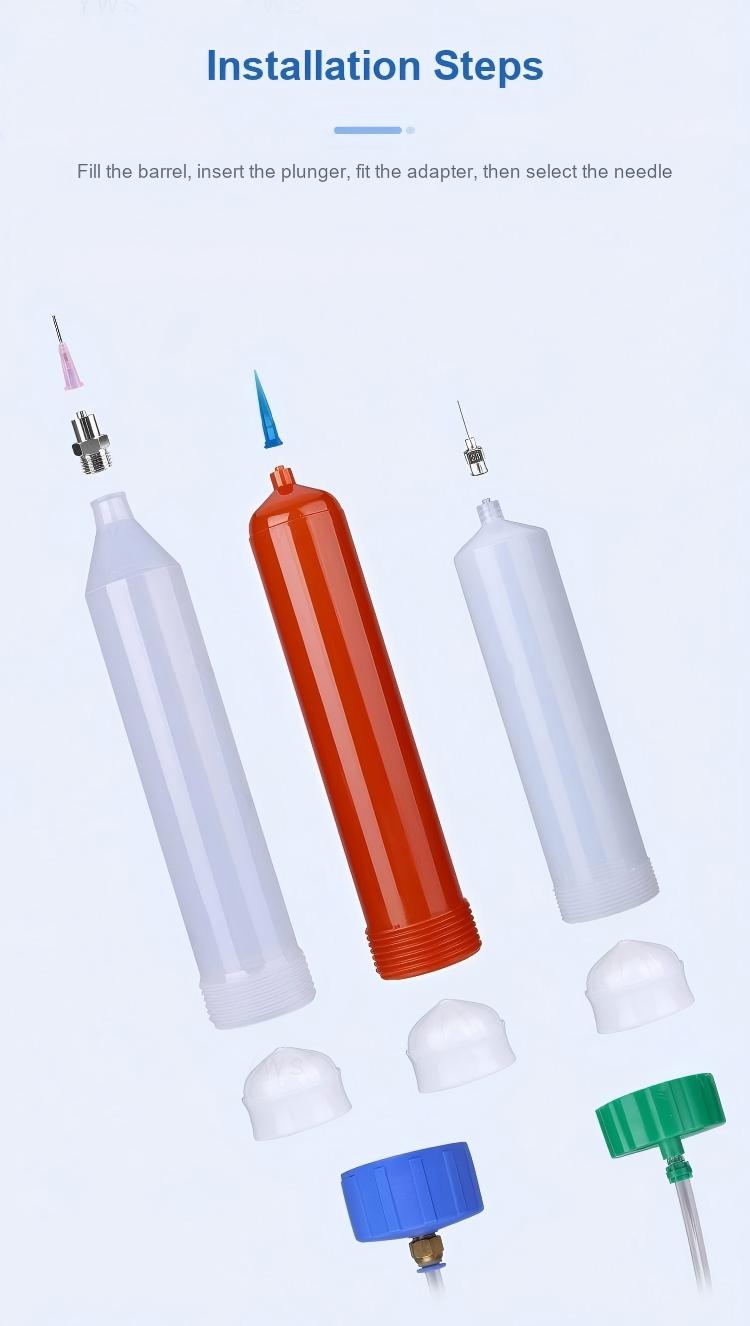

A PE plunger sits inside the barrel and moves forward as regulated air pressure enters through the threaded rear cap. Because the plunger seals tightly against the precision-finished inner wall, material is pushed—rather than sucked or smeared—toward the threaded luer outlet at the front. An adapter needle, tapered nozzle or sealing stopper locks onto that outlet, so the operator controls bead width and flow rate by air pressure, tip gauge and plunger travel. When pressure stops, the tight plunger-to-wall seal and rear-cap design provide a clean suck-back effect that prevents fluid backflow and trailing drips, keeping parts and workbenches clean.

Key Features

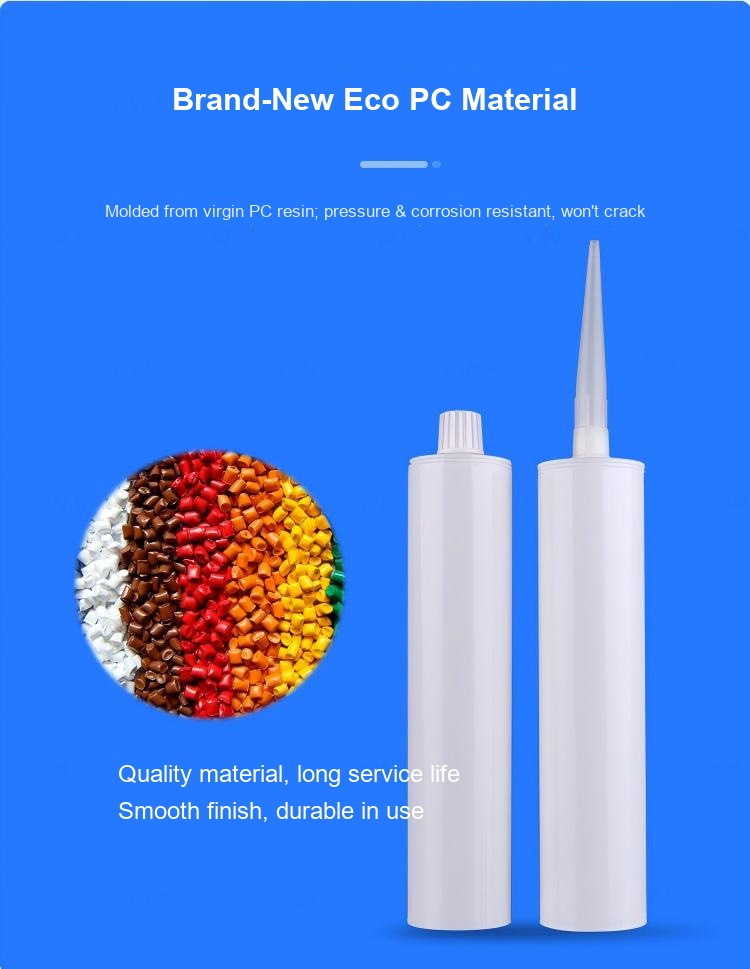

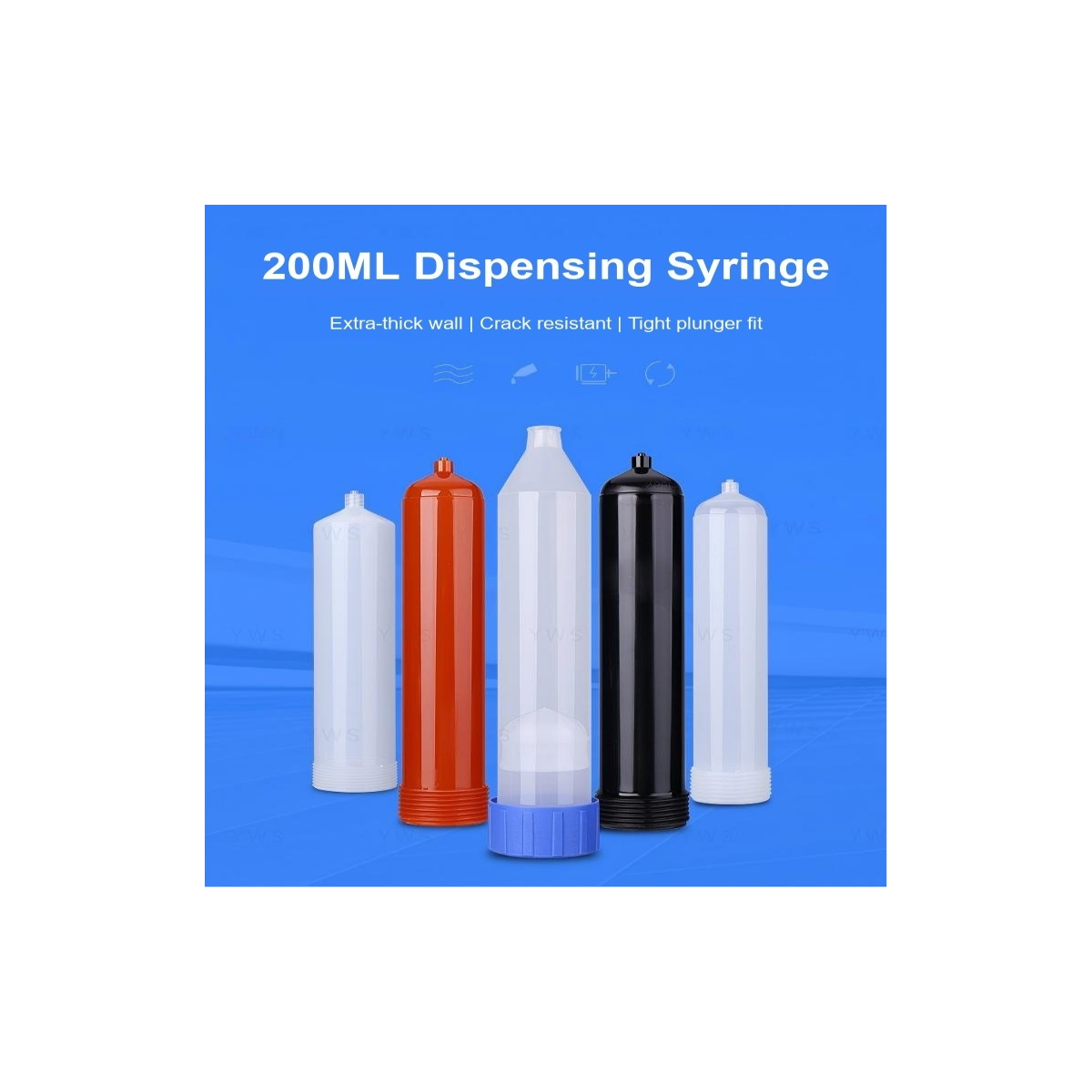

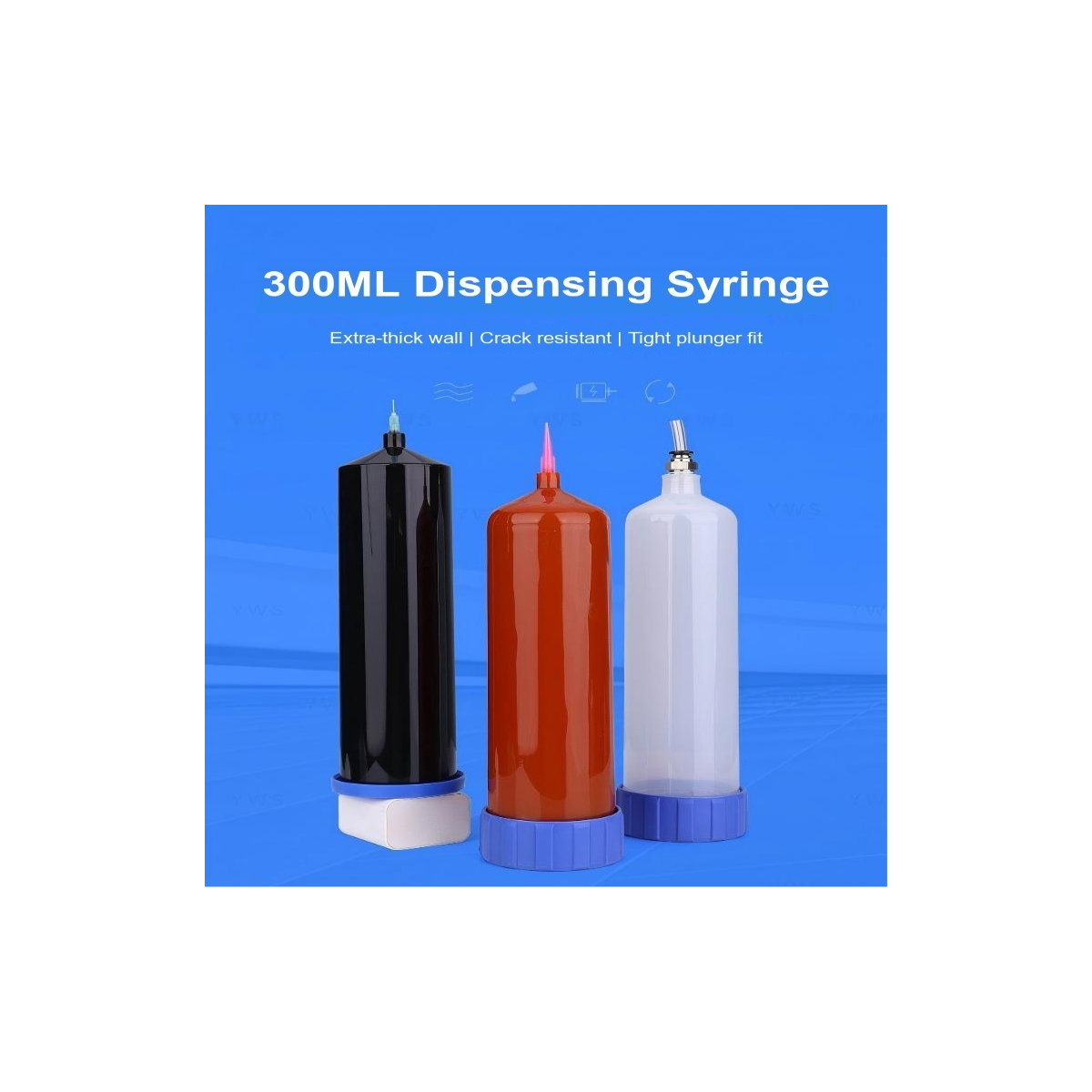

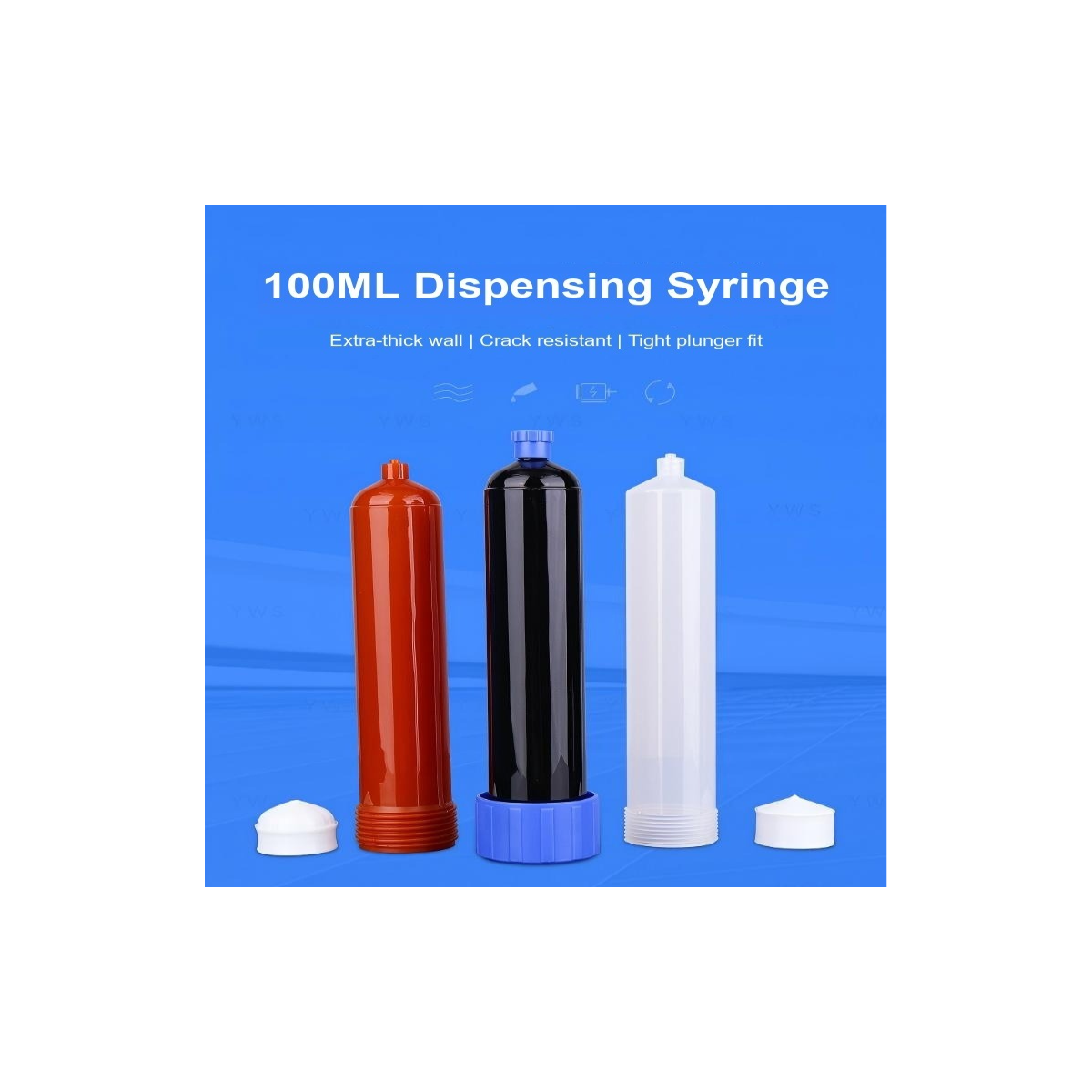

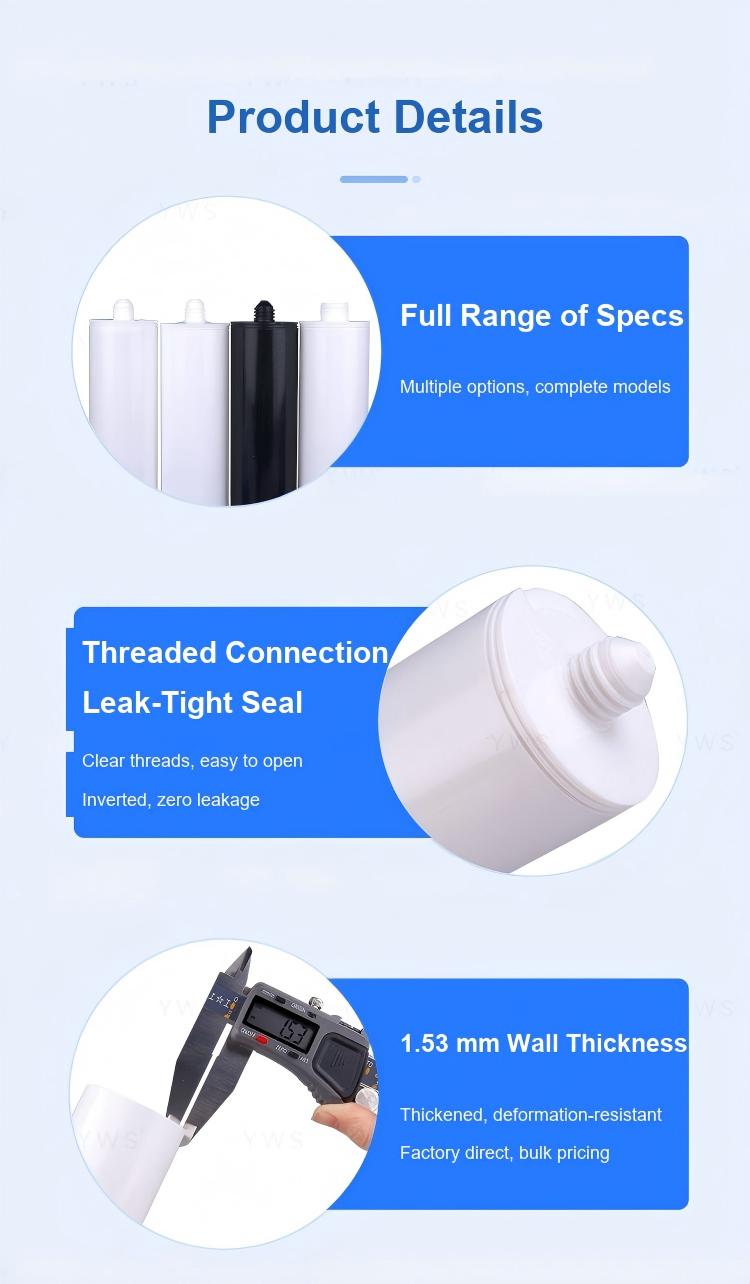

· Thickened pressure-resistant barrel: Extra-thick, uniform wall resists internal pressure and prevents cracking or bulging even during long production runs.

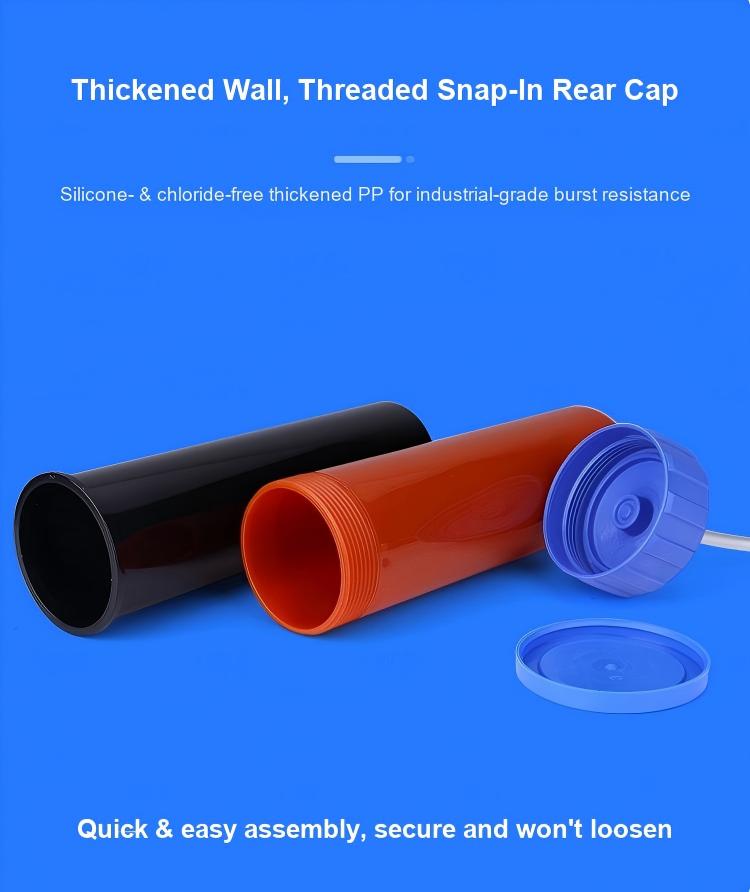

· Threaded snap-in rear cap: Threaded PP snap-in rear cap withstands higher pressure and helps relieve over-pressure if the tip outlet becomes blocked, reducing misuse damage.

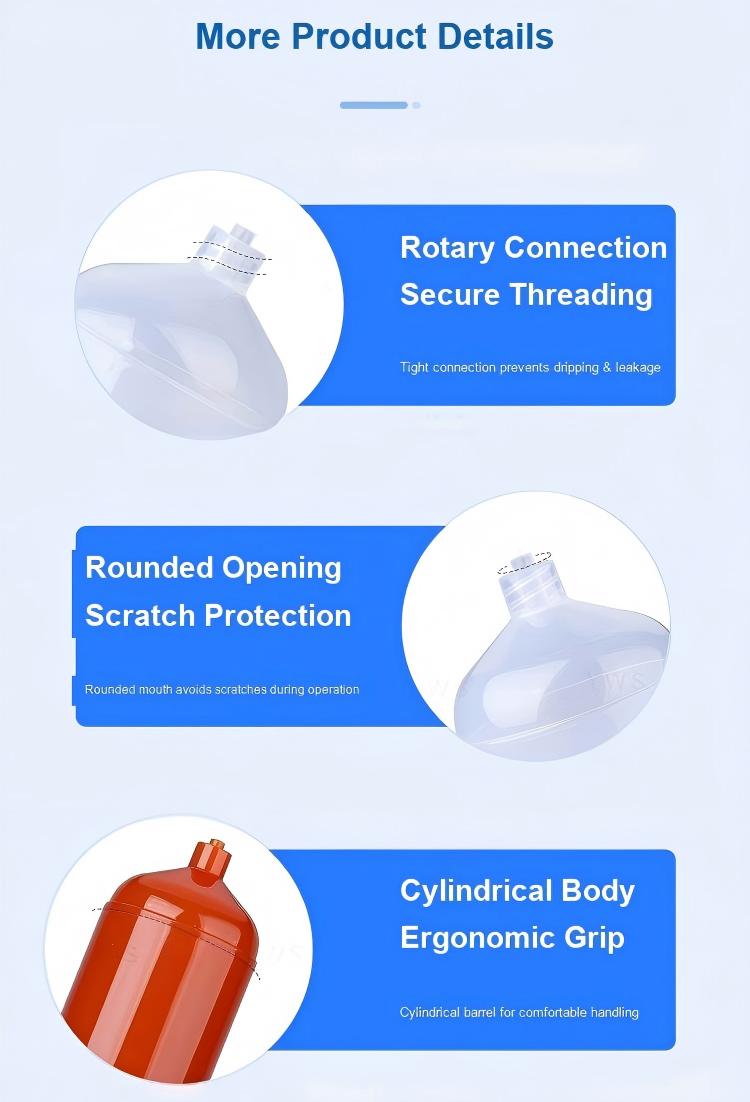

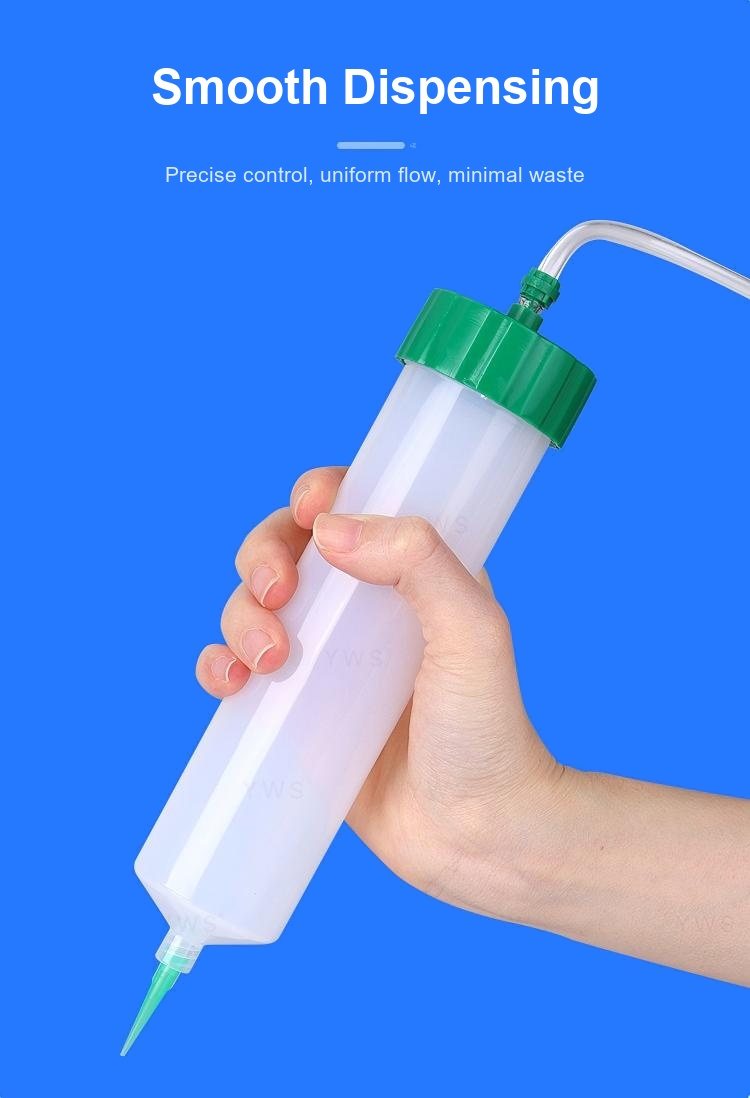

· Smooth, uniform dispensing: Rounded, burr-free luer outlet with a smooth internal bore keeps flow laminar and uniform for precise, even material placement.

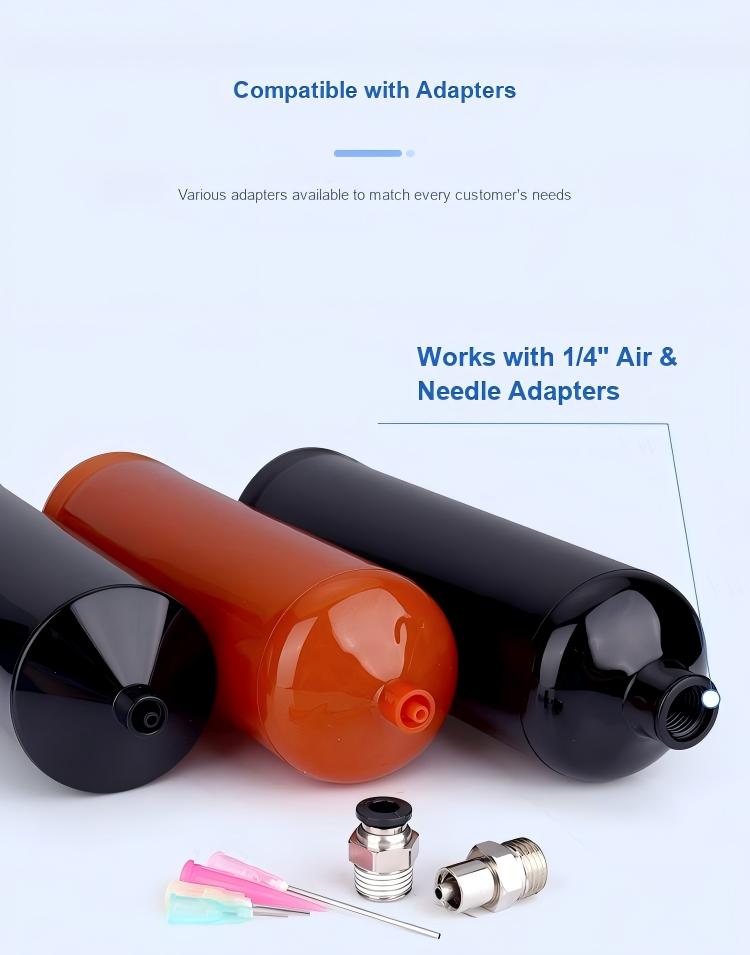

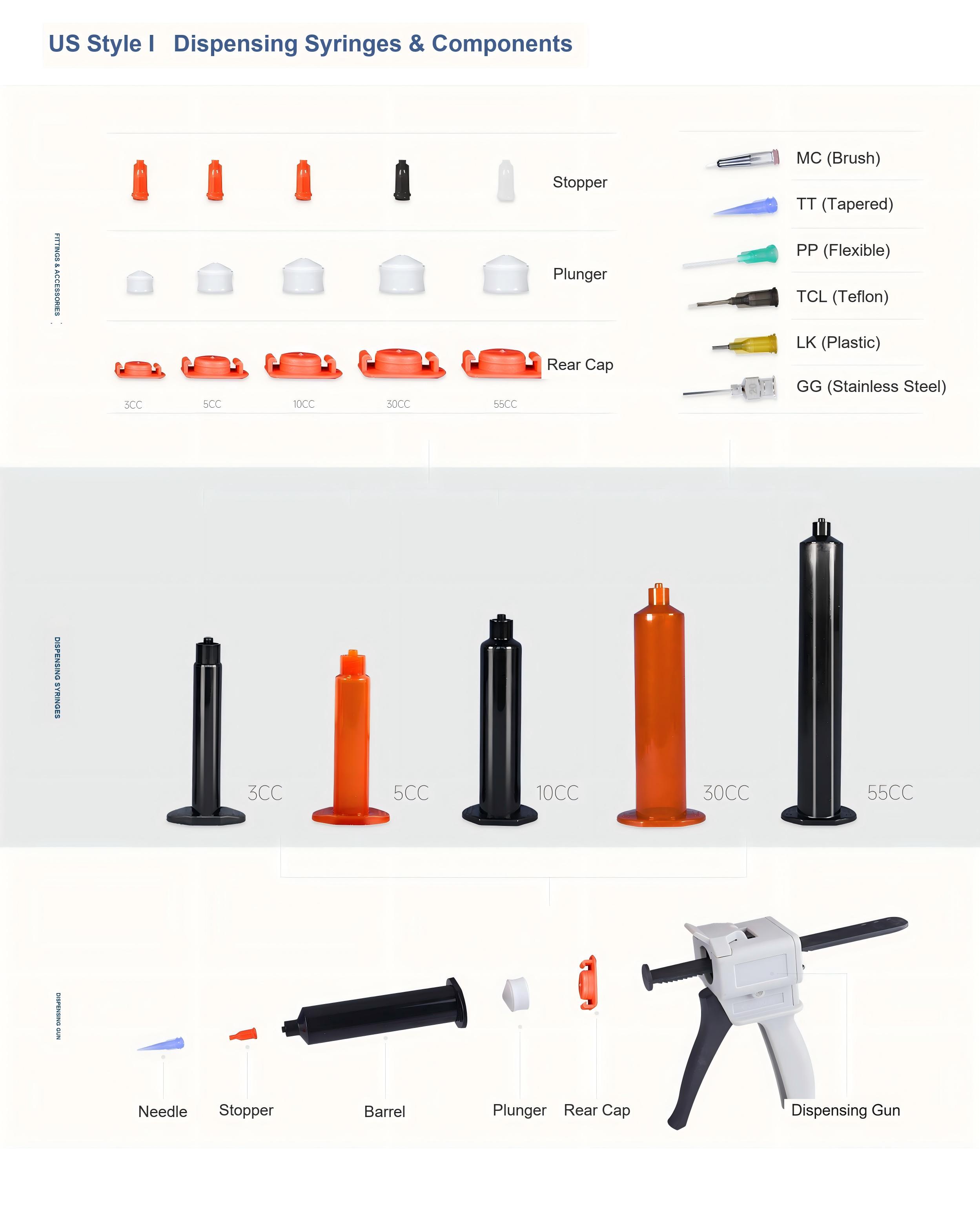

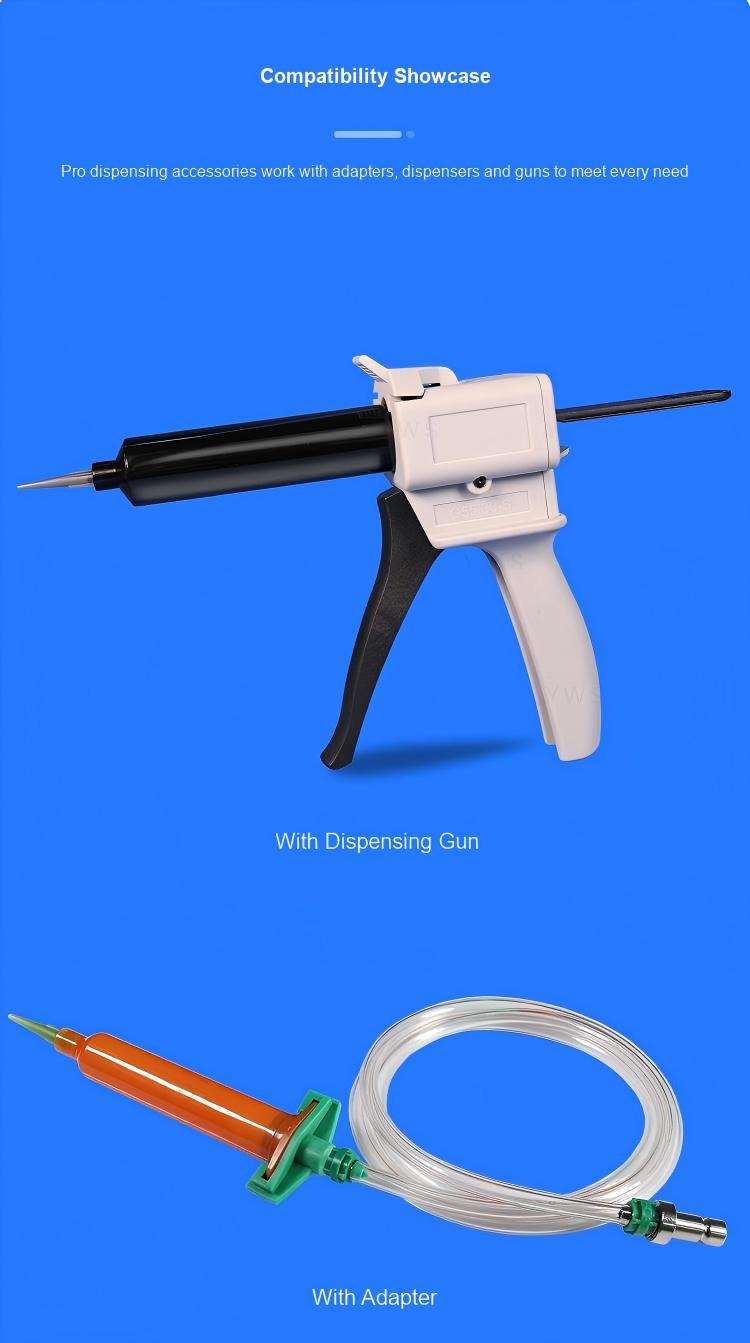

· Complete accessory ecosystem: Plungers, sealing stoppers, rear caps, adapter needles, air-line fittings and tapered nozzles are all available in one matched series.
