Two Component Dual Cartridge Adhesive C Series Static Mixer
Dual-component Static Mixer
- Model:Wefill-CH, Wefill-CQ, Wefill-CGH, Wefill-CGQ
- Material :PP
- Temperature range:-10°C to 60°C (depending on adhesive)
- Disposable:Single use only; not recommended for reuse
- Inlet:Bell Mount, Threaded Mount
- Outlet:Angled Tapred, Straight Luer , Luer Spin, Stepped Tip
- Elements:Spiral/Helical, Square/Quadro
- Suitable Viscosity:1,000 – 100,000 cps

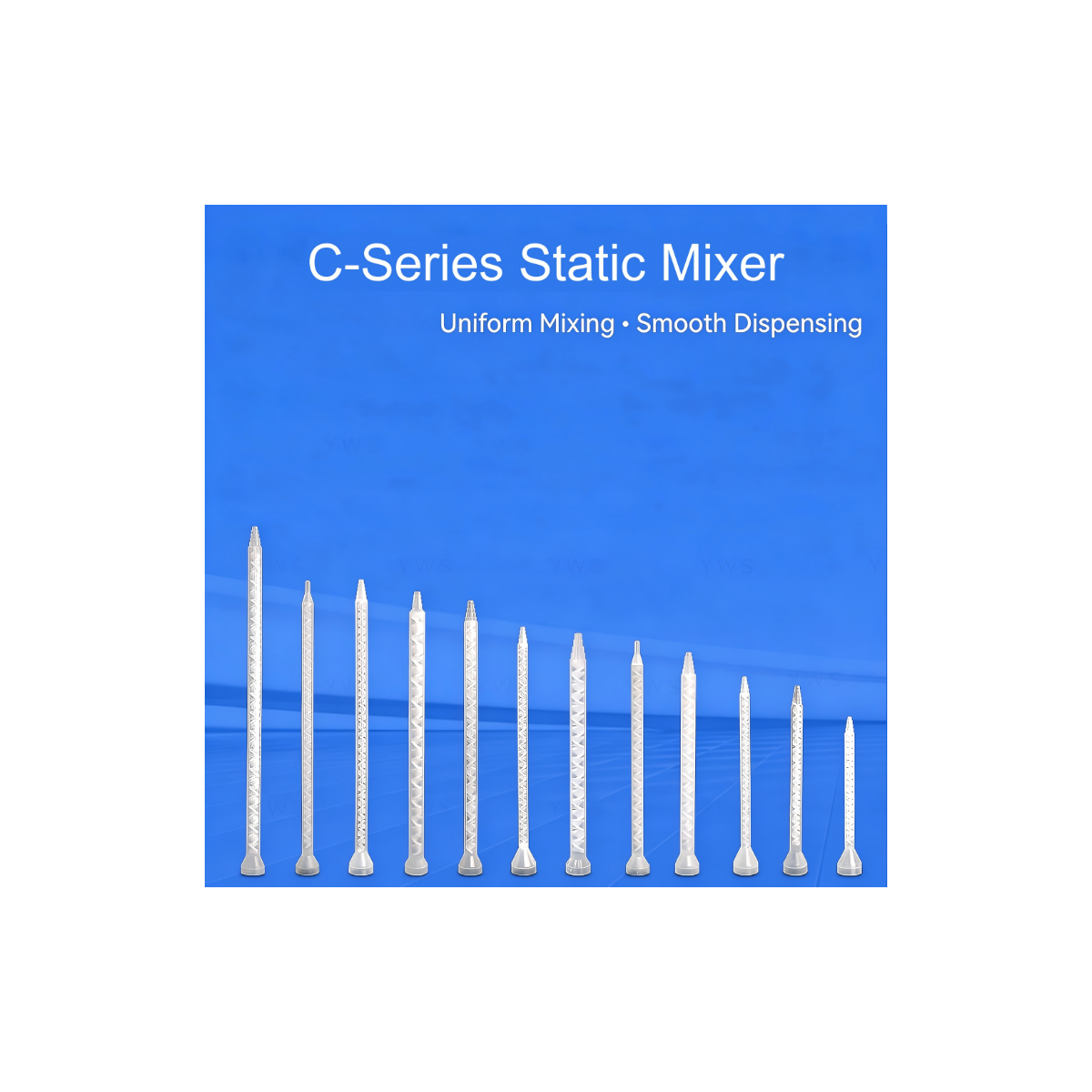

Two Component Dual Cartridge Adhesive C Series Static Mixer
Key Features

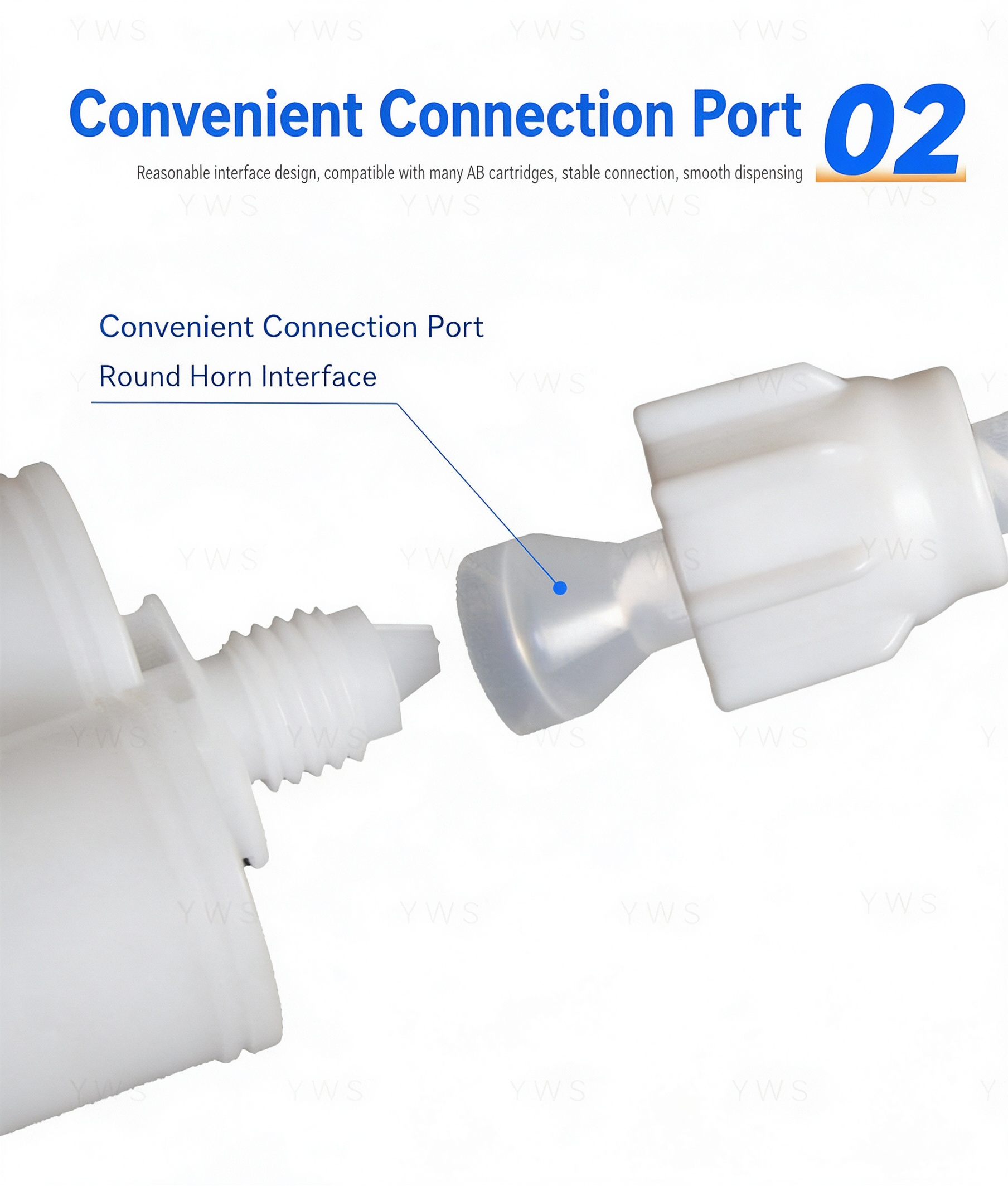

Four Interface Options: Round bell-mouth (CH), threaded round bayonet (CGH), square bayonet (CQ) and threaded square bayonet (CGQ), matching most large-volume AB cartridges on the market.
Large-Diameter High-Flow Design: Inner diameters from 5.0mm to 13.0mm, supporting high-volume dispensing of high-viscosity adhesives, sealants and potting compounds.
Secure Leak-Free Connection: Threaded and bayonet locking interfaces provide a tight, stable fit, preventing overflow and leakage even under high dispensing pressure.

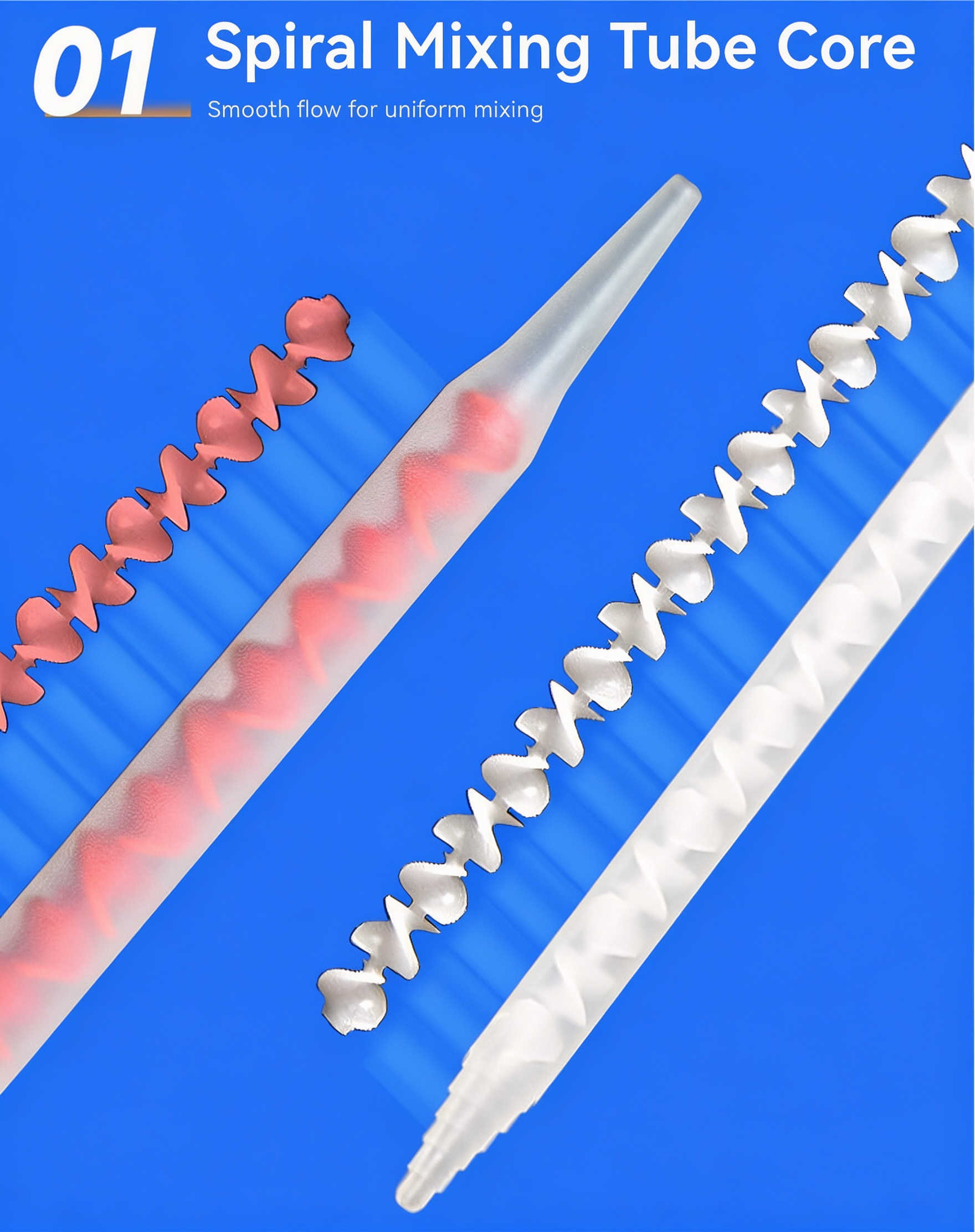

High-Efficiency Spiral Mixing Core: Integrated helical mixing elements repeatedly split, rotate and recombine the two material streams, ensuring uniform mixing without manual stirring.

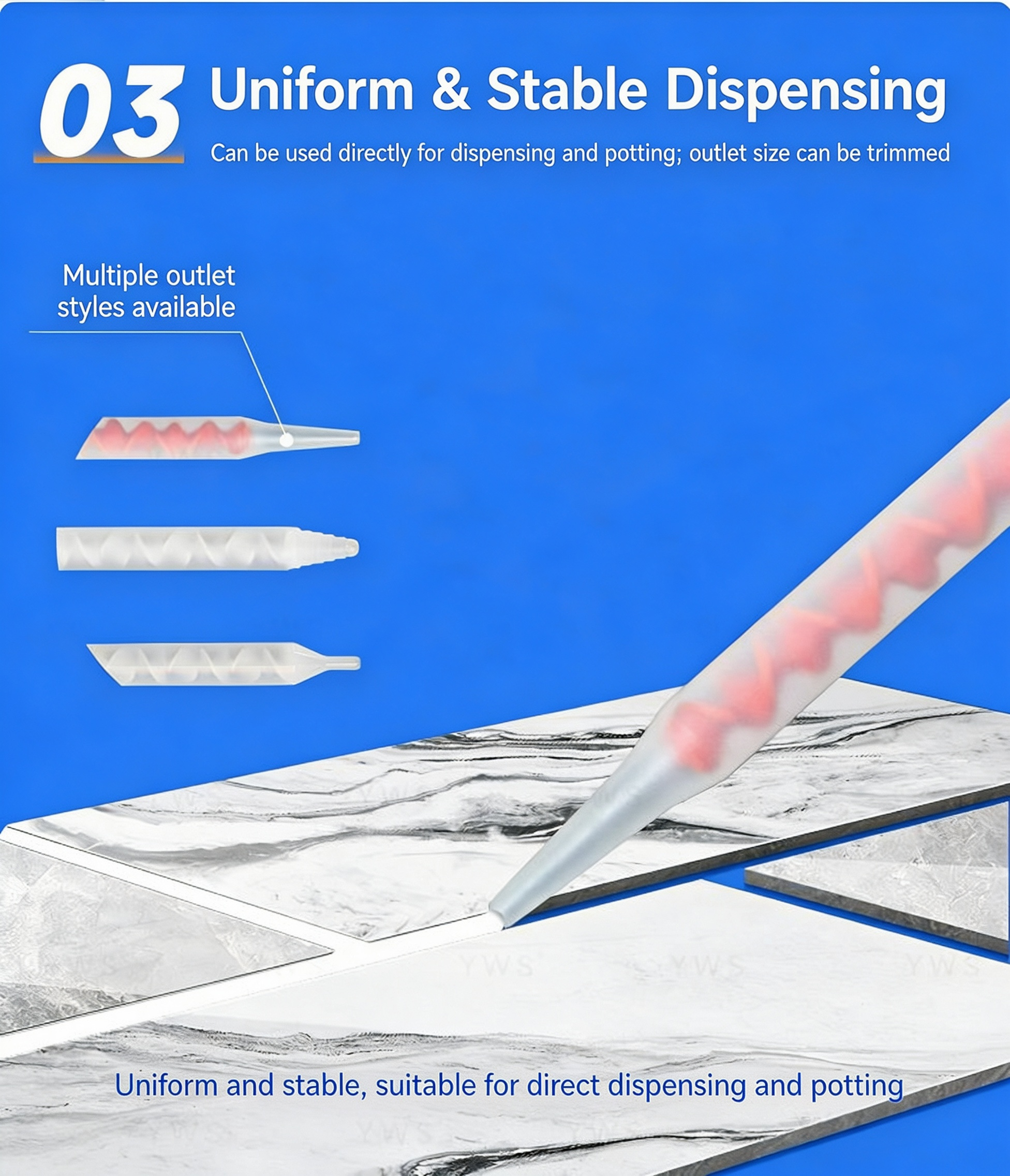

Multiple Outlet Configurations: Tapered conical (S), stepped (T) and luer lock (L) outlets, compatible with dispensing needles, tubing, valves and automated dispensing systems.
Wide Element Count Range: 12 to 36 mixing elements, suitable for low to ultra-high viscosity adhesives and different mixing ratio requirements.
Industrial-Grade PP Material: Made of high-quality polypropylene with excellent chemical resistance and pressure resistance, suitable for most two-component materials.
Color-Coded Identification: White, red, green, gold and black cores/caps for quick material, ratio and product line identification.
Disposable & Cost-Effective: Single-use design eliminates cleaning, avoids cross-contamination, and reduces labor cost and material waste.
OEM / ODM Supported: Custom inner diameters, element counts, outlet styles, colors and private labeling available for bulk orders.
Product Overview
C-Series static mixers are industrial-grade, high-flow dispensing components designed for large-volume two-component (AB) cartridges and high-viscosity adhesive systems. Available in round bell-mouth (CH), threaded round bayonet (CGH), square bayonet (CQ) and threaded square bayonet (CGQ) interfaces, they are compatible with 50ml, 200ml, 400ml and 600ml AB cartridges, as well as manual, pneumatic and automated dispensing equipment.
Featuring a precision forward-reverse spiral mixing core and a secure leak-free connection, C-Series mixers deliver consistent, homogeneous mixing of high-viscosity epoxy, structural adhesive, polyurethane, silicone sealant and potting compound. The series covers inner diameters from 5.0mm to 13.0mm, element counts from 12 to 36 sections, and multiple outlet styles to meet high-flow, high-viscosity and automated production requirements.
Widely used in structural bonding, electronic potting, curtain wall construction, automotive manufacturing, new energy battery assembly, photovoltaic production and composite material bonding.
Outlet Type Options
| Code | Outlet Style | Application |
|---|---|---|
| S | Angled Tapred | General dispensing, bead application, manual gluing |
| D | Straight Luer | Direct needle attachment, fine dispensing |
| L | Luer Spin | Secure needle connection, automated dispensing, higher pressure |
| T | Stepped Tip | High-flow bonding, potting, sealing |
| G | 1/8 Male Thread | Connection to dispensing valves, tubing and automated systems |
Custom colors, element counts and outlet styles available upon request

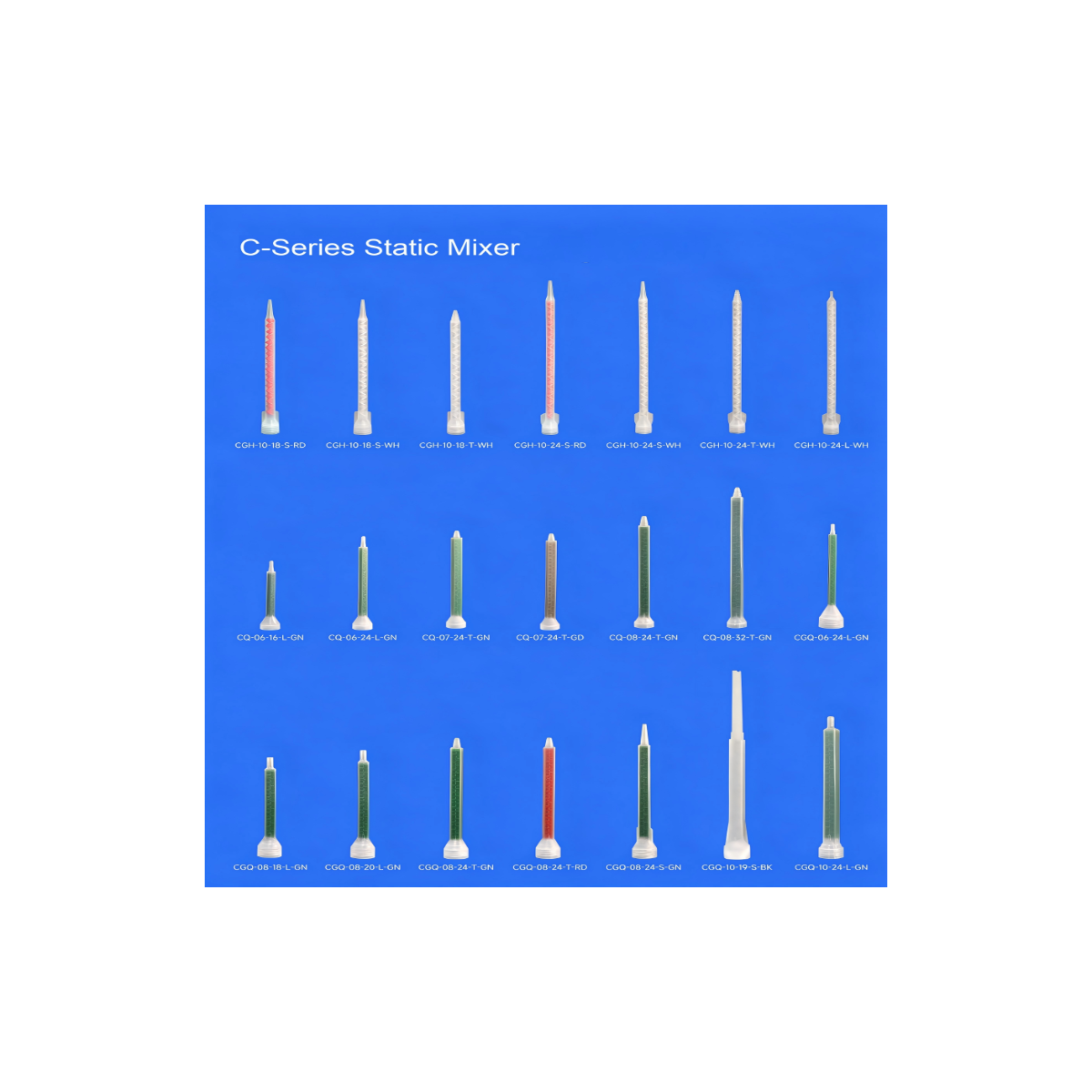

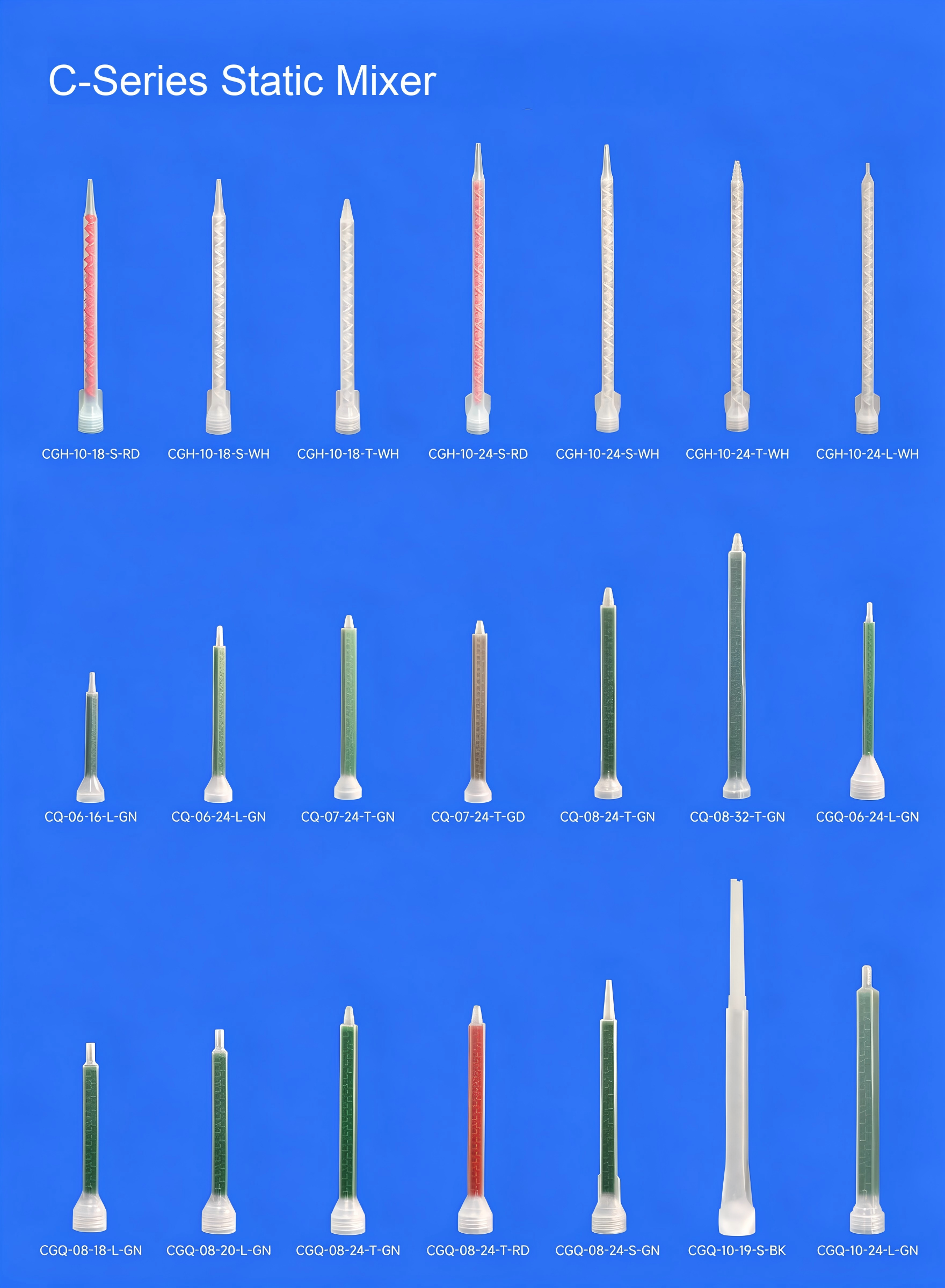

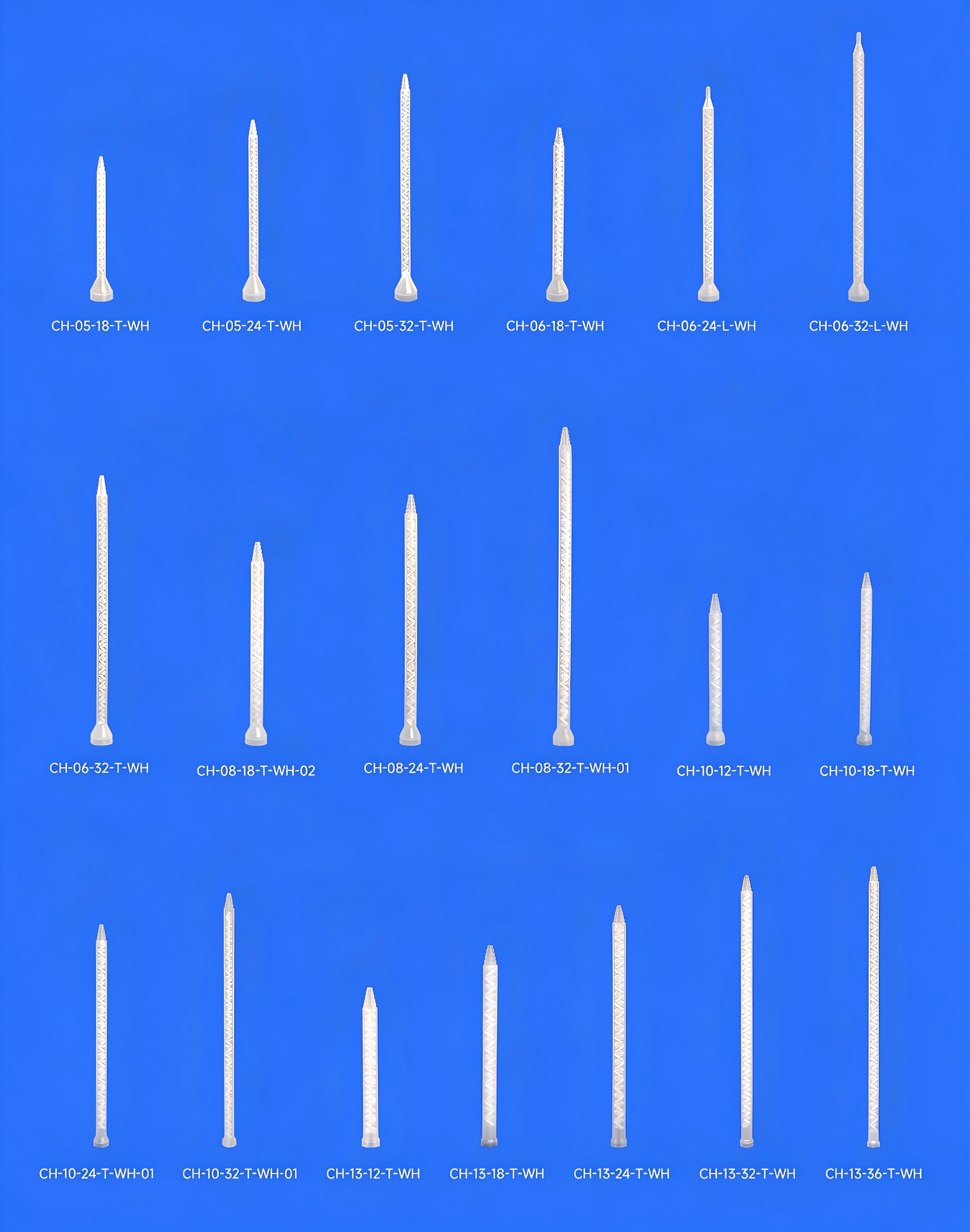

| Item Code | Model | Inner Diameter (mm) | Outer Diameter (mm) | Length (mm) | Outlet Diameter (mm) | Number of Mixing Elements | Outlet Type |
| 1050025 | CH-05-18-T-WH | 5 | 8 | 121 | 1.5 | 18 | T |
| 1050024 | CH-05-24-T-WH | 5 | 8 | 149 | 1.5 | 24 | T |
| 1050026 | CH-05-32-T-WH | 5 | 8 | 188 | 1.5 | 32 | T |
| 1050012 | CH-06-18-T-WH | 6.3 | 10 | 149 | 1.9 | 18 | T |
| 1050006 | CH-06-24-L-WH | 6.3 | 10 | 185 | 2 | 24 | L |
| 1050008 | CH-06-32-L-WH | 6.3 | 10 | 234 | 1.9 | 32 | L |
| 1050014 | CH-06-32-T-WH | 6.3 | 10 | 234 | 1.9 | 32 | T |
| 1050045 | CH-08-18-T-WH-02 | 8 | 12 | 177 | 2.4 | 18 | T |
| 1050017 | CH-08-24-T-WH | 8 | 12 | 223 | 2.4 | 24 | T |
| 1050016 | CH-08-32-T-WH-01 | 8 | 12 | 287 | 2.4 | 32 | T |
| 1050021 | CH-10-12-T-WH | 10 | 14 | 155 | 3 | 12 | T |
| 1050004 | CH-10-18-T-WH | 10 | 14 | 215 | 3 | 18 | T |
| 1050001 | CH-10-24-T-WH-01 | 10 | 14 | 276 | 3 | 24 | T |
| 1050007 | CH-10-32-T-WH-01 | 10 | 14 | 325 | 3 | 32 | T |
| 1050078 | CH-13-12-T-WH | 13 | 17 | 171 | 4 | 12 | T |
| 1050031 | CH-13-18-T-WH | 13 | 17 | 232 | 4 | 18 | T |
| 1050015 | CH-13-24-T-WH | 13 | 17 | 293 | 4 | 24 | T |
| 1050022 | CH-13-32-T-WH | 13 | 17 | 379 | 4 | 32 | T |
| 1050018 | CH-13-36-T-WH | 13 | 17 | 420 | 4 | 36 | T |
| 1050027 | CGH-10-18-S-RD | 10 | 13.63 | 241 | 1.77 | 18 | S |
| 1050043 | CGH-10-18-S-WH | 10 | 13.63 | 241 | 1.3 | 18 | S |
| 1050032 | CGH-10-18-T-WH | 10 | 13.63 | 241 | 2.88 | 18 | T |
| 1050039 | CGH-10-24-S-RD | 10 | 13.33 | 281 | 1.77 | 24 | S |
| 1050030 | CGH-10-24-S-WH | 10 | 13.26 | 298 | 2.55 | 24 | S |
| 1050034 | CGH-10-24-T-WH | 10 | 13.33 | 281 | 2.75 | 24 | T |
| 1050035 | CGH-10-24-L-WH | 10 | 13.38 | 282 | 2.1 | 24 | L |
| 1060017 | CQ-06-16-L-GN | 5.3 | 9.9 | 83 | 1.3 | 16 | L |
| 1060007 | CQ-06-24-L-GN | 5.3 | 9.9 | 127 | 1.9 | 24 | L |
| 1060018 | CQ-07-24-T-GN | 7.5 | 9.8 | 130 | 1.9 | 24 | T |
| 1060026 | CQ-07-24-T-GD | 7.5 | 9.8 | 130 | 1.9 | 24 | T |
| 1060019 | CQ-08-24-T-GN | 8.7 | 9.9 | 161 | 1.9 | 24 | T |
| 1060010 | CQ-08-32-T-GN | 8.7 | 9.9 | 186 | 1.9 | 32 | T |
| 1060015 | CGQ-06-24-L-GN | 6.3 | 9.9 | 138 | 1.7 | 24 | L |
| 1060031 | CGQ-08-18-L-GN | 7.8 | 11.3 | 240 | 1.4 | 18 | L |
| 1060032 | CGQ-08-20-L-GN | 7.8 | 16 | 293 | 4 | 20 | L |
| 1060020 | CGQ-08-24-T-GN | 8.7 | 11.58 | 161 | 1.7 | 24 | T |
| 1060024 | CGQ-08-24-T-RD | 8.7 | 11.58 | 161 | 1.7 | 24 | T |
| 1060013 | CGQ-08-24-S-GN | 8.7 | 11.58 | 147 | 1.2 | 24 | S |
| 1060029 | CGQ-10-19-S-BK | 10.89 | 13.1 | 138 | 1.7 | 19 | S |
| 1060030 | CGQ-10-24-L-GN | 11.01 | 14.12 | 150 | 1.3 | 24 | L |
How to Install & Use C-Series Static Mixer

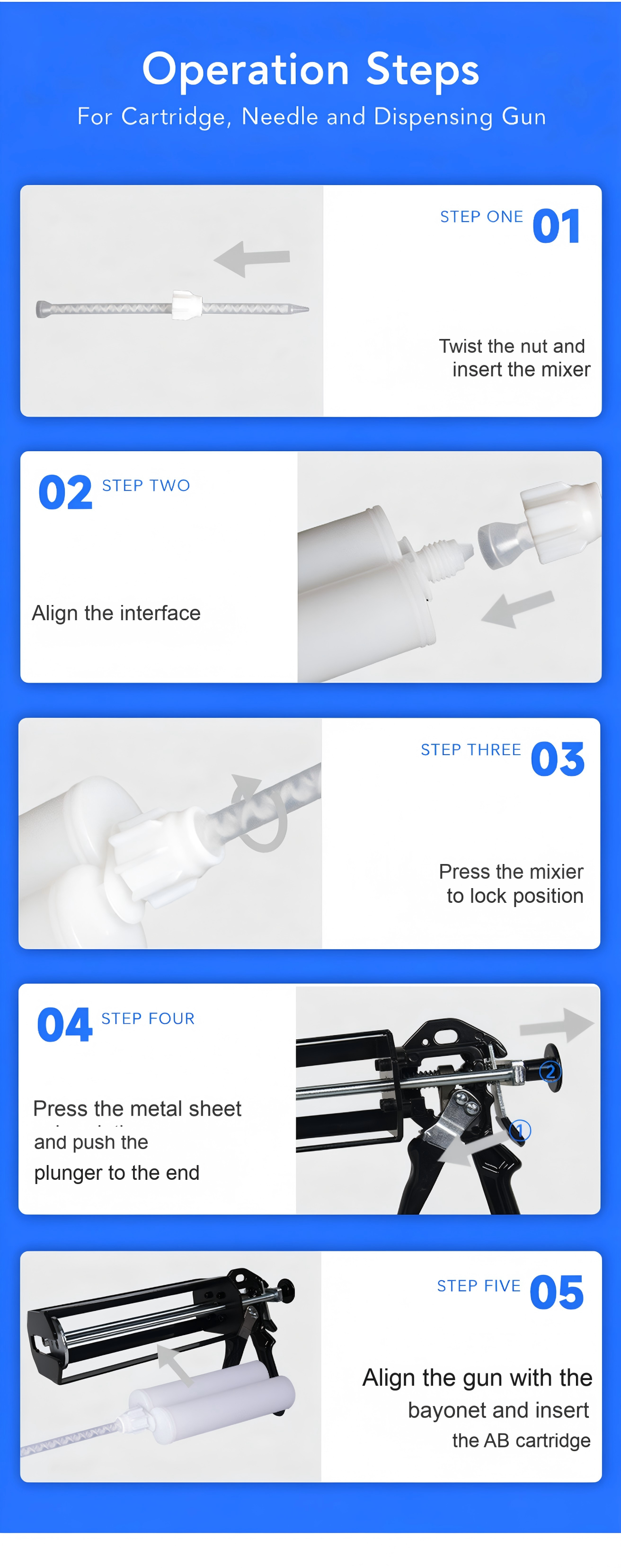

Prepare cartridge and gun: Load the large-volume AB cartridge into the dispensing gun and fully retract the plunger.
Remove cartridge seal: Remove the protective cap from the cartridge outlet.
Threaded type: unscrew the retaining nut: For CGH / CGQ threaded models, unscrew the locking nut from the cartridge outlet first, then slide it onto the mixing tube.
Align and attach the mixer: Align the bell-mouth / bayonet interface of the mixing tube with the cartridge outlet, ensuring the lugs match the slots.
Lock and tighten: Push the mixer firmly into place. For threaded models, screw the locking nut back onto the cartridge and tighten by hand to ensure a leak-free seal.
Load cartridge into gun: Insert the assembled cartridge into the dispensing gun and secure it in place.
Purge and dispense: Squeeze the gun trigger slowly to purge air and dispense a small amount until uniform adhesive flows out.
Attach needle (optional): If fine dispensing is required, attach a dispensing needle or connector to the mixer outlet.
After use: Remove the used mixing tube and replace with a new one for the next operation.
Important: Always test dispensing on a scrap surface first to confirm proper mixing ratio and flow. For high-viscosity materials, increase element count and reduce dispensing speed.
FAQ
Q1: What is the difference between A-Series, B-Series and C-Series mixing tubes?
A: The main differences are interface type, diameter and application:
A-Series: Single round bayonet, small diameter, for 50ml standard AB cartridges.
B-Series: Dual bayonet / square dual bayonet, small diameter, for 14–50ml B-series cartridges.
C-Series: Large-diameter bell-mouth / threaded, for 50–600ml large-volume cartridges, high-viscosity adhesives and high-flow dispensing. They are not interchangeable. Please confirm your cartridge interface and volume before ordering.
Q2: What cartridge sizes do C-Series mixers fit?
A: C-Series mixers are compatible with 50ml, 200ml, 400ml and 600ml large-volume AB cartridges with round bell-mouth, threaded round, square or threaded square interfaces. They are also compatible with most standard C-series manual and pneumatic dispensing guns.
Q3: How do I choose the right inner diameter and element count?
A:
Inner diameter: Match to your cartridge volume and adhesive viscosity.
5.0–6.3mm: 50–200ml cartridges, medium viscosity.
8.0–10.0mm: 200–400ml cartridges, high viscosity, structural adhesive.
13.0mm: 400–600ml cartridges, ultra-high viscosity, potting compound.
Element count: More elements = more thorough mixing but higher back pressure.
12–18 elements: Low-medium viscosity, general bonding.
20–24 elements: High viscosity, structural adhesive, potting.
32–36 elements: Ultra-high viscosity, critical ratio, automated dispensing.
Q4: Are these mixing tubes reusable?
A: No. C-Series static mixing tubes are designed for single use to avoid cross-contamination and cured adhesive blockage. Reusing will cause poor mixing, clogging and inconsistent dispensing results, especially with high-viscosity materials.
Q5: Which interface should I choose: bell-mouth or threaded？
A:
Bell-mouth (CH/CQ): Quick snap-fit, for standard large round cartridges, manual dispensing.
Threaded (CGH / CGQ): Secure locking, for high-pressure dispensing, automated production lines, high-viscosity materials.
Q7: What adhesives are these mixers compatible with?
A: They work with most two-component materials including epoxy resin, structural adhesive, polyurethane, silicone sealant, acrylic adhesive, UV adhesive, potting compound and gap filler.
Q8: Do you offer custom sizes, colors or private labeling?
A: Yes. We support OEM / ODM including custom inner diameters, element counts, outlet styles, core colors, packaging and private branding. Contact us for MOQ and lead time.
Send Your Inquiry NowAutomotive & Transportation: Body panel bonding, interior assembly, windshield sealing, structural reinforcement, EV battery manufacturing.
Construction & Building: Curtain wall bonding, stone anchoring, joint sealing, structural glazing, waterproofing, reinforcement.
Electronics & Electrical: PCB potting, connector encapsulation, wire bonding, sensor sealing, power electronics assembly.
New Energy: Solar panel assembly, energy storage potting, battery pack sealing, module bonding.
Aerospace & Defense: Composite bonding, panel assembly, sealant application, precision potting.
General Industrial: Molding, casting, encapsulation, hardware assembly, manual and automated dispensing production lines.
Home Appliance & Hardware: Plastic bonding, magnet assembly, filter sealing, appliance manufacturing.
Maintenance & Repair: Industrial repair, DIY bonding, on-site construction and installation.
